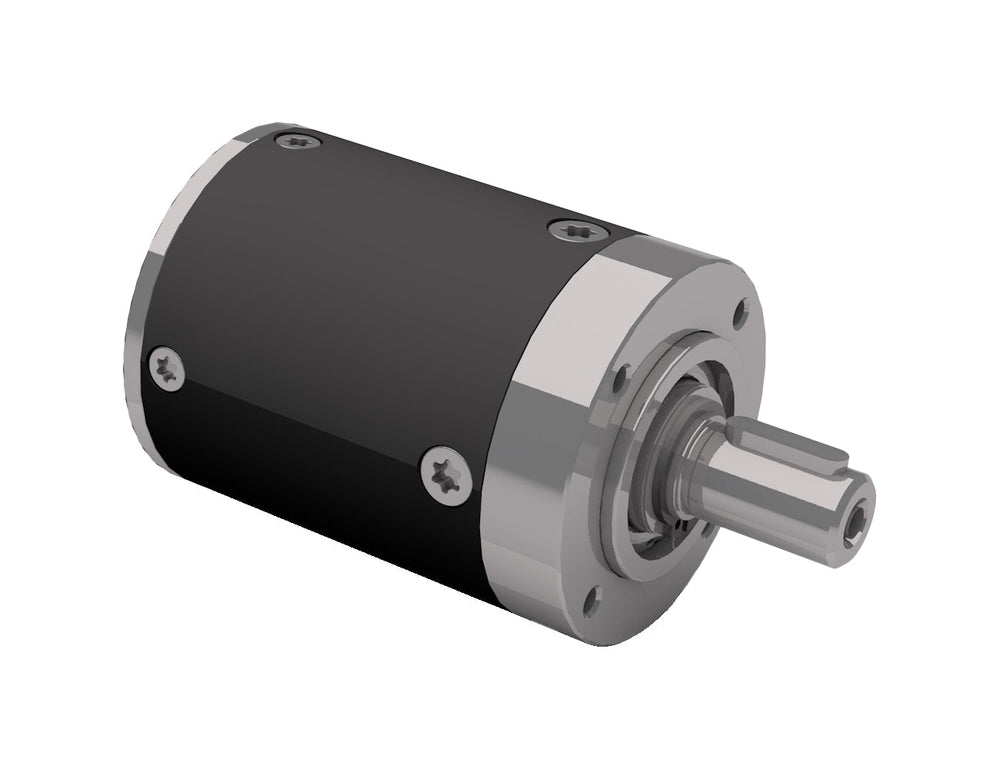

Dunkermoteren PLG63HT Series Planetary Gearbox
The Dunkermotoren PLG 63 HT Series Planetary Gearbox is a high-torque, industry-grade solution designed for demanding motion control applications where strength, reliability, and compact integration are key. With a hardened steel ring gear and high-efficiency gear design, the PLG 63 HT is engineered for smooth operation and long-lasting performa...
Read MoreThe Dunkermotoren PLG 63 HT Series Planetary Gearbox is a high-torque, industry-grade solution designed for demanding motion control applications where strength, reliability, and compact integration are key. With a hardened steel ring gear and high-efficiency gear design, the PLG 63 HT is engineered for smooth operation and long-lasting performance in automation, robotics, mobile equipment, and heavy industrial systems.
Available in 1-, 2-, and 3-stage configurations, this gearbox supports a broad range of reduction ratios from 3:1 to 350:1. It delivers continuous torque output up to 58 Nm and peak acceleration torque up to 88 Nm. Emergency stop torque ratings reach 169 Nm, ensuring robust performance in dynamic applications.
Featuring IP65 protection (excluding the output shaft when used with BG 66 motors), the PLG 63 HT is built to withstand harsh environments. The double ball-bearing output shaft enables axial and radial loads of up to 800 N, while a maximum backlash as low as 29 arcmin ensures excellent positioning accuracy.
With up to 90% mechanical efficiency in single-stage versions, lifetime lubrication, and compatibility with both S1 (continuous) and S8 (cyclical) duty cycles, the PLG 63 HT offers long service life with minimal maintenance.
This gearbox is an ideal choice for compact drive systems requiring high torque, long durability, and industrial-grade reliability.
Show Less
Features
- High Torque Capacity: Delivers up to 58 Nm of continuous torque and 88 Nm for acceleration, with emergency stop torque rated up to 169 Nm, ideal for high-load drive systems.
- Wide Reduction Ratio Range: Supports gear ratios from 3:1 to 350:1 in 1-, 2-, and 3-stage configurations, offering excellent flexibility for speed and torque optimisation.
- Industrial-Grade Durability: Built with a hardened steel ring gear and precision-machined internals for long service life in rugged industrial and mobile applications.
- High Load Tolerance: Double ball-bearing supported output shaft withstands axial and radial loads up to 800 N, ensuring stability under continuous mechanical stress.
- IP65 Environmental Protection: Sealed to IP65 (excluding shaft when combined with BG 66), making it suitable for dusty or wet environments without compromising performance.
- Maintenance-Free Operation: Factory-filled with lifetime lubrication and rated for both continuous (S1) and cyclical (S8) duty modes, minimising downtime and servicing needs.
Specifications
| PLG63HT Specifications |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Reduction Ratio* | - | 3 | 4 | 7 | 10 | 13.56 | 16.8 | 29.4 | 35 | 42 | 50 |
| Efficiency | % | 90 | 81 | ||||||||
| Number of Stages | - | 1 | 2 | ||||||||
| Continous Torque | Nm | 10 | 15 | 25 | 58 | ||||||
| Acceleration torque ** | Nm | 20 | 30 | 50 | 70 | ||||||
| Emergency stop torque | Nm | 30 | 45 | 75 | 169 | ||||||
| Operating mode | - | S1 / S8 | |||||||||
| Max. backlash | arcmin | 35 | 34 | 38 | 39 | 33 | 30 | 31 | 32 | 32 | 33 |
| Weight of Gearbox | kg | 0.8 | 1.3 | ||||||||
| Axial Load / Radial Load | N | 800 / 800 | 800 / 800 | ||||||||
| PLG63HT Specifications |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 70.56 | 84 | 100 | 147 | 175 | 210 | 250 | 350 |
| Efficiency | % | 73 | |||||||
| Number of Stages | - | 3 | |||||||
| Continuous Torque | Nm | 58 | |||||||
| Acceleration torque ** | Nm | 88 | |||||||
| Emergency stop torque | Nm | 169 | |||||||
| Operating mode | - | S1 / S8 | |||||||
| Max. backlash | arcmin | 29 | 30 | 31 | 30 | 31 | 30 | 31 | 31 |
| Weight of Gearbox | kg | 1.9 | |||||||
| Axial Load / Radial Load | N | 800 / 800 | |||||||
| ** Acceleration torque for max. 1 second | |||||||||
