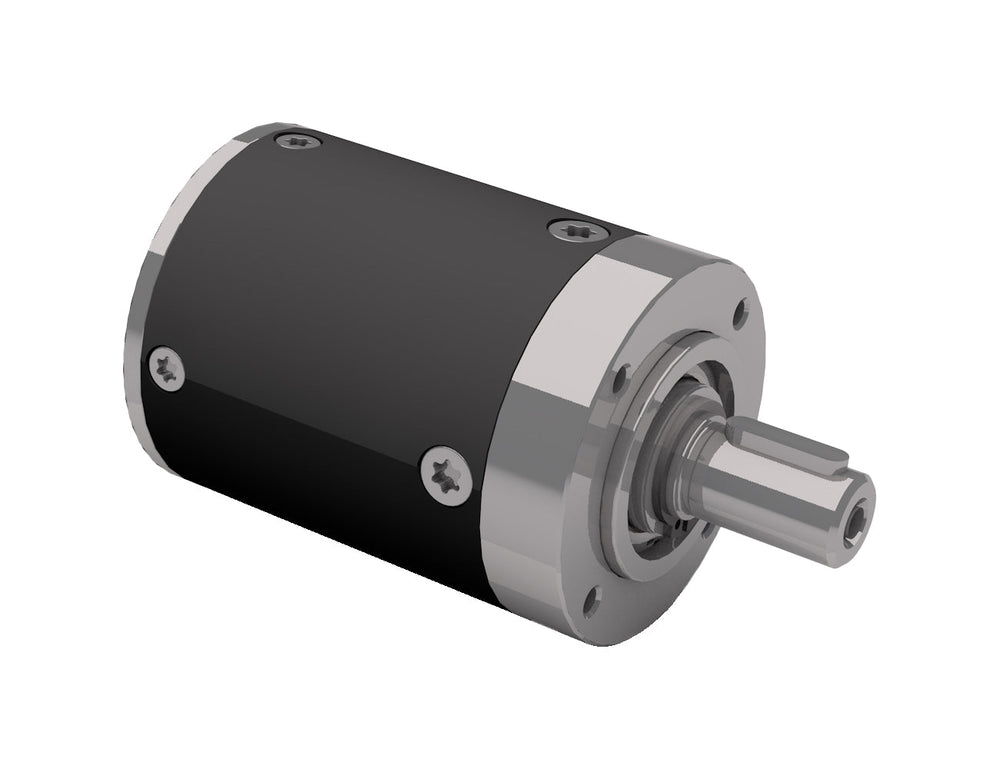

Dunkermoteren PLG63EP Series Planetary Gearbox
The Dunkermotoren PLG 63 EP Series Planetary Gearbox is a precision-engineered, high-performance drive solution built for applications demanding quiet operation, compact design, and high torque capacity. Featuring a hardened steel ring gear and a helical input stage, this gearbox is ideal for industrial automation, robotics, medical equipment, a...
Read MoreThe Dunkermotoren PLG 63 EP Series Planetary Gearbox is a precision-engineered, high-performance drive solution built for applications demanding quiet operation, compact design, and high torque capacity. Featuring a hardened steel ring gear and a helical input stage, this gearbox is ideal for industrial automation, robotics, medical equipment, and smart motion systems.
Available in 1-, 2-, and 3-stage configurations, the PLG 63 EP offers a wide range of reduction ratios from 3:1 to 507.5:1, supporting continuous torque up to 58 Nm and acceleration torque up to 88 Nm. The use of helical gearing in the first stage minimises vibration and noise, while the double ball-bearing output shaft delivers excellent radial (up to 800 N) and axial (up to 500 N) load capacity.
Built for long service life and reliable performance, the gearbox includes lifetime lubrication and supports both S1 (continuous) and S8 (cyclical) duty cycles. Its mechanical efficiency reaches up to 90% in single-stage versions. Optional configurations include food-grade lubrication, low-temperature grease, and IP50 protection for enhanced environmental resilience.
The PLG 63 EP is the ideal gearbox for demanding drive tasks requiring precision, durability, and maintenance-free operation in compact, high-load systems.
Show Less
Features
- Wide Reduction Ratio Flexibility: Offers gear ratios from 3:1 to 507.5:1 across 1-, 2-, and 3-stage versions, allowing precise torque and speed control in a broad range of applications.
- High Torque Performance: Delivers up to 58 Nm of continuous torque and 88 Nm for dynamic acceleration—ideal for heavy-duty industrial automation and robotics.
- Helical Input for Quiet Operation: The first stage features helical gearing to minimise noise and vibration, ensuring smooth, low-noise performance in noise-sensitive environments.
- Strong Load Handling Capacity: Supports up to 800 N radial and 800 N axial loads thanks to double ball-bearing output support—engineered for high-stress applications.
- Maintenance-Free Reliability: Factory-filled with lifetime lubrication for up to 20,000 operating hours, offering dependable performance without ongoing maintenance.
- Built for Demanding Duty Cycles: Rated for both S1 (continuous) and S8 (cyclical) operation, making it suitable for dynamic motion profiles in precision-driven systems.
Specifications
| PLG63EP Specifications |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 3 | 4 | 7 | 10 | 14.5 | 16.8 | 29.4 | 35 | 42 | 50 | 60.9 |
| Efficiency | % | 90 | 81 | |||||||||
| Number of Stages | - | 1 | 2 | |||||||||
| Continuous Torque | Nm | 4 | 5 | 5 | 4 | 1.2 | 19 | 19 | 22 | 15 | 18 | 4.5 |
| Acceleration torque* | Nm | 8 | 10 | 10 | 8 | 2.4 | 38 | 38 | 45 | 30 | 36 | 10 |
| Emergency stop torque | Nm | 15 | 15 | 12 | 11 | 9 | 60 | 45 | 54 | 40 | 50 | 34 |
| Operating mode | - | S1 / S8 | ||||||||||
| Max. backlash | arcmin | 35 | 34 | 38 | 39 | 41 | 30 | 31 | 32 | 32 | 33 | 32 |
| Weight of Gearbox | kg | 0.7 | 1.2 | |||||||||
| Axial load/ radial load (middle of key) | N | 800 / 800 | 800 / 800 | |||||||||
| PLG63EP Specifications |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 70.56 | 84 | 100 | 147 | 175 | 210 | 250 | 304.5 | 350 | 362.5 | 426.3 | 507.5 |
| Efficiency | % | 73 | |||||||||||
| Number of Stages | - | 3 | |||||||||||
| Continuous Torque | Nm | 58 | 20 | 58 | 24 | 28 | 34 | ||||||
| Acceleration torque* | Nm | 88 | 88 | 86 | 88 | 86 | 88 | 86 | 44 | 86 | 52 | 60 | 70 |
| Emergency stop torque | Nm | 142 | |||||||||||
| Operating mode | - | S1 / S8 | |||||||||||
| Max. backlash | arcmin | 29 | 30 | 31 | 30 | 31 | 30 | 31 | 30 | 31 | 31 | 29 | 31 |
| Weight of Gearbox | kg | 1.8 | |||||||||||
| Axial load/ radial load (middle of key) | N | 800 / 800 | |||||||||||
| * Acceleration torque for max. 1 second | |||||||||||||
