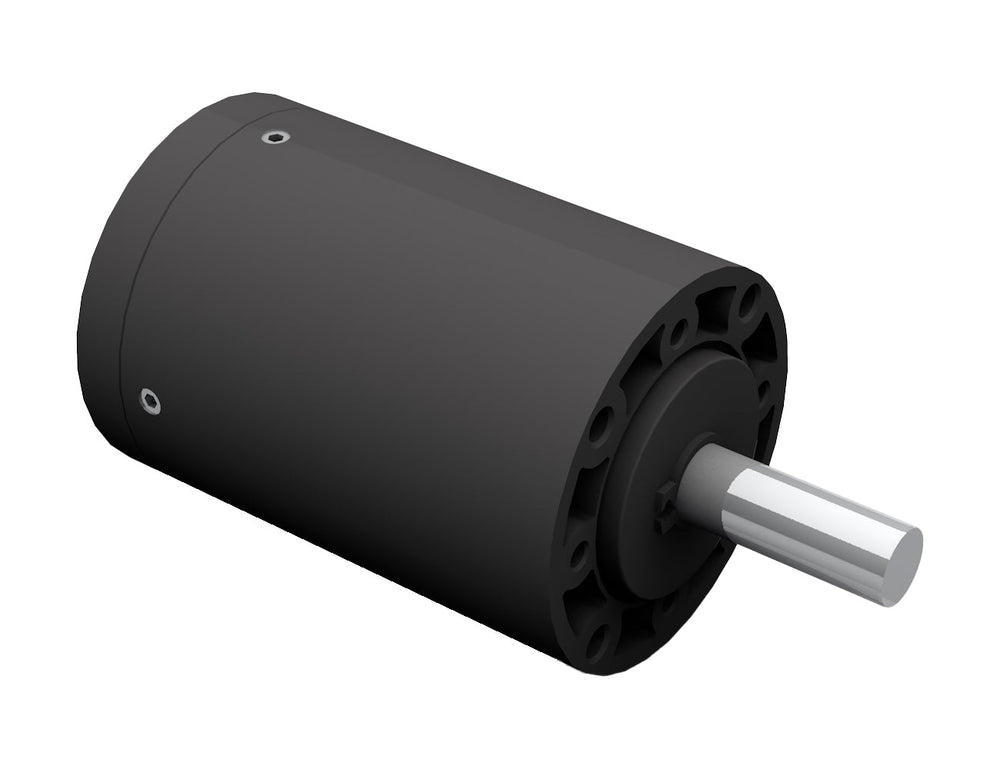

Dunkermoteren PLG42K Series Planetary Gearbox
The Dunkermotoren PLG 42K Series Planetary Gearbox is a compact, high-efficiency gear solution designed for precision applications that demand reliable torque transmission in a small form factor. With reduction ratios from 4:1 up to 512:1 and continuous torque capabilities reaching 3 Nm, this gearbox is ideal for robotics, medical devices, and l...
Read MoreThe Dunkermotoren PLG 42K Series Planetary Gearbox is a compact, high-efficiency gear solution designed for precision applications that demand reliable torque transmission in a small form factor. With reduction ratios from 4:1 up to 512:1 and continuous torque capabilities reaching 3 Nm, this gearbox is ideal for robotics, medical devices, and light industrial automation.
Key features include high operating efficiency, up to 90% in single-stage configurations and straight-toothed gear stages for smooth and consistent performance. The PLG 42K features a double ball bearing-supported output shaft for increased durability and load handling, with axial loads up to 150 N and radial loads up to 230 N. The plastic ring gear construction allows for reduced weight without sacrificing performance, making it well-suited to compact installations.
Available in 1-, 2-, or 3-stage versions, the PLG 42K Series is designed for maintenance-free operation with lifetime lubrication. Its IP50 protection rating and robust vibration resistance further support long-term use in controlled environments.
For compact, precise, and efficient drive solutions, the Dunkermotoren PLG 42K Series Planetary Gearbox delivers exceptional value in motion control and automation systems.
Show Less
Features
- Compact, High-Efficiency Design: Delivers up to 3 Nm of continuous torque with up to 90% efficiency in single-stage modelsperfect for space-constrained automation systems.
- Wide Range of Gear Ratios: Available in 1-, 2-, and 3-stage configurations with reduction ratios from 4:1 to 512:1, offering flexibility for speed-torque optimisation.
- Dual Ball Bearing Support: Output shaft is supported by double ball bearings, ensuring smooth operation and extended service life under axial and radial loads.
- Lightweight Yet Durable Build: Features a high-performance plastic ring gear for weight reduction without compromising strength or long-term performance.
- Maintenance-Free Operation: Factory-lubricated for life and designed for quiet, reliable performanceno routine maintenance required.
- High Load Handling Capability: Supports axial loads up to 150 N and radial loads up to 230 N, making it ideal for dynamic and precision-driven motion systems.
Specifications
| PLG42K Specifications |
||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 4 | 6.25 | 8 | 16 | 25 | 32 | 50 | 64 | 100 | 128 | 156.25 | 200 | 256 | 312.5 | 400 | 512 | |
| Efficiency | % | 90 | 81 | 73 | ||||||||||||||
| Number of Stages | - | 1 | 2 | 3 | ||||||||||||||
| Continous Torque | Nm | 0.7 | 1.3 | 3 | ||||||||||||||
| Weight of Gearbox | kg | 0.16 | 0.20 | 0.25 | ||||||||||||||
| Axial Load / Radial Load* | N | 150 / 230 | 150 / 230 | 150 / 230 | ||||||||||||||
| * From center of shaft | ||||||||||||||||||
