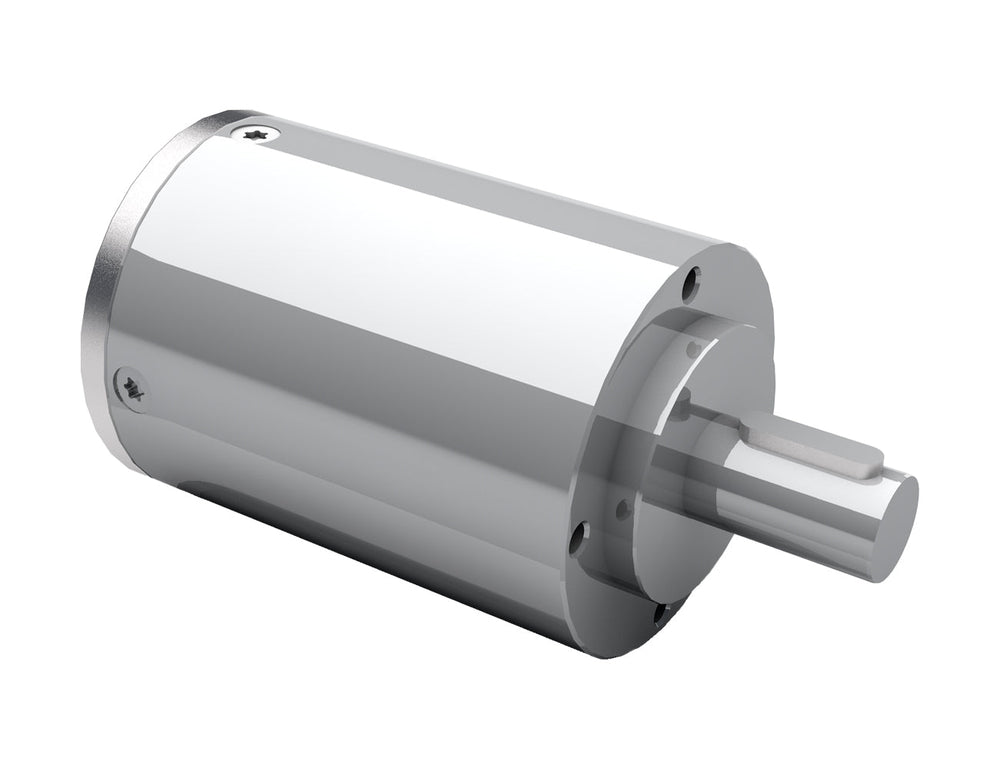

Dunkermoteren PLG60 Series Planetary Gearbox
The Dunkermotoren PLG 60 Series Planetary Gearbox is a compact, high-efficiency solution engineered for low-noise, high-torque applications across industrial automation, robotics, and medical equipment. With reduction ratios ranging from 3:1 to 70:1 and continuous torque capabilities up to 25 Nm, this gearbox delivers reliable and quiet performa...
Read MoreThe Dunkermotoren PLG 60 Series Planetary Gearbox is a compact, high-efficiency solution engineered for low-noise, high-torque applications across industrial automation, robotics, and medical equipment. With reduction ratios ranging from 3:1 to 70:1 and continuous torque capabilities up to 25 Nm, this gearbox delivers reliable and quiet performance in demanding drive systems.
Featuring non-metallic helical gears in the first and second stages, the PLG 60 provides ultra-smooth, low-vibration operation. The internal build combines a steel sun gear, lightweight aluminium ring gear, and dual ball bearings on the output shaft for robust mechanical support and extended service life. Available in 1- and 2-stage configurations, it achieves high transmission efficiency—up to 90% in single-stage versions.
The PLG 60 supports axial loads up to 500 N and radial loads up to 350 N, making it a solid choice for compact systems under continuous load. Lifetime lubrication ensures maintenance-free operation, while optional versions with food-grade or low-temperature grease enable use in specialised environments.
For precision motion control in compact spaces, the PLG 60 Series offers quiet, dependable, and long-lasting performance.
Show Less
Features
- Quiet, Low-Vibration Performance: Equipped with non-metallic helical gears in the first and second stages to deliver smooth, quiet operation, ideal for noise-sensitive applications.
- Flexible Reduction Ratios: Offers gear ratios from 3:1 to 70:1 in 1- or 2-stage configurations, allowing precise torque-speed adjustments across a variety of systems.
- Durable Mixed-Material Construction: Features a steel sun gear and aluminium ring gear for an ideal balance of strength, weight reduction, and long service life.
- High Load Capacity: Handles axial loads up to 500 N and radial loads up to 350 N thanks to a dual ball-bearing supported output shaft, built for consistent mechanical stability.
- High Efficiency Operation: Achieves up to 90% efficiency in single-stage versions, maximising energy use while maintaining reliable torque transmission.
- Maintenance-Free Reliability: Factory-filled with lifetime lubrication and available with optional food-grade or low-temperature grease for specialised operating environments.
Specifications
| PLG60 Specifications |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 3 | 4 | 7 | 10 | 12 | 16 | 21 | 30 | 40 | 49 | 70 |
| Efficiency | % | 0.9 | 0.81 | |||||||||
| Number of Stages | - | 1 | 2 | |||||||||
| Continous Torque | Nm | 5 | 4 | 14 | 18 | 14 | 14 | 18 | 24 | 25 | ||
| Acceleration torque * | Nm | 7.5 | 6 | 21 | 27 | 21 | 21 | 27 | 36 | 37.5 | ||
| Emergency stop torque | Nm | 10 | 8 | 28 | 36 | 28 | 28 | 36 | 48 | 50 | ||
| Operating mode | - | S1 / S8 | ||||||||||
| Weight of Gearbox | kg | 0.55 | 0.78 | |||||||||
| Axial Load / Radial Load | N | 500 / 350 | 500 / 350 | |||||||||
| *Acceleration torque for 1% of the cycle | ||||||||||||
