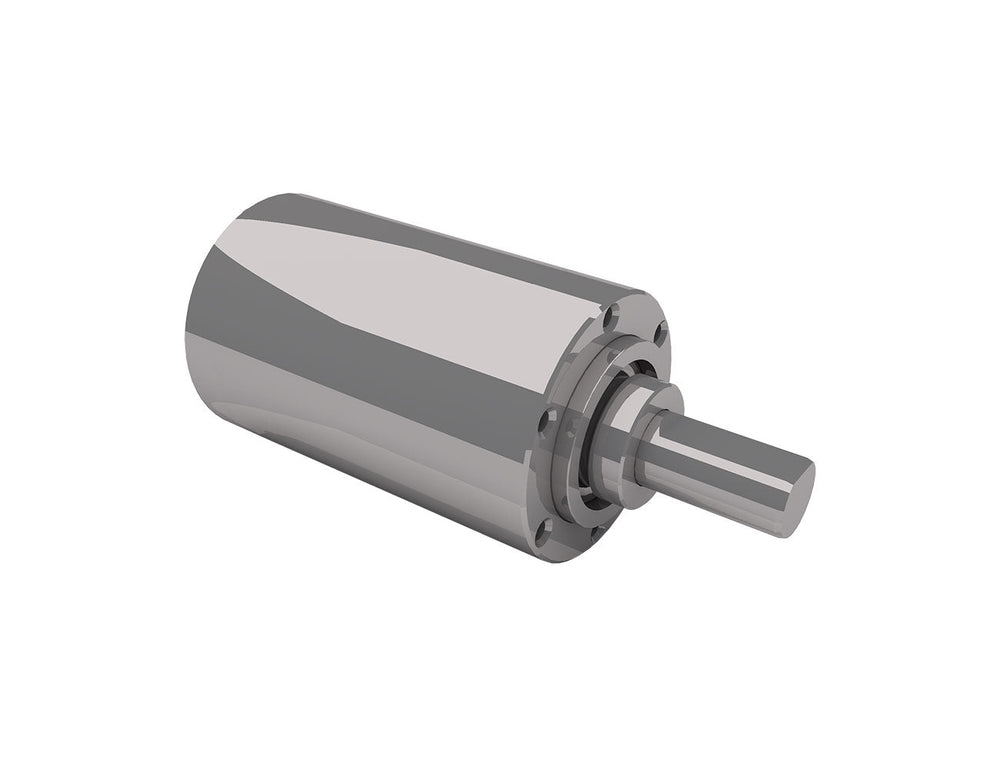

Dunkermoteren PLG 22 HT Series Planetary Gearbox
The Dunkermotoren PLG 22 HT Series Planetary Gearbox is a compact and high-torque transmission solution, engineered for applications that require precise, efficient, and space-saving power transmission. With a robust steel gear design and multiple reduction ratios up to 3188:1, this gearbox is ideal for robotics, automation, and medical equipmen...
Read MoreThe Dunkermotoren PLG 22 HT Series Planetary Gearbox is a compact and high-torque transmission solution, engineered for applications that require precise, efficient, and space-saving power transmission. With a robust steel gear design and multiple reduction ratios up to 3188:1, this gearbox is ideal for robotics, automation, and medical equipment.
Key features include high torque output in a small form factor, with continuous torque ratings up to 2.10 Nm and acceleration torque up to 2.30 Nm. The PLG 22 HT is available in 1 to 5-stage versions, offering a wide range of reduction ratios from 3.75:1 to 3188.65:1. Optional low-backlash configurations are available for applications demanding enhanced positional accuracy.
Designed for reliability, the gearbox features lifetime lubrication and supports axial loads up to 45 N and radial loads up to 135 N (on 6 mm shaft). It operates under S1/S8 duty cycles and maintains high efficiency, even at higher reduction ratios. The IP52 protection rating and optional food-grade or low-temperature lubrication options make it suitable for diverse environments.
For compact installations requiring high torque and durability, the Dunkermotoren PLG 22 HT Series Planetary Gearbox delivers exceptional performance and integration flexibility.
Show Less
Features
- Compact High-Torque Design: Engineered for tight spaces without compromising performance, the PLG 22 HT delivers continuous torque up to 2.10 Nm and peak acceleration torque up to 2.30 Nm in a compact housing.
- Wide Reduction Ratio Range: Available in 1 to 5-stage configurations, the gearbox offers an extensive range of reduction ratios from 3.75:1 to 3188.65:1, making it suitable for everything from high-speed automation to low-speed precision control.
- Steel Planetary Gears: Built for durability and strength, the PLG 22 HT uses hardened steel planetary gears for increased wear resistance and long service life under continuous or dynamic loads.
- Optional Low-Backlash Version: For precision-critical applications, a low-backlash variant is available on request—ideal for positioning tasks in robotics, optical systems, and CNC machinery.
- Versatile Mounting and Shaft Options: Supports both 4 mm and 6 mm shaft diameters (up to 3-stage), with axial and radial load capacities up to 45 N and 135 N respectively, offering flexible integration into your mechanical system.
- Maintenance-Free Operation: Pre-lubricated for life, the PLG 22 HT is designed for maintenance-free operation, with optional food-grade and low-temperature lubrication options for specialised environments.
Specifications
| PLG30* Specifications |
|||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 3.75 | 5.40 | 14.06 | 20.25 | 29.16 | 52.73 | 75.94 | 109.35 | 197.75 | 284.77 | 410.06 | 590.49 | 741.58 | 1067.87 | 1537.73 | 2214.34 | 3188.65 | |
| Efficiency | % | 84 | 77 | 68 | 61 | 53 | |||||||||||||
| Number of Stages | - | 1 | 2 | 3 | 4 | 5 | |||||||||||||
| Continous Torque* | Nm | 0.25 | 0.70 | 1.50 | 1.80 | 2.10 | 1.80 | ||||||||||||
| Acceleration torque* | Nm | 0.28 | 0.35 | 0.95 | 1.00 | 0.90 | 1.85 | 1.70 | 2.20 | 2.00 | 2.30 | 2.10 | |||||||
| Emergency stop torque* | Nm | 1.00 | 3.00 | 3.80 | |||||||||||||||
| Operating mode | - | S1 / S8 | |||||||||||||||||
| Max. backlash | arcmin | 96 | 114 | 120 | |||||||||||||||
| Weight of Gearbox | kg | 0.06 | 0.08 | 0.10 | 0.12 | 0.14 | |||||||||||||
| Axial Load / Radial Load** | N | 45/135 (6 mm shaft) 16/48 (4 mm shaft) | |||||||||||||||||
| * Only for 6 mm shaft/ * Nur für 6 mm Welle ** 10 mm off mounting surface/ ** 10 mm von der Montagefläche entfernt | |||||||||||||||||||
