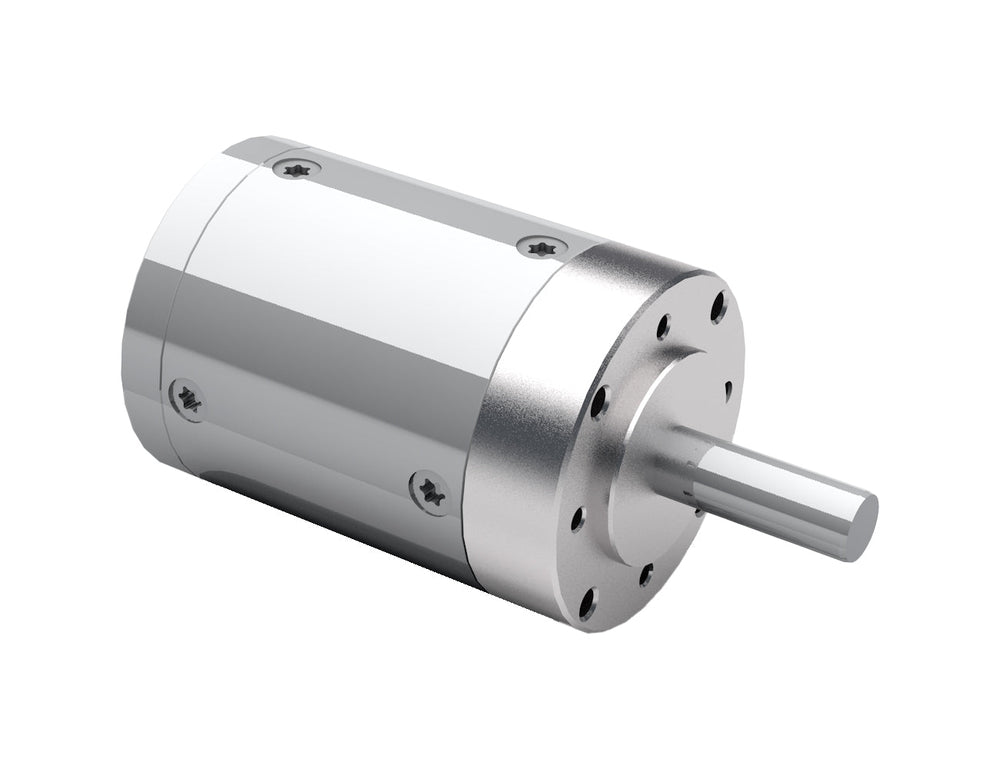

Dunkermoteren PLG42S Series Planetary Gearbox
The Dunkermotoren PLG 42S Series Planetary Gearbox is a compact, high-performance gear solution designed for precision applications requiring consistent torque delivery and long-term reliability. With reduction ratios ranging from 4:1 to 512:1 and continuous torque handling up to 14 Nm, this steel ring-gear gearbox is ideal for robotics, medical...
Read MoreThe Dunkermotoren PLG 42S Series Planetary Gearbox is a compact, high-performance gear solution designed for precision applications requiring consistent torque delivery and long-term reliability. With reduction ratios ranging from 4:1 to 512:1 and continuous torque handling up to 14 Nm, this steel ring-gear gearbox is ideal for robotics, medical devices, and industrial automation systems.
Key features include straight-toothed gearing across all stages for smoother operation, an output shaft supported by dual ball bearings for increased load capacity, and lifetime lubrication for maintenance-free use. The PLG 42S is available in 1-, 2-, and 3-stage configurations, enabling flexible adaptation to speed and torque requirements while delivering high efficiency—up to 90% in single-stage versions.
With axial and radial load capacity rated at 150 N and 250 N respectively (measured from the shaft center), the PLG 42S gearbox is designed to perform reliably under demanding load conditions. Its IP50 protection rating and optional configurations, including food-grade and low-temperature lubrication, further support operation in diverse environments.
For engineers and OEMs seeking robust, space-saving gear solutions with high torque density, the PLG 42S Series offers an ideal balance of strength, precision, and durability.
Show Less
Features
- High Torque Capacity in Compact Size: Delivers continuous torque up to 14 Nm in a compact housing—perfect for applications with space constraints and high torque demands.
- All-Steel Ring Gear Construction: Designed with a hardened steel ring gear and steel planetary components for maximum strength, durability, and extended service life.
- Versatile Gear Ratio Range: Available with reduction ratios from 4:1 to 512:1 across 1-, 2-, and 3-stage configurations, enabling precise speed and torque adjustment.
- Dual Ball Bearing Support: The output shaft is supported by two ball bearings, enhancing stability and allowing for higher radial and axial loads.
- Maintenance-Free Operation: Pre-lubricated for life with optional food-grade and low-temperature lubricants—ensuring quiet and reliable operation without the need for servicing.
- High Load Handling Capability: Supports up to 150 N axial load and 250 N radial load, making it suitable for demanding industrial and automation environments.
Specifications
| PLG42S Specifications |
|||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 2 | 6.25 | 8 | 16 | 25 | 32 | 50 | 64 | 100 | 128 | 156.25 | 200 | 256 | 312.5 | 400 | 512 |
| Efficiency | % | 90 | 81 | 73 | |||||||||||||
| Number of Stages | - | 1 | 2 | 3 | |||||||||||||
| Continous Torque | Nm | up tp 0.7 (no metallic, planet gears) / 3.5 | Up tp 6 | Up to 14 | |||||||||||||
| Weight of Gearbox | kg | 0.27 | 0.37 | 0.47 | |||||||||||||
| Axial Load / Radial Load* | N | 150 / 250 | 150 / 250 | 150 / 250 | |||||||||||||
| * From center of shaft | |||||||||||||||||
