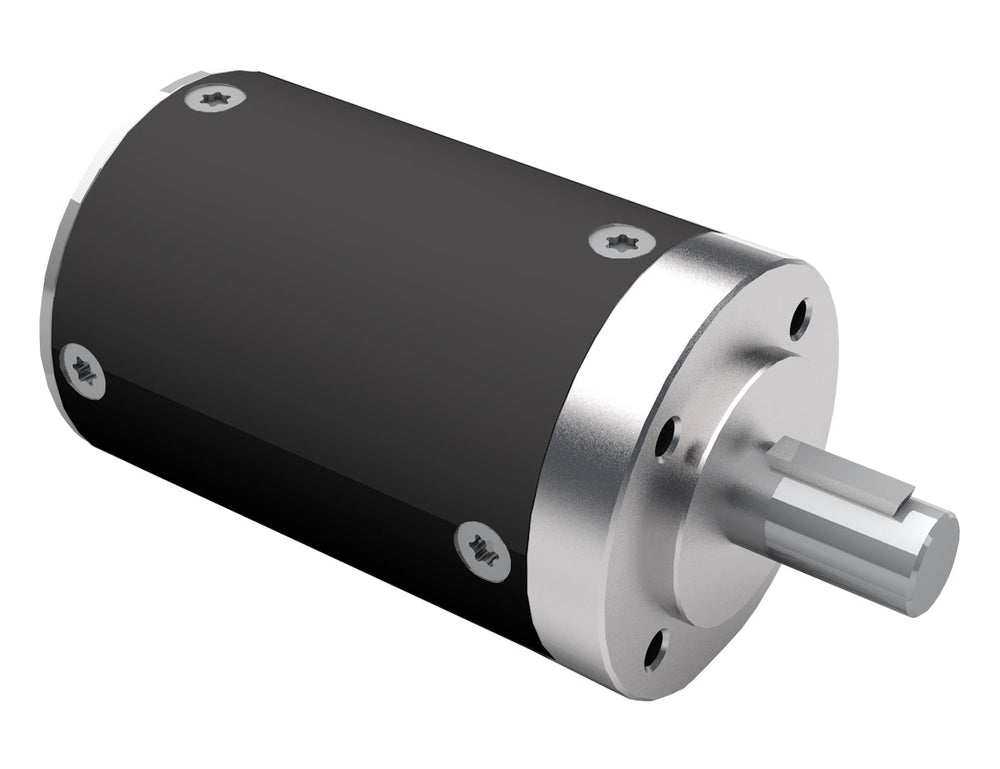

Dunkermoteren PLG52HT Series Planetary Gearbox
The Dunkermotoren PLG 52 HT Series Planetary Gearbox is an industrial-grade, high-torque solution engineered for demanding motion control applications. With a steel ring gear and precision straight-toothed stages, it offers exceptional durability, high torque transmission, and long service life—making it ideal for use in factory automation, medi...
Read MoreThe Dunkermotoren PLG 52 HT Series Planetary Gearbox is an industrial-grade, high-torque solution engineered for demanding motion control applications. With a steel ring gear and precision straight-toothed stages, it offers exceptional durability, high torque transmission, and long service life—making it ideal for use in factory automation, medical devices, robotics, and mobile machinery.
This series supports reduction ratios from 3.33:1 to 512:1 across 1-, 2-, and 3-stage configurations, delivering continuous torque from 1.5 Nm up to 26 Nm depending on the version. With high acceleration torque ratings (up to 35 Nm) and emergency stop torque up to 48 Nm, the PLG 52 HT is well-suited for both steady-state and dynamic operation modes (S1 and S8). It achieves up to 90% efficiency in single-stage designs and maintains high performance across all stages.
Engineered with double ball bearing support and capable of handling axial loads up to 500 N and radial loads up to 350 N, the PLG 52 HT delivers reliable operation under significant mechanical stress. Lifetime lubrication, IP65 protection, and optional configurations such as food-grade and low-temperature lubrication make this gearbox highly versatile and virtually maintenance-free.
For high-performance, compact, and rugged power transmission, the PLG 52 HT Series delivers unmatched value in demanding industrial environments.
Show Less
Features
- High Torque Output: Delivers up to 26 Nm of continuous torque and 48 Nm in emergency stop conditions—ideal for dynamic and load-intensive applications.
- Hardened Steel Ring Gear Construction: Built with a robust steel ring gear and precision-cut straight-toothed stages for long-lasting durability and high-performance reliability.
- Wide Reduction Ratio Range: Available with gear ratios from 3.33:1 to 512:1 across 1-, 2-, and 3-stage versions—flexible for diverse speed and torque requirements.
- Enhanced Load Handling: Double ball-bearing output shaft supports axial loads up to 500 N and radial loads up to 350 N, ensuring stability in high-stress environments.
- Maintenance-Free and IP65 Rated: Factory-lubricated for life and IP65 protected, this gearbox is ready for harsh environments without the need for routine servicing.
- Versatile Application Support: Optimised for S1 (continuous) and S8 (cyclical) duty cycles, with optional food-grade and low-temperature lubrication for specialised industries.
Specifications
| PLG52HT Specifications |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 3.3 | 4.5 | 6.25 | 8 | 15 | 20.25 | 28.12 | 36 | 50 | 64 |
| Efficiency | % | 90 | 81 | ||||||||
| Number of Stages | - | 1 | 2 | ||||||||
| Continous Torque | Nm | 2 | 2 | 2 | 1.5 | 6 | 8 | 8 | 8 | 8 | 8 |
| Acceleration torque * | Nm | 2.8 | 2.8 | 2.8 | 2.8 | 12 | 11 | 11 | 10.5 | 14 | 18 |
| Emergency stop torque | Nm | 5.5 | 6 | 4.6 | 6 | 28 | 28 | 28 | 28 | 28 | 28 |
| Operating mode | - | S1 / S8 | |||||||||
| Weight of Gearbox | kg | 0.6 | 0.7 | ||||||||
| Axial Load / Radial Load | N | 500 / 350 | 500 / 350 | ||||||||
| *Acceleration torque for max. 1 second | |||||||||||
| PLG52HT Specifications |
||||||||
|---|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 91.12 | 126.56 | 162 | 225 | 268 | 400 | 512 |
| Efficiency | % | 73 | ||||||
| Number of Stages | - | 3 | ||||||
| Continous Torque | Nm | 26 | 26 | 26 | 26 | 26 | 23 | 15 |
| Acceleration torque* | Nm | 35 | 35 | 35 | 35 | 35 | 35 | 30 |
| Emergency stop torque | Nm | 48 | 48 | 48 | 48 | 48 | 48 | 48 |
| Operating mode | - | S1 / S8 | ||||||
| Weight of Gearbox | kg | 0.9 | ||||||
| Axial Load / Radial Load | N | 500 / 350 | ||||||
| *Acceleration torque for max. 1 second | ||||||||
