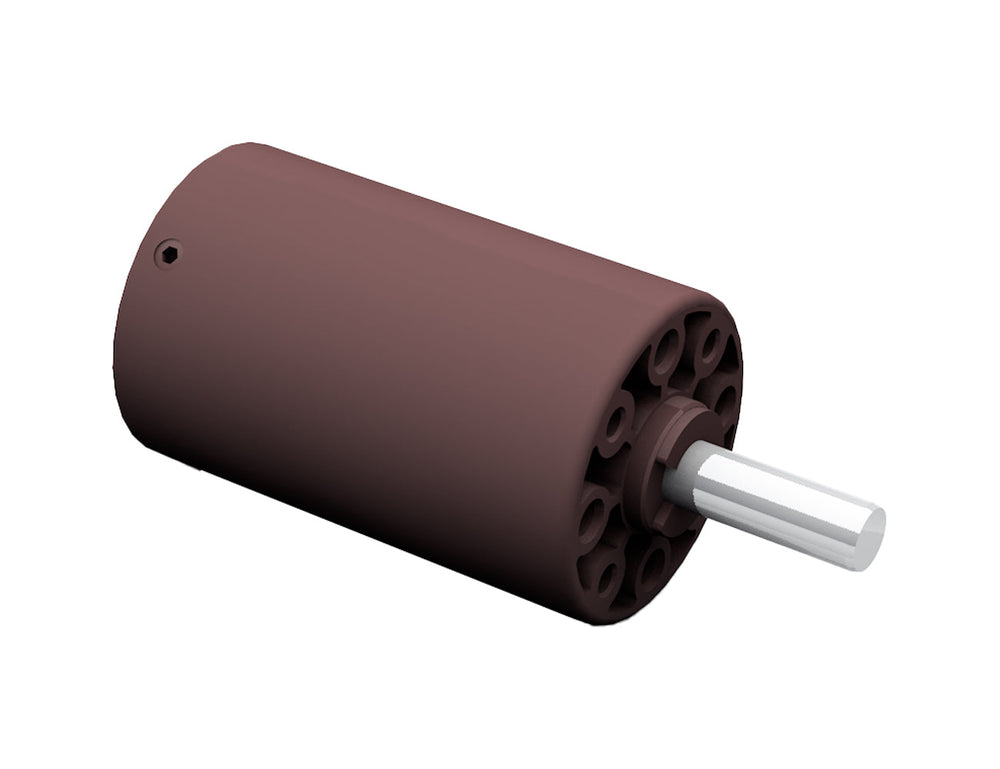

Dunkermoteren PLG30 Series Planetary Gearbox
The Dunkermotoren PLG 30 Series Planetary Gearbox is a compact and efficient transmission solution, engineered for precision applications requiring reliable torque output in tight spaces. With continuous torque ratings up to 1.8 Nm and reduction ratios from 4.5:1 to 400:1, this gearbox is ideal for light-duty automation, medical devices, and lab...
Read MoreThe Dunkermotoren PLG 30 Series Planetary Gearbox is a compact and efficient transmission solution, engineered for precision applications requiring reliable torque output in tight spaces. With continuous torque ratings up to 1.8 Nm and reduction ratios from 4.5:1 to 400:1, this gearbox is ideal for light-duty automation, medical devices, and laboratory equipment.
Key features include a high-efficiency design with up to 90% performance in single-stage configurations. The gearbox incorporates a steel planetary carrier and sun gear, while the ring gear and planetary gears are made from high-grade engineered materials to ensure durability and smooth operation. All gear stages use straight toothing, and the output shaft is supported by dual sleeve bearings for enhanced stability.
Available in 1-, 2-, or 3-stage versions, the PLG 30 Series supports axial loads up to 10 N and radial loads up to 24 N. With an IP50 protection rating, lifetime lubrication, and optional food-grade and low-temperature lubrication variants, it offers quiet, maintenance-free operation in controlled environments.
For compact, low-torque applications where performance and longevity matter, the Dunkermotoren PLG 30 Series Planetary Gearbox provides a reliable and adaptable solution.
Show Less
Features
- Compact High-Efficiency Design: Engineered for space-constrained applications, the PLG 30 delivers up to 1.8 Nm of continuous torque with up to 90% efficiency in single-stage setups.
- Versatile Gear Ratio Options: Offered in 1-, 2-, and 3-stage versions, with gear reduction ratios ranging from 4.5:1 to 400:1—ideal for adapting to varied speed and torque requirements.
- All-Steel Gear Components: Features steel planetary carriers and sun gears for increased durability, strength, and long service life under light to moderate loads.
- Dual Sleeve Bearing Support: The output shaft is supported by two sleeve bearings, enhancing durability and stability in continuous or intermittent duty cycles.
- Maintenance-Free Performance: Factory-lubricated for life and available with food-grade or low-temperature grease options for specialized environments.
- Lightweight and Quiet Operation: Its polymer gear components and efficient design reduce operational noise and make the PLG 30 well-suited for medical and laboratory equipment.
Specifications
| PLG30* Specifications | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 4.5 | 6.25 | 8 | 15 | 20.25 | 28.125 | 36 | 50 | 91.12 | 126.56 | 162 | 175.78 | 288 | 400 | |
| Efficiency | % | 90 | 81 | 73 | ||||||||||||
| Number of Stages | - | 1 | 2 | 3 | ||||||||||||
| Continous Torque | Nm | 0.4 | 0.8 | 1.8 | ||||||||||||
| Weight of Gearbox | kg | 0.05 | 0.08 | 0.09 | ||||||||||||
| Axial Load / Radial Load** | N | 10/24 | 10/24 | 10/24 | ||||||||||||
| *Minimum quantity - 100 pcs **From centre of shaft |
||||||||||||||||
