Rack Mounted & Cabinetised Solutions
Bespoke rack-mounted and cabinetised power systems for the voltages and configurations off-the-shelf products don't cover — with DC distribution, battery backup and full documentation.
Lead Time
2–3 Weeks
Minimum Order
None — Single Units OK
Documentation
GA & SLD Drawings on Request
Testing
Functional & Load Tested
When Off-the-Shelf Doesn't Quite Fit
There's a wide range of manufactured rack-mounted power conversion products on the market — but they're not always the right fit. Off-the-shelf units are often overpowered against your actual demand, aren't always available in more bespoke voltages like 15V or 36V DC, and dual-output configurations (say, 12V and 24V from one product) aren't always available either. Rack-mounted power conversion is also frequently installed into half or full cabinets alongside a battery bank and DC distribution — additional scope that can sit with us as part of the same build, reducing the number of suppliers you deal with.

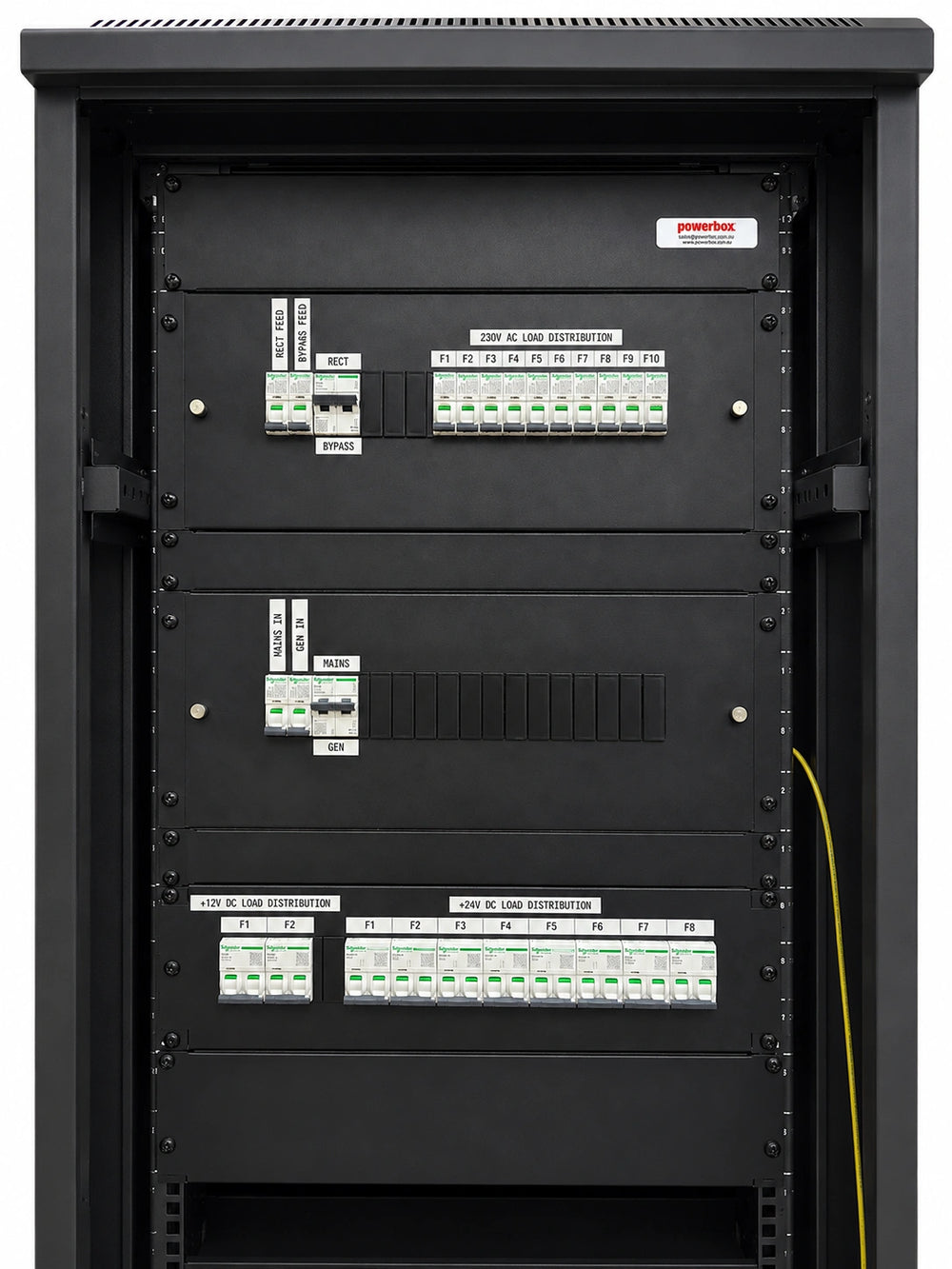

Built to a Consistent, Field-Proven Standard
IEC AC connection via the rear panel, single or independent dual AC feeds
Pluggable Phoenix connectors for DC, or high-current Anderson connectors for battery connection
DC distribution via MCBs or DIN-rail mounted breakers
Front panel LED indication for DC OK and other alarm or fault states
Dual redundancy using internal diodes
Battery racking or shelving for GEL or Sealed Lead Acid batteries, or rack-mounted LiFePO4

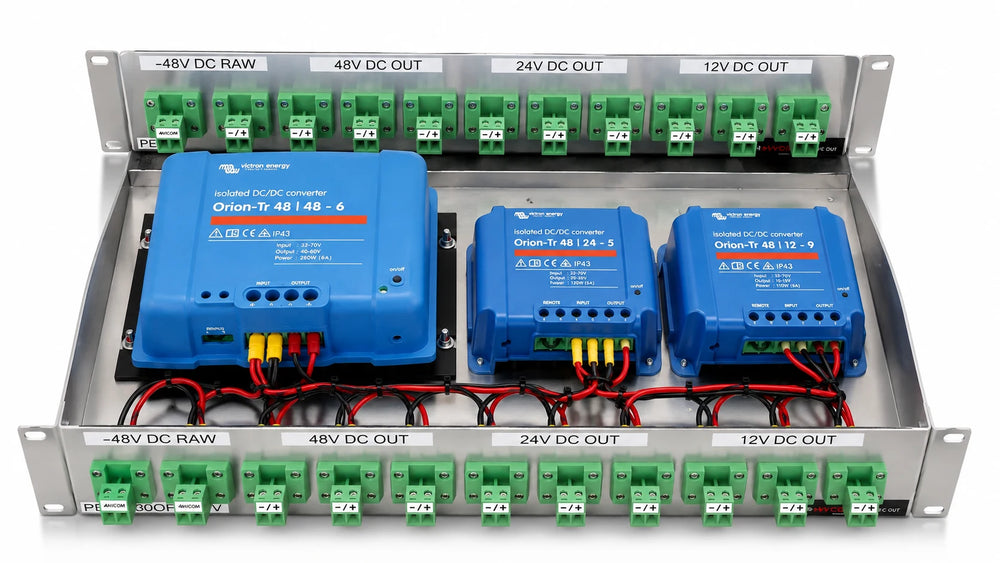

Whatever Voltage or Redundancy Level Your Project Needs

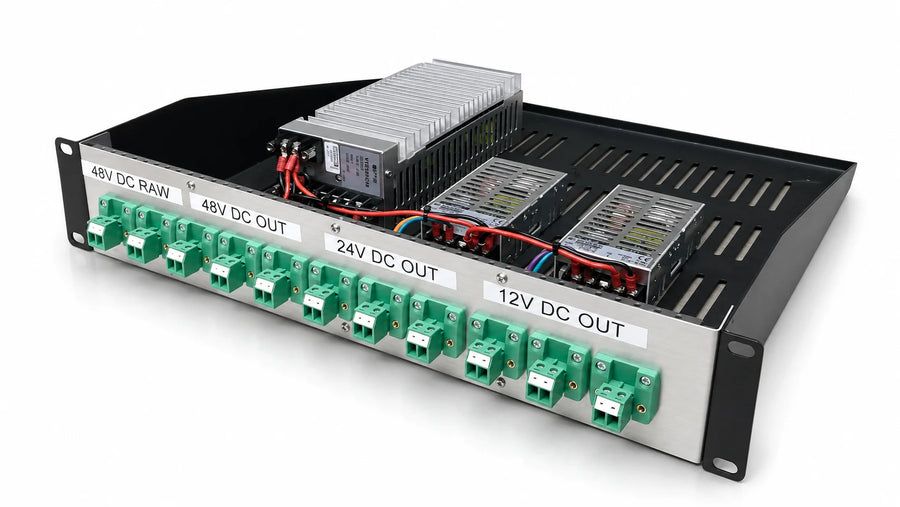

Single-voltage or multi-voltage, standard or dual redundant, right through to full battery backup / DC-UPS configurations — including bespoke outputs like 15V or 36V DC, or dual-output builds such as 12V and 24V from a single cabinet, which aren't always available as a standard product.

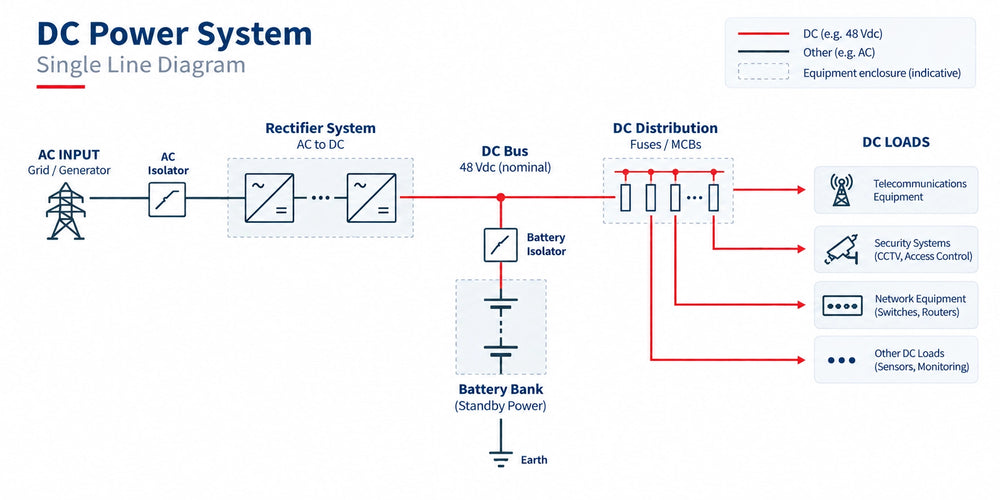

GA and SLD Drawings on Completion
General Arrangement (GA) and Single Line Diagram (SLD) drawings can be provided for the assembled solution on request — commonly requested by utility and telecommunications customers, particularly for cabinets with battery backup and distribution. If you need a formalised specification sheet for the finished solution, we can produce that too.

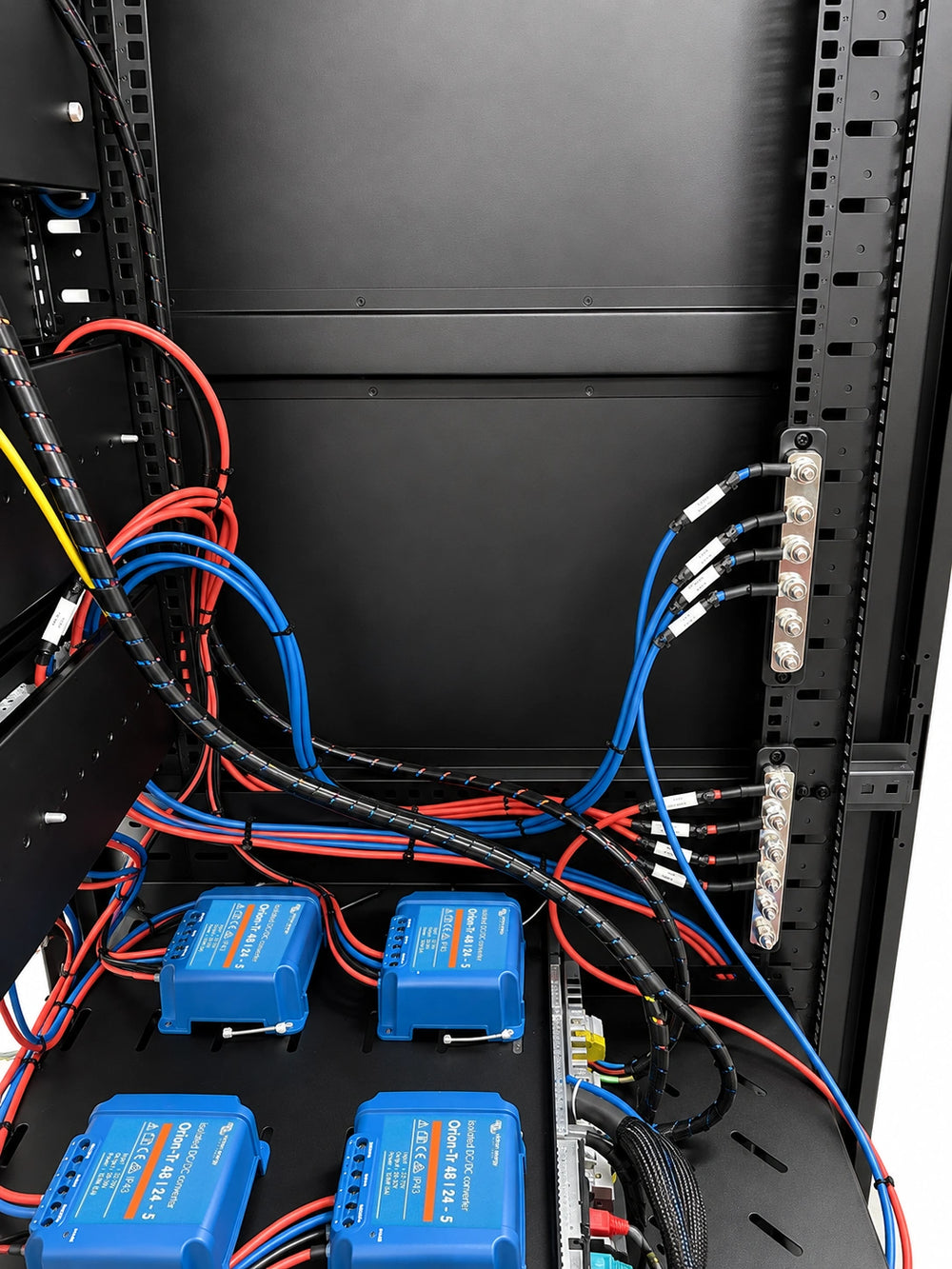

Fully Assembled, Pre-Wired and Tested Before It Ships
Every cabinet is completed with full electro-mechanical assembly and electrical pre-wire, and is functionally and load-tested before it leaves us — so what arrives on site is ready to commission, not a kit of parts.
Who This Is For

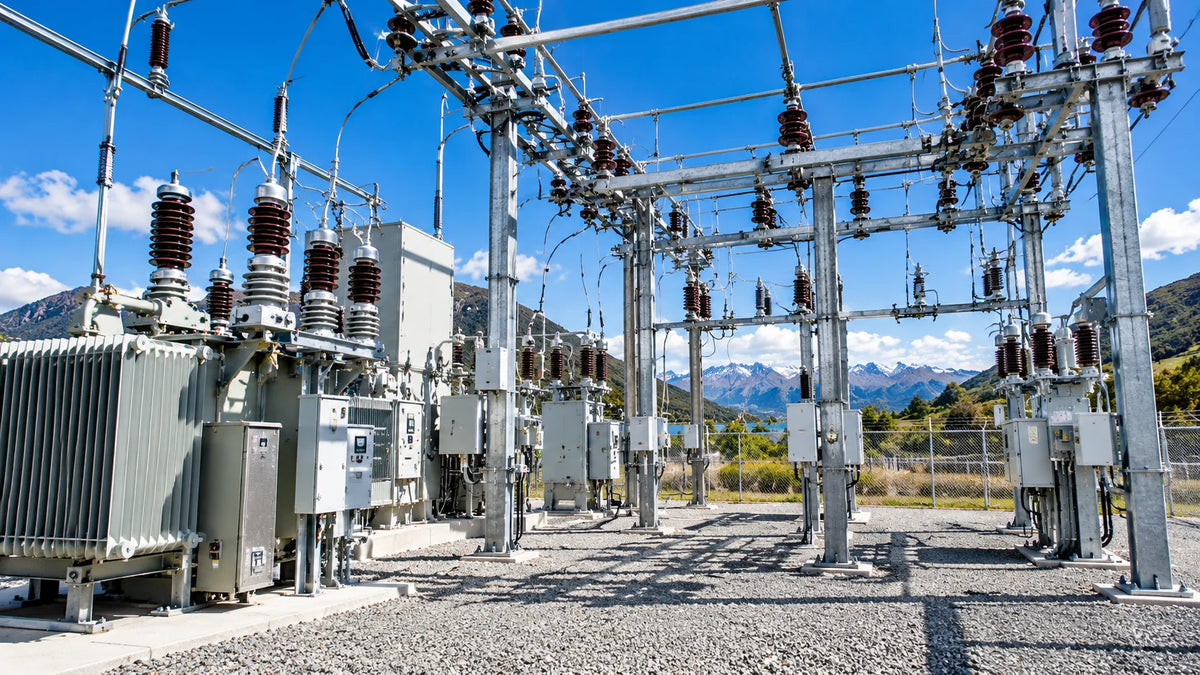

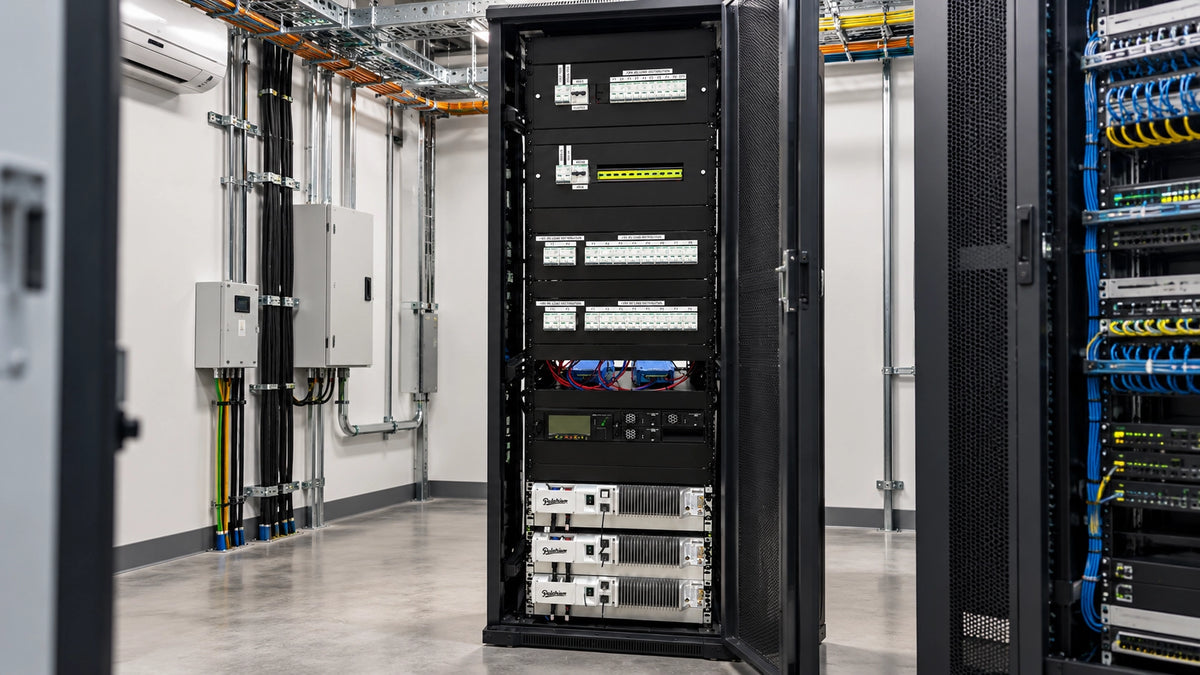

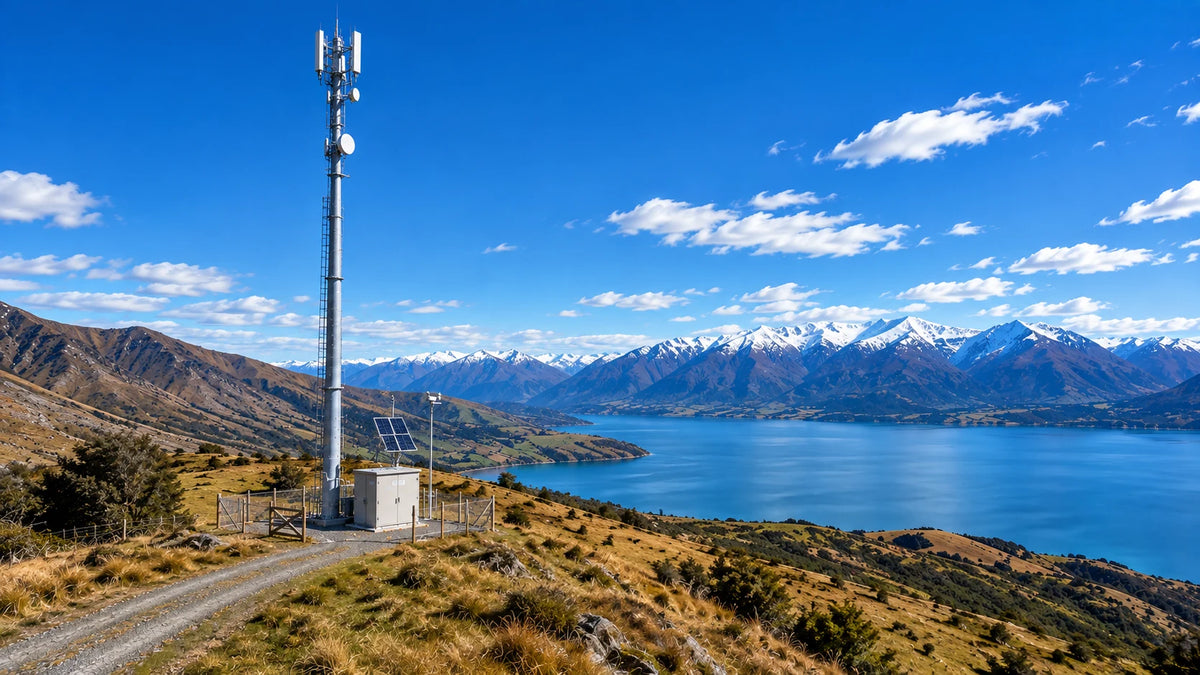

Rack Mounted & Cabinetised solutions are used across government agencies, utilities, internet service providers, and security and access control integrators — anywhere a DC bus needs to stay powered from a rack or cabinet, not a standalone unit.
What Goes Into a Rack Mounted & Cabinetised Solution?
Most of what goes into a Rack Mounted & Cabinetised build is selected or sourced to match your voltage, redundancy and documentation requirements — not a fixed catalogue item.
Rack-Mount Cabinets
Half & Full Sized
DC Distribution
MCBs & DIN-Rail Breakers
Battery Chargers / DC-UPS
Single, Dual & Multi-Voltage
Rack-Mount Batteries
GEL, SLA & LiFePO4

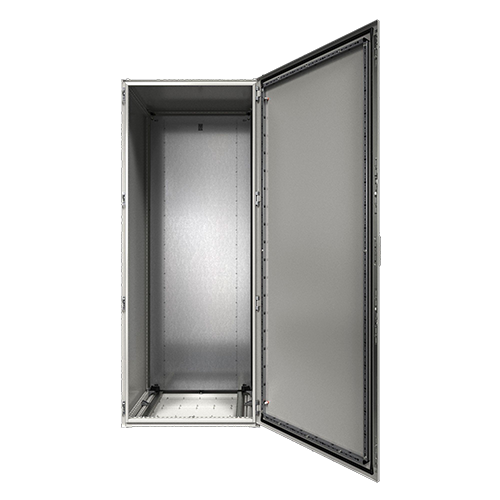

Rack-Mount Cabinets
Half or full-sized cabinets housing the power conversion, distribution and battery backup for your project, built to your voltage and redundancy requirements.

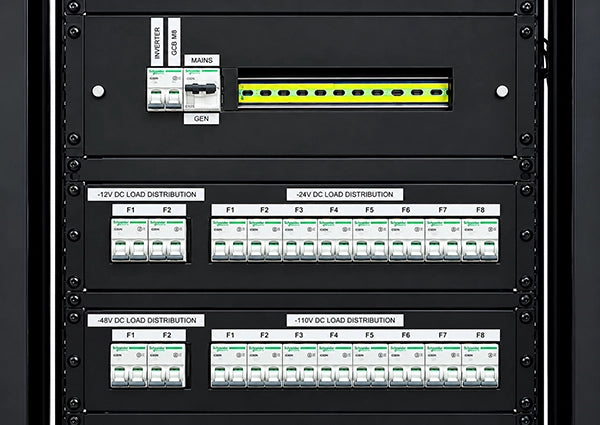

DC Distribution
MCB or DIN-rail mounted breaker distribution, wired and tested as part of the assembled cabinet, protecting downstream loads and simplifying fault isolation.

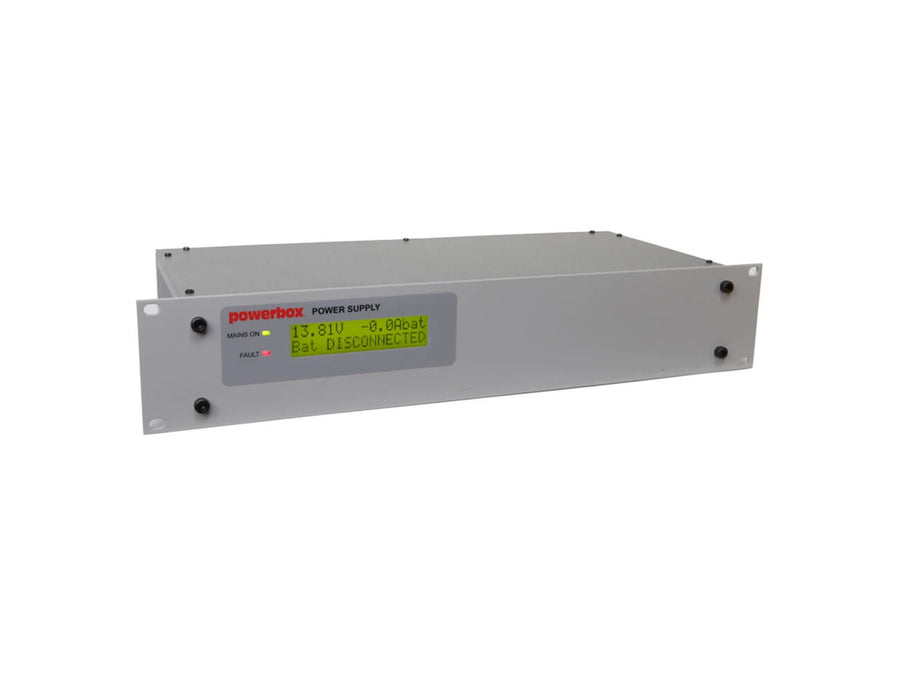

Battery Chargers / DC-UPS
Single-voltage, multi-voltage, standard or dual redundant configurations, through to full DC-UPS systems with battery backup, selected to the cabinet's voltage and load profile.

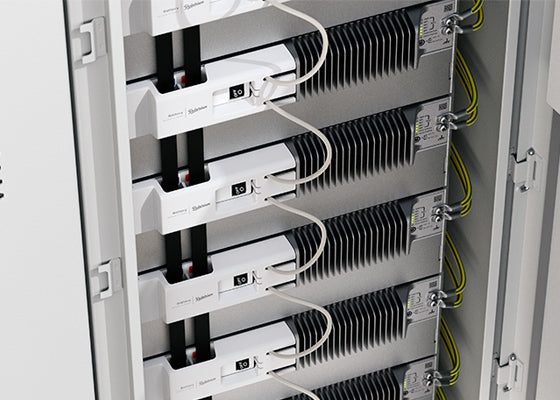

Rack-Mount Batteries
GEL or Sealed Lead Acid batteries on dedicated racking or shelving, or rack-mounted LiFePO4 where a lighter, higher cycle-life option is preferred.
Projects We've Delivered
A look at rack-mounted and cabinetised builds that have shipped out of our workshop — real deployments, real configuration decisions.
Frequently Asked Questions
Questions specific to Rack Mounted & Cabinetised solutions. For general value-added questions, see the Value-Added Solutions overview.
Yes. Bespoke voltages and dual-output configurations (such as 12V and 24V from a single cabinet) that aren't always available as standard products are a common part of what we build.
They're available on request, and are commonly requested by utility and telecommunications customers, particularly on cabinets with battery backup and distribution. A formalised specification sheet can also be produced if needed.
Yes, battery racking or shelving for GEL, Sealed Lead Acid or rack-mounted LiFePO4 batteries, along with MCB or DIN-rail DC distribution, can all be built into the same assembly.
Typically 2–3 weeks, with every cabinet fully assembled, pre-wired and functionally and load-tested before it ships.
Other Value-Added Solutions
Solar Box Solutions
Custom & Electro-Mechanical
Access Control Panel Integration
All Value-Added Solutions
Let's Talk About Your Rack or Cabinet Build
Tell us the voltage, redundancy level and documentation you need, and our engineering team will help you spec it.
