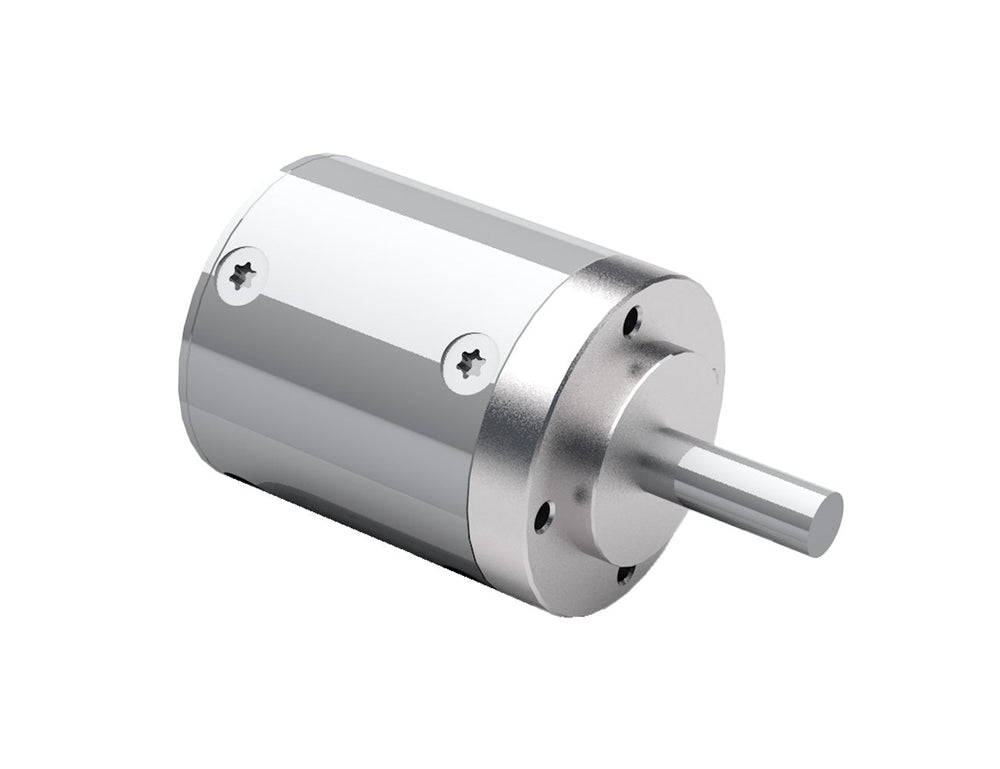

Dunkermoteren PLG32 Series Planetary Gearbox
The Dunkermotoren PLG 32 Series Planetary Gearbox is a compact and robust gear solution, engineered for high efficiency and durability in industrial automation and motion control systems. With continuous torque ratings up to 4 Nm and gear reduction ratios ranging from 4.5:1 to 512:1, this gearbox is ideal for applications requiring reliable torq...
Read MoreThe Dunkermotoren PLG 32 Series Planetary Gearbox is a compact and robust gear solution, engineered for high efficiency and durability in industrial automation and motion control systems. With continuous torque ratings up to 4 Nm and gear reduction ratios ranging from 4.5:1 to 512:1, this gearbox is ideal for applications requiring reliable torque transmission in limited space.
Key features include steel construction for the ring gear, planetary carriers, and sun gears, ensuring long-lasting strength under demanding conditions. All gear stages feature straight toothing, and the output shaft is supported by double ball bearings to ensure smooth, consistent performance. Available in 1-, 2-, or 3-stage configurations, the PLG 32 Series delivers high operational efficiency—up to 90% for single-stage versions.
With an IP50 protection rating, lifetime lubrication, and optional food-grade or low-temperature lubricants, the PLG 32 is suitable for various environments. It supports axial loads up to 30 N and radial loads up to 100 N, making it ideal for robotics, medical devices, and automation systems.
For compact, maintenance-free, and high-torque applications, the Dunkermotoren PLG 32 Series Planetary Gearbox delivers precise performance with dependable durability.
Show Less
Features
- Compact and High-Torque Performance: Delivers continuous torque up to 4 Nm in a compact housing, making it ideal for space-constrained industrial and automation environments.
- Wide Range of Gear Ratios: Available in 1-, 2-, and 3-stage versions with gear reduction ratios from 4.5:1 to 512:1, offering flexibility for both high-speed and high-torque applications.
- Rugged All-Steel Construction: Built with steel planetary carriers, sun gears, and ring gears, the PLG 32 ensures high mechanical strength and long service life under demanding conditions.
- Double Ball Bearing Support: The output shaft is supported by dual ball bearings, enhancing load capacity and ensuring smooth, reliable performance over time.
- High Efficiency and Quiet Operation: Straight-tooth gear stages offer up to 90% efficiency in single-stage configurations, minimizing energy loss while reducing operational noise.
- Maintenance-Free Design: Pre-lubricated for life with optional food-grade or low-temperature lubricants, ensuring long-lasting, maintenance-free operation in various environments.
Specifications
| PLG32 Specifications | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Reduction Ratio | - | 4.5 | 6.25 | 8 | - | 15 | 20.25 | 28.12 | 36 | 39 | 50 | 91.12 | 126.56 | 162 | 225 | 288 | 312.5 | 400 | 512 | |
| Efficiency | % | 90 | 81 | 73 | ||||||||||||||||
| Number of Stages | - | 1 | 2 | 3 | ||||||||||||||||
| Continous Torque | Nm | 0.4 | 1.5 | 4 | ||||||||||||||||
| Weight of Gearbox | kg | 0.14 | 0.18 | 0.23 | ||||||||||||||||
| Axial Load / Radial Load | N | 30/100 | 30/100 | 30/100 | ||||||||||||||||
| *From centre of shaft | ||||||||||||||||||||
