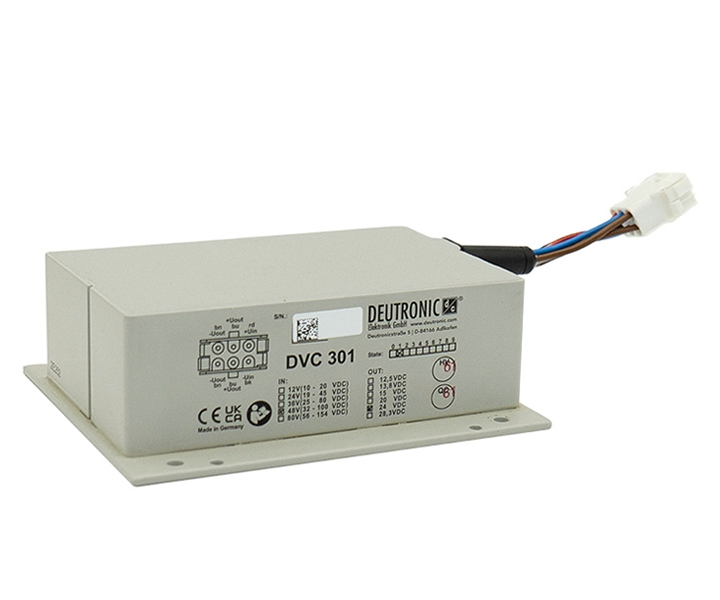

Deutronic DVC301 DC/DC Converter
The Deutronic DVC301 is a galvanically isolated DC/DC converter designed for industrial mobility and vehicle applications. Available in 24V, 48V, and 80V nominal input variants, the DVC301 delivers stable 12.5Vdc or 24Vdc output at up to 300W continuous power with up to 22 A output current, making it suitable for powering control electronics, auxiliary systems, and onboard equipment in harsh environments.
Read MoreFeatures
- Input voltage: 24 Vdc nominal (20–45 V), 48 Vdc nominal (32–90 V), or 80 Vdc nominal (54–154 V)
- Output voltage: 12.5 Vdc or 24 Vdc (see variant table)
- Output current: Up to 22 A @ 12.5 Vdc output; Up to 12.5 A @ 24 Vdc output
- Max. continuous output power: 300 W
- Efficiency: Up to 90% (@ 80 Vdc input)
- Galvanically isolated: 1.5 kVDC input-to-output
| INPUT | ||
|---|---|---|
| Input Voltage (Nom.) | see DVC301-derivate table | Class A* |
| Input Voltage Range (Tol.) | see DVC301-derivate table | Class B* |
| Undervoltage Range | 0 - 20 Vdc 0 - 32 Vdc 0 - 54 Vdc |
@IN 24 Vdc @IN 48 Vdc @IN 80 Vdc Class*C |
| Lower Restricted Operation Range | 20 - 21 Vdc 32 - 34 Vdc 54 - 56 Vdc |
@IN 24 Vdc @IN 48 Vdc @IN 80 Vdc Class B* |
| Unrestricted Operation Range | 21 - 45 Vdc 34 - 90 Vdc 56 - 154 Vdc |
@IN 24 Vdc @IN 48 Vdc @IN 80 Vdc Class A* |
| Overvoltage Range (≤ 20ms) |
≤ 52 Vdc |
@IN 24 Vdc @IN 48 Vdc @IN 80 Vdc Class C* |
| Max. Current Consumption | 20 A 11 A 6.5 A |
@IN 24 Vdc @IN 48 Vdc @IN 80 Vdc |
| Filtering | - | Filtered against vehicle on board disturbances |
| No-Load Current Consumption | < 100 mA | - |
|
*Evaluation criteria for the operation behaviour |
||
|
Class A |
Unrestricted operation range |
The DC/DC converter operates as designed in compliance with the tolerances specified in the data sheet. |
|
Class B |
Lower and upper |
One or more functions may go beyond the specified tolerance. After returning to the unrestricted operation range, the DC/DC converter operates again as designed |
|
Class C |
Undervoltage and overvoltage range |
One or more functions do not work as intended. After returning to the unrestricted operation range, the DC/DC converter operates again as designed. |
| OUTPUT | ||
|---|---|---|
| Output Voltage (Nom.) |
Uₙₒₘ |
see DVC301-derivate table |
| Initial accuracy (0 - 20 Hz) | ± 0,2% Uₙₒₘ ± 0,8% Uₙₒₘ ± 0,1% Uₙₒₘ |
@IN 24 Vdc @IN 48 Vdc @IN 80 Vdc |
| Load regulation tolerance Nload | +0,4% / -0,2% Uₙₒₘ ± 0,2% Uₙₒₘ +0,6% / -0,2% Uₙₒₘ |
@IN 24 Vdc @IN 48 Vdc @IN 80 Vdc |
| Ripple & Noise NRN |
± 0,8% Uₙₒₘ ± 0,5% Uₙₒₘ ± 1,1% Uₙₒₘ
|
< 200 mVpp (@IN 24 Vdc) |
| Overall toleranz Noverall 0 - 20 MHz | +1,4% / -1,2% Uₙₒₘ ± 1,5% Uₙₒₘ +1,8% / -1,4% Uₙₒₘ |
@IN 24 Vdc |
| Max. continuous output current Iₙₒₘ | 22 A 12,5 A |
@OUT 12 Vdc @OUT 24 Vdc |
| Max. continuous output power Pₙₒₘ | 300 W | - |
| Current limiting |
1,1 x Iₙₒₘ |
Above 1,0 x Iₙₒₘ Uₒᵤₜ may sink |
| Output capacity | ca. 880 μF ca. 18800 μF |
@OUT 24 Vdc @OUT 24 Vdc EUT |
| ENVIRONMENT | ||
|---|---|---|
| Operating temperature (environment) |
-30 °C ... +75 °C |
- |
| Maximum temperature Tₘₐₓ at the temperature reference spot | < 75 °C | - |
| Cooling | Contact cooling via mounting surface | An effective thermal connection between the mounting surface andv the heat sink of the application is a requirement for safe and long-term operation. |
| Overtemperature protection | - |
Automatic shutdown in case of overtemperature, self reset after cool down
|
| Storage temperature | -40 °C ... +85 °C | - |
| Humidity | 100 % | - |
| Dewing | Allowed | - |
| Degree of protection acc. to EN 60529 | IP67 | Limited by connection technology, version with increased degree of protection and other connection technology on request |
| GENERAL DATA | ||
|---|---|---|
| Insulation strength |
1,5 kVDC |
Input voltage against output voltage and enclosure Output against enclosure |
| Efficiency | 88% (@IN 24 Vdc) 88% (@IN 48 Vdc) 90% (@IN 80 Vdc) |
Averaging of the efficiency values at 25%, 50%, 75% and 100% of the nominal output power |
| Dimensions (LxWxH) | 147 x 97 x 50 mm | without connections, see fig. 8.1 |
| Enclosure | Aluminium | - |
| Weight | < 1500 g | - |
| EMC (ELECTROMAGNETIC COMPATIBILITY) | ||
|---|---|---|
| Title |
Standard |
Data |
| Emitted interference |
EN12895 |
- |
| Immunity | EN12895 EN 61204-3 |
- |acc. to 7.2.3, Noise immunity level for industrial environment (cable length < 3 m) |
| ELECTRICAL SAFETY | ||
|---|---|---|
| Title |
Standard |
Data |
| Low-voltage switch mode power supplies - Safety requirements |
DIN EN 61204-7 |
- |
| Designed according to safety of industrial trucks - Electrical requirements |
ISO 20898 DIN EN 1175* |
- |
| *The system integrator is responsible for compliance of all product-specific requirements in the final application. | ||
| INSTALLATION AND SAFETY INSTRUCTIONS | ||
|---|---|---|
|
In addition to the general installation and safety instructions for DC/DC converters, the following values and supplements apply: |
||
| Mounting Points |
Ø5,5 mm |

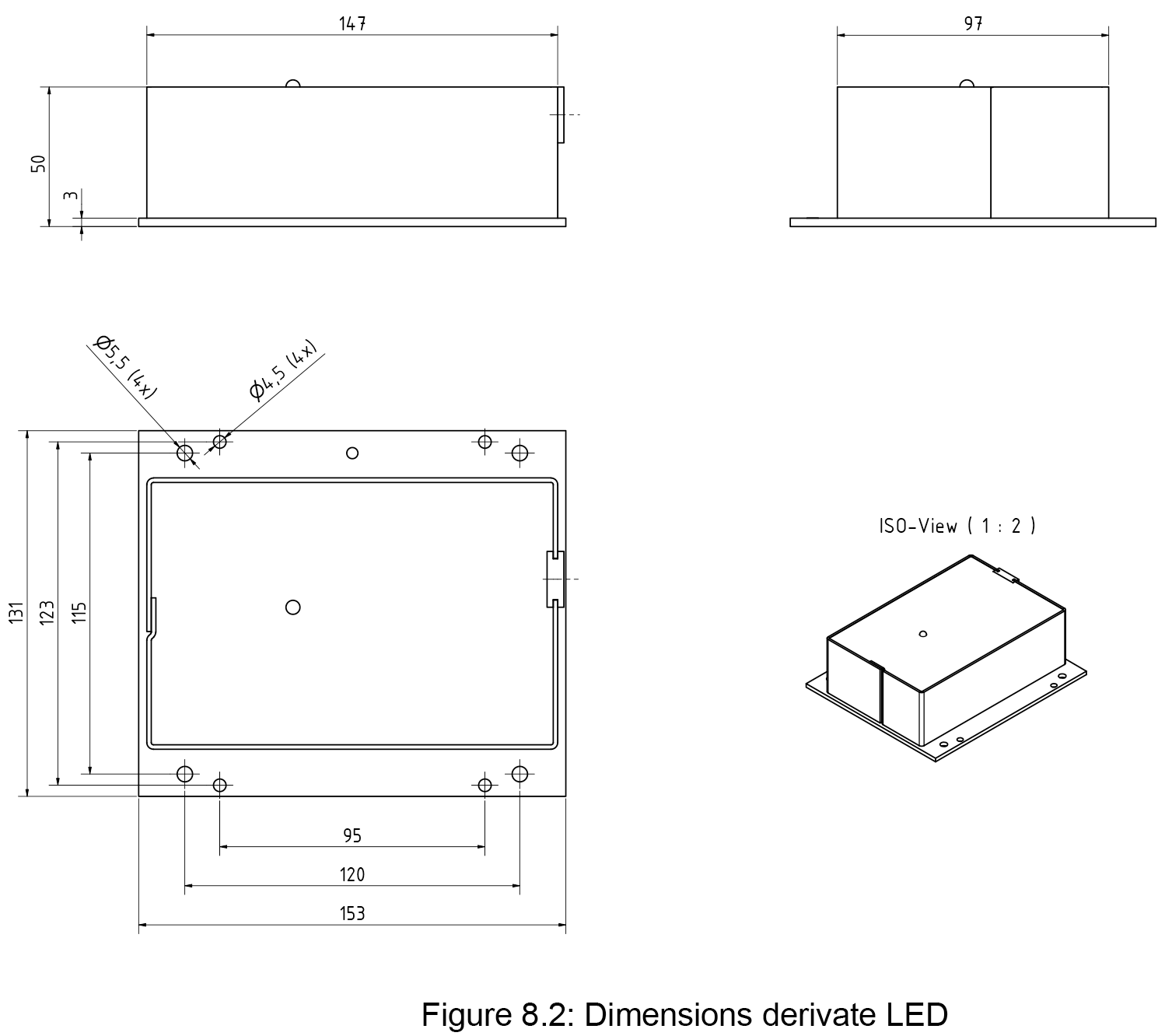

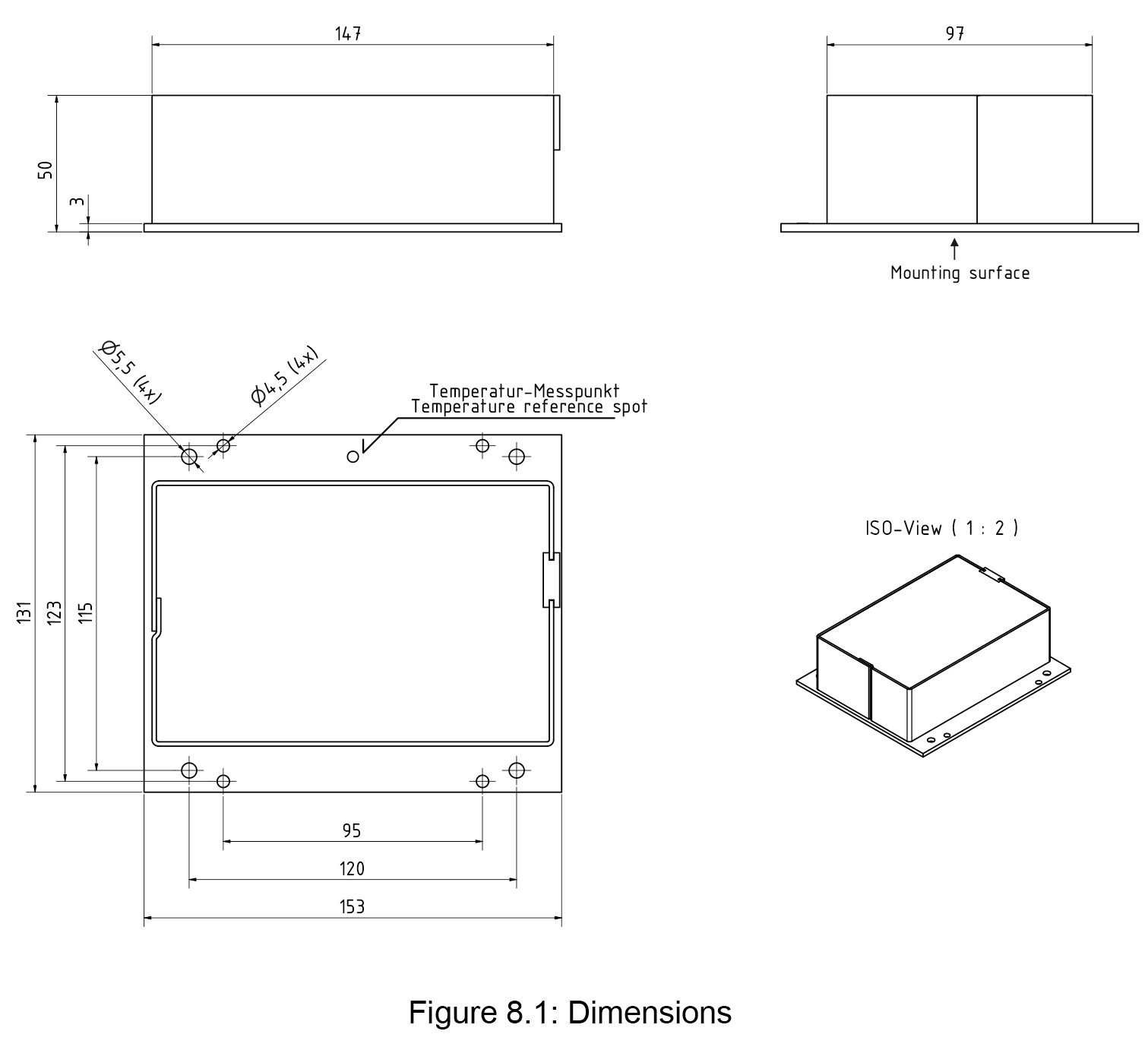

4x Mounting holes (Ø9 mm) see fig. 8.1 |
| Mounting position | - | Any |
| Cooling | - | A sufficient cooling must be ensured externally in the customer application via the mounting surface. |
| Connection Input / Output | approx. 10 cm cable with 6-pole AMP connector Mate-N-Lok |
See chapter 7 different cable/connector customers request |
| Input Fuse | T10A/250V (@IN 80/48 Vdc) T20A/32V (@IN 36/24 Vdc) T35A/32V (@IN 12 Vdc) |
No integrated input fuse. A fuse must be provided externally by the customer application. |
| Input current limitation | - | Attention: No inrush current limitation in the device. Provide a precharging section in the application, otherwise there is a risk of a overvoltage damage to the input of the DC/DC converter. |
| Reverse polarity protection | - | No reverse polarity protection at the input or output of the device. If the polarity at the input is reversed, the upstream input fuse trips. |
| Parallel operation | Power increase | Connectable in parallel without limitation, no additional control cable needed Smart output regulation for optimized DC current distribution in parallel operation |
| Series operation | Voltage increase | Up to 4 units connectable in series ATTENTION: Follow safety requirements (PELV, SELV) |
| TYPE | INPUT VOLTAGE (Vdc) | OUTPUT VOLTAGE (Vdc) | OUTPUT CURRENT (A) | CAT. NO. | |
|---|---|---|---|---|---|
| Nom. | Tol. | Nom. | Max | ||
| DVC301-24-12 | 24 | 20-45 | 12.5 | 22 | 105604 |
| DVC301-24-12-LED | 24 | 20-45 | 12.5 | 22 | 105604/1 |
| DVC301-24-24 | 24 | 20-45 | 24 | 12.5 | 105601 |
| DVC301-48-12 | 48 | 32-90 | 12.5 | 22 | auf Anfrage |
| DVC301-48-24 | 48 | 32-90 | 24 | 12.5 | 105600 |
| DVC301-80-12 | 80 | 54-154 | 12.5 | 22 | auf Anfrage |
| DVC301-80-24 | 80 | 54-154 | 24 | 12.5 | 105602 |
Version EUT: EXTENDED HOLD-UP TIME
| TYPE | INPUT VOLTAGE (Vdc) | OUTPUT VOLTAGE (Vdc) | OUTPUT CURRENT (A) | CAT. NO. | |
|---|---|---|---|---|---|
| Nom. | Tol. | Nom. | Max | ||
| DVC301-EUT-24-24 | 24 | 20-45 | 24 | 12.5 | 105603 |
| DVC301-EUT-12-24 | 12 | 8.5 - 20 | 24 | 12.5 | auf Anfrage |
EUT: To bridge voltage break down e.g. at an engine start (output capacity approx. 18800 μF)
| INPUT | ||
|---|---|---|
| Input Voltage (Nom.) | see DVC301-derivate table | Class A* |
| Input Voltage Range (Tol.) | see DVC301-derivate table | Class B* |
| Undervoltage Range | 0 - 20 Vdc 0 - 32 Vdc 0 - 54 Vdc |
@IN 24 Vdc @IN 48 Vdc @IN 80 Vdc Class*C |
| Lower Restricted Operation Range | 20 - 21 Vdc 32 - 34 Vdc 54 - 56 Vdc |
@IN 24 Vdc @IN 48 Vdc @IN 80 Vdc Class B* |
| Unrestricted Operation Range | 21 - 45 Vdc 34 - 90 Vdc 56 - 154 Vdc |
@IN 24 Vdc @IN 48 Vdc @IN 80 Vdc Class A* |
| Overvoltage Range (≤ 20ms) |
≤ 52 Vdc |
@IN 24 Vdc @IN 48 Vdc @IN 80 Vdc Class C* |
| Max. Current Consumption | 20 A 11 A 6.5 A |
@IN 24 Vdc @IN 48 Vdc @IN 80 Vdc |
| Filtering | - | Filtered against vehicle on board disturbances |
| No-Load Current Consumption | < 100 mA | - |
|
*Evaluation criteria for the operation behaviour |
||
|
Class A |
Unrestricted operation range |
The DC/DC converter operates as designed in compliance with the tolerances specified in the data sheet. |
|
Class B |
Lower and upper |
One or more functions may go beyond the specified tolerance. After returning to the unrestricted operation range, the DC/DC converter operates again as designed |
|
Class C |
Undervoltage and overvoltage range |
One or more functions do not work as intended. After returning to the unrestricted operation range, the DC/DC converter operates again as designed. |
| OUTPUT | ||
|---|---|---|
| Output Voltage (Nom.) |
Uₙₒₘ |
see DVC301-derivate table |
| Initial accuracy (0 - 20 Hz) | ± 0,2% Uₙₒₘ ± 0,8% Uₙₒₘ ± 0,1% Uₙₒₘ |
@IN 24 Vdc @IN 48 Vdc @IN 80 Vdc |
| Load regulation tolerance Nload | +0,4% / -0,2% Uₙₒₘ ± 0,2% Uₙₒₘ +0,6% / -0,2% Uₙₒₘ |
@IN 24 Vdc @IN 48 Vdc @IN 80 Vdc |
| Ripple & Noise NRN |
± 0,8% Uₙₒₘ ± 0,5% Uₙₒₘ ± 1,1% Uₙₒₘ
|
< 200 mVpp (@IN 24 Vdc) |
| Overall toleranz Noverall 0 - 20 MHz | +1,4% / -1,2% Uₙₒₘ ± 1,5% Uₙₒₘ +1,8% / -1,4% Uₙₒₘ |
@IN 24 Vdc |
| Max. continuous output current Iₙₒₘ | 22 A 12,5 A |
@OUT 12 Vdc @OUT 24 Vdc |
| Max. continuous output power Pₙₒₘ | 300 W | - |
| Current limiting |
1,1 x Iₙₒₘ |
Above 1,0 x Iₙₒₘ Uₒᵤₜ may sink |
| Output capacity | ca. 880 μF ca. 18800 μF |
@OUT 24 Vdc @OUT 24 Vdc EUT |
| ENVIRONMENT | ||
|---|---|---|
| Operating temperature (environment) |
-30 °C ... +75 °C |
- |
| Maximum temperature Tₘₐₓ at the temperature reference spot | < 75 °C | - |
| Cooling | Contact cooling via mounting surface | An effective thermal connection between the mounting surface andv the heat sink of the application is a requirement for safe and long-term operation. |
| Overtemperature protection | - |
Automatic shutdown in case of overtemperature, self reset after cool down
|
| Storage temperature | -40 °C ... +85 °C | - |
| Humidity | 100 % | - |
| Dewing | Allowed | - |
| Degree of protection acc. to EN 60529 | IP67 | Limited by connection technology, version with increased degree of protection and other connection technology on request |
| GENERAL DATA | ||
|---|---|---|
| Insulation strength |
1,5 kVDC |
Input voltage against output voltage and enclosure Output against enclosure |
| Efficiency | 88% (@IN 24 Vdc) 88% (@IN 48 Vdc) 90% (@IN 80 Vdc) |
Averaging of the efficiency values at 25%, 50%, 75% and 100% of the nominal output power |
| Dimensions (LxWxH) | 147 x 97 x 50 mm | without connections, see fig. 8.1 |
| Enclosure | Aluminium | - |
| Weight | < 1500 g | - |
| EMC (ELECTROMAGNETIC COMPATIBILITY) | ||
|---|---|---|
| Title |
Standard |
Data |
| Emitted interference |
EN12895 |
- |
| Immunity | EN12895 EN 61204-3 |
- |acc. to 7.2.3, Noise immunity level for industrial environment (cable length < 3 m) |
| ELECTRICAL SAFETY | ||
|---|---|---|
| Title |
Standard |
Data |
| Low-voltage switch mode power supplies - Safety requirements |
DIN EN 61204-7 |
- |
| Designed according to safety of industrial trucks - Electrical requirements |
ISO 20898 DIN EN 1175* |
- |
| *The system integrator is responsible for compliance of all product-specific requirements in the final application. | ||
| INSTALLATION AND SAFETY INSTRUCTIONS | ||
|---|---|---|
|
In addition to the general installation and safety instructions for DC/DC converters, the following values and supplements apply: |
||
| Mounting Points |
Ø5,5 mm |
4x Mounting holes (Ø9 mm) see fig. 8.1 |
| Mounting position | - | Any |
| Cooling | - | A sufficient cooling must be ensured externally in the customer application via the mounting surface. |
| Connection Input / Output | approx. 10 cm cable with 6-pole AMP connector Mate-N-Lok |
See chapter 7 different cable/connector customers request |
| Input Fuse | T10A/250V (@IN 80/48 Vdc) T20A/32V (@IN 36/24 Vdc) T35A/32V (@IN 12 Vdc) |
No integrated input fuse. A fuse must be provided externally by the customer application. |
| Input current limitation | - | Attention: No inrush current limitation in the device. Provide a precharging section in the application, otherwise there is a risk of a overvoltage damage to the input of the DC/DC converter. |
| Reverse polarity protection | - | No reverse polarity protection at the input or output of the device. If the polarity at the input is reversed, the upstream input fuse trips. |
| Parallel operation | Power increase | Connectable in parallel without limitation, no additional control cable needed Smart output regulation for optimized DC current distribution in parallel operation |
| Series operation | Voltage increase | Up to 4 units connectable in series ATTENTION: Follow safety requirements (PELV, SELV) |
| TYPE | INPUT VOLTAGE (Vdc) | OUTPUT VOLTAGE (Vdc) | OUTPUT CURRENT (A) | CAT. NO. | |
|---|---|---|---|---|---|
| Nom. | Tol. | Nom. | Max | ||
| DVC301-24-12 | 24 | 20-45 | 12.5 | 22 | 105604 |
| DVC301-24-12-LED | 24 | 20-45 | 12.5 | 22 | 105604/1 |
| DVC301-24-24 | 24 | 20-45 | 24 | 12.5 | 105601 |
| DVC301-48-12 | 48 | 32-90 | 12.5 | 22 | auf Anfrage |
| DVC301-48-24 | 48 | 32-90 | 24 | 12.5 | 105600 |
| DVC301-80-12 | 80 | 54-154 | 12.5 | 22 | auf Anfrage |
| DVC301-80-24 | 80 | 54-154 | 24 | 12.5 | 105602 |
Version EUT: EXTENDED HOLD-UP TIME
| TYPE | INPUT VOLTAGE (Vdc) | OUTPUT VOLTAGE (Vdc) | OUTPUT CURRENT (A) | CAT. NO. | |
|---|---|---|---|---|---|
| Nom. | Tol. | Nom. | Max | ||
| DVC301-EUT-24-24 | 24 | 20-45 | 24 | 12.5 | 105603 |
| DVC301-EUT-12-24 | 12 | 8.5 - 20 | 24 | 12.5 | auf Anfrage |
EUT: To bridge voltage break down e.g. at an engine start (output capacity approx. 18800 μF)
Find the Right Model
| Model Number | Input Voltage (Vdc) | Output Voltage (Vdc) | Output Current (A) | ||
|---|---|---|---|---|---|
|
DVC301-24-12 | 24 Vdc | 12.5 Vdc | 22 A | |
|
DVC301-24-12-LED | 24 Vdc | 12.5 Vdc | 22 A | |
|
DVC301-24-24 | 24 Vdc | 24 Vdc | 12.5 A | |
|
DVC301-48-12 | 48 Vdc | 12.5 Vdc | 22 A | |
|
DVC301-48-24 | 48 Vdc | 24 Vdc | 12.5 A | |
|
DVC301-80-12 | 80 Vdc | 12.5 Vdc | 22 A | |
|
DVC301-80-24 | 80 Vdc | 24 Vdc | 12.5 A | |
|
DVC301-EUT-24-24 | 24 Vdc | 24 Vdc | 12.5 A | |
|
DVC301-EUT-12-24 | 12 Vdc | 24 Vdc | 12.5 A |
Need help finding the right product model?
