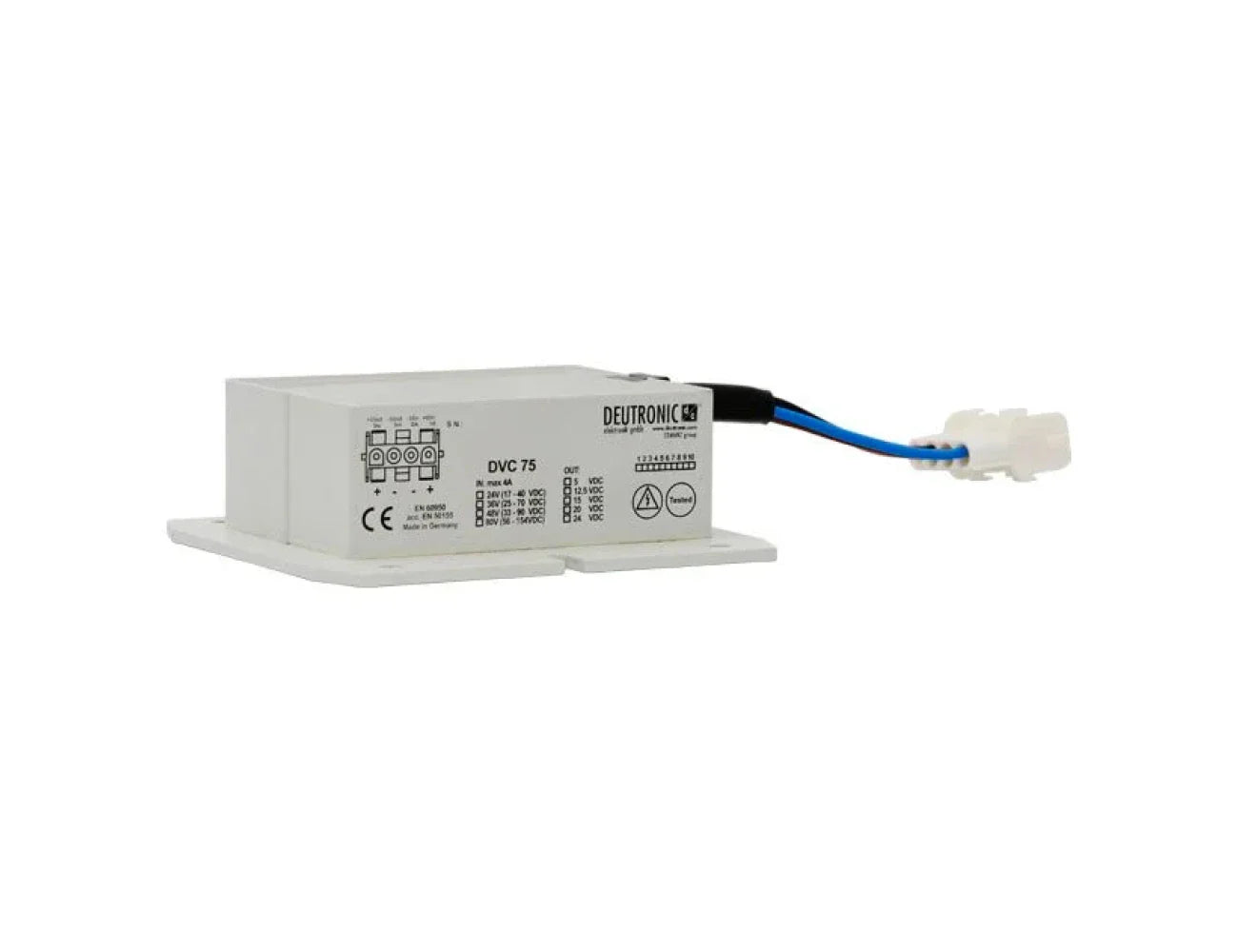

Deutronic DVC75 SERIES DC/DC Converter
The Deutronic DVC75 Series DC/DC Converter is a reliable and durable solution tailored for automotive applications. Delivering power outputs up to 75W, it ensures efficient and stable performance for on-road and off-road vehicle systems.
Read More
Features
- 40W - 77W Automotive Converter
- Designed for use in rough environments
- Rugged construction / potted device
- Protection against unfavourable environmental conditions
- DC/DC wide range input
- Filtered against vehicle on-board disturbances
Specifications
Selection Table

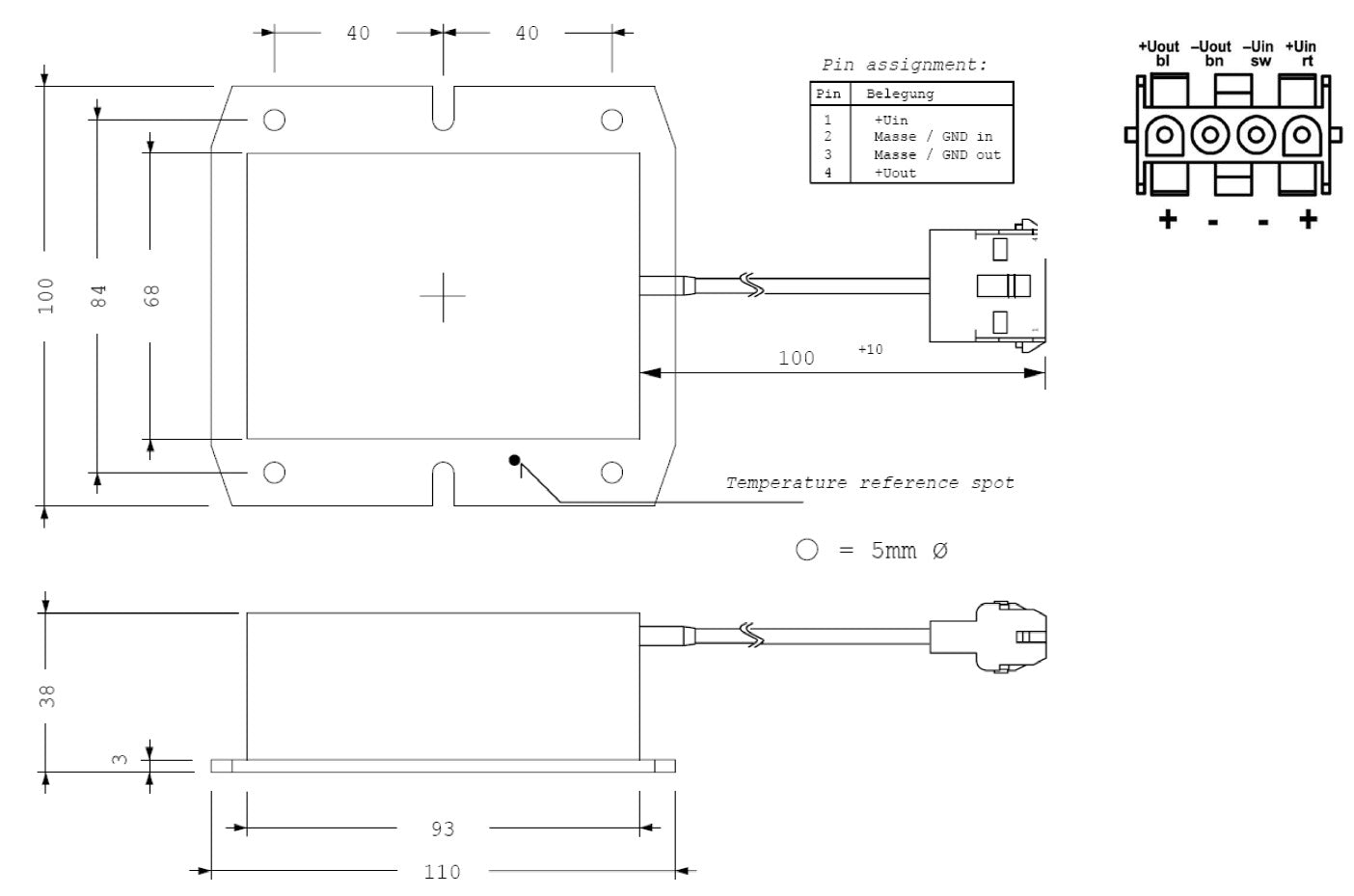

Technical Illustrations
Downloads
| INPUT | |
|---|---|
| Input range | 24Vdc (17-40Vdc) 48Vdc (33-90Vdc) 110Vdc (56-154Vdc) |
| Transient over voltage (20ms, one time) | 50V @ 24Vdc 80V @ 36Vdc 100V @ 48Vdc 220V @ 110Vdc |
| OUTPUT | |
|---|---|
| Output voltage | 12.5Vdc, 15Vdc, 24Vdc |
| voltage tolerance | ±1% @ 12.5V & 15V & 24V models ±3% @ 5V models |
| Output current | See Selection Table. |
| Regulation Time | < 0.5ms |
| Line regulation | ±0.1% |
| Temperature drift | 0 - 60C <1% |
| Ripple & noise | 100mVp-p |
| Efficiency | 84-90% Typical |
| PROTECTION | |
|---|---|
| Input Fuse | T10A/250V, T10A 32V @ In 24Vdc |
| Reverse polarity protection | External input fuse is blown. |
| Over voltage protection | Protective shut down Self reset after cool down |
| Over temperature Protection | Protective shut down, self reset after cool down. |
| Isolation | Input to case: 1.5kV, 500V for 24 models Output to case: 500V |
| Protective degree | IP67 (not connector) |
| STANDARDS | |
|---|---|
| Safety | Designed to meet EN60950, EN1175 |
| EMC | Designed to meet EN55011 Class B, EN61000-6-2 |
| ENVIRONMENT | |
|---|---|
| Ambient temperature | -40°C to 75°C with derating Max baseplate temperature 100°C |
| Cooling | Natural convection / cooling via contact to mounting surface. |
| Storage temperature | -40°C to 85°C |
| Humidity | 100% relative humidity, dewing permitted. |
| MECHANICAL | |
|---|---|
| Dimensions | 110 x 68 x 38mm |
| Weight | 450g |
| Case Material | Aluminium |
| Connectors | 10cm cable with 6-pole AP connector MATE-N-LOK |
| TYPE | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT | POWER |
|---|---|---|---|---|
| DVC75-24-5 | 24Vdc (17-40Vdc) | 5Vdc | 8A | 40W |
| DVC75-24-12 | 24Vdc (17-40Vdc) | 12.5Vdc | 4A | 50W |
| DVC75-24-20 | 24Vdc (17-40Vdc) | 20Vdc | 2.5A | 50W |
| DVC75-24-24 | 24Vdc (17-40Vdc) | 24Vdc | 2A | 48W |
| DVC75-36-12 | 36Vdc (25-70Vdc) | 12.5Vdc | 5A | 62W |
| DVC75-36-24 | 36Vdc (25-70Vdc) | 24Vdc | 2.8A | 70W |
| DVC75-48-12 | 48Vdc (33-90Vdc) | 12.5Vdc | 6A | 75W |
| DVC75-48-15 | 48Vdc (33-90Vdc) | 15Vdc | 5A | 75W |
| DVC75-48-24 | 48Vdc (33-90Vdc) | 24Vdc | 3.2A | 77W |
| DVC75-80-12 | 72/80/96/110Vdc (56-154Vdc) | 12.5Vdc | 6A | 75W |
| DVC75-80-24 | 72/80/96/110Vdc (56-154Vdc) | 24Vdc | 3.2A | 77W |
| INPUT | |
|---|---|
| Input range | 24Vdc (17-40Vdc) 48Vdc (33-90Vdc) 110Vdc (56-154Vdc) |
| Transient over voltage (20ms, one time) | 50V @ 24Vdc 80V @ 36Vdc 100V @ 48Vdc 220V @ 110Vdc |
| OUTPUT | |
|---|---|
| Output voltage | 12.5Vdc, 15Vdc, 24Vdc |
| voltage tolerance | ±1% @ 12.5V & 15V & 24V models ±3% @ 5V models |
| Output current | See Selection Table. |
| Regulation Time | < 0.5ms |
| Line regulation | ±0.1% |
| Temperature drift | 0 - 60C <1% |
| Ripple & noise | 100mVp-p |
| Efficiency | 84-90% Typical |
| PROTECTION | |
|---|---|
| Input Fuse | T10A/250V, T10A 32V @ In 24Vdc |
| Reverse polarity protection | External input fuse is blown. |
| Over voltage protection | Protective shut down Self reset after cool down |
| Over temperature Protection | Protective shut down, self reset after cool down. |
| Isolation | Input to case: 1.5kV, 500V for 24 models Output to case: 500V |
| Protective degree | IP67 (not connector) |
| STANDARDS | |
|---|---|
| Safety | Designed to meet EN60950, EN1175 |
| EMC | Designed to meet EN55011 Class B, EN61000-6-2 |
| ENVIRONMENT | |
|---|---|
| Ambient temperature | -40°C to 75°C with derating Max baseplate temperature 100°C |
| Cooling | Natural convection / cooling via contact to mounting surface. |
| Storage temperature | -40°C to 85°C |
| Humidity | 100% relative humidity, dewing permitted. |
| MECHANICAL | |
|---|---|
| Dimensions | 110 x 68 x 38mm |
| Weight | 450g |
| Case Material | Aluminium |
| Connectors | 10cm cable with 6-pole AP connector MATE-N-LOK |
| TYPE | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT | POWER |
|---|---|---|---|---|
| DVC75-24-5 | 24Vdc (17-40Vdc) | 5Vdc | 8A | 40W |
| DVC75-24-12 | 24Vdc (17-40Vdc) | 12.5Vdc | 4A | 50W |
| DVC75-24-20 | 24Vdc (17-40Vdc) | 20Vdc | 2.5A | 50W |
| DVC75-24-24 | 24Vdc (17-40Vdc) | 24Vdc | 2A | 48W |
| DVC75-36-12 | 36Vdc (25-70Vdc) | 12.5Vdc | 5A | 62W |
| DVC75-36-24 | 36Vdc (25-70Vdc) | 24Vdc | 2.8A | 70W |
| DVC75-48-12 | 48Vdc (33-90Vdc) | 12.5Vdc | 6A | 75W |
| DVC75-48-15 | 48Vdc (33-90Vdc) | 15Vdc | 5A | 75W |
| DVC75-48-24 | 48Vdc (33-90Vdc) | 24Vdc | 3.2A | 77W |
| DVC75-80-12 | 72/80/96/110Vdc (56-154Vdc) | 12.5Vdc | 6A | 75W |
| DVC75-80-24 | 72/80/96/110Vdc (56-154Vdc) | 24Vdc | 3.2A | 77W |
Find the Right Model
| Model Number | Input Voltage (Vdc) | Output Voltage (Vdc) | Output Current (A) | ||
|---|---|---|---|---|---|
|
DVC75-24-5 | 24Vdc: 17...40Vdc | 5Vdc | 8A | |
|
|
DVC75-24-12 | 24Vdc: 17...40Vdc | 12.5Vdc | 4A | |
|
|
DVC75-24-20 | 24Vdc: 17...40Vdc | 20Vdc | 2.5A | |
|
|
DVC75-24-24 | 24Vdc: 17...40Vdc | 24Vdc | 2A | |
|
|
DVC75-36-12 | 36Vdc: 25...70Vdc | 12.5Vdc | 5A | |
|
|
DVC75-36-24 | 36Vdc: 25...70Vdc | 24Vdc | 2.8A | |
|
|
DVC75-48-15 | 48Vdc: 33...90Vdc | 15Vdc | 5A | |
|
|
DVC75-48-24 | 48Vdc: 33...90Vdc | 24Vdc | 3.2A | |
|
|
DVC75-80-12 | 72/80/96/110Vdc: 56...154Vdc | 12.5Vdc | 6A | |
|
|
DVC75-80-24 | 72/80/96/110Vdc: 56...154Vdc | 24Vdc | 3.2A |
