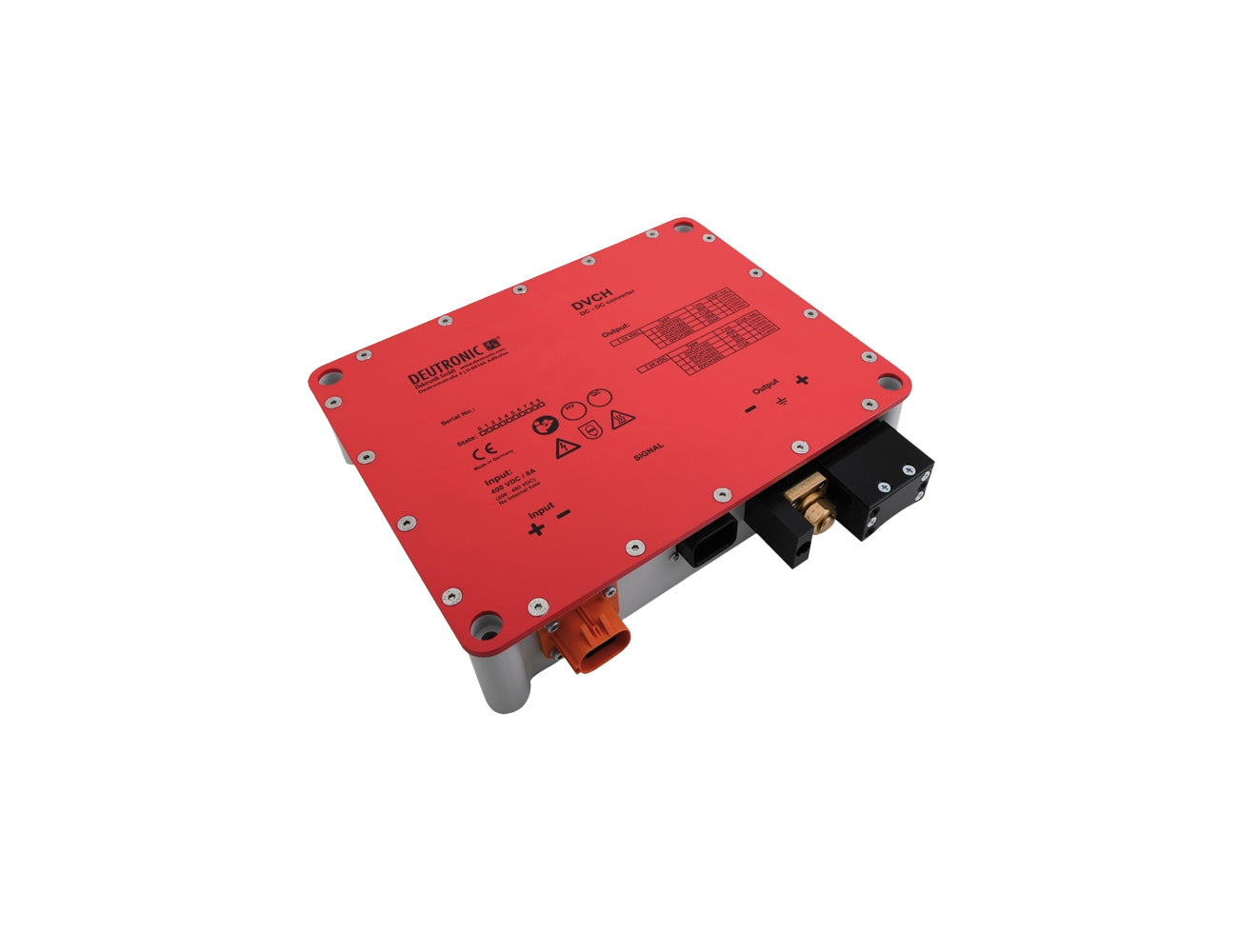

Deutronic DVCH1503-700 DC/DC Converter
The Deutronic DVCH1503-700 Series is a robust, high-performance galvanically isolated DC/DC converter designed for applications operating from high-voltage DC battery systems, including rail vehicles, industrial machinery, and energy infrastructure. Rated at 1500 W continuous output power, the DVCH1503-700 operates from a wide 400–900 Vdc input ...
Read MoreThe Deutronic DVCH1503-700 Series is a robust, high-performance galvanically isolated DC/DC converter designed for applications operating from high-voltage DC battery systems, including rail vehicles, industrial machinery, and energy infrastructure.
Rated at 1500 W continuous output power, the DVCH1503-700 operates from a wide 400–900 Vdc input range (700 Vdc nominal), converting high-voltage DC into stable low-voltage auxiliary power for control electronics, communication systems, and onboard equipment. Output variants are available in 12 Vdc and 24 Vdc, supporting high output currents while maintaining excellent voltage regulation and fast dynamic response.
The unit features a rugged aluminium, conduction-cooled enclosure, designed for baseplate or chassis mounting. Heat is dissipated through the mounting surface, enabling fanless operation and long-term reliability in harsh environments. Advanced functionality including CAN communication, interlock monitoring, and support for parallel operation allows the DVCH1503-700 to integrate seamlessly into modern distributed power architectures.
Show Less
Features
- Wide input voltage range: 400–900 Vdc (700 Vdc nominal)
- Output voltage options: 12 Vdc or 24 Vdc
- Output current: Up to 112 A @ 12 Vdc, Up to 56 A @ 24 Vdc
- Galvanically isolated input and output
- High efficiency: up to 94%
- Conduction-cooled, fanless design via mounting surface
- Rugged aluminium enclosure for industrial environments
- Wide operating temperature range: -40 °C to +70 °C
- Ingress protection: IP65 / IP67 / IP6K9K (with appropriate mating connectors)
- Parallel operation supported for higher power systems
Specifications
| INPUT | ||
|---|---|---|
| Input Voltage (Nom.) | 700 Vdc | Class A* |
| Undervoltage Range | 0 - 400 Vdc | Class C* |
| Lower Restricted Operation Range | 400 - 450 Vdc | Continuous operation, class B* |
| Unrestricted Operation Range | 450 - 850 Vdc | Continuous operation, class A* |
| Upper Restricted Operation Range | 850 - 900 Vdc | Continuous operation, class B* |
| Overvoltage Range | 900 - 1000 Vdc | ≤ 10 s, class C* |
| Max. Current Consumption | < 5 A | - |
| No-Load Current Consumption | < 45 mA | With Applied HV Voltage and Active Communication Via CAN |
| Input Capacity | < 5 μF | Attention: No inrush current limitation in the device. Provide a pre-charging section in the application, otherwise there is a risk of a overvoltage damage to the input of the DC/DC converter. |
|
*Evaluation criteria for the operation behaviour |
||
|
Class A |
Unrestricted operation range |
The DC/DC converter operates as designed in compliance with the tolerances specified in the data sheet. |
|
Class B |
Lower and upper |
One or more functions may go beyond the specified tolerance. After returning to the unrestricted operation range, the DC/DC converter operates again as designed |
|
Class C |
Undervoltage and overvoltage range |
One or more functions do not work as intended. After returning to the unrestricted operation range, the DC/DC converter operates again as designed. |
| OUTPUT | ||
|---|---|---|
| Model Number |
DVCH1503-700-12 |
DVCH1503-700-24 |
| Output Voltage (Nom.) |
12 VDC |
24 VDC |
| Initial tolerance Nᵢₙᵢₜᵢₐₗ | ±1,0% Unom | |
| Ripple & Noise Nᵣₙ |
< 450 mVpp Measurement bandwidth 20 MHz |
|
| Max. continuous output current Iₙₒₘ | 112 A | 56 A |
| Max. continuous output power Pₙₒₘ | ≤ 1500 W | |
| Current limiting |
1,1 x Iₙₒₘ Above 1,0 x Iₙₒₘ Uₒᵤₜ may sink |
|
| Recovery time |
< 4 ms Duration from leaving the tolerance band until the permanently return to the tolerance band after a load step. |
|
| Slew rate for setpoint change | 30 V/s | |
| ENVIRONMENT | ||
|---|---|---|
| Working temperature (environment) |
-40 °C ... +70 °C |
- |
| Max. permissible temperature of the mounting surface | < 50 °C | - |
| Cooling | Contact cooling via mounting surface | An effective thermal connection between the mounting surface andv the heat sink of the application is a requirement for safe and long-term operation. |
| Overtemperature protection | - |
Linear derating between 70°C* and 90°C* (@OUT 24V) or 75°C* and 90°C* (@OUT 12V). When 90°C* is reached, the device switches off. * internal device temperature |
| Storage temperature | -40 °C ... +85 °C | - |
| Humidity | 100 % | - |
| Dewing | Allowed | - |
| Shock test acc. to DIN EN 60068-2-27 | - | half sinusoidal (excitation) 250m/s² (peak acceleration) 6ms (duration) 1.000 shocks to each axis (quantity) ±X, ±Y, ±Z (axis) |
| Vibration test acc. to DIN EN 60068-2-6 | - | sinusoidal (excitation) 30m/s² (acceleration) 5 - 100Hz (frequency, floating) 5g (acceleration) 10 - 500Hz (frequency, floating) 9h per axis (duration), 1 Oct/min X, Y, Z (axis) |
| Degree of protection acc. to EN 60529 | IP65, IP67, IP6K9K | Using the appropriate mating connectors; except M12 screw connection points at the output |
| GENERAL DATA | ||
|---|---|---|
| Insulation strength |
500 Vdc |
Output / Enclosure Input / Output + Enclosure + CAN Output / CAN |
| Insulation resistance | ≥ 30 MΩ at 500 Vdc | Input / Output + Enclosure + CAN |
| Max. Efficiency | typ. 94 % | see fig. 9.4 |
| Average efficiency | typ. 93 % | Averaging of the efficiency values at 25%, 50%, 75% und 100% of the nominal output power. |
| Current consumption auxiliary and control circuit | ≤ 51 mA | Current consumption pin 3 (KL15) / pin 4 (KL30) without HV voltage applied to input with active communication via CAN see fig. 9.3 |
| Dimensions (LxWxH) | 295 x 233 x 68,5 mm | without connections, see fig. 8.1 |
| Enclosure | Aluminium | - |
| Weight | approx. 5,5 kg | - |
| EMC (ELECTROMAGNETIC COMPATIBILITY) | ||
|---|---|---|
| Title |
Standard |
Data |
| Emitted interference |
EN12895 |
- |
| Immunity | EN12895 EN 61204-3 |
- acc. to 7.2.3, Noise immunity level for industrial environment (cable length < 3 m) |
| ELECTRICAL SAFETY | ||
|---|---|---|
| Title |
Standard |
Data |
| Low-voltage switch mode power supplies - Safety requirements |
DIN EN 61204-7 |
- |
| Safety of industrial trucks - Electrical requirements | Designed according to DIN EN 1175* | - |
| Electrically powered road vehicles | ISO 6469-3 | - |
| *The system integrator is responsible for compliance of all product-specific requirements in the final application. | ||
| INSTALLATION AND SAFETY INSTRUCTIONS | ||
|---|---|---|
|
In addition to the general installation and safety instructions for DC/DC converters, the following values and supplements apply: |
||
| Mounting Points |
- |
4x Mounting holes (Ø9 mm) see fig. 8.1 |
| Installation Orientation | - | Any |
| Cooling | - | A sufficient cooling must be ensured externally in the customer application via the mounting surface. |
| Connection Input / Output | - | See chapter 7 |
| Interlock-Function | - | Realized by HV-connector plugs. Guide via signal connection plug, see chapter 7. Attention: Max. ampacity of the HV interlock line ≤ 300 mA. |
| Input Fuse | - | No integrated input fuse. A fuse must be provided externally by the customer application. |
| Input Discharge Duration | < 5 s | Time from disconnecting the input voltage to Uin< 60VDC |
| Reverse polarity protection input | - | Reverse polarity protection through connection plug |
| Reverse polarity protection output | < 30 Vdc | Note: DVCH1503 self-protection, does not protect the application from reverse polarity. |
| Parallel operation for increased output power | Possible | See Functional description |
Selection Table
| TYPE | INPUT VOLTAGE (Vdc) | OUTPUT VOLTAGE (Vdc) | OUTPUT CURRENT (A) | CAT. NO. | ||
|---|---|---|---|---|---|---|
| Nom. | Range | Nom. | Range | Max | ||
| DVCH1503-700-12 | 700 | 400-900 | 12 | 2-15 | 112 | 105195/x/yyy* |
| DVCH1503-700-24 | 700 | 400-900 | 24 | 2-30 | 56 | 105194/x/yyy* |
|
*Order Option: .../x/...: Accessory variant |
||||||
Technical Drawings
