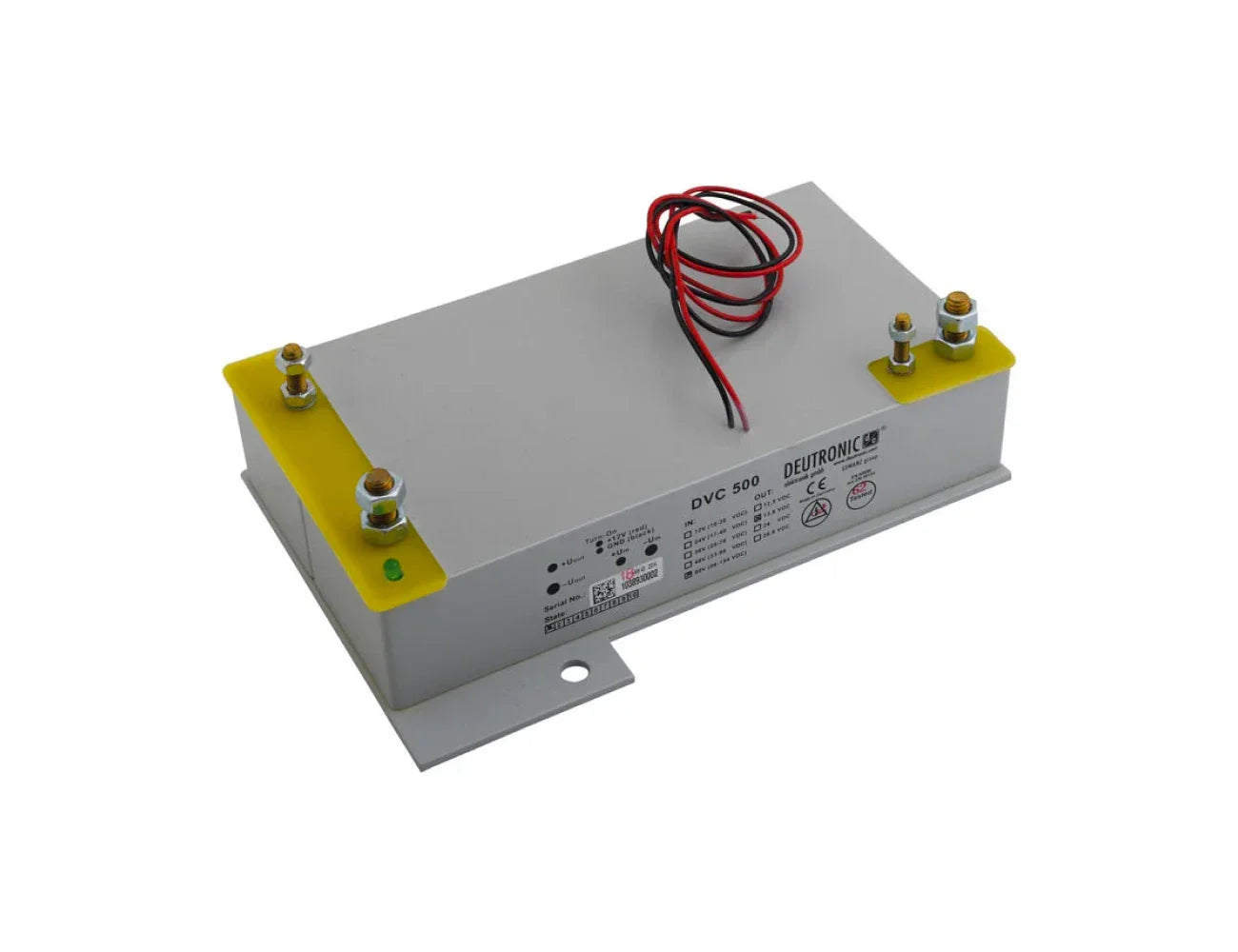

Deutronic DVC500 SERIES DC/DC Converter
The Deutronic DVC500 Series DC/DC Converter is a high-performance solution designed for automotive and industrial applications, delivering up to 500W of continuous power. Engineered to support demanding environments, it provides efficient and stable power conversion tailored for modern vehicle systems. Key features include a wide input voltage r...
Read MoreThe Deutronic DVC500 Series DC/DC Converter is a high-performance solution designed for automotive and industrial applications, delivering up to 500W of continuous power. Engineered to support demanding environments, it provides efficient and stable power conversion tailored for modern vehicle systems.
Key features include a wide input voltage range (25–154V DC, depending on the model) for compatibility with various power systems and multiple output options (12.5–24.3V DC) with output currents up to 40A. The DVC500 Series features a fully potted design that enhances durability and vibration resistance, along with galvanic isolation for reliable protection against voltage spikes and interference. Additional protections include over-temperature shutdown, reverse polarity protection, and optional EMC compliance for automotive applications, ensuring secure operation in harsh conditions. With an IP67 rating, this converter resists dust and water, making it ideal for rugged environments.
With its robust aluminum housing and compact design (222x166x71mm, approximately 2.7kg), the DVC500 Series is easy to integrate into both vehicle and industrial systems. Its high efficiency of up to 92% minimises energy loss, while a broad operating temperature range (-40°C to +75°C) guarantees reliable performance under extreme conditions.
The Deutronic DVC500 Series DC/DC Converter is the ideal choice for high-power, resilient, and safe power conversion in demanding automotive and industrial applications.
Show Less
Features
- 500W Automotive and Vehicle Converter
- Designed for use in rough environment
- Rugged construction / potted device
- Protection against unfavourable environmental conditions
- DC/DC wide range input
- Filtered against vehicle on-board disturbances
- Galvanic separation 1.5kV
- Design acc. to EN60950. EN50155. EN1175. ISO20898
- Regulated output
- very high efficiency
- Short-circuit / No-load protection
- Over Temperature protection
- Parallel connectable (Option: Smart output characteristics)
Specifications
| INPUT | |
|---|---|
| Input voltage | 36V, 48V, 72V, 96V, 110V |
| Input range | See selection table |
| Filtering | Filtering against on board disturbances |
| OUTPUT | |
|---|---|
| Output voltage | 12.5Vdc, 13.8Vdc, 24.3Vdc |
| Output Voltage Tolerance | +/- 1% |
| Output Current | See Selection Table |
| Current Limiting | Typically 1.1 x I nominal |
| Load Regulation | +/-0.5% (Typ 0.3% = 80mV) 10-90% load |
| Regulation time | <1 ms |
| Line regulation | ±0.1% |
| Temperature drift | -25C to +70C <1% |
| Ripple & noise | 100mVp-p |
| Efficiency | 92% Typical |
| Parallel Operation | Unlimited, 100% redundancy requires external diodes |
| ENVIRONMENT | |
|---|---|
| Ambient temperature | -40°C to 75°C with derating, Max baseplate temperature 100°C |
| Storage temperature | -40°C to 85°C |
| Humidity | 100% relative humidity, dewing permitted. |
| Cooling | Natural convection / cooling via contact to mounting surface. |
| STANDARDS AND APPROVALS | |
|---|---|
| Safety | EN60950, EN50155, EN1175, ISO20898 |
| EMC | EN61204-3 |
| PROTECTION | |
|---|---|
| Protective degree | IP67 (not connector) |
| Reverse polarity protection | External input fuse is blown. |
| Over temperature Protection | Protective shut down, self reset after cool down. |
| Insulation | Input to Output: 1.5kV Input to Case: 1.5kV Ouput to Case: 500V |
| Over voltage protection | Protective shut down Self reset after cool down. |
| Safety Note | If an external energy source (e.g battery) is connected to the output of the converter, the supply line (+pole)must be fused close by the source. Recommended fusing: 1.1.. 1.2 x Inom |
| MECHANICAL | |
|---|---|
| Connectors | Input: +Uin (M5) / -Uin(M8) Output: +Uout (M6) / -Uout(M8) |
| Dimensions | 222(220) x 166(122) x 71(47)mm |
| Weight | 2.65Kg |
| Case Material | Aluminium |
Selection Table
| MODEL | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT | POWER |
|---|---|---|---|---|
| DVC500-36-24 | 36VDC (25-70VDC) | 24VDC | 21A | 500W |
| DVC500-48-12 | 48VDC (33-90VDC) | 12.5VDC | 40A | 500W |
| DVC500-48-13.8 | 48VDC (33-90VDC) | 13.8VDC | 36A | 500W |
| DVC500-48-24 | 48VDC (33-90VDC) | 24VDC | 21A | 500W |
| DVC500-48-28.8 | 48VDC (41-80VDC) | 28.8VDC | 17.4A | 500W |
| DVC500-80-12 | 72/80/96/110VDC (56-154VDC) | 12.5VDC | 40A | 500W |
| DVC500-80-13.8 | 72/80/96/110VDC (65-154VDC) | 13.8VDC | 36A | 500W |
| DVC500-80-24 | 72/80/96/110VDC (56-154VDC) | 24VDC | 21A | 500W |

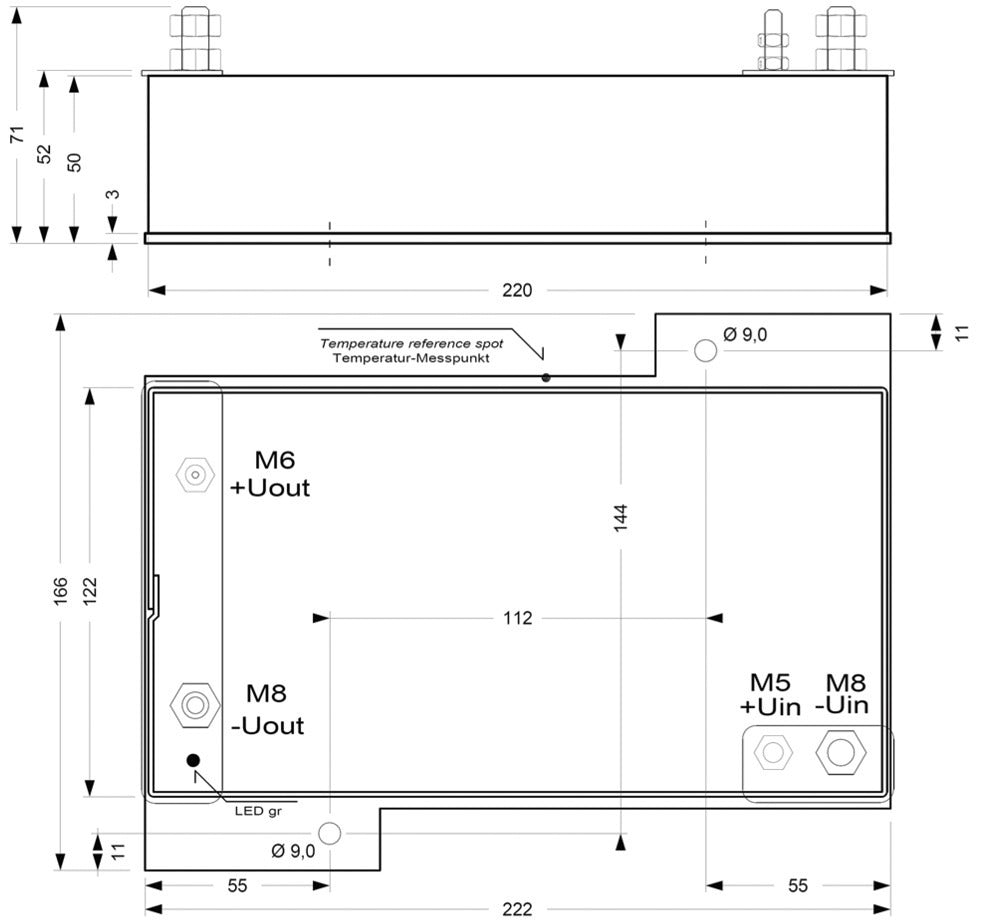

Technical Drawings
