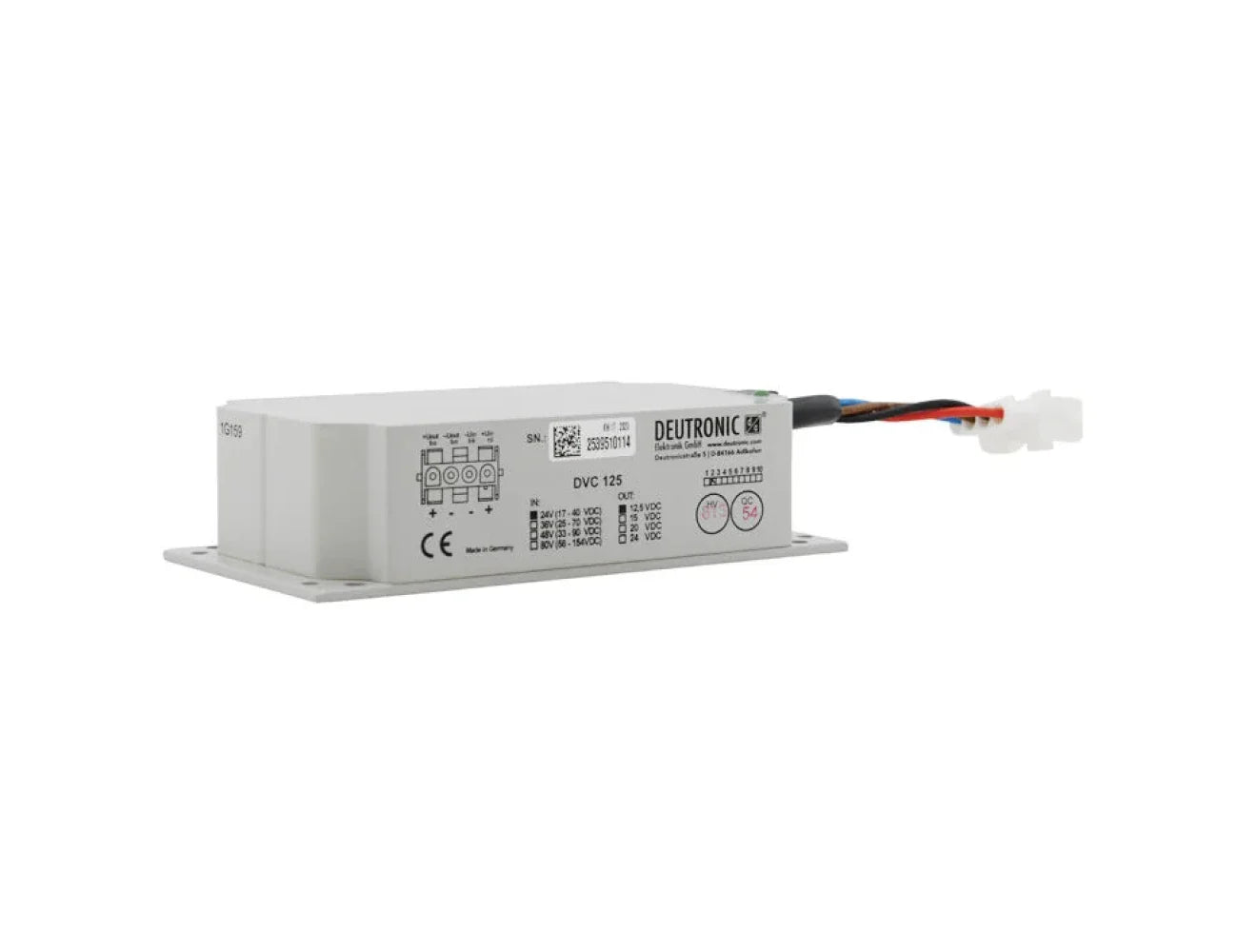

Deutronic DVC125 SERIES DC/DC Converter
The Deutronic DVC125 Series DC/DC Converter is a compact and robust solution for automotive and industrial applications. Delivering power outputs from 97.5W to 125W, it ensures efficient and reliable performance even in harsh conditions. Key features include a wide input voltage range (17–154V DC, depending on the model) for compatibility with v...
Read MoreThe Deutronic DVC125 Series DC/DC Converter is a compact and robust solution for automotive and industrial applications. Delivering power outputs from 97.5W to 125W, it ensures efficient and reliable performance even in harsh conditions.
Key features include a wide input voltage range (17–154V DC, depending on the model) for compatibility with various power systems and multiple output voltage options (12.5–24V DC) with output currents up to 10A. The DVC125 Series boasts a rugged, fully potted design for enhanced vibration resistance and durability, along with galvanic isolation up to 1.5kV for safeguarding sensitive electronics from electrical interference. Advanced safety features such as over-temperature shutdown, reverse polarity protection, and short-circuit resilience ensure reliable operation. Compliance with EMC (EN61204-3) and electrical safety standards (EN61204-7) makes it ideal for demanding environments.
With a compact aluminum housing (156x85x40mm, approximately 1kg), the DVC125 Series is easy to integrate into vehicle and industrial systems. Its high efficiency of up to 90% and wide operating temperature range (-40°C to +75°C) make it a dependable choice for energy-efficient power conversion.
Show Less
Features
- 97W - 132W
- Automotive Converter
- Designed for use in rough environments
- Rugged construction / potted device
- Protection against unfavourable environmental conditions
- Filtered against vehicle on-board disturbances
- DC/DC wide range input
- Galvanic separation 1.5kV
- Design acc. to EN60950. EN50155. EN1175. ISO20898
- Regulated output
- very high efficiency
- Short-circuit / No-load protection
- Over Temperature protection
- Parallel connectable (Option: Smart output characteristics)
Specifications
| INPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input range |
24Vdc (17-40Vdc) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Transient over voltage (20ms, one time) |
50dc @ 24Vdc 80V @ 36Vdc 100V @ 48Vdc 220V @ 110Vdc |
||||||||||||||||||||||||||||||||||||||||||||||||
| OUTPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output voltage | See Selection Table. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Output voltage tolerance |
±3% @ 5VDC model 1% @ 12-24VDC models |
||||||||||||||||||||||||||||||||||||||||||||||||
| Output current | See Selection Table. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Load regulation static |
±1.5% typical model dependant. 0-100% load |
||||||||||||||||||||||||||||||||||||||||||||||||
| Regulation time | ≤0.5ms,≤1ms for DVC251 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Line regulation | ±0.1% | ||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature drift | 0.2% typ 0 - 60°C 0.5% typ -25 - 60°C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Ripple & noise | 100mVp-p | ||||||||||||||||||||||||||||||||||||||||||||||||
| Efficiency | 85-92% Typical | ||||||||||||||||||||||||||||||||||||||||||||||||
| STANDARDS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Safety | Designed to meet EN60950, EN1175 | ||||||||||||||||||||||||||||||||||||||||||||||||
| EMC | Designed to meet EN55011 Class B, EN61000-6-2 | ||||||||||||||||||||||||||||||||||||||||||||||||
| PROTECTION | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Reverse polarity protection |
External input fuse is blown. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Isolation |
Input to case: 1.5kV, |
||||||||||||||||||||||||||||||||||||||||||||||||
| Over temperature Protection |
Protective shut down |
||||||||||||||||||||||||||||||||||||||||||||||||
| Over voltage protection |
Protective shut down, self reset after cool down. |
||||||||||||||||||||||||||||||||||||||||||||||||
| Protective degree | IP67 (not connector) | ||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ambient temperature |
-40°C to 75°C without power derating |
||||||||||||||||||||||||||||||||||||||||||||||||
| Storage temperature | -40°C - 85°C | ||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity | 100% relative humidity, dewing permitted. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Cooling | Natural convection / cooling via contact to mounting surface. | ||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | 156 x 85 x 40mm | ||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 1500g | ||||||||||||||||||||||||||||||||||||||||||||||||
| Case Material | Aluminium | ||||||||||||||||||||||||||||||||||||||||||||||||
| Connectors |
10cm cable with |
||||||||||||||||||||||||||||||||||||||||||||||||
Selection Table
| TYPE | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT *) | POWER |
|---|---|---|---|---|
| DVC125-24-12 | 24VDC (17-40VDC) | 12.5VDC | 8A | 100W |
| DVC125-24-15 | 24VDC (20-40VDC) | 15VDC | 6.5A | 97W |
| DVC125-24-20 | 24VDC (17-40VDC) | 20VDC | 5A | 100W |
| DVC125-24-24 | 24VDC (17-40VDC) | 24VDC | 5A | 120W |
| DVC125-36-12 | 36VDC (25-70VDC) | 12.5VDC | 10A | 125W |
| DVC125-36-20 | 36VDC (25-70VDC) | 20VDC | 5.5A | 110W |
| DVC125-36-24 | 36VDC (25-70VDC) | 24VDC | 5.5A | 132W |
| DVC125-48-12 | 48VDC (33-90VDC) | 12.5VDC | 10A | 125W |
| DVC125-48-20 | 48VDC (33-90VDC | 20VDC | 5.5A | 110W |
| DVC125-48-24 | 48VDC (33-90VDC) | 24VDC | 5.5A | 132W |
| DVC125-80-12 | 72/80/96/110VDC (56-154VDC) | 12.5VDC | 10A | 125W |
| DVC125-80-20 | 72/80/96/110VDC (56-154VDC) | 20VDC | 5.5A | 110W |
| DVC125-80-24 | 72/80/96/110VDC (56-154VDC) | 24VDC | 5.5A | 132W |

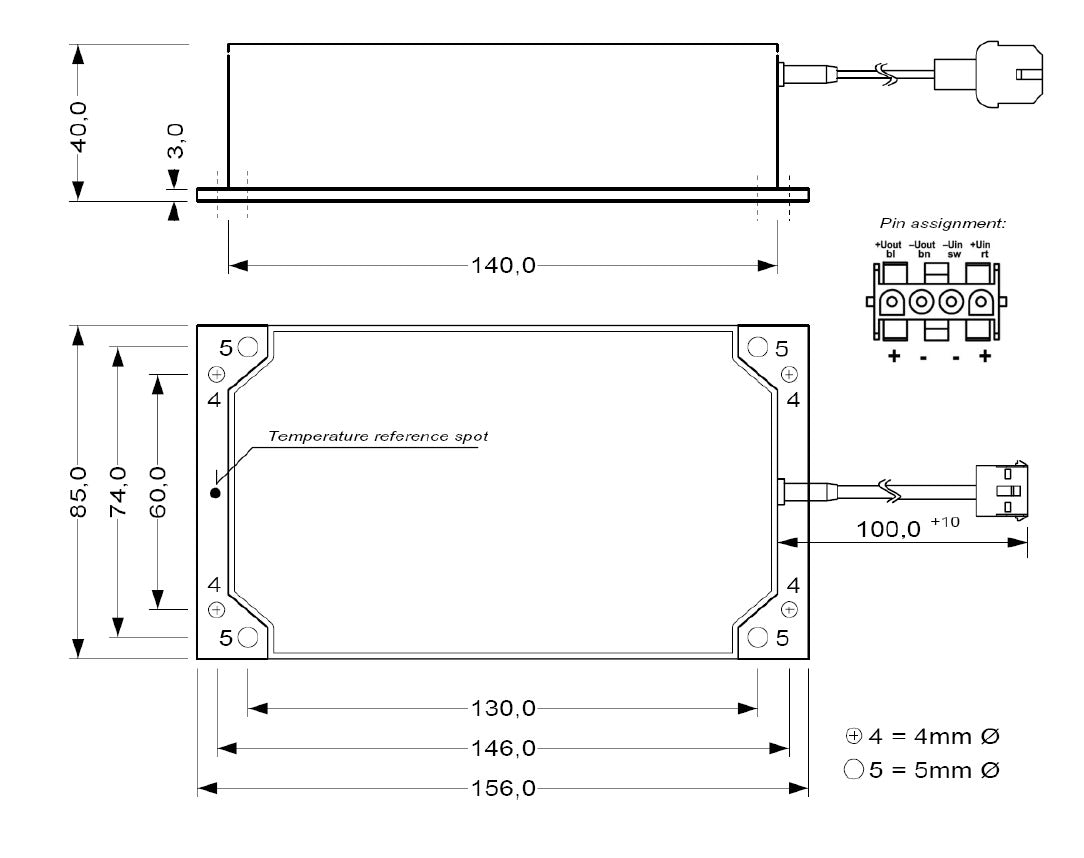

Technical Drawings
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
