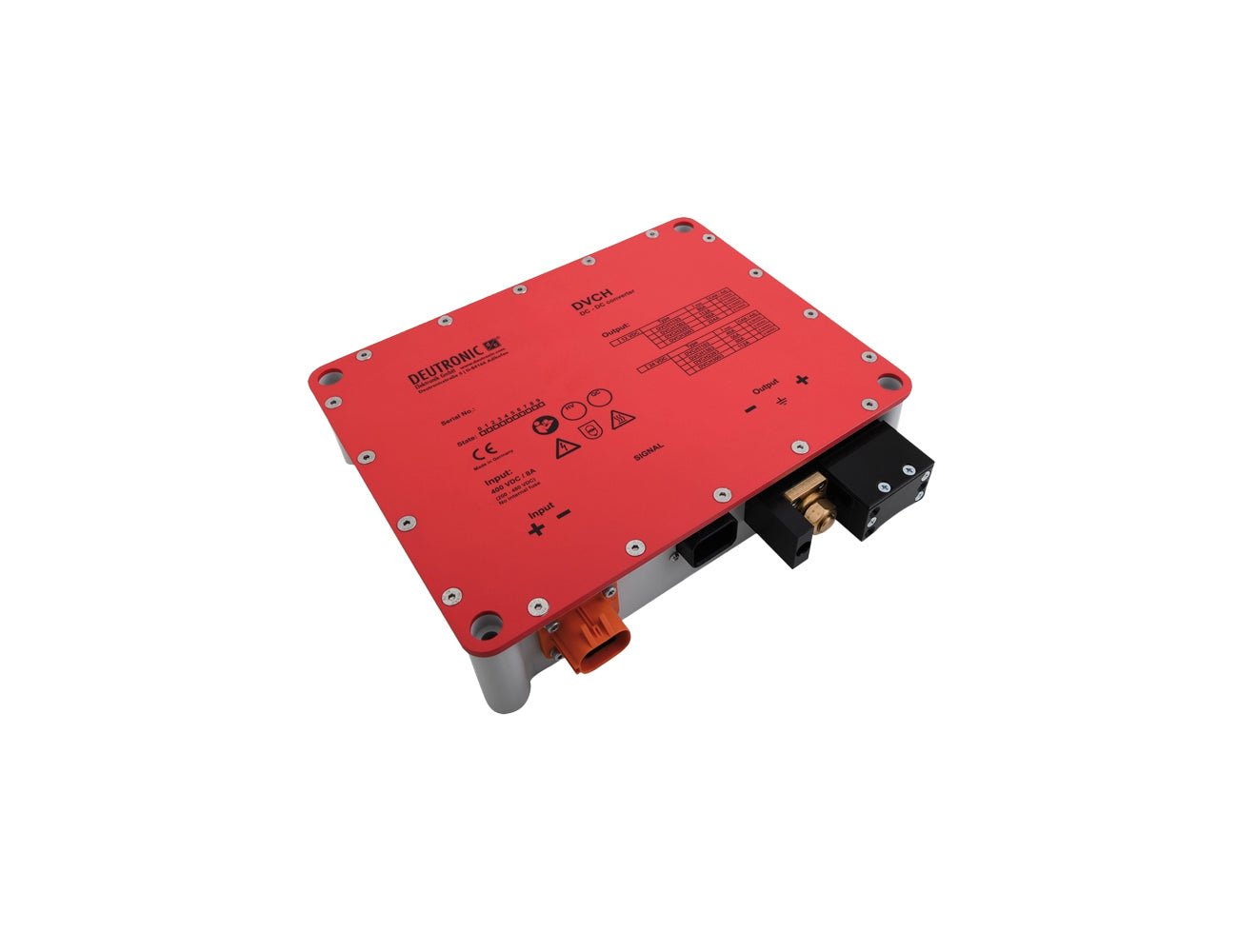

Deutronic DVCH1503-400 DC/DC Converter
The Deutronic DVCH1503-400 Series is a high-performance, galvanically isolated DC/DC converter designed for demanding mobile power applications operating from high-voltage DC battery systems. Optimised for reliability in harsh environments, the series converts a 400 Vdc nominal input into stable low-voltage DC power for auxiliary loads, control ...
Read MoreThe Deutronic DVCH1503-400 Series is a high-performance, galvanically isolated DC/DC converter designed for demanding mobile power applications operating from high-voltage DC battery systems. Optimised for reliability in harsh environments, the series converts a 400 Vdc nominal input into stable low-voltage DC power for auxiliary loads, control electronics, and onboard systems.
Supporting a wide input voltage range from 200 to 470 Vdc, the DVCH1503-400 delivers up to 1500 W of continuous output power, with models available in 12 Vdc and 24 Vdc variants. High efficiency (up to 94%) and fast dynamic response ensure dependable performance under fluctuating loads typical of industrial trucks, heavy plant machinery and marine vessels.
The rugged aluminium, conduction-cooled enclosure is designed for baseplate or chassis mounting, allowing heat to be dissipated through the mounting surface without the need for internal fans. With CAN communication, configurable control functions, and support for parallel operation, the DVCH1503-400 integrates easily into modern distributed power architectures.
Show Less
Features
- Wide input voltage range: 200–470 Vdc (400 Vdc nominal)
- Output voltage options: 12 Vdc or 24 Vdc
- High output current: Up to 112 A @ 12 Vdc, Up to 56 A @ 24 Vdc
- Galvanically isolated input and output
- High efficiency: up to 94%
- Conduction-cooled design via mounting surface (fanless)
- Rugged aluminium enclosure for industrial and mobile environments
- Wide operating temperature: –40 °C to +70 °C with thermal derating
- Ingress protection: IP65 / IP67 / IP6K9K (with appropriate connectors)
- Parallel operation supported for increased output power
Specifications
| INPUT | ||
|---|---|---|
| Input Voltage (Nom.) | 400 Vdc | Class A* |
| Undervoltage Range | 0 - 200 Vdc | Class C* |
| Lower Restricted Operation Range | 200 - 250 Vdc | Continuous operation, class B* |
| Unrestricted Operation Range | 250 - 450 Vdc | Continuous operation, class A* |
| Upper Restricted Operation Range | 450 - 470 Vdc | Continuous operation, class B* |
| Overvoltage Range | 470 - 500 Vdc | ≤ 10 s, class C* |
| Max. Current Consumption | ≤ 8,5 A | typ. 8 A @UIN= 200Vdc, see fig. 9.3 |
| No-Load Current Consumption | < 65 mA | With Applied HV Voltage and Active Communication Via CAN |
| Input Capacity | < 8 μF | Attention: No inrush current limitation in the device. Provide a pre-charging section in the application, otherwise there is a risk of a overvoltage damage to the input of the DC/DC converter. |
|
*Evaluation criteria for the operation behaviour |
||
|
Class A |
Unrestricted operation range |
The DC/DC converter operates as designed in compliance with the tolerances specified in the data sheet. |
|
Class B |
Lower and upper |
One or more functions may go beyond the specified tolerance. After returning to the unrestricted operation range, the DC/DC converter operates again as designed |
|
Class C |
Undervoltage and overvoltage range |
One or more functions do not work as intended. After returning to the unrestricted operation range, the DC/DC converter operates again as designed. |
| OUTPUT | ||
|---|---|---|
| Model Number |
DVCH1503-400-12 |
DVCH1503-400-24 |
| Output Voltage Uₙₒₘ |
12 Vdc |
24 Vdc |
| Initial tolerance Nᵢₙᵢₜᵢₐₗ | ±1,0% Uₙₒₘ | |
| Ripple & Noise Nᵣₙ |
< 1,8% Unom Measurement bandwidth 20 MHz |
|
| Max. continuous output current Iₙₒₘ | 112 A | 56 A |
| Max. continuous output power Pₙₒₘ | ≤ 1500 W | |
| Current limiting |
1,1 x Inom Above 1,0 x Iₙₒₘ Uₒᵤₜ may sink |
|
| Recovery time |
< 3 ms Duration from leaving the tolerance band until the permanently return to the tolerance band after a load step. |
|
| Slew rate for setpoint change | 30 V/s | |
| ENVIRONMENT | ||
|---|---|---|
| Working temperature (environment) |
-40 °C ... +70 °C |
- |
| Max. permissible temperature of the mounting surface | < 50 °C | - |
| Cooling | Contact cooling via mounting surface | An effective thermal connection between the mounting surface and the heat sink of the application is a requirement for safe and long-term operation. |
| Overtemperature protection | - |
Linear derating between 70°C* and 90°C*. When 90°C* is reached, the device switches off. * internal device temperature |
| Storage temperature | -40 °C ... +85 °C | - |
| Humidity | 100 % | - |
| Dewing | Allowed | - |
| Shock test acc. to DIN EN 60068-2-27 | - | half sinusoidal (excitation) 250m/s² (peak acceleration) 6ms (duration) 1.000 shocks to each axis (quantity) ±X, ±Y, ±Z (axis) |
| Vibration test acc. to DIN EN 60068-2-6 | - | sinusoidal (excitation) 30m/s² (acceleration) 5 - 100Hz (frequency, floating) 5g (acceleration) 10 - 500Hz (frequency, floating) 9h per axis (duration), 1 Oct/min X, Y, Z (axis) |
| Degree of protection acc. to EN 60529 | IP65, IP67, IP6K9K | Using the appropriate mating connectors; except M12 screw connection points at the output |
| GENERAL DATA | ||
|---|---|---|
| Insulation strength |
500 Vdc |
Output / Enclosure Input / Output + Enclosure + CAN Output / CAN |
| Insulation resistance | ≥ 30 MΩ at 500 Vdc | Input / Output + Enclosure + CAN |
| Max. Efficiency | typ. 94 % | see fig. 9.4 |
| Average efficiency | typ. 93,2 % | Averaging of the efficiency values at 25%, 50%, 75% und 100% of the nominal output power. see fig. 9.4 |
| Current consumption auxiliary and control circuit | ≤ 51 mA | Current consumption pin 3 (KL15) / pin 4 (KL30) without HV voltage applied to input with active communication via CAN see fig. 9.5 |
| Dimensions (LxWxH) | 295 x 233 x 68,5 mm | without connections, see fig. 8.1 |
| Enclosure | Aluminium | - |
| Weight | approx. 5 kg | - |
| EMC (ELECTROMAGNETIC COMPATIBILITY) | ||
|---|---|---|
| Title |
Standard |
Data |
| Emitted interference |
ECE R10.5 |
- |
| Immunity | ECE R10.5 EN12895 EN 61204-3 |
- - acc. to 7.2.3, Noise immunity level for industrial environment (cable length < 3 m) |
| ELECTRICAL SAFETY | ||
|---|---|---|
| Title |
Standard |
Data |
| Low-voltage switch mode power supplies - Safety requirements |
DIN EN 61204-7 |
- |
| Safety of industrial trucks - Electrical requirements | Designed according to DIN EN 1175* | - |
| Electrically powered road vehicles | ISO 6469-3 | - |
| *The system integrator is responsible for compliance of all product-specific requirements in the final application. | ||
| INSTALLATION AND SAFETY INSTRUCTIONS | ||
|---|---|---|
|
In addition to the general installation and safety instructions for DC/DC converters, the following values and supplements apply: |
||
| Mounting Points |
- |
4x Mounting holes (Ø9 mm) see fig. 8.1 |
| Installation Orientation | - | Any |
| Cooling | - | A sufficient cooling must be ensured externally in the customer application via the mounting surface. |
| Connection Input / Output | - | See chapter 7 |
| Interlock-Function | - | Realized by HV-connector plugs. Guide via signal connection plug, see chapter 7. Attention: Max. ampacity of the HV interlock line ≤ 300 mA. |
| Input Fuse | - | No integrated input fuse. A fuse must be provided externally by the customer application. |
| Input Discharge Duration | < 5 s | Time from disconnecting the input voltage to Uin< 60VDC |
| Reverse polarity protection input | - | Reverse polarity protection through connection plug |
| Reverse polarity protection output | < 30 Vdc | Note: DVCH1503 self-protection, does not protect the application from reverse polarity. |
| Parallel operation for increased output power | Possible | See Functional description |
Selection Table
| TYPE | INPUT VOLTAGE (Vdc) | OUTPUT VOLTAGE (Vdc) | OUTPUT CURRENT (A) | CAT. NO. | ||
|---|---|---|---|---|---|---|
| Nom. | Range | Nom. | Range | Max | ||
| DVCH1503-400-12 | 400 | 200-470 | 12 | 2-15 | 112 | 105193/x/yyy* |
| DVCH1503-400-24 | 400 | 200-470 | 24 | 2-30 | 56 | 105192/x/yyy* |
|
*Order Option: .../x/...: Accessory variant |
||||||

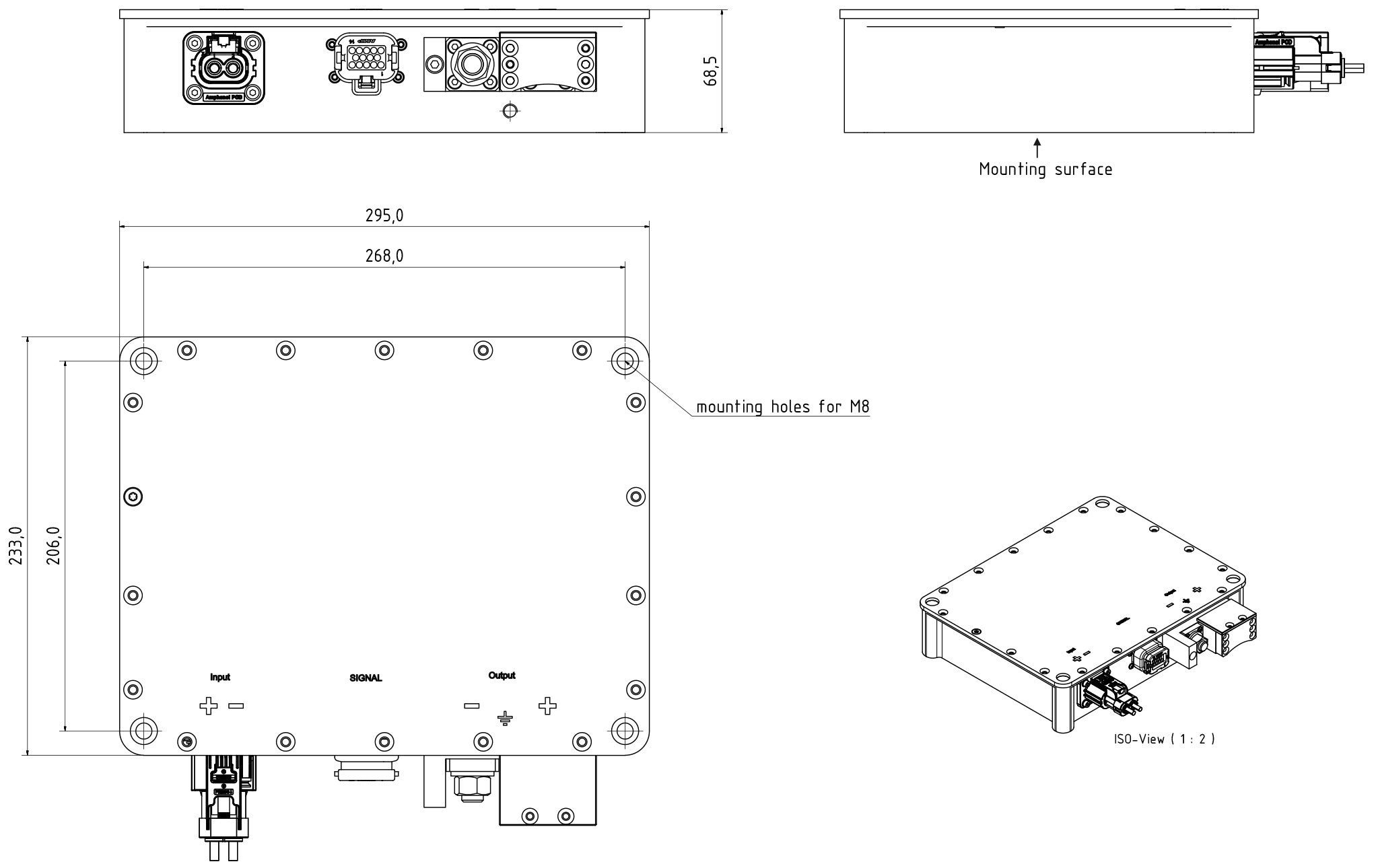

Technical Drawings
