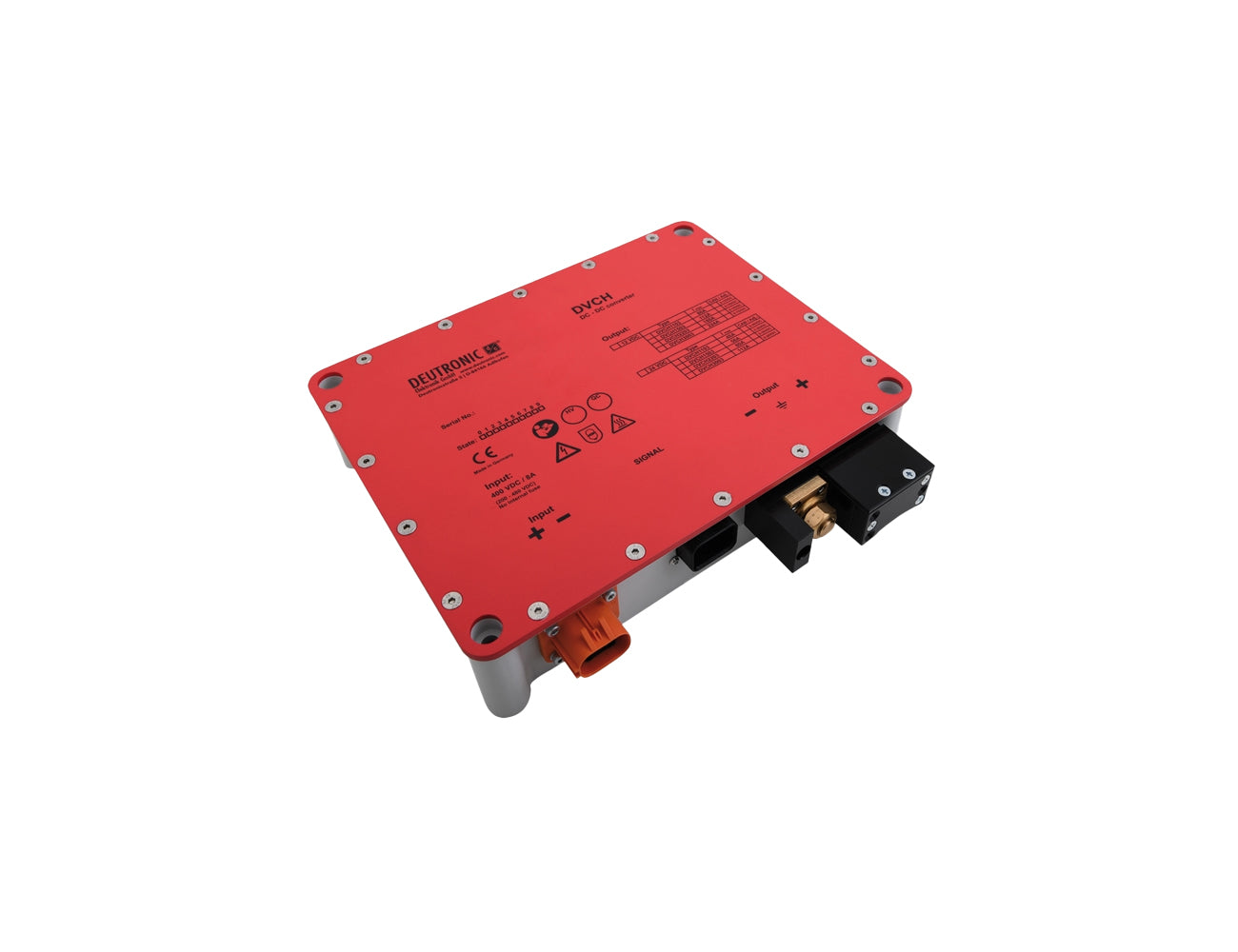

Deutronic DVCH3003-700 DC/DC Converter
The Deutronic DVCH3003-700 Series is a high-power, galvanically isolated DC/DC converter designed for demanding industrial mobility and high-voltage battery applications. Engineered to operate from a wide 400–900 Vdc input range, it delivers stable, regulated low-voltage DC power for auxiliary systems, control electronics, and onboard equipment....
Read MoreThe Deutronic DVCH3003-700 Series is a high-power, galvanically isolated DC/DC converter designed for demanding industrial mobility and high-voltage battery applications. Engineered to operate from a wide 400–900 Vdc input range, it delivers stable, regulated low-voltage DC power for auxiliary systems, control electronics, and onboard equipment.
With up to 3000 W output power and variants available at 12 Vdc, 24 Vdc, and 48 Vdc, the DVCH3003-700 is suited to applications such as industrial vehicles, marine vessels, and heavy-duty mobile machinery. Its robust aluminium enclosure, high efficiency (up to 95%), and wide operating temperature range ensure reliable performance in harsh environments.
Designed for system integration, the DVCH3003-700 supports parallel operation for increased output power, CAN communication for monitoring and control, and external cooling via the mounting surface. Multiple configuration options, including heatsink and liquid-cooling variants, allow the converter to be tailored to specific thermal and mechanical requirements.
Show Less
Features
- Wide 400–900 Vdc input range, nominal 700 Vdc
- Output voltage options: 12Vdc, 24Vdc, or 48Vdc
- High output currents up to 224A (12V variant)
- Galvanically isolated input and output
- High efficiency up to 95%
- Conduction-cooled design via mounting surface
- Rugged aluminium enclosure for industrial environments
- Wide operating temperature range: -40 °C to +70 °C
- IP65 / IP67 / IP6K9K protection (with appropriate connectors)
- Parallel operation supported for higher power systems
Specifications
| INPUT | ||
|---|---|---|
| Input Voltage (Nom.) | 700 Vdc | Class A* |
| Undervoltage Range | 0 - 400 Vdc | Class C* |
| Lower Restricted Operation Range | 400 - 450 Vdc | Continuous operation, class B* |
| Unrestricted Operation Range | 450 - 850 Vdc | Continuous operation, class A* |
| Upper Restricted Operation Range | 850 - 900 Vdc | Continuous operation, class B* |
| Overvoltage Range | 900 - 1000 Vdc | ≤ 10 s, class C* |
| Max. Current Consumption | < 8 A | - |
| No-Load Current Consumption | < 45 mA | With Applied HV Voltage and Active Communication Via CAN |
| Input Capacity | < 7 μF | Attention: No inrush current limitation in the device. Provide a pre-charging section in the application, otherwise there is a risk of a overvoltage damage to the input of the DC/DC converter. |
|
*Evaluation criteria for the operation behaviour |
||
|
Class A |
Unrestricted operation range |
The DC/DC converter operates as designed in compliance with the tolerances specified in the data sheet. |
|
Class B |
Lower and upper |
One or more functions may go beyond the specified tolerance. After returning to the unrestricted operation range, the DC/DC converter operates again as designed |
|
Class C |
Undervoltage and overvoltage range |
One or more functions do not work as intended. After returning to the unrestricted operation range, the DC/DC converter operates again as designed. |
| OUTPUT | |||
|---|---|---|---|
| Model Number |
DVCH3003-700-12 |
DVCH3003-700-24 | DVCH3003-700-48 |
| Output Voltage (Nom.) |
12 Vdc |
24 Vdc | 48 Vdc |
| Initial tolerance Nᵢₙᵢₜᵢₐₗ | ±1,0% Uₙₒₘ | ||
| Ripple & Noise Nᵣₙ |
< 400 mVpp Measurement bandwidth 20 MHz |
||
| Max. continuous output current Iₙₒₘ | 224 A | 112 A | 56 A |
| Max. continuous output power Pₙₒₘ | ≤ 3000 W | ||
| Current limiting |
1,1 x Iₙₒₘ Above 1,0 x Iₙₒₘ Uₒᵤₜ may sink |
||
| Recovery time | < 4 ms Duration from leaving the tolerance band until the permanently return to the tolerance band after a load step. |
||
| Slew rate for setpoint change | 30 V/s | ||
| ENVIRONMENT | ||
|---|---|---|
| Working temperature (environment) |
-40 °C ... +70 °C |
- |
| Max. permissible temperature of the mounting surface | < 50 °C | - |
| Cooling | Contact cooling via mounting surface | An effective thermal connection between the mounting surface andv the heat sink of the application is a requirement for safe and long-term operation. |
| Overtemperature protection | - | Linear derating between 70°C* and 90°C* (@OUT 24V) or 75°C* and 90°C* (@OUT 12V). When 90°C* is reached, the device switches off. *internal device temperature |
| Storage temperature | -40 °C ... +85 °C | - |
| Humidity | 100 % | - |
| Dewing | Allowed | - |
| Shock test acc. to DIN EN 60068-2-27 | - | half sinusoidal (excitation) 250m/s² (peak acceleration) 6ms (duration) 1.000 shocks to each axis (quantity) ±X, ±Y, ±Z (axis) |
| Vibration test acc. to DIN EN 60068-2-6 | - | sinusoidal (excitation) 30m/s² (acceleration) 5 - 100Hz (frequency, floating) 5g (acceleration) 10 - 500Hz (frequency, floating) 9h per axis (duration), 1 Oct/min X, Y, Z (axis) |
| Degree of protection acc. to EN 60529 | IP65, IP67, IP6K9K | Using the appropriate mating connectors; except M12 screw connection points at the output |
| GENERAL DATA | ||
|---|---|---|
| Insulation strength |
500 Vdc |
Output / Enclosure Input / Output + Enclosure + CAN Output / CAN |
| Insulation resistance | ≥ 30 MΩ at 500 Vdc | Input / Output + Enclosure + CAN |
| Max. Efficiency | typ. 95 % | - |
| Average efficiency | typ. 93 % | Averaging of the efficiency values at 25%, 50%, 75% und 100% of the nominal output power. |
| Current consumption auxiliary and control circuit | ≤ 51 mA | Current consumption pin 3 (KL15) / pin 4 (KL30) without HV voltage applied to input with active communication via CAN see fig. 9.5 |
| Dimensions (LxWxH) | 295 x 233 x 68,5 mm | without connections, see fig. 8.1 |
| Enclosure | Aluminium | - |
| Weight | approx. 6.4 kg | - |
| EMC (ELECTROMAGNETIC COMPATIBILITY) | ||
|---|---|---|
| Title |
Standard |
Data |
| Emitted interference |
ECE R10.6 |
DVCH300-700-24 |
| Immunity | ECE R10.6 EN12895 EN61204-3 |
DVCH300-700-24 - acc. to 7.2.3, Noise immunity level for industrial environment (cable length < 3 m) |
| ELECTRICAL SAFETY | ||
|---|---|---|
| Title |
Standard |
Data |
| Low-voltage switch mode power supplies - Safety requirements |
DIN EN 61204-7 |
- |
| Safety of industrial trucks - Electrical requirements | Designed according to DIN EN 1175* | - |
| Electrically powered road vehicles | ISO 6469-3 | - |
| *The system integrator is responsible for compliance of all product-specific requirements in the final application. | ||
| INSTALLATION AND SAFETY INSTRUCTIONS | ||
|---|---|---|
|
In addition to the general installation and safety instructions for DC/DC converters, the following values and supplements apply: |
||
| Mounting Points |
- |
4x Mounting holes (Ø9 mm) see fig. 8.1 |
| Installation Orientation | - | Any |
| Cooling | - | A sufficient cooling must be ensured externally in the customer application via the mounting surface. |
| Connection Input / Output | - | See chapter 7 |
| Interlock-Function | - | Realized by HV-connector plugs. Guide via signal connection plug, see chapter 7. Attention: Max. ampacity of the HV interlock line ≤ 300 mA. |
| Input Fuse | - | No integrated input fuse. A fuse must be provided externally by the customer application. |
| Input Discharge Duration | < 5 s | Time from disconnecting the input voltage to Uin< 60VDC |
| Reverse polarity protection input | - | Reverse polarity protection through connection plug |
| Reverse polarity protection output | < 30 Vdc | Note: DVCH3003 self-protection, does not protect the application from reverse polarity. |
| Parallel operation for increased output power | Possible | See Functional description |
Selection Table
| TYPE | INPUT VOLTAGE (Vdc | OUTPUT VOLTAGE (Vdc) | OUTPUT CURRENT (A) | CAT. NO. | ||
|---|---|---|---|---|---|---|
| Nom. | Range | Nom. | Range | Max | ||
| DVCH3003-700-12 | 700 | 400-900 | 12 | 2-15 | 224 | 105199/x/yyy* |
| DVCH3003-700-24 | 700 | 400-900 | 24 | 2-30 | 56 | 105198/x/yyy* |
| DVCH3003-700-48 | 700 | 400-900 | 48 | 4-60 | 56 | 105183/x/yyy* |
|
*Order Option: .../x/...: Accessory variant |
||||||

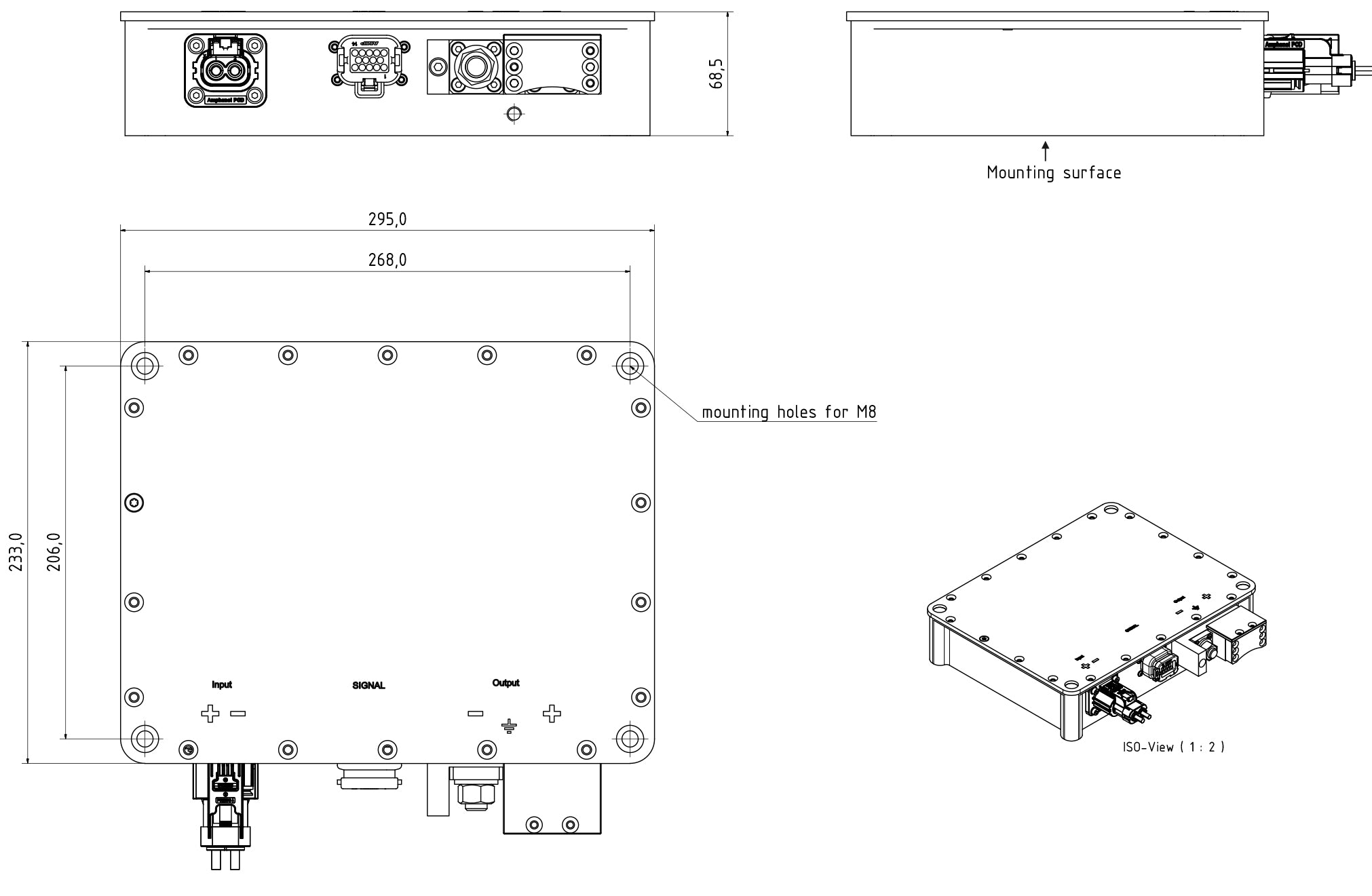

Technical Drawings
