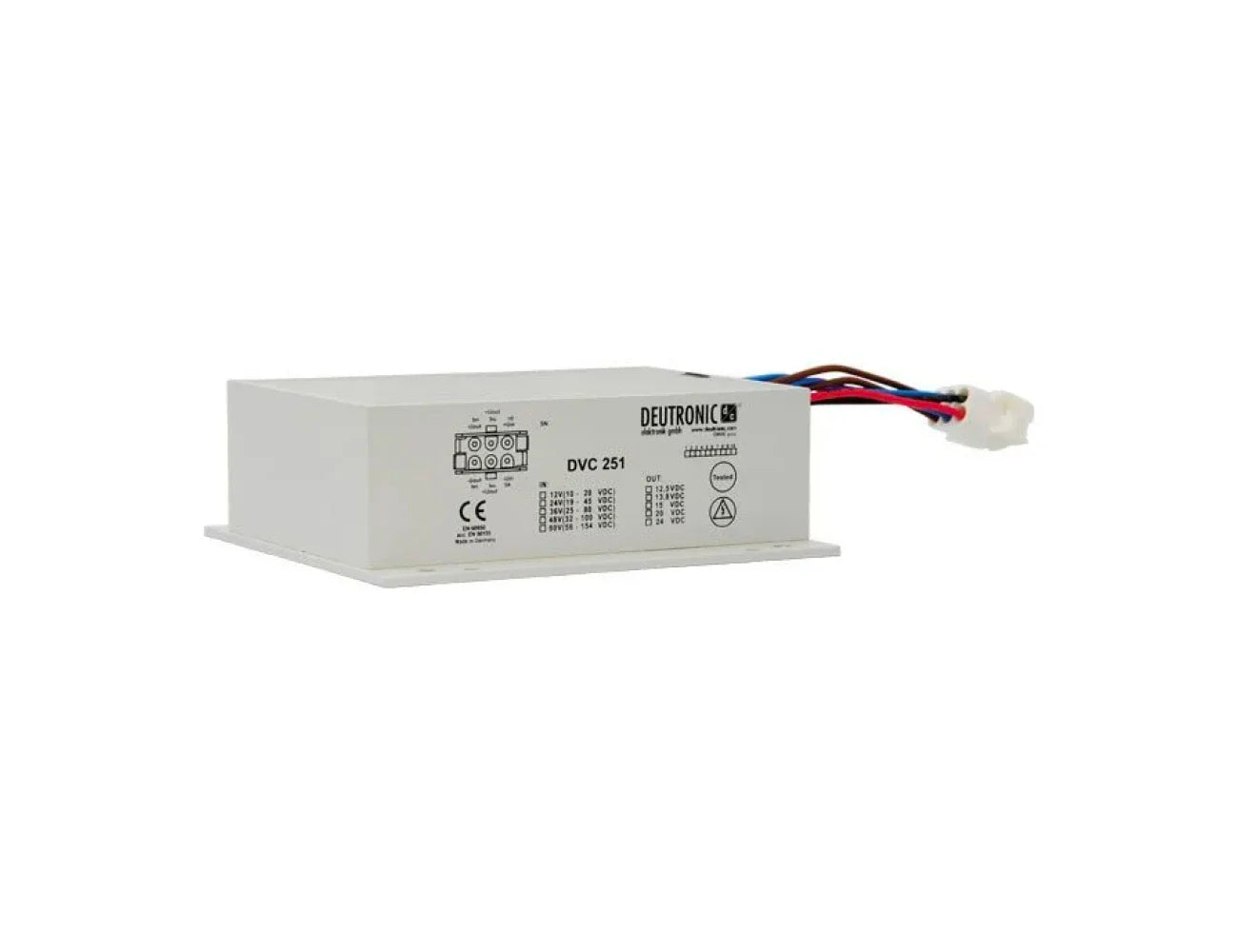

Deutronic DVC251 SERIES DC/DC Converter
The Deutronic DVC251 Series DC/DC Converter is a versatile and durable power solution tailored for automotive and industrial applications. Delivering continuous power outputs from 137W to 252W, it ensures stable performance in demanding environments.
Read More
Features
- 137W - 252W Automotive Converter
- Designed for use in rough environments
- Rugged construction / potted device
- Protection against unfavourable environmental conditions
- DC/DC wide range input
- Filtered against vehicle on-board disturbances
Specifications
Selection Table

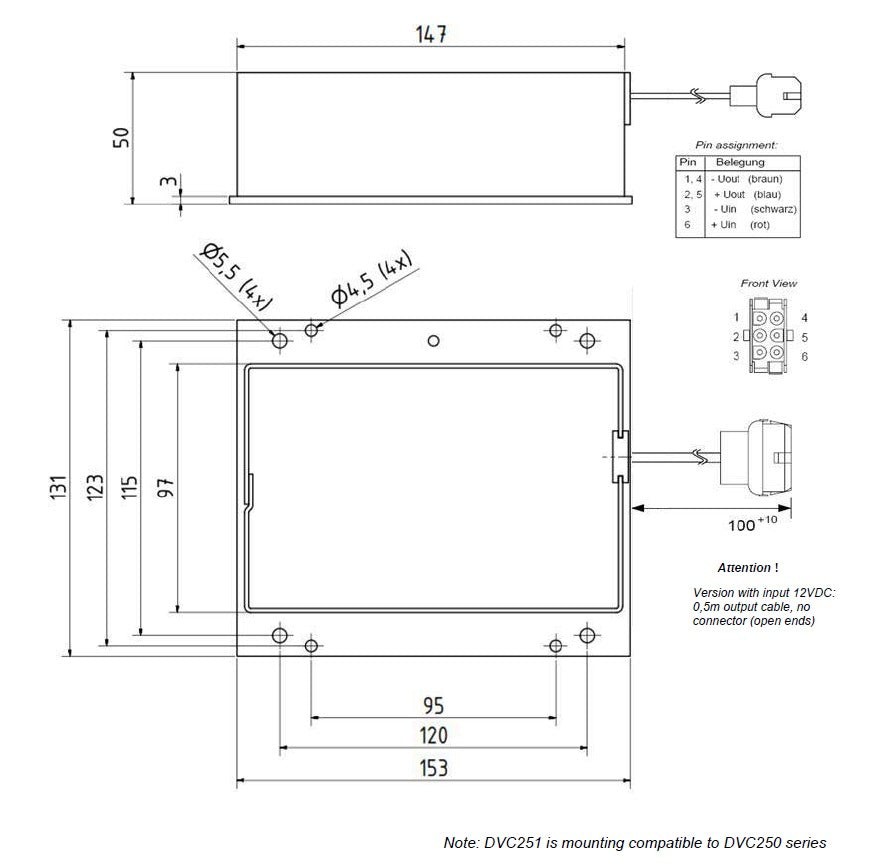

Technical Illustrations
Downloads
| INPUT | |
|---|---|
| Input Voltage | 12Vdc, 24Vdc, 48Vdc, 110Vdc |
| Input range | See selection table, model dependent |
| OUTPUT | |
|---|---|
| Output voltage | See Selection Table. |
| Output current | See Selection Table. |
| Output voltage tolerance | ±3% @ 5VDC model 1% @ 12-24VDC models |
| Load regulation static | ±1.5% typical model dependant. 0-100% load |
| Regulation time | ≤0.5ms,≤1ms for DVC251 |
| Line regulation | ±0.1% |
| Temperature drift | 0.2% typ 0 - 60°C 0.5% typ -25 - 60°C |
| Ripple & noise | 100mVp-p |
| Efficiency | 85-92% model dependant/td> |
| Parallel Operation | For increased output power - Unlimited connectable in parallel, no additional control cable needed - Smart output regulation for optimized DC current distribution - For a 100% redundancy, an external diode is required |
| Serial Connection | For higher output voltages - Serial connectable (of up to max 4 units |
| STANDARDS AND APPROVALS | |
|---|---|
| Safety | Designed to meet EN60950, EN1175 |
| EMC | Designed to meet EN55011 Class B, EN61000-6-2 |
| PROTECTION | |
|---|---|
| Over voltage protection | Protective shut down, self reset after cool down. |
| Protective degree | IP67 (not connector) |
| Insulation | Input to case: 1.5kV, 500V for 12/24 models Output to case: 500V. |
| Transient over voltage | 25-35V @ 12VDC< 50-52V @ 24VDC model dependant 80-90V @ 36VDC model dependant 100-110V @ 48VDC model dependant 220V @ 110VDC |
| Reverse polarity protection | External input fuse is blown. |
| Over temperature Protection | Protective shut down, self reset after cool down. |
| ENVIRONMENT | |
|---|---|
| Ambient temperature | -40°C - 75°C without power derating, Max baseplate temperature 100°C |
| Storage temperature | -40°C - 85°C |
| Humidity | 100% relative humidity, dewing permitted. |
| Cooling | Natural convection / cooling via contact to mounting surface. |
| MECHANICAL | |
|---|---|
| Connectors | 10cm cable with 6-pole AP connector MATE-N-LOK. (Different cable/connector possible on customer request). |
| Dimensions | 153 x131 x 50mm |
| Weight | 1500g |
| Case Material | Aluminium |
| MODEL | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT | POWER |
|---|---|---|---|---|
| DVC251-12-12 | 12VDC (10-20V) | 12.5V | 11A | 137W |
| DVC251-12-24 | 12VDC (10-20V) | 24V | 7A | 168W |
| DVC251-24-12 | 24VDC (19-45V) | 12.5V | 18A | 225W |
| DVC251-24-24 | 24VDC (19-45V) | 24V | 9.5A | 228W |
| DVC251-36-12 | 36VDC (25-80V) | 12.5V | 20A | 250W |
| DVC251-36-24 | 36VDC (25-80V) | 24V | 10.5A | 252W |
| DVC251-48-12 | 48VDC (34-100V) | 12.5V | 20A | 250W |
| DVC251-48-24 | 48VDC (32-100V) | 24V | 10.5A | 252W |
| DVC251-80-12 | 72/80/96/110VDC (56-154V) | 12.5V | 20A | 250W |
| DVC251-80-13.8 | 72/80/96/110VDC (56-154V) | 13.8V | 18A | 248W |
| DVC251-80-24 | 72/80/96/110VDC (56-154V) | 24V | 10.5A | 252W |
| INPUT | |
|---|---|
| Input Voltage | 12Vdc, 24Vdc, 48Vdc, 110Vdc |
| Input range | See selection table, model dependent |
| OUTPUT | |
|---|---|
| Output voltage | See Selection Table. |
| Output current | See Selection Table. |
| Output voltage tolerance | ±3% @ 5VDC model 1% @ 12-24VDC models |
| Load regulation static | ±1.5% typical model dependant. 0-100% load |
| Regulation time | ≤0.5ms,≤1ms for DVC251 |
| Line regulation | ±0.1% |
| Temperature drift | 0.2% typ 0 - 60°C 0.5% typ -25 - 60°C |
| Ripple & noise | 100mVp-p |
| Efficiency | 85-92% model dependant/td> |
| Parallel Operation | For increased output power - Unlimited connectable in parallel, no additional control cable needed - Smart output regulation for optimized DC current distribution - For a 100% redundancy, an external diode is required |
| Serial Connection | For higher output voltages - Serial connectable (of up to max 4 units |
| STANDARDS AND APPROVALS | |
|---|---|
| Safety | Designed to meet EN60950, EN1175 |
| EMC | Designed to meet EN55011 Class B, EN61000-6-2 |
| PROTECTION | |
|---|---|
| Over voltage protection | Protective shut down, self reset after cool down. |
| Protective degree | IP67 (not connector) |
| Insulation | Input to case: 1.5kV, 500V for 12/24 models Output to case: 500V. |
| Transient over voltage | 25-35V @ 12VDC< 50-52V @ 24VDC model dependant 80-90V @ 36VDC model dependant 100-110V @ 48VDC model dependant 220V @ 110VDC |
| Reverse polarity protection | External input fuse is blown. |
| Over temperature Protection | Protective shut down, self reset after cool down. |
| ENVIRONMENT | |
|---|---|
| Ambient temperature | -40°C - 75°C without power derating, Max baseplate temperature 100°C |
| Storage temperature | -40°C - 85°C |
| Humidity | 100% relative humidity, dewing permitted. |
| Cooling | Natural convection / cooling via contact to mounting surface. |
| MECHANICAL | |
|---|---|
| Connectors | 10cm cable with 6-pole AP connector MATE-N-LOK. (Different cable/connector possible on customer request). |
| Dimensions | 153 x131 x 50mm |
| Weight | 1500g |
| Case Material | Aluminium |
| MODEL | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT | POWER |
|---|---|---|---|---|
| DVC251-12-12 | 12VDC (10-20V) | 12.5V | 11A | 137W |
| DVC251-12-24 | 12VDC (10-20V) | 24V | 7A | 168W |
| DVC251-24-12 | 24VDC (19-45V) | 12.5V | 18A | 225W |
| DVC251-24-24 | 24VDC (19-45V) | 24V | 9.5A | 228W |
| DVC251-36-12 | 36VDC (25-80V) | 12.5V | 20A | 250W |
| DVC251-36-24 | 36VDC (25-80V) | 24V | 10.5A | 252W |
| DVC251-48-12 | 48VDC (34-100V) | 12.5V | 20A | 250W |
| DVC251-48-24 | 48VDC (32-100V) | 24V | 10.5A | 252W |
| DVC251-80-12 | 72/80/96/110VDC (56-154V) | 12.5V | 20A | 250W |
| DVC251-80-13.8 | 72/80/96/110VDC (56-154V) | 13.8V | 18A | 248W |
| DVC251-80-24 | 72/80/96/110VDC (56-154V) | 24V | 10.5A | 252W |
Find the Right Model
| Model Number | Input Voltage (Vdc) | Output Voltage (Vdc) | Output Current (A) | ||
|---|---|---|---|---|---|
|
DVC251-12-12 | 12Vdc: 10...20Vdc | 12.5Vdc | 11A | |
|
|
DVC251-12-24 | 12Vdc: 10...20Vdc | 24Vdc | 7A | |
|
|
DVC251-24-12 | 24Vdc: 19...45Vdc | 12.5Vdc | 18A | |
|
|
DVC251-24-24 | 24Vdc: 19...45Vdc | 24Vdc | 9.5A | |
|
|
DVC251-24-27,6 | 24Vdc: 22...45Vdc | 27.6Vdc | 8.2A | |
|
|
DVC251-48-12 | 48Vdc: 34...100Vdc | 12.5Vdc | 20A | |
|
|
DVC251-48-24 | 48Vdc: 32...100Vdc | 24Vdc | 10.5A | |
|
|
DVC251-80-12 | 72/80/96/110Vdc: 56...154Vdc | 12.5Vdc | 20A | |
|
|
DVC251-80-13,8 | 72/80/96/110Vdc: 56...154Vdc | 13.8Vdc | 18A | |
|
|
DVC251-80-24 | 72/80/96/110Vdc: 56...154Vdc | 24Vdc | 10.5A | |
|
|
DVC251-24-12-LED | 24Vdc: 19...45Vdc | 12.5Vdc | 18A |
