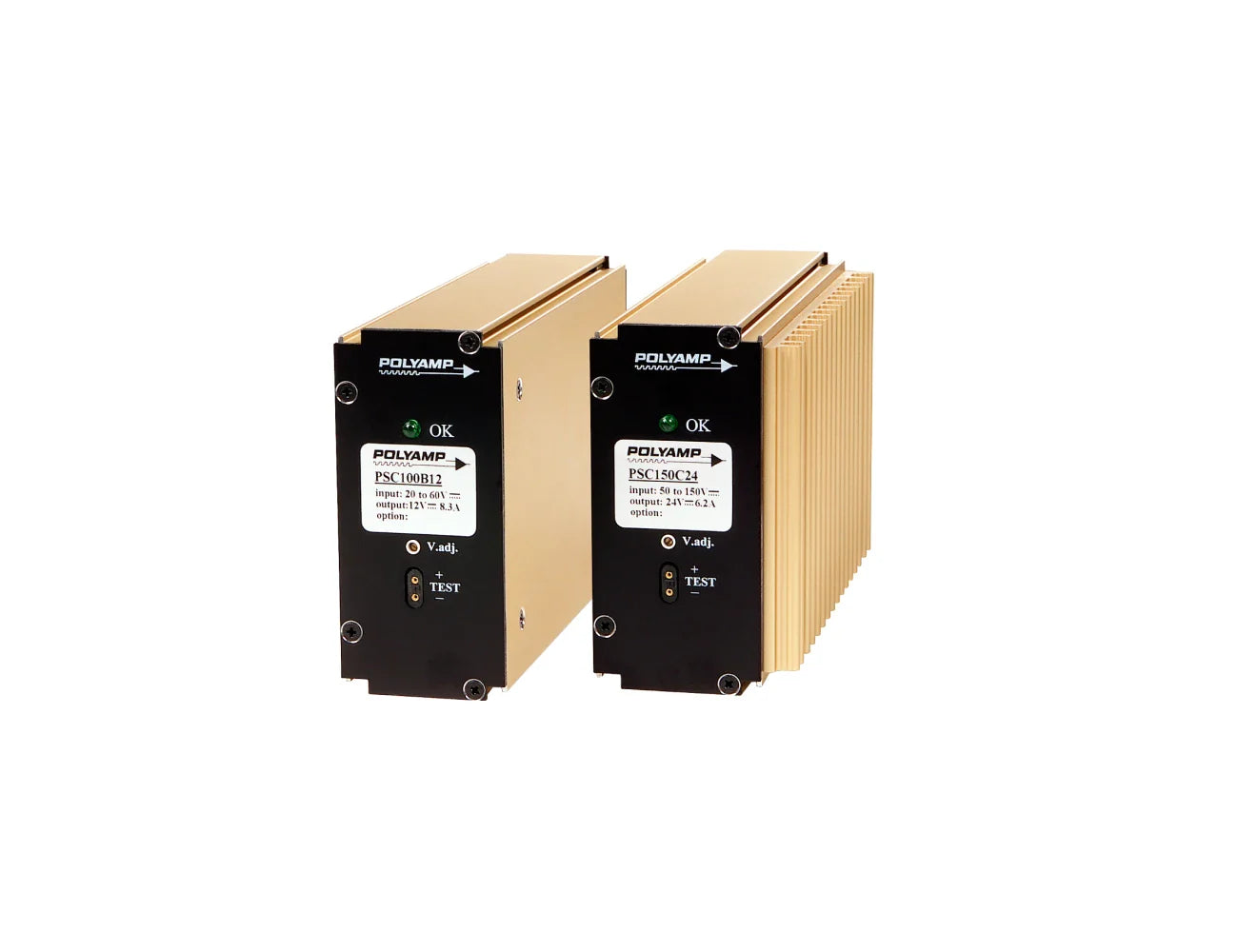

Polyamp PSC 80-240 SERIES DC/DC Converter
The Polyamp PSC 80-240 Series DC/DC Converter is a compact and versatile solution for industrial, railway, and telecommunications applications. Designed for reliability, it ensures efficient power delivery with advanced protection features. Key features include a wide input voltage range (10–500 Vdc) and single output options from 12V to 48V DC,...
Read MoreThe Polyamp PSC 80-240 Series DC/DC Converter is a compact and versatile solution for industrial, railway, and telecommunications applications. Designed for reliability, it ensures efficient power delivery with advanced protection features.
Key features include a wide input voltage range (10–500 Vdc) and single output options from 12V to 48V DC, delivering power up to 150W. Its high efficiency (up to 88%) and reverse input voltage protection ensure dependable performance, while the output voltage is adjustable via the front panel for added flexibility.
The PSC 80-240 series is fully encapsulated, meeting IP20 standards for durability, and operates effectively in temperatures ranging from -25°C to +70°C (with derating). Additional features include overvoltage protection, an over/undervoltage alarm relay, and optional inrush current limit for enhanced safety and functionality. Mounting options include wall, DIN rail, and 19” rack configurations.
The Polyamp PSC 80-240 Series is the ideal choice for efficient, compact, and reliable power solutions.
or send a quick enquiry about this product only
Features
- 80W - 240W
- Industrial Grade
- Robust Design
- Wide Inputs 10 to 550Vdc Input
- 5 to 48Vdc Output
- Up to 3 outputs
- Logic alarm
- Op temp -25C to +70C without derating
- Tropic coating
- Euro Mount
- DIN Mount
- Wall Mount
Specifications
| INPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input voltage | See Selection Table | ||||||||||||||||||||||||||||||||||||||||||||||||
| Current at no load | 3W–5W max | ||||||||||||||||||||||||||||||||||||||||||||||||
| Softstart |
Yes within rush current limit |
||||||||||||||||||||||||||||||||||||||||||||||||
| OUTPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Voltage adjustment | -10% to +10% | ||||||||||||||||||||||||||||||||||||||||||||||||
| Output Current | See Selection Table | ||||||||||||||||||||||||||||||||||||||||||||||||
| Current limit | 105% | ||||||||||||||||||||||||||||||||||||||||||||||||
| Ripple & Noise pk-pk | 10mV pk - pk typical | ||||||||||||||||||||||||||||||||||||||||||||||||
| Regulation | Line:0.2% L1 to H1; Load:0.2% NLtoFL | ||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature Coefficient | 0.02% per°C | ||||||||||||||||||||||||||||||||||||||||||||||||
| Transient Response | 10% up to100% typical <2mS | ||||||||||||||||||||||||||||||||||||||||||||||||
| PROTECTIOIN | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Overvoltage Protection | Parallel diode. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Shortcircuit protection | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||
| Reverse Voltage protection | Option | ||||||||||||||||||||||||||||||||||||||||||||||||
| Overload Protection | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||
| Protection | Fuse on board, reverse voltage protection | ||||||||||||||||||||||||||||||||||||||||||||||||
| Isolation | Input to output case,2000Vdc, 24/48V input case 2500Vdc,100V, 200Vinput | ||||||||||||||||||||||||||||||||||||||||||||||||
| OPERATING | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Efficiency | Single outputs 79% – 95% typical Multi outputs 75%–85% typical | ||||||||||||||||||||||||||||||||||||||||||||||||
| Parallel Operation | Single outputs only (derate power by 10%) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Series Operation | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating Temperature | -20°C to +70°C (PSC50/80–5V only +55°C) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | -40°C to +85°C | ||||||||||||||||||||||||||||||||||||||||||||||||
| Derating | No Full load to 70C | ||||||||||||||||||||||||||||||||||||||||||||||||
| Cooling | Convection | ||||||||||||||||||||||||||||||||||||||||||||||||
| STANDARDS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Safety Standards | IEC60950 | ||||||||||||||||||||||||||||||||||||||||||||||||
| C-Tick | AS/NZSCISPR11:2002Group1ClassA | ||||||||||||||||||||||||||||||||||||||||||||||||
| Immunity Standards | EN61000-6-2 EN/IEC61000-4-4 EN/IEC61000-4-5Level2&3 | ||||||||||||||||||||||||||||||||||||||||||||||||
| OPTIONS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | Over voltage protection (OVP) A built in SCR thyristor short circuits the output when an overvoltage occurs. The trigger voltages 15% higher than the nominal output voltage. | ||||||||||||||||||||||||||||||||||||||||||||||||
| C | Series diode on output For parallel redundant applications built in series diodes can be provided. The output power may be derated depending upon the model. | ||||||||||||||||||||||||||||||||||||||||||||||||
| E1 | 2.5kVAC isolation between input/output and input/case. On 24 & 48V inputs.The emission level increases to level A. | ||||||||||||||||||||||||||||||||||||||||||||||||
| E2 | Same as E1 but also 2.5kVAC between output/case. | ||||||||||||||||||||||||||||||||||||||||||||||||
| L | Front panel for eurorack 10,12,14TE | ||||||||||||||||||||||||||||||||||||||||||||||||
| K1 | Input diode in series | ||||||||||||||||||||||||||||||||||||||||||||||||
| K2 | Built in glass fuse on PSC80, PSC100 and PSC150 | ||||||||||||||||||||||||||||||||||||||||||||||||
| N | Wall mounting brackets | ||||||||||||||||||||||||||||||||||||||||||||||||
| H15-S | H15 female screw connector | ||||||||||||||||||||||||||||||||||||||||||||||||
| O | Rear Euro rack mounting brackets | ||||||||||||||||||||||||||||||||||||||||||||||||
| S | Remote sense | ||||||||||||||||||||||||||||||||||||||||||||||||
| NTC | Inrush current limit with NTC | ||||||||||||||||||||||||||||||||||||||||||||||||
| INPUT | Mobile application, consult sales | ||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Case | Euro cassette | ||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | See drawing examples. Consult sales office for full details | ||||||||||||||||||||||||||||||||||||||||||||||||
| Connectors | 15 Pole DIN standard 41612H15 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Mounting | Consult Powerbox for mounting options | ||||||||||||||||||||||||||||||||||||||||||||||||
Selection Table
| SINGLE OUTPUTS | |||||
|---|---|---|---|---|---|
| MODEL NUMBER | INPUT | OUTPUT | CASE | OUTPUT POWER | |
| PSC100A5 | 10-30V | 5V | 20A | 10TE | 100W |
| PSC150A5 | 10-30V | 5V | 30A | 12TE | 150W |
| PSC100A12 | 10-30V | 12V | 8.3A | 10TE | 100W |
| PSC150A12 | 10-30V | 12V | 12.5A | 10TE | 150W |
| PSC100A13.2 | 10-30V | 13.6V | 7.4A | 10TE | 100W |
| PSC150A13.2 | 10-30V | 13.6V | 11A | 10TE | 150W |
| PSC100A15 | 10-30V | 15V | 6.7A | 10TE | 100W |
| PSC150A15 | 10-30V | 15V | 10A | 10TE | 150W |
| PSC100A24 | 10-30V | 24V | 4.2A | 10TE | 100W |
| PSC150A24 | 10-30V | 24V | 6.3A | 10TE | 150W |
| PSC100A48 | 10-30V | 48V | 2.1A | 10TE | 100W |
| PSC150A48 | 10-30V | 48V | 3.1A | 10TE | 150W |
| PSC100B5 | 20-60V | 5V | 20A | 10TE | 100W |
| PSC150B5 | 20-60V | 5V | 30A | 10TE | 150W |
| PSC100B12 | 20-60V | 12V | 8.3A | 10TE | 100W |
| PSC150B12 | 20-60V | 12V | 12.5A | 10TE | 150W |
| PSC100B13.2 | 20-60V | 13.6V | 7.4A | 10TE | 100W |
| PSC150B13.2 | 20-60V | 13.6V | 11A | 10TE | 150W |
| PSC100B15 | 20-60V | 15V | 6.7A | 10TE | 100W |
| PSC150B15 | 20-60V | 15V | 10A | 10TE | 150W |
| PSC100B24 | 20-60V | 24V | 4.2A | 10TE | 100W |
| PSC150B24 | 20-60V | 24V | 6.3A | 10TE | 150W |
| PSC100B48 | 20-60V | 48V | 2.1A | 10TE | 100W |
| PSC150B48 | 20-60V | 48V | 3.1A | 10TE | 150W |
| PSC100CT5 | 40-100V | 5V | 20A | 10TE | 100W |
| PSC150CT5 | 40-100V | 5V | 30A | 10TE | 150W |
| PSC100CT12 | 40-100V | 12V | 8.3A | 10TE | 100W |
| PSC150CT12 | 40-100V | 12V | 12.5A | 10TE | 150W |
| PSC100CT13.2 | 40-100V | 13.6V | 7.4A | 10TE | 100W |
| PSC150CT13.2 | 40-100V | 13.6V | 11A | 10TE | 150W |
| PSC100CT15 | 40-100V | 15V | 6.7A | 10TE | 100W |
| PSC150CT15 | 40-100V | 15V | 10A | 10TE | 150W |
| PSC100CT24 | 40-100V | 24V | 4.2A | 10TE | 100W |
| PSC150CT24 | 40-100V | 24V | 6.3A | 12TE | 150W |
| PSC100CT48 | 40-100V | 48V | 2.1A | 10TE | 100W |
| PSC150CT48 | 40-100V | 48V | 3.1A | 10TE | 150W |
| PSC100C5 | 50-150V | 5V | 20A | 10TE | 100W |
| PSC150C5 | 50-150V | 5V | 30A | 10TE | 150W |
| PSC100C12 | 50-150V | 12V | 8.3A | 10TE | 100W |
| PSC150C12 | 50-150V | 12V | 12.5A | 10TE | 150W |
| PSC100C13.2 | 50-150V | 13.6V | 7.4A | 10TE | 100W |
| PSC150C13.2 | 50-150V | 13.6V | 11A | 10TE | 150W |
| PSC100C15 | 50-150V | 15V | 6.7A | 10TE | 100W |
| PSC150C15 | 50-150V | 15V | 10A | 10TE | 150W |
| PSC100C24 | 50-150V | 24V | 4.2A | 10TE | 100W |
| PSC150C24 | 50-150V | 24V | 6.3A | 10TE | 150W |
| PSC100C48 | 50-150V | 48V | 2.1A | 10TE | 100W |
| PSC150C48 | 50-150V | 48V | 3.1A | 10TE | 150W |
| PSC100D5 | 90-270V | 5V | 20A | 10TE | 100W |
| PSC150D5 | 90-270V | 5V | 30A | 10TE | 150W |
| PSC100D12 | 90-270V | 12V | 8.3A | 10TE | 100W |
| PSC150D12 | 90-270V | 12V | 12.5A | 10TE | 150W |
| PSC100D13.2 | 90-270V | 13.6V | 7.4A | 10TE | 100W |
| PSC150D13.2 | 90-270V | 13.6V | 11A | 10TE | 150W |
| PSC100D15 | 90-270V | 15V | 6.7A | 10TE | 100W |
| PSC150D15 | 90-270V | 15V | 10A | 10TE | 150W |
| PSC100D24 | 90-270V | 24V | 4.2A | 10TE | 100W |
| PSC150D24 | 90-270V | 24V | 6.3A | 10TE | 150W |
| PSC100D48 | 90-270V | 48V | 2.1A | 10TE | 100W |
| PSC150D48 | 90-270V | 48V | 3.1A | 10TE | 150W |
| PSC100E24 | 250-500V | 24V | 4.2A | 10TE | 100W |
| PSC150E24 | 250-500V | 24V | 6.3A | 10TE | 150W |
| PSC100E48 | 250-500V | 48V | 2.1A | 10TE | 100W |
| PSC150E48 | 250-500V | 48V | 3.1A | 10TE | 150W |
| DUAL OUTPUTS | |||||||
|---|---|---|---|---|---|---|---|
| MODEL NUMBER | INPUT | MAIN OUTPUT | AUX OUTPUT | CASE | OUTPUT POWER | ||
| PSC100A5S12 | 10-30V | 5V | 17A | 12V | 1.2A | 10TE | 100W |
| PSC150A5S12 | 10-30V | 5V | 20A | 12V | 2A | 12TE | 124W |
| PSC100A5S15 | 10-30V | 5V | 17A | 15V | 1.2A | 10TE | 100W |
| PSC150A5S15 | 10-30V | 5V | 20A | 15V | 2A | 12TE | 130W |
| PSC100A12S5 | 10-30V | 12V | 7.3A | 5V | 2.5A | 10TE | 100W |
| PSC150A12S5 | 10-30V | 12V | 11.5A | 5V | 2.5A | 12TE | 150W |
| PSC100A12S12 | 10-30V | 12V | 7A | 12V | 1.2A | 10TE | 100W |
| PSC150A12S12 | 10-30V | 12V | 10.5A | 12V | 2A | 12TE | 150W |
| PSC100A15S15 | 10-30V | 15V | 5.5A | 15V | 1.2A | 10TE | 100W |
| PSC150A15S15 | 10-30V | 15V | 8A | 15V | 2A | 12TE | 150W |
| PSC100A24S24 | 10-30V | 24V | 3A | 24V | 1.2A | 10TE | 100W |
| PSC150A24S24 | 10-30V | 24V | 4.2A | 24V | 2A | 12TE | 150W |
| PSC100B5S12 | 20-60V | 5V | 17A | 12V | 1.2A | 10TE | 100W |
| PSC150B5S12 | 20-60V | 5V | 20A | 12V | 2A | 12TE | 124W |
| PSC100B5S15 | 20-60V | 5V | 17A | 15V | 1.2A | 10TE | 100W |
| PSC150B5S15 | 20-60V | 5V | 20A | 15V | 2A | 12TE | 130W |
| PSC100B12S5 | 20-60V | 12V | 7.3A | 5V | 2.5A | 10TE | 100W |
| PSC150B12S5 | 20-60V | 12V | 11.5A | 5V | 2.5A | 12TE | 150W |
| PSC100B12S12 | 20-60V | 12V | 7A | 12V | 1.2A | 10TE | 100W |
| PSC150B12S12 | 20-60V | 12V | 10.5A | 12V | 2A | 12TE | 150W |
| PSC100B15S15 | 20-60V | 15V | 5.5A | 15V | 1.2A | 10TE | 100W |
| PSC150B15S15 | 20-60V | 15V | 8A | 15V | 2A | 12TE | 150W |
| PSC100B24S24 | 20-60V | 24V | 3A | 24V | 1.2A | 10TE | 100W |
| PSC150B24S24 | 20-60V | 24V | 4.2A | 24V | 2A | 12TE | 150W |
| PSC100CT5S12 | 40-100V | 5V | 17A | 12V | 1.2A | 10TE | 100W |
| PSC150CT5S12 | 40-100V | 5V | 20A | 12V | 2A | 12TE | 124W |
| PSC100CT5S15 | 40-100V | 5V | 17A | 15V | 1.2A | 10TE | 100W |
| PSC150CT5S15 | 40-100V | 5V | 20A | 15V | 2A | 12TE | 130W |
| PSC100CT12S5 | 40-100V | 12V | 7.3A | 5V | 2.5A | 10TE | 100W |
| PSC150CT12S5 | 40-100V | 12V | 11.5A | 5V | 2.5A | 12TE | 150W |
| PSC100CT12S12 | 40-100V | 12V | 7A | 12V | 1.2A | 10TE | 100W |
| PSC150CT12S12 | 40-100V | 12V | 10.5A | 12V | 2A | 12TE | 150W |
| PSC100CT15S15 | 40-100V | 15V | 5.5A | 15V | 1.2A | 10TE | 100W |
| PSC150CT15S15 | 40-100V | 15V | 8A | 15V | 2A | 12TE | 150W |
| PSC100CT24S24 | 40-100V | 24V | 3A | 24V | 1.2A | 10TE | 100W |
| PSC150CT24S24 | 40-100V | 24V | 4.2A | 24V | 2A | 12TE | 150W |
| PSC100C5S12 | 50-150V | 5V | 17A | 12V | 1.2A | 10TE | 100W |
| PSC150C5S12 | 50-150V | 5V | 20A | 12V | 2A | 12TE | 124W |
| PSC100C5S15 | 50-150V | 5V | 17A | 15V | 1.2A | 10TE | 100W |
| PSC150C5S15 | 50-150V | 5V | 20A | 15V | 2A | 12TE | 130W |
| PSC100C12S5 | 50-150V | 12V | 7.3A | 5V | 2.5A | 10TE | 100W |
| PSC150C12S5 | 50-150V | 12V | 11.5A | 5V | 2.5A | 12TE | 150W |
| PSC100C12S12 | 50-150V | 12V | 7A | 12V | 1.2A | 10TE | 100W |
| PSC150C12S12 | 50-150V | 12V | 10.5A | 12V | 2A | 12TE | 150W |
| PSC100C15S15 | 50-150V | 15V | 5.5A | 15V | 1.2A | 10TE | 100W |
| PSC150C15S15 | 50-150V | 15V | 8A | 15V | 2A | 12TE | 150W |
| PSC100C24S24 | 50-150V | 24V | 3A | 24V | 1.2A | 10TE | 100W |
| PSC150C24S24 | 50-150V | 24V | 4.2A | 24V | 2A | 12TE | 150W |
| PSC100D5S12 | 90-270V | 5V | 17A | 12V | 1.2A | 10TE | 100W |
| PSC150D5S12 | 90-270V | 5V | 20A | 12V | 2A | 12TE | 150W |
| PSC100D5S15 | 90-270V | 5V | 17A | 15V | 1.2A | 10TE | 100W |
| PSC150D5S15 | 90-270V | 5V | 20A | 15V | 2A | 12TE | 150W |
| PSC100D12S5 | 90-270V | 12V | 7.3A | 5V | 2.5A | 10TE | 100W |
| PSC150D12S5 | 90-270V | 12V | 11.5A | 5V | 2.5A | 12TE | 150W |
| PSC100D12S12 | 90-270V | 12V | 7A | 12V | 1.2A | 10TE | 100W |
| PSC150D12S12 | 90-270V | 12V | 10.5A | 12V | 2A | 12TE | 150W |
| PSC100D15S15 | 90-270V | 15V | 5.5A | 15V | 1.2A | 10TE | 100W |
| PSC150D15S15 | 90-270V | 15V | 8A | 15V | 2A | 12TE | 150W |
| PSC100D24S24 | 90-270V | 24V | 3A | 24V | 1.2A | 10TE | 100W |
| PSC150D24S24 | 90-270V | 24V | 4.2A | 24V | 2A | 12TE | 150W |
| NOTE | 2. Common zero on the output The secondary output voltages are only factory adjustable. Operating temperature range -25°C to +55°C. For 70°C derate PSC100 to 75W and PSC150 to 110W. | ||||||
| TRIPLE OUTPUTS - 24, 48 VOLT INPUT | |||||||
|---|---|---|---|---|---|---|---|
| MODEL NUMBER | INPUT | MAIN OUTPUT | AUX OUTPUT | CASE | OUTPUT POWER | ||
| PSC100A5S12 | 10-30V | 5V | 14A | 12V | 1.2A | 10TE | 100W |
| PSC150A5S12 | 10-30V | 5V | 20A | 12V | 2A | 12TE | 150W |
| PSC100A5S15 | 10-30V | 5V | 13A | 15V | 1.2A | 10TE | 100W |
| PSC150A5S15 | 10-30V | 5V | 20A | 15V | 1.7A | 12TE | 150W |
| PSC100B5S12 | 20-60V | 5V | 14A | 12V | 1.2A | 10TE | 100W |
| PSC150B5S12 | 20-60V | 5V | 20A | 12V | 2A | 12TE | 150W |
| PSC100B5S15 | 20-60V | 5V | 13A | 15V | 1.2A | 10TE | 100W |
| PSC150B5S15 | 20-60V | 5V | 20A | 15V | 1.7A | 12TE | 150W |
| NOTE | Operating temperature range -25°C to +55°C. For 70°C derate PSC100 to 75W and PSC150 to 110W. The two secondary output uses common zero for ±12 or ±15V application or to supply 24V and 30V The secondary voltages are only factory adjustable | ||||||
| TRIPLE OUTPUTS - 110, 220 VOLT INPUT | |||||||
|---|---|---|---|---|---|---|---|
| MODEL NUMBER | INPUT | MASTER OUTPUT | AUX OUTPUT | CASE | OUTPUT POWER | ||
| PSC100CT5S12-12 | 40-100V | 5V | 14A | ±12V | 1.2A | 10TE | 100W |
| PSC150CT5S12-12 | 40-100V | 5V | 20A | ±12V | 2A | 12TE | 150W |
| PSC100CT5S15-15 | 40-100V | 5V | 13A | ±15V | 1.2A | 10TE | 100W |
| PSC150CT5S15-15 | 40-100V | 5V | 20A | ±15V | 1.7A | 12TE | 150W |
| PSC100C5S12-12 | 50-150V | 5V | 14A | ±12V | 1.2A | 10TE | 100W |
| PSC150C5S12-12 | 50-150V | 5V | 20A | ±12V | 2A | 12TE | 150W |
| PSC100C5S15-15 | 50-150V | 5V | 13A | ±15V | 1.2A | 10TE | 150W |
| PSC100D5S12-12 | 90-270V | 5V | 14A | ±12V | 1.2A | 10TE | 100W |
| PSC150D5S12-12 | 90-270V | 5V | 20A | ±12V | 2A | 12TE | 150W |
| PSC150D5S12-12 | 90-270V | 5V | 20A | ±15V | 1.2A | 12TE | 150W |
| PSC150D5S15-15 | 90-270V | 5V | 20A | ±15V | 1.7A | 12TE | 150W |
| NOTE | Operating temperature range -25°C to +55°C. For 70°C derate PSC100 to 75W and PSC150 to 110W. The two secondary output uses common zero for ±12 or ±15V application or to supply 24V and 30V The secondary voltages are only factory adjustable | ||||||
Technical Drawings
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
Related Products
Polyamp PC2000 SERIES DC/DC Converter
- 1000W - 2000W
- Industrial Grade
- Inputs 20 to 300Vdc
- Outputs 24 to 48Vdc
- Output voltage alarm
- Current Sharing
- Inrush current limit
- Reverse input protection
- 19" Rack Mount
- Wall Mount
Polyamp PM150 SERIES DC/DC Converter
- 120W - 150W
- Industrial Grade
- Inputs 10 to 270Vdc
- Outputs 12 to 48Vdc
- Overvoltage Protection
- Output voltage alarm
- Series diode on output
- Op temp -25C to 55C
- Chassis Mount
- Wall Mount
- DIN Mount
Polyamp PM240 SERIES DC/DC Converter
- 240W Industrial Grade
- Inputs 10 to 270Vdc
- Outputs 12 to 48Vdc
- Overvoltage Protection
- Output voltage alarm
- Series diode on output
- Op temp -25C to 55C
- Chassis Mount
- Wall Mount
- DIN Mount
Polyamp PSC 600 SERIES DC/DC Converter
- 250W - 800W
- Industrial Grade
- Inputs 24 to 440Vdc
- Outputs 5 to 125Vdc
- Op Temp -25 to 70C without derating
- Tropic Coating
- Series diode on output
- Euro Mount
- DIN Mount
- Wall Mount
Polyamp PU1000 SERIES DC/DC Converter
- 800W-1000W
- Industrial Grade
- Inputs 18 to 750Vdc
- Outputs 24 to 110V
- Overvoltage Protection
- Output voltage alarm
- Series diode on output
- Inhibit power down
- Parallel Current Sharing
- Op Temp -25C to 55C
- 19" Rack Mount
- Wall Mount
Polyamp PU300 SERIES DC/DC Converter
- 216W - 300W
- Industrial Grade
- Inputs 10 to 300Vdc
- Outputs 12V to 60Vdc
- Overvoltage Protection
- Output voltage alarm
- Series diode on output
- Inhibit power down
- Op Temp -25C to 55C
- 19" Rack Mount
- Chassis Mount
- Wall Mount
Polyamp PU500 SERIES DC/DC Converter
- 400W - 500W
- Industrial Grade
- Inputs 10 to 300Vdc
- Outputs 12V to 60Vdc
- Overvoltage Protection
- Output voltage alarm
- Series diode on output
- Inhibit power down
- Op Temp -25C to 55C
- 19" Rack Mount
- Chassis Mount
- Wall Mount
Polyamp PU600 SERIES DC/DC Converter
- 480W - 600W
- Industrial Grade
- Robust Design
- High Reliability
- Op Temp -25C to 55C
- Convection Cooled
- High Efficiency
- Output voltage alarm
- Series diode on output
- 19" Rack Mount
- Wall Mount
- Chassis Mount
