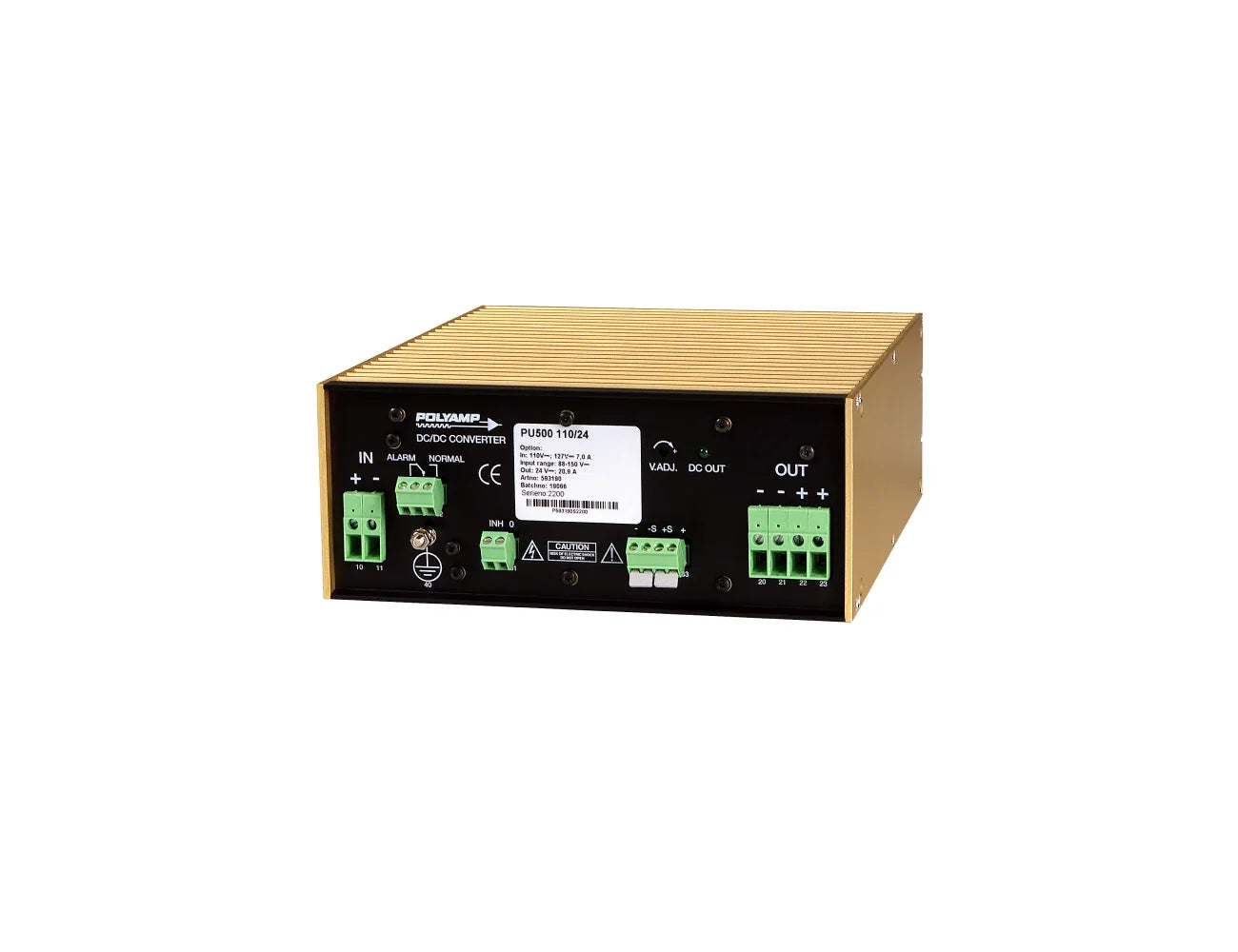

Polyamp PU500 SERIES DC/DC Converter
The Polyamp PU500 Series DC/DC Converter is a reliable and efficient power solution for industrial, railway, and telecommunications applications. Designed to meet the demands of critical systems, it ensures consistent performance even in harsh environments.
Read More
Features
- 400W - 500W Industrial Converter
- Optimised input voltage ranges
- Input ranges from 18 to 300Vdc
- Single outputs from 24 to 60Vdc
- Reverse input voltage protection
- Fully encapsulated meets IP20
Specifications
Selection Table
Technical Illustrations
Downloads
| INPUT | |
|---|---|
| Input voltages | 24Vdc: 18-32Vdc 48Vdc: 38-60Vdc 110Vdc: 88-150Vdc 220Vdc: 175-300Vdc |
| Reverse Input Protection | Inputs 24V, 48V, 72V with Parallel Diode Inputs 110V, 220V Thyristor |
| OUTPUT | |
|---|---|
| Output voltages | See Selection Table |
| Output current | See Selection Table |
| Source regulation | 0.001 |
| Load regulation | 0.2% (0 to 100% load) |
| Transient recovery | <3ms. 10 to 90% load step to within 3% of nominal output voltage |
| Output ripple | Typ 30mV (60kHz) |
| Input ripple | 150:1 attenuation on Output (50-400Hz) |
| Temperature coefficient | 0.02% per °C |
| Output adjustment | 95%-110% with 15 Turn potentiometer |
| Current limit | 105%, rectangular |
| Remote sense | Yes |
| Soft start | Yes |
| Startup time | 1 Sec |
| Holdup time | 2 - 25ms |
| OPERATING | |
|---|---|
| Efficiency | 88%–91% |
| Design topology | Push-pull |
| Switching frequency | 40kH |
| Overvoltage protection | Yes, 115% of nominal voltage |
| Isolation | Input / Output: 24, 48, 72, 2kVdc Input / Output: 10, 220, 2.5kVac, 4kVdc Input / Case: 24, 48, 72, 2kVdc Input / Case: 110, 220, 2.5kVac, 4kVdc Output / Case: < 75Vdc output, 2kVdc Output / Case: > 75Vdc output, 2.5kVac, 4kVdc |
| ENVIRONMENTAL | |
|---|---|
| Operating Temperature | -25C to +55C (100% load) +55C to +70C (with derating |
| Temperature coefficient | 0.02%./C |
| Storage temperature | -40°C to 85°C. |
| Cooling | Convectional cooling. |
| FEATURES | |
|---|---|
| Overvoltage protection OVP | The output voltage is limited to 15% over nominal output voltage by a extra regulated circuit |
| Voltage Sense | External output voltage sense used when the voltage regulation at the load is critical. The sense can compensate voltage drops up to 5% of the nominal voltage |
| Remote sense | External sense is used when the voltage regulation at the loa is critical. The sense can compensate voltage drops up to 5% of nominal voltage |
| Voltage Alarm | Over / Under voltage alarm built in relay changes state if converter output voltage is not with 90% to 115% of nominal output. User selects NO or NC relay function. The relay is rated 30V 0.5A |
| Inhibit input / Power down | This input allow remote start and shutdown of the converter by a signal voltage of 5 to 12V. Max 35mA |
| OPTIONAL FEATURES | |
|---|---|
| Series Diode | Use the series diode output when the output is connected in parallel with other power supplies to achived redundancy. The output current is derated with 10% on 24 to 48V outputs. |
| Conformally coating | For environment with high non condensing humidity, max 98% RH |
| Inrush current | Inrush current limit with NTC, reduces the inrush current during start up. The input votlage range will be affected. Only available on C & D inputs. |
| Mounting Options | See Technical Illustrations |
| STANDARDS | |
|---|---|
| Safety standards | IEC60950, Low Voltage Directive |
| C-Tick | AS/NZS CISPR11 Group 1, Class A |
| EMC | EN IEC 61000-6-3, Emission EN IEC 61000-6-2, Immunity EN IEC 61000-4-4, 4kV EN IEC 61000-4-5 level 2 & 3 |
| MECHANICAL | |
|---|---|

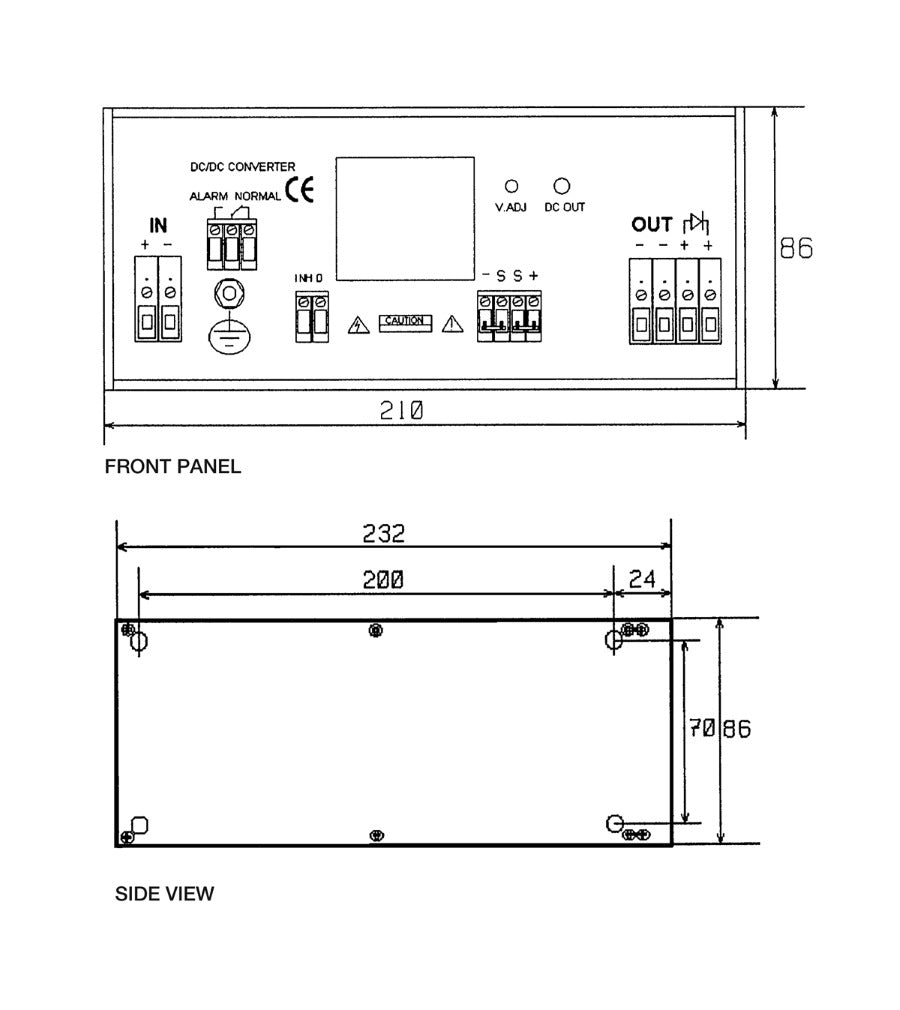

| Dimensions | 232 x 210 x 86mm |
| Weight | 4.2kg |
| Mounting | See Technical Illustrations |
| MODEL NUMBER | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT | POWER |
|---|---|---|---|---|
| PU500 24/24 | 18-32V | 24V | 16.7A | 400W |
| PU500 24/28 | 18-32V | 28V | 14.3A | 400W |
| PU500 24/36 | 18-32V | 36V | 11.2A | 400W |
| PU500 24/48 | 18-32V | 48V | 8.4A | 400W |
| PU500 24/60 | 18-32V | 60V | 6.7A | 400W |
| PU500 48/24 | 38-60V | 24V | 20.9A | 500W |
| PU500 48/28 | 38-60V | 28V | 17.9A | 500W |
| PU500 48/36 | 38-60V | 36V | 13.9A | 500W |
| PU500 48/48 | 38-60V | 48V | 10.5A | 500W |
| PU500 48/60 | 38-60V | 60V | 8.4A | 500W |
| PU500 110/24 | 88-150V | 24V | 20.9A | 500W |
| PU500 110/28 | 88-150V | 28V | 17.9A | 500W |
| PU500 110/36 | 88-150V | 36V | 13.9A | 500W |
| PU500 110/48 | 88-150V | 48V | 10.5A | 500W |
| PU500 110/60 | 88-150V | 60V | 8.4A | 500W |
| PU500 220/24 | 175-300V | 24V | 20.9A | 500W |
| PU500 220/28 | 175-300V | 28V | 17.9A | 500W |
| PU500 220/36 | 175-300V | 36V | 13.9A | 500W |
| PU500 220/48 | 175-300V | 48V | 10.5A | 500W |
| PU500 220/60 | 175-300V | 60V | 8.4A | 500W |
| INPUT | |
|---|---|
| Input voltages | 24Vdc: 18-32Vdc 48Vdc: 38-60Vdc 110Vdc: 88-150Vdc 220Vdc: 175-300Vdc |
| Reverse Input Protection | Inputs 24V, 48V, 72V with Parallel Diode Inputs 110V, 220V Thyristor |
| OUTPUT | |
|---|---|
| Output voltages | See Selection Table |
| Output current | See Selection Table |
| Source regulation | 0.001 |
| Load regulation | 0.2% (0 to 100% load) |
| Transient recovery | <3ms. 10 to 90% load step to within 3% of nominal output voltage |
| Output ripple | Typ 30mV (60kHz) |
| Input ripple | 150:1 attenuation on Output (50-400Hz) |
| Temperature coefficient | 0.02% per °C |
| Output adjustment | 95%-110% with 15 Turn potentiometer |
| Current limit | 105%, rectangular |
| Remote sense | Yes |
| Soft start | Yes |
| Startup time | 1 Sec |
| Holdup time | 2 - 25ms |
| OPERATING | |
|---|---|
| Efficiency | 88%–91% |
| Design topology | Push-pull |
| Switching frequency | 40kH |
| Overvoltage protection | Yes, 115% of nominal voltage |
| Isolation | Input / Output: 24, 48, 72, 2kVdc Input / Output: 10, 220, 2.5kVac, 4kVdc Input / Case: 24, 48, 72, 2kVdc Input / Case: 110, 220, 2.5kVac, 4kVdc Output / Case: < 75Vdc output, 2kVdc Output / Case: > 75Vdc output, 2.5kVac, 4kVdc |
| ENVIRONMENTAL | |
|---|---|
| Operating Temperature | -25C to +55C (100% load) +55C to +70C (with derating |
| Temperature coefficient | 0.02%./C |
| Storage temperature | -40°C to 85°C. |
| Cooling | Convectional cooling. |
| FEATURES | |
|---|---|
| Overvoltage protection OVP | The output voltage is limited to 15% over nominal output voltage by a extra regulated circuit |
| Voltage Sense | External output voltage sense used when the voltage regulation at the load is critical. The sense can compensate voltage drops up to 5% of the nominal voltage |
| Remote sense | External sense is used when the voltage regulation at the loa is critical. The sense can compensate voltage drops up to 5% of nominal voltage |
| Voltage Alarm | Over / Under voltage alarm built in relay changes state if converter output voltage is not with 90% to 115% of nominal output. User selects NO or NC relay function. The relay is rated 30V 0.5A |
| Inhibit input / Power down | This input allow remote start and shutdown of the converter by a signal voltage of 5 to 12V. Max 35mA |
| OPTIONAL FEATURES | |
|---|---|
| Series Diode | Use the series diode output when the output is connected in parallel with other power supplies to achived redundancy. The output current is derated with 10% on 24 to 48V outputs. |
| Conformally coating | For environment with high non condensing humidity, max 98% RH |
| Inrush current | Inrush current limit with NTC, reduces the inrush current during start up. The input votlage range will be affected. Only available on C & D inputs. |
| Mounting Options | See Technical Illustrations |
| STANDARDS | |
|---|---|
| Safety standards | IEC60950, Low Voltage Directive |
| C-Tick | AS/NZS CISPR11 Group 1, Class A |
| EMC | EN IEC 61000-6-3, Emission EN IEC 61000-6-2, Immunity EN IEC 61000-4-4, 4kV EN IEC 61000-4-5 level 2 & 3 |
| MECHANICAL | |
|---|---|
| Dimensions | 232 x 210 x 86mm |
| Weight | 4.2kg |
| Mounting | See Technical Illustrations |
| MODEL NUMBER | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT | POWER |
|---|---|---|---|---|
| PU500 24/24 | 18-32V | 24V | 16.7A | 400W |
| PU500 24/28 | 18-32V | 28V | 14.3A | 400W |
| PU500 24/36 | 18-32V | 36V | 11.2A | 400W |
| PU500 24/48 | 18-32V | 48V | 8.4A | 400W |
| PU500 24/60 | 18-32V | 60V | 6.7A | 400W |
| PU500 48/24 | 38-60V | 24V | 20.9A | 500W |
| PU500 48/28 | 38-60V | 28V | 17.9A | 500W |
| PU500 48/36 | 38-60V | 36V | 13.9A | 500W |
| PU500 48/48 | 38-60V | 48V | 10.5A | 500W |
| PU500 48/60 | 38-60V | 60V | 8.4A | 500W |
| PU500 110/24 | 88-150V | 24V | 20.9A | 500W |
| PU500 110/28 | 88-150V | 28V | 17.9A | 500W |
| PU500 110/36 | 88-150V | 36V | 13.9A | 500W |
| PU500 110/48 | 88-150V | 48V | 10.5A | 500W |
| PU500 110/60 | 88-150V | 60V | 8.4A | 500W |
| PU500 220/24 | 175-300V | 24V | 20.9A | 500W |
| PU500 220/28 | 175-300V | 28V | 17.9A | 500W |
| PU500 220/36 | 175-300V | 36V | 13.9A | 500W |
| PU500 220/48 | 175-300V | 48V | 10.5A | 500W |
| PU500 220/60 | 175-300V | 60V | 8.4A | 500W |
Find the Right Model
| Model Number | Input Voltage (Vdc) | Output Voltage (Vdc) | Output Current (A) | ||
|---|---|---|---|---|---|
|
PU500 24/24 | 24Vdc: 18...32Vdc | 24Vdc | 16.7A | |
|
|
PU500 24/28 | 24Vdc: 18...32Vdc | 28Vdc | 14.3A | |
|
|
PU500 24/48 | 24Vdc: 18...32Vdc | 48Vdc | 8.4A | |
|
|
PU500 24/60 | 24Vdc: 18...32Vdc | 60Vdc | 6.7A | |
|
|
PU500 48/24 | 48Vdc: 38...60Vdc | 24Vdc | 20.9A | |
|
|
PU500 48/28 | 48Vdc: 38...60Vdc | 28Vdc | 17.9A | |
|
|
PU500 48/36 | 48Vdc: 38...60Vdc | 36Vdc | 13.9A | |
|
|
PU500 48/48 | 48Vdc: 38...60Vdc | 48Vdc | 10.5A | |
|
|
PU500 48/60 | 48Vdc: 38...60Vdc | 60Vdc | 8.4A | |
|
|
PU500 110/24 | 110Vdc: 88...150Vdc | 24Vdc | 20.9A | |
|
|
PU500 110/28 | 110Vdc: 88...150Vdc | 28Vdc | 17.9A | |
|
|
PU500 110/48 | 110Vdc: 88...150Vdc | 48Vdc | 10.5A | |
|
|
PU500 110/60 | 110Vdc: 88...150Vdc | 60Vdc | 8.4A | |
|
|
PU500 220/24 | 220Vdc: 175...300Vdc | 24Vdc | 20.9A | |
|
|
PU500 220/28 | 220Vdc: 175...300Vdc | 28Vdc | 17.9A | |
|
|
PU500 220/36 | 220Vdc: 175...300Vdc | 36Vdc | 13.9A | |
|
|
PU500 220/48 | 220Vdc: 175...300Vdc | 48Vdc | 10.5A | |
|
|
PU500 220/60 | 220Vdc: 175...300Vdc | 60Vdc | 8.4A |
