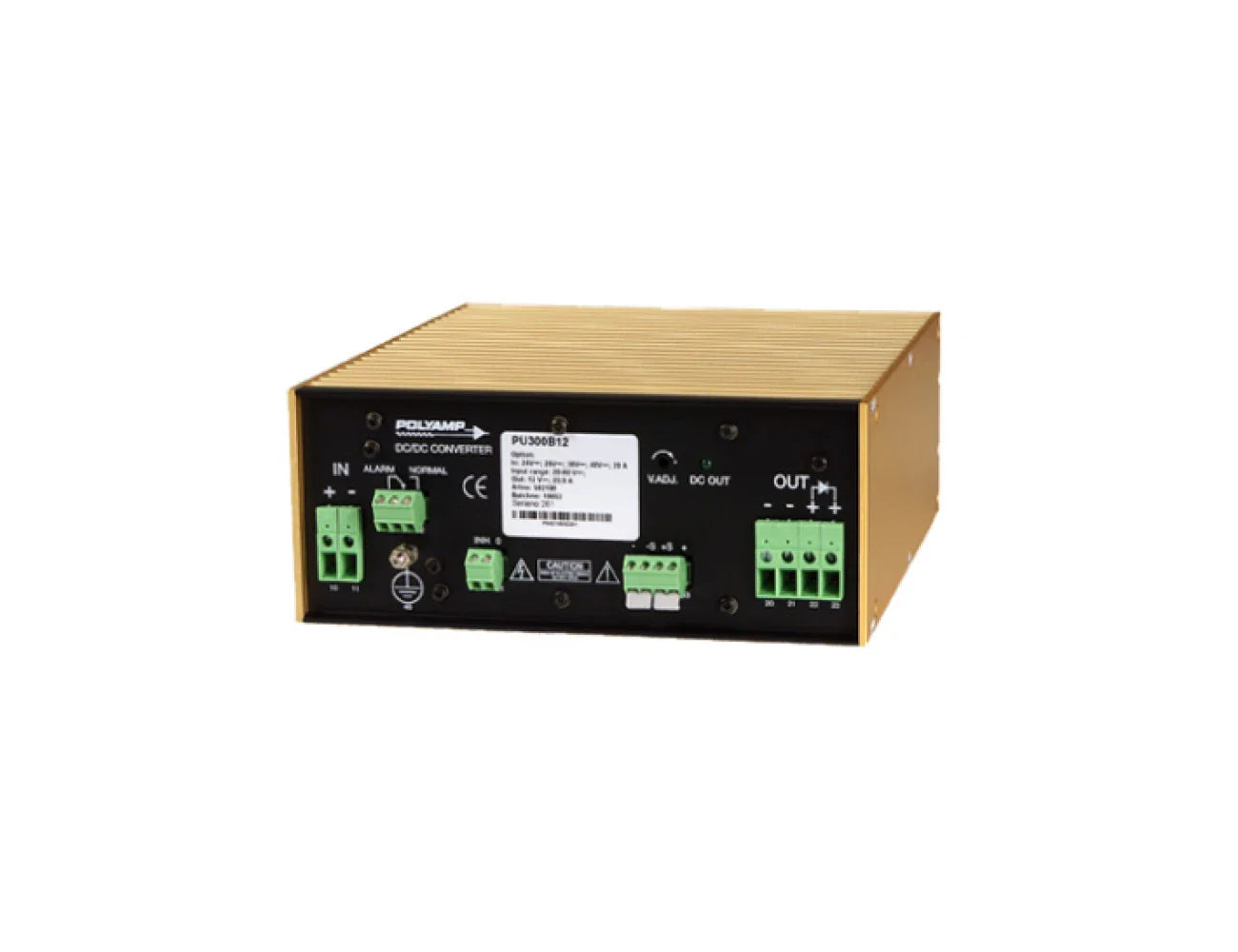

Polyamp PU300 SERIES DC/DC Converter
The Polyamp PU300 Series DC/DC Converter is a compact and reliable power solution for industrial, railway, and telecommunications applications. Delivering up to 300W of power, it is engineered to provide consistent performance in demanding environments.
Read More
Features
- 216W - 300W
- Industrial grade converter optimised input voltage ranges
- Input ranges from 10 to 270Vdc
- Single outputs from 12 to 60Vdc
- Reverse input voltage protection
- Fully encapsulated meets IP20
Specifications
Selection Table
Technical Illustrations
Downloads
| INPUT | |
|---|---|
| Input voltages | A: 10-30Vdc B: 20-60Vdc C: 50-150Vdc D: 90-270Vdc |
| OUTPUT | |
|---|---|
| Output voltages | See Selection Table |
| Adjustment range | 95%–110%, Adjustment with 15 turn potentiometer |
| Output ripple | Typ 15mVp-p (80kHz) |
| Source regulation | 0.001 |
| Load regulation | 0.2% (0 - 100%) load |
| Temperature coefficient | 0.02% per °C |
| Current limit | 105% Rectangular |
| Remote sense | Yes |
| Transient recovery | <3ms. Load step to within 3% of nominal output voltage for 10% to 90% |
| Soft start | Yes |
| Startup time, type | 1 sec. |
| Holdup time | 2–25ms |
| Efficiency | 77%–88% |
| Design topology | Push-pull |
| Switching frequency | 40kH |
| PROTECTION | |
|---|---|
| Reverse input voltage protection | Parallel diode, Code (A) (B) (24) (48) Series diode, Code (C) (D) (110) (220) |
| Isolation | Input- Output: 2kVdc (input code A,B) Input- Output: 2.5kVac / 4kVdc (input code C,D) Input- Case: 2kVdc (input code A,B) Input- Case: 2.5kVac / 4kVdc (input code C,D) Output- Case: 2kVdc (all outputs) |
| ENVIRONMENTAL | |
|---|---|
| Operating temperature | Range at 100% load: -25°C to +55°C 100% load |
| Conduction cooling | width:260px; height:27px">With derating: -25°C to +70°C |
| Storage temperature range | -40°C to +85°C |
| FEATURES | |
|---|---|
| Overvoltage protection OVP | The output voltage is limited to 15% over nominal output voltage by a extra regulated circuit |
| Voltage Sense | External output voltage sense used when the voltage regulation at the load is critical. The sense can compensate voltage drops up to 5% of the nominal voltage |
| Remote sense | External sense is used when the voltage regulation at the loa is critical. The sense can compensate voltage drops up to 5% of nominal voltage |
| Extra Output with series diode | Use the series diode output when the output is connected in parallel with other power suppies to achieve redundancy |
| Voltage Alarm | Over / Under voltage alarm built in relay changes state if converter output voltage is not with 90% to 115% of nominal output. User selects NO or NC relay function. The relay is rated 30V 0.5A |
| OPTIONAL FEATURES | |
|---|---|
| Conformal coating | For environment with high non condensing humidity, max 98% RH |
| Inrush current | Inrush current limit with NTC, reduces the inrush current during start up. The input votlage range will be affected. Only available on C & D inputs. |

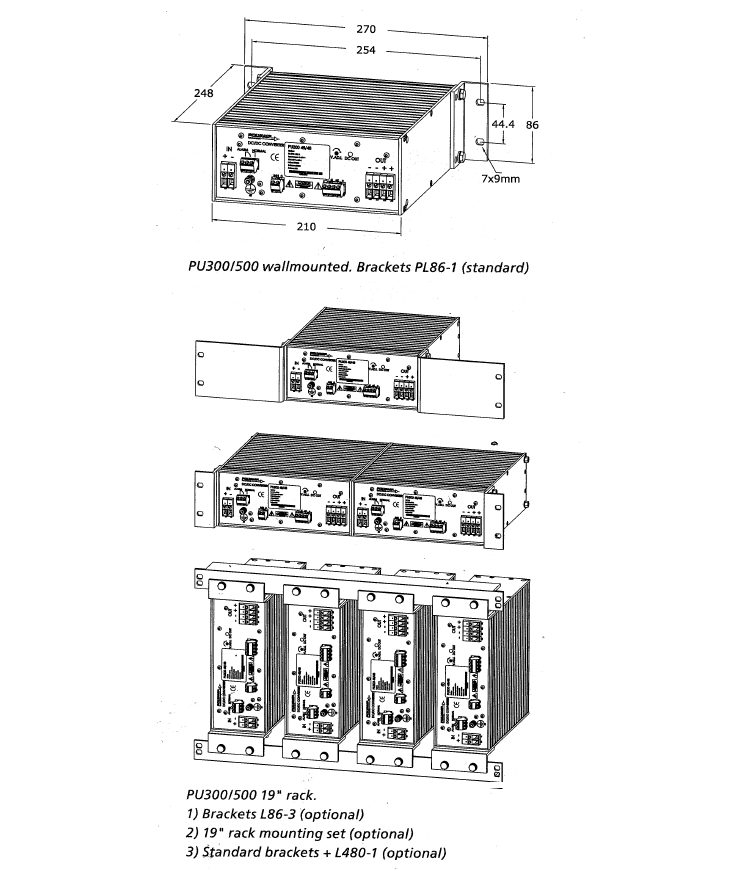

| Mounting Options | See Technical Illustrations |
| STANDARDS AND APPROVALS | |
|---|---|
| Safety standards | IEC950, EN60950, CE LVD 73/23/EEC |
| C-Tick | AS/NZS CISPR11 Group 1, Class A |
| EMC standards | EN/IEC 61000-6-2, EN/IEC 61000-4-2, EN/IEC 61000-4-3, EN/IEC 61000-4-4, EN/IEC 61000-4-5, EN/IEC 61000-4-6 |
| EMI standards | EN/IEC 61000-6-3 EN55011/EN55022 Level B |
| MECHANICAL | |
|---|---|

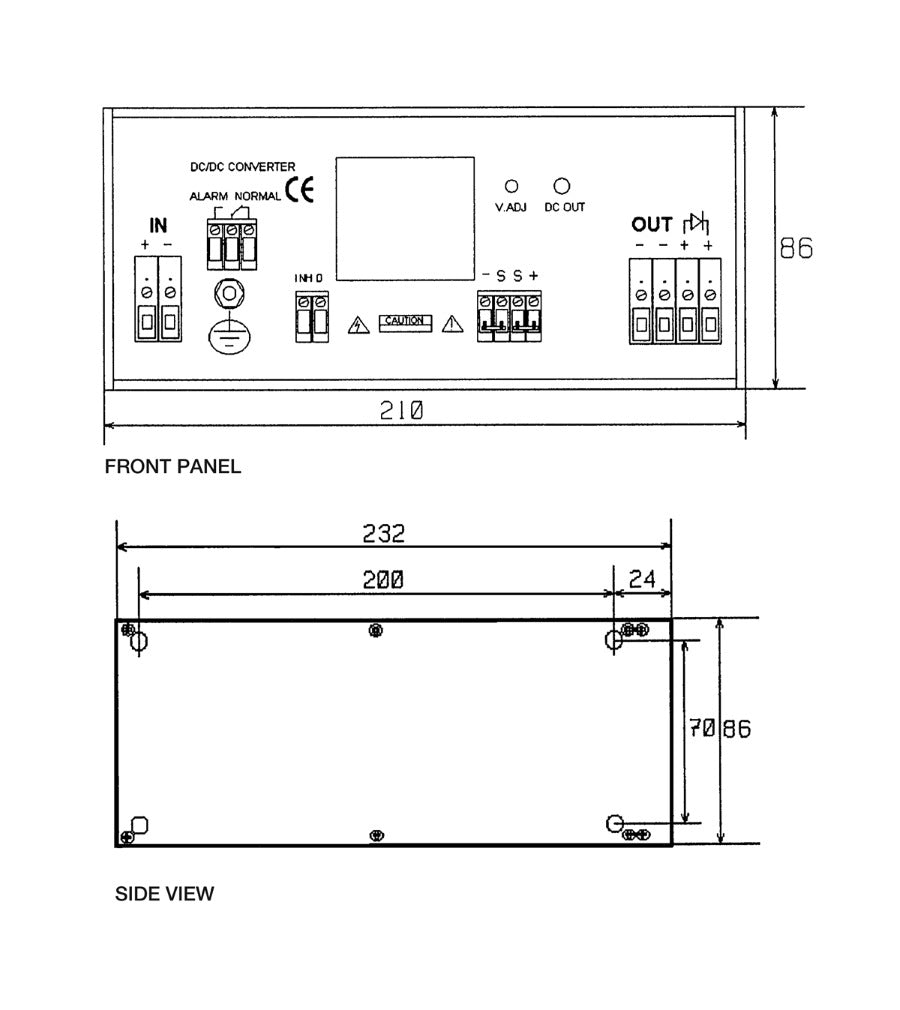

| Dimensions | 86 x 210 x 232mm, See Technical Illustration |
| Weight | 4.2kg |

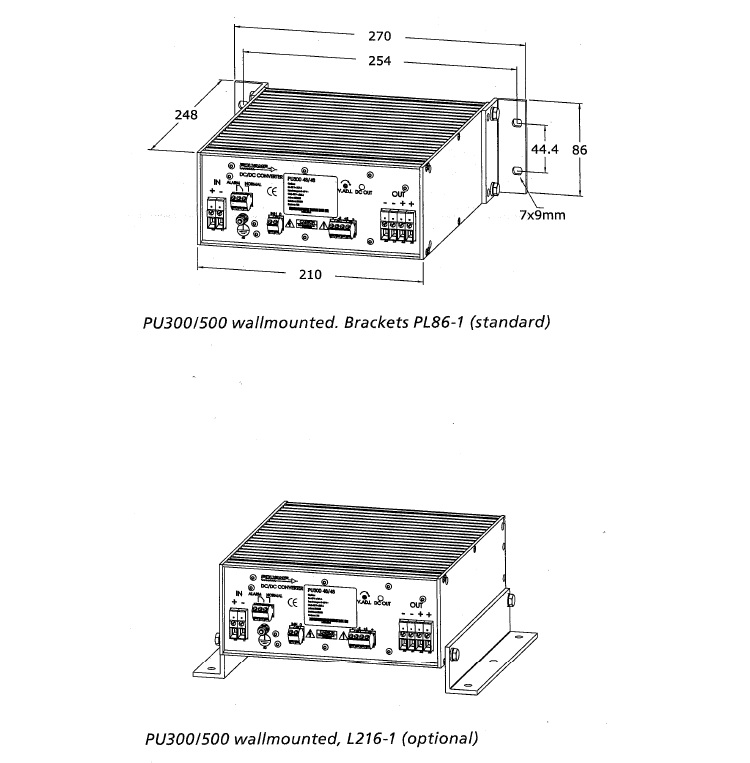

| Mounting brackets | Supplied with L86-1 mounting bracket See Technical Illustration |
| MODEL NUMBER | INPUT | OUTPUT | CURRENT | OUTPUT POWER |
|---|---|---|---|---|
| PU300A12 | 10-30V | 12V | 18A | 216W |
| PU300A13.8 | 10-30V | 13.8V | 16A | 220W |
| PU300A15 | 10-30V | 15V | 16A | 240W |
| PU300A24 | 10-30V | 24V | 10A | 240W |
| PU300A28 | 10-30V | 28V | 8.58A | 240W |
| PU300A36 | 10-30V | 36V | 6.67A | 240W |
| PU300A48 | 10-30V | 48V | 5A | 240W |
| PU300A60 | 10-30V | 60V | 4A | 240W |
| PU300B12 | 20-60V | 12V | 25A | 300W |
| PU300B13.8 | 20-60V | 13.8V | 21.8A | 300W |
| PU300B15 | 20-60V | 15V | 20A | 300W |
| PU300B24 | 20-60V | 24V | 12.5A | 300W |
| PU300B28 | 20-60V | 28V | 10.8A | 300W |
| PU300B36 | 20-60V | 36V | 8.34A | 300W |
| PU300B48 | 20-60V | 48V | 6.25A | 300W |
| PU300B60 | 20-60V | 60V | 5A | 300W |
| PU300C12 | 50-150V | 12V | 25A | 300W |
| PU300C13.8 | 50-150V | 13.8V | 21.8A | 300W |
| PU300C15 | 50-150V | 15V | 20A | 300W |
| PU300C24 | 50-150V | 24V | 12.5A | 300W |
| PU300C28 | 50-150V | 28V | 10.8A | 300W |
| PU300C36 | 50-150V | 36V | 8.34A | 300W |
| PU300C48 | 50-150V | 48V | 6.25A | 300W |
| PU300C60 | 50-150V | 60V | 5A | 300W |
| PU300D12 | 90-270V | 12V | 25A | 300W |
| PU300D13.8 | 90-270V | 13.8V | 21.8A | 300W |
| PU300D15 | 90-270V | 15V | 20A | 300W |
| PU300D24 | 90-270V | 24V | 12.5A | 300W |
| PU300D28 | 90-270V | 28V | 10.8A | 300W |
| PU300D36 | 90-270V | 36V | 8.34A | 300W |
| PU300D48 | 90-270V | 48V | 6.25A | 300W |
| PU300D60 | 90-270V | 60V | 5A | 300W |
| INPUT | |
|---|---|
| Input voltages | A: 10-30Vdc B: 20-60Vdc C: 50-150Vdc D: 90-270Vdc |
| OUTPUT | |
|---|---|
| Output voltages | See Selection Table |
| Adjustment range | 95%–110%, Adjustment with 15 turn potentiometer |
| Output ripple | Typ 15mVp-p (80kHz) |
| Source regulation | 0.001 |
| Load regulation | 0.2% (0 - 100%) load |
| Temperature coefficient | 0.02% per °C |
| Current limit | 105% Rectangular |
| Remote sense | Yes |
| Transient recovery | <3ms. Load step to within 3% of nominal output voltage for 10% to 90% |
| Soft start | Yes |
| Startup time, type | 1 sec. |
| Holdup time | 2–25ms |
| Efficiency | 77%–88% |
| Design topology | Push-pull |
| Switching frequency | 40kH |
| PROTECTION | |
|---|---|
| Reverse input voltage protection | Parallel diode, Code (A) (B) (24) (48) Series diode, Code (C) (D) (110) (220) |
| Isolation | Input- Output: 2kVdc (input code A,B) Input- Output: 2.5kVac / 4kVdc (input code C,D) Input- Case: 2kVdc (input code A,B) Input- Case: 2.5kVac / 4kVdc (input code C,D) Output- Case: 2kVdc (all outputs) |
| ENVIRONMENTAL | |
|---|---|
| Operating temperature | Range at 100% load: -25°C to +55°C 100% load |
| Conduction cooling | width:260px; height:27px">With derating: -25°C to +70°C |
| Storage temperature range | -40°C to +85°C |
| FEATURES | |
|---|---|
| Overvoltage protection OVP | The output voltage is limited to 15% over nominal output voltage by a extra regulated circuit |
| Voltage Sense | External output voltage sense used when the voltage regulation at the load is critical. The sense can compensate voltage drops up to 5% of the nominal voltage |
| Remote sense | External sense is used when the voltage regulation at the loa is critical. The sense can compensate voltage drops up to 5% of nominal voltage |
| Extra Output with series diode | Use the series diode output when the output is connected in parallel with other power suppies to achieve redundancy |
| Voltage Alarm | Over / Under voltage alarm built in relay changes state if converter output voltage is not with 90% to 115% of nominal output. User selects NO or NC relay function. The relay is rated 30V 0.5A |
| OPTIONAL FEATURES | |
|---|---|
| Conformal coating | For environment with high non condensing humidity, max 98% RH |
| Inrush current | Inrush current limit with NTC, reduces the inrush current during start up. The input votlage range will be affected. Only available on C & D inputs. |
| Mounting Options | See Technical Illustrations |
| STANDARDS AND APPROVALS | |
|---|---|
| Safety standards | IEC950, EN60950, CE LVD 73/23/EEC |
| C-Tick | AS/NZS CISPR11 Group 1, Class A |
| EMC standards | EN/IEC 61000-6-2, EN/IEC 61000-4-2, EN/IEC 61000-4-3, EN/IEC 61000-4-4, EN/IEC 61000-4-5, EN/IEC 61000-4-6 |
| EMI standards | EN/IEC 61000-6-3 EN55011/EN55022 Level B |
| MECHANICAL | |
|---|---|
| Dimensions | 86 x 210 x 232mm, See Technical Illustration |
| Weight | 4.2kg |
| Mounting brackets | Supplied with L86-1 mounting bracket See Technical Illustration |
| MODEL NUMBER | INPUT | OUTPUT | CURRENT | OUTPUT POWER |
|---|---|---|---|---|
| PU300A12 | 10-30V | 12V | 18A | 216W |
| PU300A13.8 | 10-30V | 13.8V | 16A | 220W |
| PU300A15 | 10-30V | 15V | 16A | 240W |
| PU300A24 | 10-30V | 24V | 10A | 240W |
| PU300A28 | 10-30V | 28V | 8.58A | 240W |
| PU300A36 | 10-30V | 36V | 6.67A | 240W |
| PU300A48 | 10-30V | 48V | 5A | 240W |
| PU300A60 | 10-30V | 60V | 4A | 240W |
| PU300B12 | 20-60V | 12V | 25A | 300W |
| PU300B13.8 | 20-60V | 13.8V | 21.8A | 300W |
| PU300B15 | 20-60V | 15V | 20A | 300W |
| PU300B24 | 20-60V | 24V | 12.5A | 300W |
| PU300B28 | 20-60V | 28V | 10.8A | 300W |
| PU300B36 | 20-60V | 36V | 8.34A | 300W |
| PU300B48 | 20-60V | 48V | 6.25A | 300W |
| PU300B60 | 20-60V | 60V | 5A | 300W |
| PU300C12 | 50-150V | 12V | 25A | 300W |
| PU300C13.8 | 50-150V | 13.8V | 21.8A | 300W |
| PU300C15 | 50-150V | 15V | 20A | 300W |
| PU300C24 | 50-150V | 24V | 12.5A | 300W |
| PU300C28 | 50-150V | 28V | 10.8A | 300W |
| PU300C36 | 50-150V | 36V | 8.34A | 300W |
| PU300C48 | 50-150V | 48V | 6.25A | 300W |
| PU300C60 | 50-150V | 60V | 5A | 300W |
| PU300D12 | 90-270V | 12V | 25A | 300W |
| PU300D13.8 | 90-270V | 13.8V | 21.8A | 300W |
| PU300D15 | 90-270V | 15V | 20A | 300W |
| PU300D24 | 90-270V | 24V | 12.5A | 300W |
| PU300D28 | 90-270V | 28V | 10.8A | 300W |
| PU300D36 | 90-270V | 36V | 8.34A | 300W |
| PU300D48 | 90-270V | 48V | 6.25A | 300W |
| PU300D60 | 90-270V | 60V | 5A | 300W |
Find the Right Model
| Model Number | Input Voltage (Vdc) | Output Voltage (Vdc) | Output Current (A) | ||
|---|---|---|---|---|---|
|
PU300A12 | 12/24Vdc: 10...30Vdc | 12Vdc | 18A | |
|
|
PU300A13.8 | 12/24Vdc: 10...30Vdc | 13.8Vdc | 16A | |
|
|
PU300A24 | 12/24Vdc: 10...30Vdc | 24Vdc | 10A | |
|
|
PU300A28 | 12/24Vdc: 10...30Vdc | 28Vdc | 8.6A | |
|
|
PU300A48 | 12/24Vdc: 10...30Vdc | 48Vdc | 5A | |
|
|
PU300B12 | 24/36/48Vdc: 20...60Vdc | 12Vdc | 25A | |
|
|
PU300B13.8 | 24/36/48Vdc: 20...60Vdc | 13.8Vdc | 21.8A | |
|
|
PU300B15 | 24/36/48Vdc: 20...60Vdc | 15Vdc | 20A | |
|
|
PU300B24 | 24/36/48Vdc: 20...60Vdc | 24Vdc | 12.5A | |
|
|
PU300B28 | 24/36/48Vdc: 20...60Vdc | 28Vdc | 10.8A | |
|
|
PU300B36 | 24/36/48Vdc: 20...60Vdc | 36Vdc | 6.67A | |
|
|
PU300B48 | 24/36/48Vdc: 20...60Vdc | 48Vdc | 6.25A | |
|
|
PU300B60 | 24/36/48Vdc: 20...60Vdc | 60Vdc | 5A | |
|
|
PU300C12 | 60/72/110Vdc: 50...150Vdc | 12Vdc | 25A | |
|
|
PU300C13.8 | 60/72/110Vdc: 50...150Vdc | 13.8Vdc | 21.8A | |
|
|
PU300C15 | 60/72/110Vdc: 50...150Vdc | 15Vdc | 20A | |
|
|
PU300C24 | 60/72/110Vdc: 50...150Vdc | 24Vdc | 12.5A | |
|
|
PU300C28 | 60/72/110Vdc: 50...150Vdc | 28Vdc | 10.8A | |
|
|
PU300C48 | 60/72/110Vdc: 50...150Vdc | 48Vdc | 6.25A | |
|
|
PU300C60 | 60/72/110Vdc: 50...150Vdc | 60Vdc | 5A | |
|
|
PU300D12 | 110/220Vdc: 90...270Vdc | 12Vdc | 25A | |
|
|
PU300D13.8 | 110/220Vdc: 90...270Vdc | 13.8Vdc | 21.8A | |
|
|
PU300D15 | 110/220Vdc: 90...270Vdc | 15Vdc | 20A | |
|
|
PU300D24 | 110/220Vdc: 90...270Vdc | 24Vdc | 12.5A | |
|
|
PU300D28 | 110/220Vdc: 90...270Vdc | 28Vdc | 10.8A | |
|
|
PU300D48 | 110/220Vdc: 90...270Vdc | 48Vdc | 6.25A | |
|
|
PU300D60 | 110/220Vdc: 90...270Vdc | 60Vdc | 5A |
