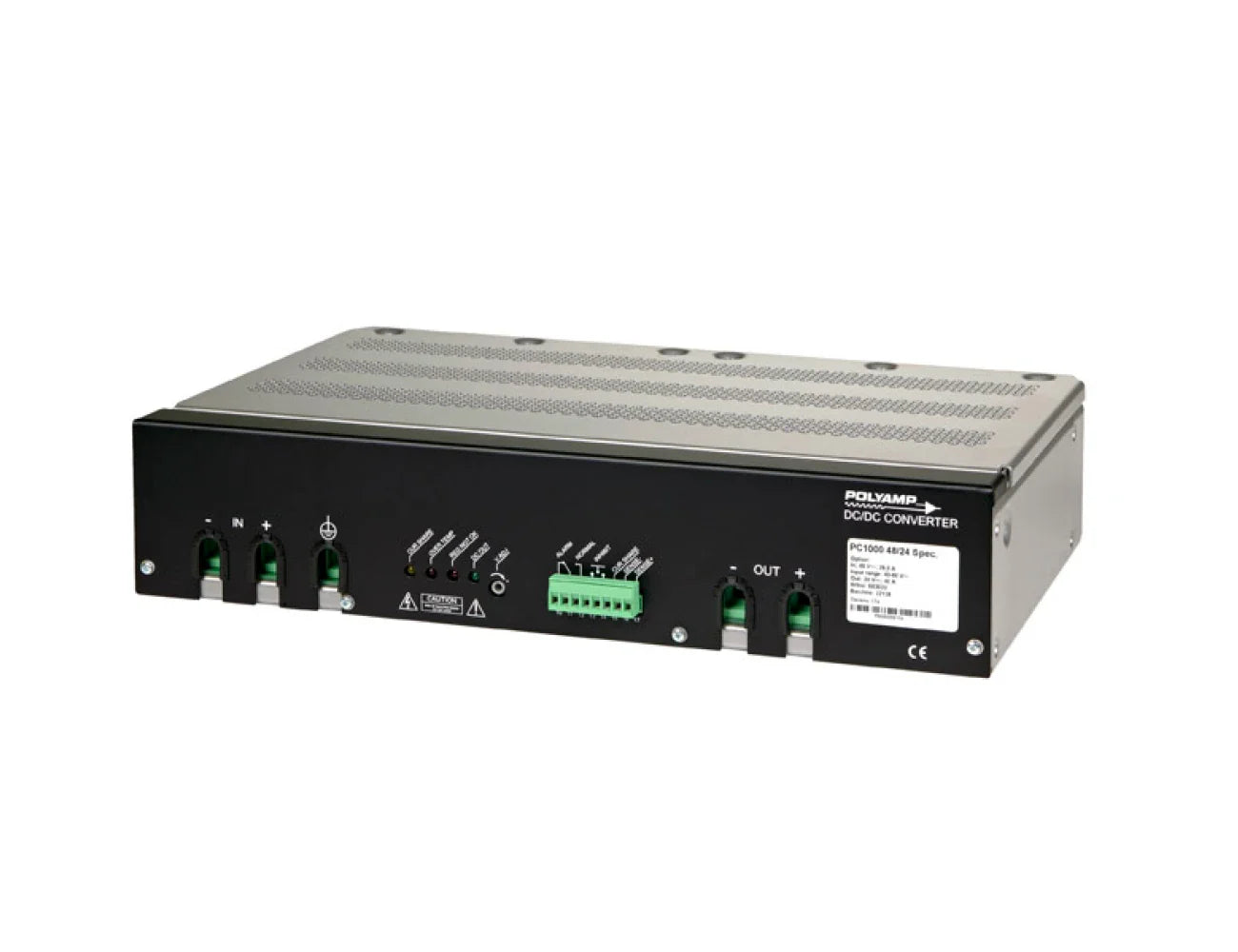

Polyamp PC2000 SERIES DC/DC Converter
The Polyamp PC2000 Series DC/DC Converter is a high-performance power solution designed for demanding industrial, railway, and telecommunications applications. Delivering up to 2000W of power, it ensures reliable and efficient operation in challenging environments.
Read More
Features
- 1000W - 2000W Industrial DC/DC Converter
- Optimized input voltage ranges
- Inputs 30 to 300Vdc
- Single Outputs 24 to 48Vdc
- Inrush current limit
- Reverse input voltage protection
Specifications
Selection Table

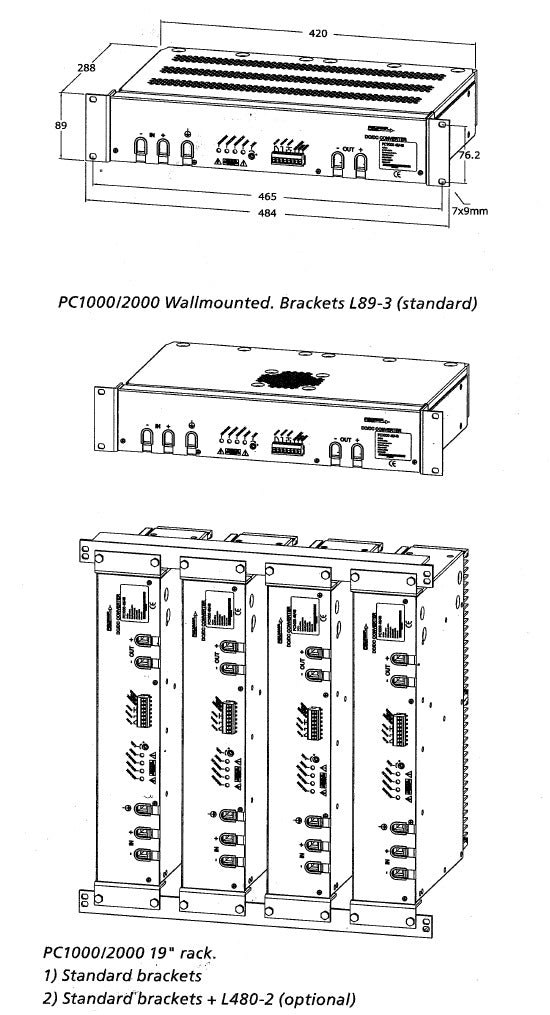

Technical Illustrations
Downloads
| INPUT | |
|---|---|
| Input voltage | 20 - 30VDC (24V) 41 - 60VDC (48V) 93 - 150VDC (110V) 187 - 300VDC (220V) |
| OUTPUT | |
|---|---|
| Output Voltage | See Selection Table. |
| Output Current | See Selection Table. |
| Source regulation | 0.1%. |
| Load regulation | 0.5% 0.2% (with sense connected) 0-100% |
| Output ripple | 30mV p-p (120kHz) |
| Voltage adjustment | 95% - 110%. |
| Remote sense | Yes. |
| Soft start | Yes. |
| Start-up time | <3s |
| Hold-up time | 2-25ms |
| Efficiency | 89-93% |
| OPERATING | |
|---|---|
| Design topology | Push-Pull |
| Switching Frequency | 60kHz |
| Overheated alarm | Yes. |
| Remote sense | Yes. |
| Soft start | Yes. |
| Start-up time | <3s |
| Hold-up time | 2-25ms |
| Efficiency | 89-93% |
| ENVIRONMENTAL | |
|---|---|
| Operating temperature | -25°C to 55°C (100% load). -25°C to +70°C (with derating), contact Powerbox for details. |
| Temperature coefficient | 0.02%. |
| Storage temperature | -40°C to 85°C. |
| Cooling | See table. |
| PROTECTION | |
|---|---|
| Reverse voltage protection | Yes. |
| Current limit protection | 105%. |
| Overvoltage protection | 115%. |
| Over/under voltage alarm | 90%-115% of nominal output. |
| Overheated alarm | Yes. |
| Isolation | Input / Output: 24, 48, 72, 2kVdc Input / Output: 10, 220, 2.5kVac, 4kVdc Input / Case: 24, 48, 72, 2kVdc Input / Case: 110, 220, 2.5kVac, 4kVdc Output / Case: < 75Vdc output, 2.5kVdc |
| FEATURES | |
|---|---|
| Current sharing | Current sharing is used to balance the load between up to 10 units working in parallel |
| External output voltage sense | External sense is used when the voltage regulation at the load is critical. The sense can compensate voltage drops up to 5% of nominal voltage |
| Alarm circuit | The alarm relay swtches to "Alarm" state if the output is not within -10% to +15% of nominal output voltage, or the converter is overheated |
| Over voltage protection OVP | A second regulation circuit takes over in case the main regulation fails. The output voltage is limited to approximately +15% over nominal output voltage |
| Inhibit input Power down | The converter will shutdown if the inhibit input is short circuit by a relay or electrical switch. The current through the short-circuit is 20mA |
| OPTIONAL FEATURES | |
|---|---|
| Conformal Coating | For environment with high non-condensing humidity max 98% RH |
| Series diode on output | Specify series diode output when the output is connected in parallel with other power supply to achieve redundancy. The output is derated 10% on 24V and 5% on 48V |
| Train input | Input voltage range according to train Standard EN50155 and IEC 60751 |
| STANDARDS | |
|---|---|
| Safety | EN/IEC60950-1: 2001 |
| C-Tick | AS/NZS CISPR11 Group 1, Class A |
| EMI | IEC/EN61000-6-2, EN55011/EN55022 class B, |
| EMC | IEC/EN 61000-6, Emission IEC/EN 61000-6, Immunity IEC/EN 61000-4-3, 20V/m IEC/EN 61000-4-4, 4kV IEC/EN 61000-4-5 Level 2 & 3 EN50121-3-2 |
| MECHANICAL | |
|---|---|
| Dimensions | 285 x 420 x 87mm |
| Weight | 8.5kg |
| Mounting brackets | See Technical Illustrations |
| MODEL NUMBER | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT | COOLING | POWER |
|---|---|---|---|---|---|
| PC1000 24/24 | 20-32V | 24V | 42A | Convection | 1000W |
| PC1000 24/28 | 20-32V | 28V | 36A | Convection | 1000W |
| PC1000 24/36 | 20-32V | 36V | 28A | Convection | 1000W |
| PC1000 24/48 | 20-32V | 48V | 21A | Convection | 1000W |
| PC1000 48/24 | 43-60V | 24V | 42A | Convection | 1000W |
| PC1000 48/28 | 43-60V | 28V | 36A | Convection | 1000W |
| PC1000 48/36 | 43-60V | 36V | 28A | Convection | 1000W |
| PC1000 48/48 | 43-60V | 48V | 21A | Convection | 1000W |
| PC1000 110/24 | 93-150V | 24V | 42A | Convection | 1000W |
| PC1000 110/28 | 93-150V | 28V | 36A | Convection | 1000W |
| PC1000 110/36 | 93-150V | 36V | 28A | Convection | 1000W |
| PC1000 110/48 | 93-150V | 48V | 21A | Convection | 1000W |
| PC1000 220/24 | 187-300V | 24V | 42A | Convection | 1000W |
| PC1000 220/28 | 187-300V | 28V | 36A | Convection | 1000W |
| PC1000 220/36 | 187-300V | 36V | 28A | Convection | 1000W |
| PC1000 220/48 | 187-300V | 48V | 21A | Convection | 1000W |
| PC1400 48/24 | 43-60V | 24V | 58A | Fan | 1400W |
| PC1400 48/28 | 43-60V | 28V | 58A | Fan | 1400W |
| PC2000 48/36 | 43-60V | 36V | 56A | Fan | 2000W |
| PC2000 48/48 | 43-60V | 48V | 42A | Fan | 2000W |
| PC1400 110/24 | 93-150V | 24V | 58A | Fan | 1400W |
| PC1400 110/28 | 93-150V | 28V | 58A | Fan | 1400W |
| PC2000 110/36 | 93-150V | 36V | 56A | Fan | 2000W |
| PC2000 110/48 | 93-150V | 48V | 42A | Fan | 2000W |
| PC1400 220/24 | 187-300V | 24V | 58A | Fan | 1400W |
| PC1400 220/28 | 187-300V | 28V | 58A | Fan | 1400W |
| PC2000 220/36 | 187-300V | 36V | 56A | Fan | 2000W |
| PC2000 220/48 | 187-300V | 48V | 42A | Fan | 2000W |
| INPUT | |
|---|---|
| Input voltage | 20 - 30VDC (24V) 41 - 60VDC (48V) 93 - 150VDC (110V) 187 - 300VDC (220V) |
| OUTPUT | |
|---|---|
| Output Voltage | See Selection Table. |
| Output Current | See Selection Table. |
| Source regulation | 0.1%. |
| Load regulation | 0.5% 0.2% (with sense connected) 0-100% |
| Output ripple | 30mV p-p (120kHz) |
| Voltage adjustment | 95% - 110%. |
| Remote sense | Yes. |
| Soft start | Yes. |
| Start-up time | <3s |
| Hold-up time | 2-25ms |
| Efficiency | 89-93% |
| OPERATING | |
|---|---|
| Design topology | Push-Pull |
| Switching Frequency | 60kHz |
| Overheated alarm | Yes. |
| Remote sense | Yes. |
| Soft start | Yes. |
| Start-up time | <3s |
| Hold-up time | 2-25ms |
| Efficiency | 89-93% |
| ENVIRONMENTAL | |
|---|---|
| Operating temperature | -25°C to 55°C (100% load). -25°C to +70°C (with derating), contact Powerbox for details. |
| Temperature coefficient | 0.02%. |
| Storage temperature | -40°C to 85°C. |
| Cooling | See table. |
| PROTECTION | |
|---|---|
| Reverse voltage protection | Yes. |
| Current limit protection | 105%. |
| Overvoltage protection | 115%. |
| Over/under voltage alarm | 90%-115% of nominal output. |
| Overheated alarm | Yes. |
| Isolation | Input / Output: 24, 48, 72, 2kVdc Input / Output: 10, 220, 2.5kVac, 4kVdc Input / Case: 24, 48, 72, 2kVdc Input / Case: 110, 220, 2.5kVac, 4kVdc Output / Case: < 75Vdc output, 2.5kVdc |
| FEATURES | |
|---|---|
| Current sharing | Current sharing is used to balance the load between up to 10 units working in parallel |
| External output voltage sense | External sense is used when the voltage regulation at the load is critical. The sense can compensate voltage drops up to 5% of nominal voltage |
| Alarm circuit | The alarm relay swtches to "Alarm" state if the output is not within -10% to +15% of nominal output voltage, or the converter is overheated |
| Over voltage protection OVP | A second regulation circuit takes over in case the main regulation fails. The output voltage is limited to approximately +15% over nominal output voltage |
| Inhibit input Power down | The converter will shutdown if the inhibit input is short circuit by a relay or electrical switch. The current through the short-circuit is 20mA |
| OPTIONAL FEATURES | |
|---|---|
| Conformal Coating | For environment with high non-condensing humidity max 98% RH |
| Series diode on output | Specify series diode output when the output is connected in parallel with other power supply to achieve redundancy. The output is derated 10% on 24V and 5% on 48V |
| Train input | Input voltage range according to train Standard EN50155 and IEC 60751 |
| STANDARDS | |
|---|---|
| Safety | EN/IEC60950-1: 2001 |
| C-Tick | AS/NZS CISPR11 Group 1, Class A |
| EMI | IEC/EN61000-6-2, EN55011/EN55022 class B, |
| EMC | IEC/EN 61000-6, Emission IEC/EN 61000-6, Immunity IEC/EN 61000-4-3, 20V/m IEC/EN 61000-4-4, 4kV IEC/EN 61000-4-5 Level 2 & 3 EN50121-3-2 |
| MECHANICAL | |
|---|---|
| Dimensions | 285 x 420 x 87mm |
| Weight | 8.5kg |
| Mounting brackets | See Technical Illustrations |
| MODEL NUMBER | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT | COOLING | POWER |
|---|---|---|---|---|---|
| PC1000 24/24 | 20-32V | 24V | 42A | Convection | 1000W |
| PC1000 24/28 | 20-32V | 28V | 36A | Convection | 1000W |
| PC1000 24/36 | 20-32V | 36V | 28A | Convection | 1000W |
| PC1000 24/48 | 20-32V | 48V | 21A | Convection | 1000W |
| PC1000 48/24 | 43-60V | 24V | 42A | Convection | 1000W |
| PC1000 48/28 | 43-60V | 28V | 36A | Convection | 1000W |
| PC1000 48/36 | 43-60V | 36V | 28A | Convection | 1000W |
| PC1000 48/48 | 43-60V | 48V | 21A | Convection | 1000W |
| PC1000 110/24 | 93-150V | 24V | 42A | Convection | 1000W |
| PC1000 110/28 | 93-150V | 28V | 36A | Convection | 1000W |
| PC1000 110/36 | 93-150V | 36V | 28A | Convection | 1000W |
| PC1000 110/48 | 93-150V | 48V | 21A | Convection | 1000W |
| PC1000 220/24 | 187-300V | 24V | 42A | Convection | 1000W |
| PC1000 220/28 | 187-300V | 28V | 36A | Convection | 1000W |
| PC1000 220/36 | 187-300V | 36V | 28A | Convection | 1000W |
| PC1000 220/48 | 187-300V | 48V | 21A | Convection | 1000W |
| PC1400 48/24 | 43-60V | 24V | 58A | Fan | 1400W |
| PC1400 48/28 | 43-60V | 28V | 58A | Fan | 1400W |
| PC2000 48/36 | 43-60V | 36V | 56A | Fan | 2000W |
| PC2000 48/48 | 43-60V | 48V | 42A | Fan | 2000W |
| PC1400 110/24 | 93-150V | 24V | 58A | Fan | 1400W |
| PC1400 110/28 | 93-150V | 28V | 58A | Fan | 1400W |
| PC2000 110/36 | 93-150V | 36V | 56A | Fan | 2000W |
| PC2000 110/48 | 93-150V | 48V | 42A | Fan | 2000W |
| PC1400 220/24 | 187-300V | 24V | 58A | Fan | 1400W |
| PC1400 220/28 | 187-300V | 28V | 58A | Fan | 1400W |
| PC2000 220/36 | 187-300V | 36V | 56A | Fan | 2000W |
| PC2000 220/48 | 187-300V | 48V | 42A | Fan | 2000W |
