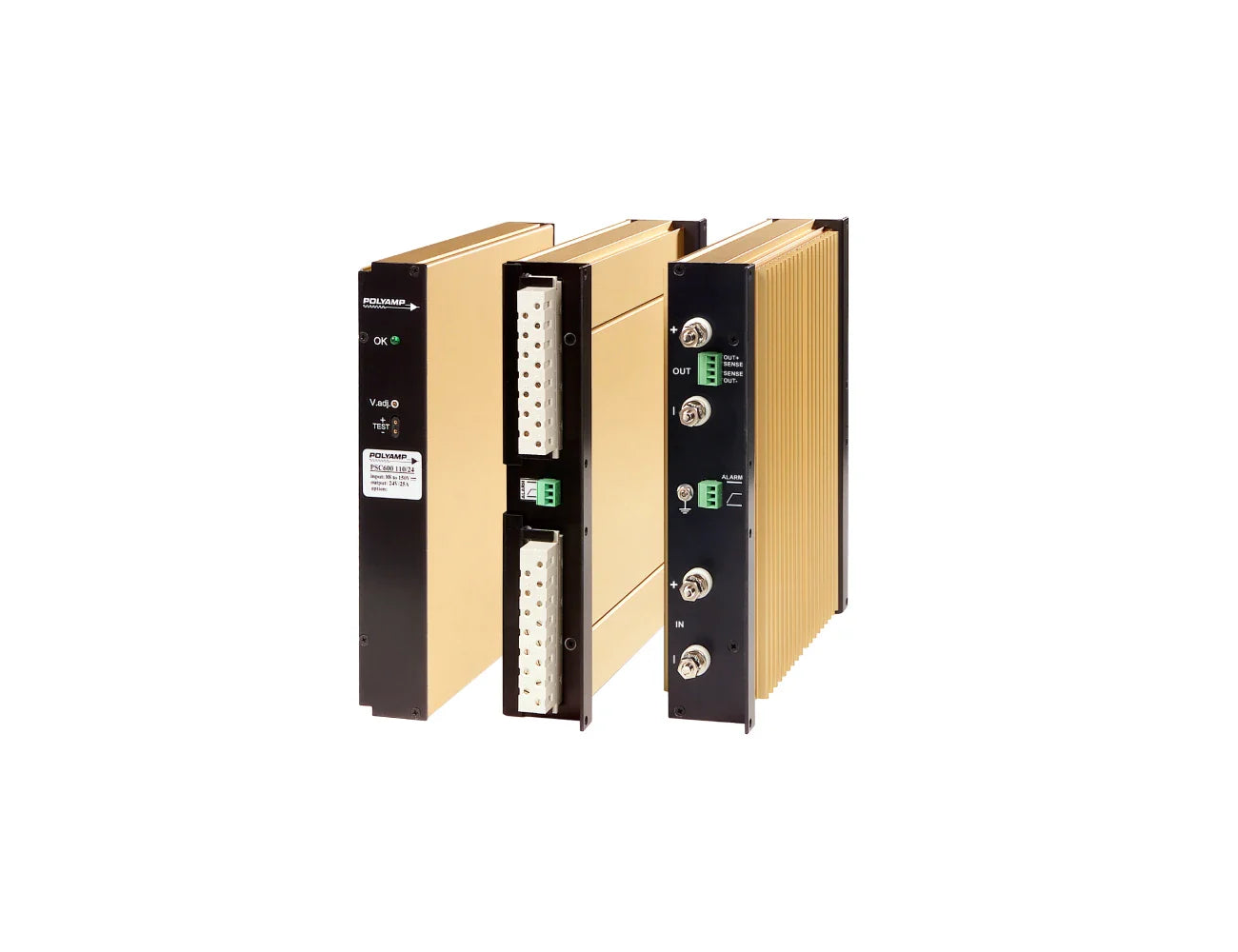

Polyamp PSC 600 SERIES DC/DC Converter

Name: Polyamp PSC 600 SERIES DC/DC Converter
Brand: Powerbox
SKU: PSC400 24T/13.2
Price: 50.0 NZD
Availability: InStock

The Polyamp PSC600 Series DC/DC Converter is a high-performance solution for industrial, railway, and telecommunications applications. Designed to deliver reliable power, it offers robust functionality and flexibility in demanding environments. Key features include optimised input voltage ranges (24–440 V DC) and single output options from 5V to...

Key features include optimised input voltage ranges (24–440 V DC) and single output options from 5V to 220V DC, with power ratings from 300 to 600W. The PSC600 series ensures safe and efficient operation with reverse input voltage protection, inrush current limit, and adjustable output voltage. Conformally coated for added durability, it meets IP30 standards and operates at over 88% efficiency.

The PSC600 series is available in versatile mechanical designs, including Euro format (L-mechanics) for 19” cabinets and wall or chassis mounting (N-mechanics). It supports advanced options like temperature-controlled current limits, virtual resistance for load sharing, and built-in series diodes for parallel configurations. Compliant with EN50155 and IEC60571 standards, it is ideal for railway and rolling stock applications.

The Polyamp PSC600 Series is the perfect choice for efficient, adaptable, and reliable power solutions.

Show Less

Select model number

or send a quick enquiry about this product only

Features

250W - 800W Industrial Converter
Optimised input voltage ranges
Input ranges from 24 to 440Vdc
Single outputs from 5 to 125Vdc
Reverse input voltage protection
Conformal coating - tropic
Alarm relay output
Accessible on front
- Output voltage adjustment
- Output voltage measurement
- Output OK status green LED
High efficiency > 90%
Operating Temp -25C to 70C with no derating
Fully encapsulated meets IP20
19' Rack Mount or DIN Mount or Wall Mount

Specifications

INPUT
Input voltage	24V, 48V, 110V, 220V See Selection Table for details
Reverse input voltage protection	Parallel diode (Input code: 24, 48) Series diode (Input code: 110, 220)

output
Output Voltage	See Selection Table
Output Current	See Selection Table
Source regulation	0.2%.
Load regulation	0.2%.
Output ripple (50kHz)	Typ. 20mV p-p typ.
Input ripple attenuation	150:1 On output 50 to 400Hz
Voltage adjustment	90% - 110%.
Current limit protection	105%. Rectangular
Overvoltage protection	115%.
Under voltage alarm	90% of nominal output.
Remote sense	Option S.
Soft start	Yes.
Start-up time1s
Hold-up time	2-25ms
Efficiency	80 - 93%
Switching frequency	50 kHz

OPERATING
Efficiency	80%–93%
Design topology	Push-pull / Full-Bridge
Switching frequency	50kH
Overvoltage protection	Yes, 115% of nominal voltage
Isolation	Input / Output: 2.5kVac, 4kVdc Input / Case: 4kVdc Output / Case: 2kVdc, all outputs

ENVIRONMENTAL
Operating temperature	-25°C to 70°C (100% load, single output >10Vdc). -25°C to +55°C (100% load, single output <10Vdc).
Temperature coefficient	0.02%/°C.
Cooling	Convectional cooling.
Storage temperature	-40°C to 85°C.

FEATURES
Overvoltage protection OVP	The output voltage is limited to 15% over nominal output voltage by a extra regulated circuit
Under voltage alarm	A built in alarm changes to alarm state if the converter output voltage drops 10% below nominal output. The DC OK LED is also controlled by the alarm circuit. The alarm has a relay output with both [NO] and [NC] function. The relay rating is 30V 1A(ac & dc)
Reverse input voltage Protection	On input code 24 and 48 the reverse voltage protection is provided by a parallel diode. This diode is only intended to blow and external input fuse. On input code 110 and 220, the reverse voltage protection is provided by a series diode. The converter will never start.
Inrush current limit	On input code 110 and 220 the inrush limit circuit is always active thus acting at voltage dips below the stop level >10ms. On input code 24 and 48 this function is optional.
Adjustment & measurement	Output voltage adjust potentiometer and output voltage measurement points are accessible from the front panel.
Conformal Coating	the PSC series is conformally coated to withstand non-condensing tropical environment.

OPTIONAL FEATURES
Wider input range	The PSC600 series can be supplied with wide inptu range to meet train or mobile applications demands
Built in series diode - C	Series diode on the output, which is mounted inside the case. Use this option when the output is connected in parallel with other power supply to achieve redundancy
Built in series diode with resistor - CR	The CR option automatically balance the load between 2 or more paralleled PSC600 units. Used in hotswap.
Remote Sense - S	The voltage sensing can be put at the load to compensate for voltage drop. The sense circuit is a standard feature on 5V outputs.
Inrush Current LImit	On input code 24 and 48 the inrush limit circuit is optional. This option affects the input voltage range. The circuit is always active thus acting at voltage dips below the stop level > 10ms.
Higher insulation on output - E2	Output/case 2.5kVAC for 12 to 125Vdc
Over current shutdown - OCSD	The PSC600 series can provide over current during a limited time. The OCSD circuit shut down the unit when a preset time has passed. This delay can be pre-set between 100ms to 3 seconds.

STANDARDS
Safety	IEC60950
EMC	EN 61000-6-3, Emission EN61000-6-2, Immunity EN IEC 61000-4-4, 4kV EN IEC 61000-4-5 level 2 & 3
C-Tick	AS/NZS CISPR11: 2002 Group1 Class A

MECHANICAL
Dimensions	See Technical Illustrations
Weight	Base mechanic unit; 3.3Kg Base mechanic unit + 1 extra heatsink 4.0kg Base mechanic unit + 2 extra heatsinks 4.7kg

Selection Table

MODEL NUMBER	INPUT	OUTPUT	CURRENT	OUTPUT POWER
PSC250 24/5	20-32V	5V	50A	250W
PSC400 24/12	20-32V	12V	33A	400W
PSC400 24/15	20-32V	15V	27A	400W
PSC600 24/24	20-32V	24V	25A	600W
PSC600 24/48	20-32V	48V	12.5A	600W
PSC600 24/110	20-32V	110V	5.5A	600W
PSC600 24/125	20-32V	125V	4.8A	600W
PSC250 48/5	41-60V	5V	50A	250W
PSC400 48/12	41-60V	12V	33A	400W
PSC700 48/12	41-60V	12V	60A	720W
PSC400 48/15	41-60V	15V	27A	400W
PSC800 48/15	41-60V	15V	54A	800W
PSC600 48/24	41-60V	24V	25A	600W
PSC800 48/24	41-60V	24V	33A	800W
PSC600 48/48	41-60V	48V	12.5A	600W
PSC800 48/48	41-60V	48V	17A	800W
PSC600 48/110	41-60V	110V	5.5A	600W
PSC800 48/110	41-60V	110V	7.3A	800W
PSC600 48/125	41-60V	125V	4.8A	600W
PSC800 48/125	41-60V	125V	6.4A	800W
PSC250 110/5	93-150V	5V	50A	250W
PSC400 110/12	93-150V	12V	33A	400W
PSC700 110/12	93-150V	12V	60A	720W
PSC400 110/15	93-150V	15V	27A	400W
PSC800 110/15	93-150V	15V	54A	800W
PSC600 110/24	93-150V	24V	25A	600W
PSC800 110/24	93-150V	24V	33A	800W
PSC600 110/48	93-150V	48V	12.5A	600W
PSC800 110/48	93-150V	48V	17A	800W
PSC600 110/110	93-150V	110V	5.5A	600W
PSC800 110/110	93-150V	110V	7.3A	800W
PSC600 110/125	93-150V	125V	4.8A	600W
PSC800 110/125	93-150V	125V	6.4A	800W
PSC250 220/5	187-300V	5V	50A	250W
PSC400 220/12	187-300V	12V	33A	400W
PSC700 220/12	187-300V	12V	60A	720W
PSC400 220/15	187-300V	15V	27A	400W
PSC800 220/15	187-300V	15V	54A	800W
PSC600 220/24	187-300V	24V	25A	600W
PSC800 220/24	187-300V	24V	33A	800W
PSC600 220/48	187-300V	48V	12.5A	600W
PSC800 220/48	187-300V	48V	17A	800W
PSC600 220/110	187-300V	110V	5.5A	600W
PSC800 220/110	187-300V	110V	7.3A	800W
PSC600 220/125	187-300V	125V	4.8A	600W
PSC800 220/125	187-300V	125V	6.4A	800W

Technical Drawings

Downloads

psc600-series-datasheet.pdf
