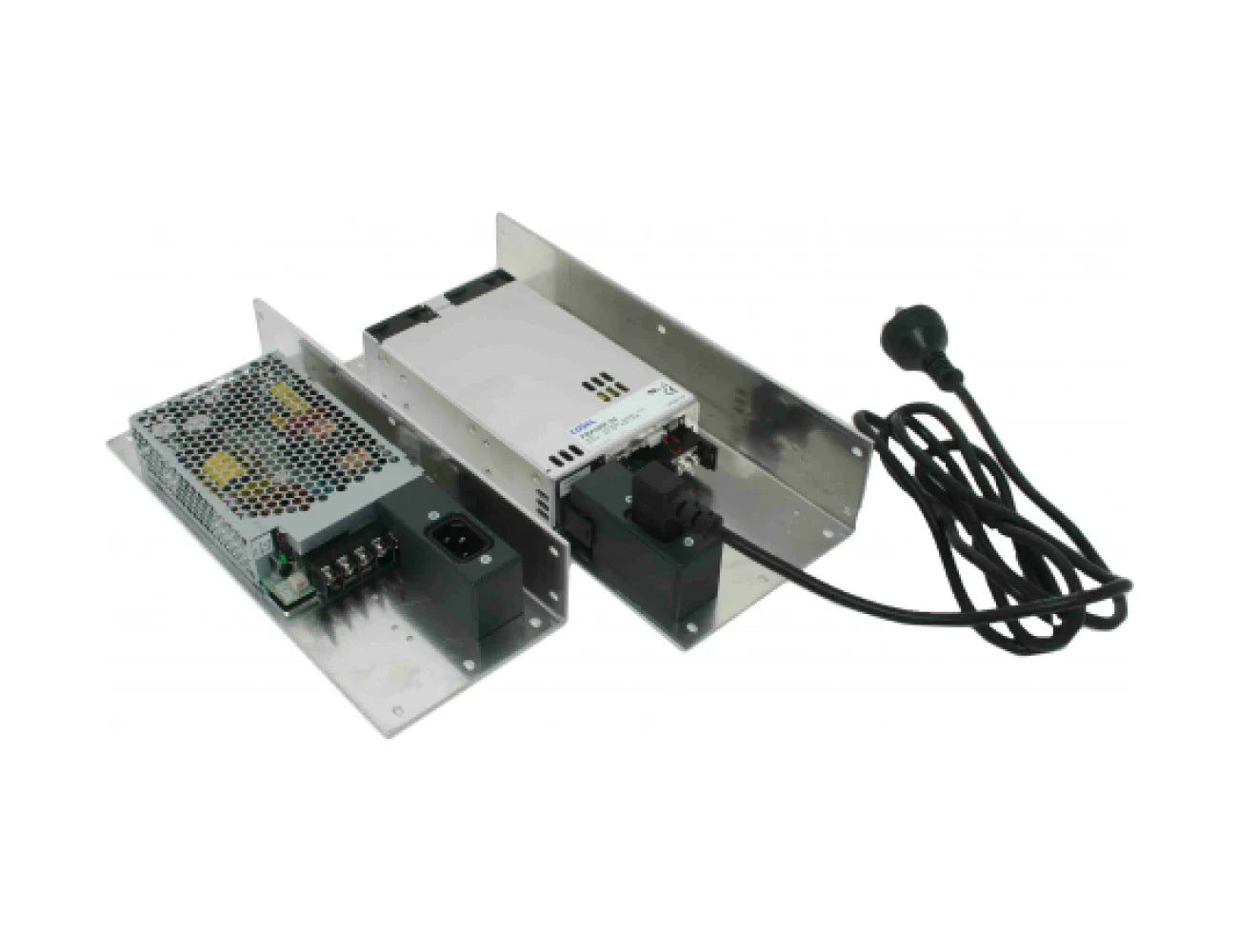

Cosel CPIEC PBB20C SERIES AC/DC Power Supply
The Cosel CPIEC PBB20C Series AC/DC Power Supply is a flexible and high-performance solution, delivering power outputs from 50W to 600W. Designed for chassis plate and DIN rail mounting, this series is ideal for industrial applications requiring robust and scalable power systems. Key features include a universal input voltage range (85–264VAC) a...
Read MoreThe Cosel CPIEC PBB20C Series AC/DC Power Supply is a flexible and high-performance solution, delivering power outputs from 50W to 600W. Designed for chassis plate and DIN rail mounting, this series is ideal for industrial applications requiring robust and scalable power systems.
Key features include a universal input voltage range (85–264VAC) and efficiency ratings of up to 80%, ensuring energy-efficient operation with minimal power loss. Advanced safety features such as overcurrent and overvoltage protection enhance reliability, while optional thermal protection ensures secure performance under demanding conditions. Remote sensing and remote inhibit functionalities are available on select models (300W and 600W) for enhanced monitoring and control.
The CPIEC PBB20C Series supports both horizontal and vertical DIN rail mounting options, features an IEC input power connector, and includes an aluminum L-bracket for easy integration. It operates within a wide temperature range (-10°C to 71°C), with convection cooling for lower power models and fan cooling for higher power units.
Certified to global safety and EMC standards, including UL60950-1, EN60950-1, and EN50178, and compliant with C-Tick, the Cosel CPIEC PBB20C Series is built to ensure safe and reliable operation. Whether for automation, telecommunications, or industrial power systems, this series provides a dependable solution tailored to your needs.
Show Less
Features
- 50W - 600W PBB20C Series
- Chassis Plate Mounting
- With DIN Rail Mounting
- Aluminium L Bracket
- IEC Input Power Connector
Specifications
| INPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input voltage | 85~264Vac | ||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency | 47-63Hz. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Inrush current |
PBB20C- J, L (50W-75W) 30A typical PBB20C-M, R, T, X (100W-600W) 40A typical |
||||||||||||||||||||||||||||||||||||||||||||||||
| OUTPUT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output voltage | See Selection table. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Voltage adjustment range | See selection table | ||||||||||||||||||||||||||||||||||||||||||||||||
| Output power |
50W to 600W See selection table |
||||||||||||||||||||||||||||||||||||||||||||||||
| Output current |
See Selection table. |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Minimum Load |
Unit will operate with zero load. |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Ripple |
3.3-5V output 80mV pk-pk 7.5-48V output 120-150mV pk-pk |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Line regulation |
Typically 0.4% |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Load regulation |
Typically 0.8% |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Temperature drift |
1% over 0°C to 50°C |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Remote sense |
Provided on PBB20C 300W & 600W models |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Remote inhibit |
Provided on PBB20C 300W & 600W modesl |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Rise time |
Model dependent 600ms max | ||||||||||||||||||||||||||||||||||||||||||||||||
|
Holdup time |
20ms typical | ||||||||||||||||||||||||||||||||||||||||||||||||
| Efficiency | Model dependent 70% – 80%. | ||||||||||||||||||||||||||||||||||||||||||||||||
| PROTECTION | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Over current protection | Works at approximately 105% of rated current with auto recover | ||||||||||||||||||||||||||||||||||||||||||||||||
| Over voltage protection | Model dependant 115% - 140% of Vout typical | ||||||||||||||||||||||||||||||||||||||||||||||||
| Thermal protection (300W - 1500W) |
Unit shuts down when temperature exceeds de-rating curve, when FAN stops or when air flow is interrupted |
||||||||||||||||||||||||||||||||||||||||||||||||
| DC OK/ FAN alarm (300W-1500W) Indicators |
Open Collector "Low DC OK" 0.5V "High DC not OK" 5V LED for V output |
||||||||||||||||||||||||||||||||||||||||||||||||
| Isolation |
Input - output: 3000Vac Input - case: 2000Vac Output - case: 500Vac |
||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating temperature |
(10-150W) convection -10°C to 71°C Derate 40°C to 71°C at 2.5%/C (300-1500W) -20°C to 71°C Derate 50°C to 71°C at 2.5%°C. |
||||||||||||||||||||||||||||||||||||||||||||||||
| Cooling |
50W-150W models convection cooled 300W-1500W models internal fan cooling |
||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity | 20%-90% non-condensing. | ||||||||||||||||||||||||||||||||||||||||||||||||
| Vibration | 10Hz-55Hz at 2G | ||||||||||||||||||||||||||||||||||||||||||||||||
| Shock | 20G 11ms X, Y, Z axis | ||||||||||||||||||||||||||||||||||||||||||||||||
| STANDARDS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Safety | UL60950-1, C-UL(CSA60950-1), EN60950-1, EN50178, Complies with DEN-AN. |
||||||||||||||||||||||||||||||||||||||||||||||||
| C-Tick | AS/NZS CISPR11 Group 1 Class A. | ||||||||||||||||||||||||||||||||||||||||||||||||
| EMC compliances | EN61204-3, EN61000-6-2 EN61000-4-2,-3,-4,-5,-6,-8,-11 |
||||||||||||||||||||||||||||||||||||||||||||||||
| EMI compliances | Complies with FCC-B, CISPR22-B, EN55011-B, EN55022-B, VCCI-B |
||||||||||||||||||||||||||||||||||||||||||||||||
| CE marking | Complies with LVD and EMC Directives | ||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input connector |
IEC AC Power Socket (with 2 meter IEC power cable supplied) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Output connector | Screw Termination | ||||||||||||||||||||||||||||||||||||||||||||||||
|
Chassis Plate |
Aluminium L bracket |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
PBB20C, 50W-150W: 275 x 110 x 50mm PBB20C, 300W-600W: 295 x 130 x 60mm |
||||||||||||||||||||||||||||||||||||||||||||||||
| DIN Mounting Option |
Option "D" DIN Rail mounting. Standard TS35 with "H" horizontal mounting or "V" vertical mounting |
||||||||||||||||||||||||||||||||||||||||||||||||
Selection Table
| MODEL NUMBER |
OUTPUT VOLTAGE |
VOLTAGE ADJUST |
OUTPUT CURRENT |
POWER |
|---|---|---|---|---|
| PBB20C-3.3J-CPIEC | 3.3V | 2.85V - 3.6V | 10A | 50W |
| PBB20C-5J-CPIEC | 5V | 4V - 5.5V | 10A | 50W |
| PBB20C-9J-CPIEC | 9V | 7.5V - 10V | 5.6A | 50W |
| PBB20C-12J-CPIEC | 12V | 10V - 13.2V | 4.3A | 50W |
| PBB20C-15J-CPIEC | 15V | 13.2V - 18V | 3.5A | 50W |
| PBB20C-24J-CPIEC | 24V | 19.2V - 27V | 2.2A | 50W |
| PBB20C-36J-CPIEC | 36V | 28.8V - 39V | 1.4A | 50W |
| PBB20C-48J-CPIEC | 48V | 39V - 53V | 1.1A | 50W |
| PBB20C-3.3L-CPIEC | 3.3V | 2.85V - 3.6V | 15A | 75W |
| PBB20C-5L-CPIEC | 5V | 4V - 5.5V | 15A | 75W |
| PBB20C-9L-CPIEC | 9V | 7.5V - 10V | 8.4A | 75W |
| PBB20C-12L-CPIEC | 12V | 10V - 13.2V | 6.3A | 75W |
| PBB20C-15L-CPIEC | 15V | 13.2V - 18V | 5A | 75W |
| PBB20C-24L-CPIEC | 24V | 19.2V - 27V | 3.2A | 75W |
| PBB20C-36-CPIEC | 36V | 28.8V - 39V | 2.1A | 75W |
| PBB20C-48L-CPIEC | 48V | 39V - 53V | 1.6A | 75W |
| PBB20C-3.3M-CPIEC | 3.3V | 2.85V - 3.6V | 20A | 100W |
| PBB20C-5M-CPIEC | 5V | 4V - 5.5V | 20A | 100W |
| PBB20C-9M-CPIEC | 9V | 7.5V - 10V | 10.5 | 100W |
| PBB20C-12M-CPIEC | 12V | 10V - 13.2V | 8.5A | 100W |
| PBB20C-15M-CPIEC | 15V | 13.2V - 18V | 7A | 100W |
| PBB20C-24M-CPIEC | 24V | 19.2V - 27V | 4.5A | 100W |
| PBB20C-36M-CPIEC | 36V | 28.8V - 39V | 2.8A | 100W |
| PBB20C-48M-CPIEC | 48V | 39V - 53V | 2.1A | 100W |
| PBB20C-3.3R-CPIEC | 3.3V | 2.85V - 3.6V | 30A | 150W |
| PBB20C-5R-CPIEC | 5V | 4V - 5.5V | 30A | 150W |
| PBB20C-9R-CPIEC | 9V | 7.5V - 10V | 16.7A | 150W |
| PBB20C-12R-CPIEC | 12V | 10V - 13.2V | 13A | 150W |
| PBB20C-15R-CPIEC | 15V | 13.2V - 18V | 10A | 150W |
| PBB20C-24R-CPIEC | 24V | 19.2V - 27V | 6.5A | 150W |
| PBB20C-36R-CPIEC | 36V | 28.8V - 39V | 4.3A | 150W |
| PBB20C-48R-CPIEC | 48V | 39V - 53V | 3.3A | 150W |
| PBB20C-3.3T-CPIEC | 3.3V | 2.64V - 3.96V | 60A | 300W |
| PBB20C-5T-CPIEC | 5V | 3.96V - 6V | 60A | 300W |
| PBB20C-7.5T-CPIEC | 7.5V | 5.25V - 8.25V | 40A | 300W |
| PBB20C-12T-CPIEC | 12V | 8.25V - 13.2V | 27A | 300W |
| PBB20C-15T-CPIEC | 15V | 10.5V - 16.5V | 22A | 300W |
| PBB20C-24T-CPIEC | 24V | 16.5V - 26.4V | 14A | 300W |
| PBB20C-36T-CPIEC | 36V | 25.2V - 39.6V | 9A | 300W |
| PBB20C-48T-CPIEC | 48V | 38.4V - 56V | 7A | 300W |
| PBB20C-3.3X-CPIEC | 3.3V | 2.64V - 3.96V | 120A | 600W |
| PBB20C-5X-CPIEC | 5V | 3.96V - 6V | 120A | 600W |
| PBB20C-7.5X-CPIEC | 7.5V | 5.25V - 8.25V | 80A | 600W |
| PBB20C-12X-CPIEC | 12V | 8.25V - 13.2V | 53A | 600W |
| PBB20C-15X-CPIEC | 15V | 10.5V - 16.5V | 43A | 600W |
| PBB20C-24X-CPIEC | 24V | 16.5V - 26.4V | 27A | 600W |
| PBB20C-36X-CPIEC | 36V | 25.2V - 39.6V | 18A | 600W |
| PBB20C-48X-CPIEC | 48V | 38.4V - 56V | 13A | 600W |
