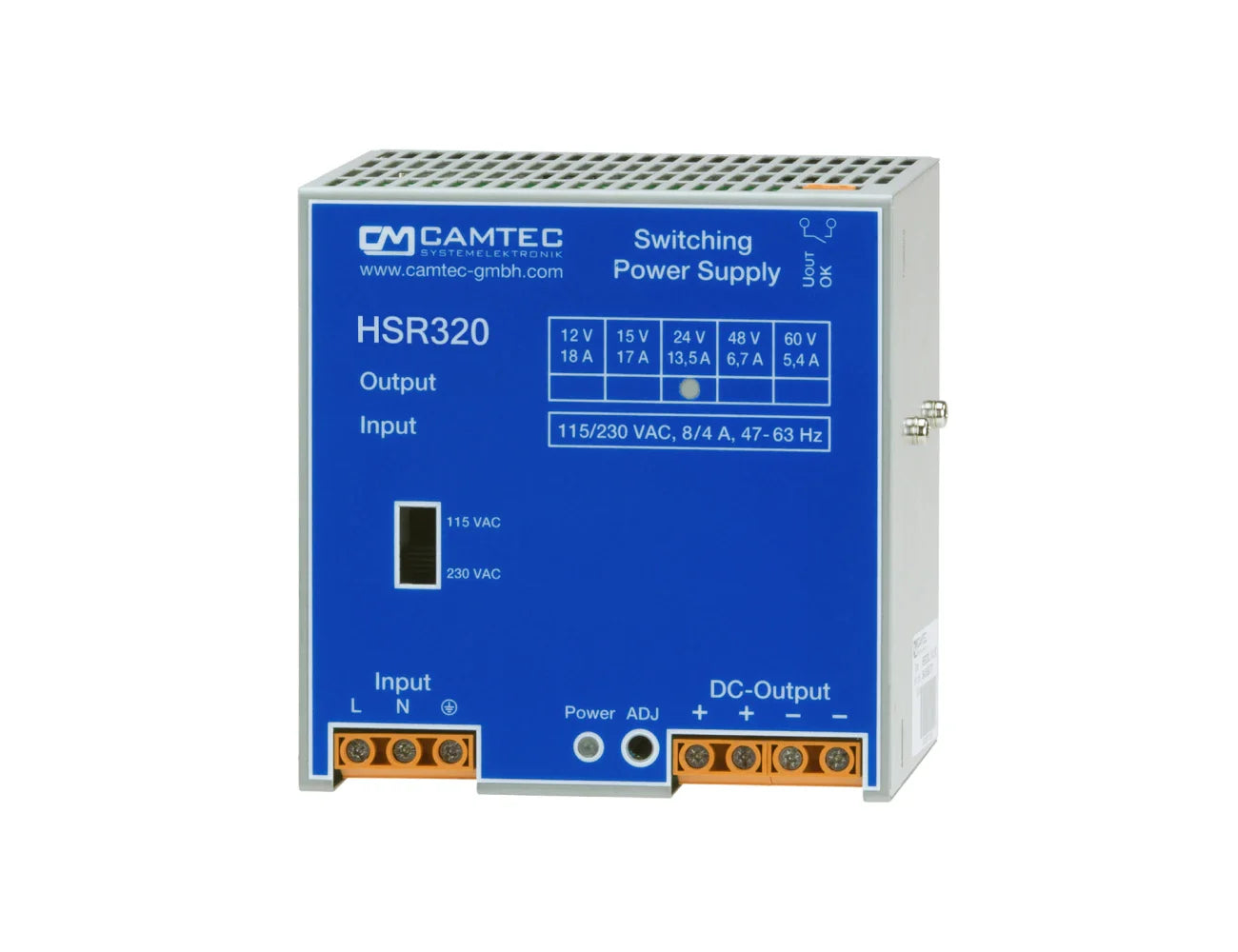

Camtec HSE03201LIRC SERIES AC/DC Power Supply

The Camtec HSE03201LIRC Series AC/DC Power Supply is a compact, high-efficiency 320W power solution designed for industrial environments requiring reliable performance. Engineered in Germany and built for complex loads, battery charging, and dynamic applications, this DIN-rail mounted power supply boasts up to 91% efficiency and operates seamlessly with natural convection cooling.

Read More

View Models
Camtec HSE03201LIRC SERIES Battery Charger

Features

  • 320 Watts Power Supply
  • DIN Rail 35mm. Metal housing
  • 91% efficiency typ
  • -20°C...+60°C full output power
  • Free air convection
  • PSU can be used as a battery charger due to constant current
Specifications
GENERAL
Output Voltage See selection table
AC Input Voltage 85..132Vac / 184..265Vac
Frequency 47…63Hz
DC Input Voltage 250…375Vdc
Tolerance ± 1%
Load regulation < ± 0.5% 10-100%, 100-10%
Minimum Load 0 A
Efficiency 91% typical
Load Protection 1,2x Irated ,auto recovery
Voltage Protection 1,2x Irated ,auto recovery
Short Circuit Protection Continuous
Temperature Control Yes
Hold Up Time > 30ms 230Vac
Inrush Current (Active Limiter) < 15Apeak (230Vac)
Softstart 20ms typical
RELIABILITY
Air & Surface Leakage Paths > 8mm
Input/Output Galvanic insulated 3000Vac
Power Good Relay (opener) <48Vdc/500mA (galv. insulated)
MTBF EN61709 500000h
MTTF EN61709m SN29500 157102h @ 40°C 24/7 85% load
Clima/Dirt/Hight/Humidity 3k3, Kl.2, 3000m NN, 90% Hum.
ENVIRONMENTAL
Convection Natural convection
Ambient Temperature - 20°C…+70°C
Storage Temperature - 40°C…+85°C
STANDARDS AND APPROVALS
EMI EN55022 class B
EMS EN61000-6-2,3
Safety EN60950-1, EN60204-1
Safety class 1(A) VDE0805, VDE0100
MECHANICAL
Dimensions (HxWxD) 124x120x99,5mm
Weight 1200g
Screw Connectors (AC & DC) AWG20...AWG9
Selection Table
MODEL HSE03201.12TLIRC HSE03201.15TLIRC HSE03201.24TLIRC HSE03201.36TLIRC HSE03201.48TLIRC HSE03201.60TLIRC
Rated DC Voltage 12Vdc 15Vdc 24Vdc 36Vdc 48Vdc 60Vdc
Rated DC Current 18.0A 17.0A 13.5A 8.9A 6.7A 5.4A
Power Boost ≤60 Seconds 21.6A 20.4A 16.2A 10.7A 8.0A 6.5A
Ripple [mVpp] (230Vac/20MHz) 30 30 20 30 50 50
Output adj.Range 11,4..14,4V 14,2..18.0V 22,5..28,8V 34,2..43,2V 45,6..57,6V 57,0..72,0V
Stability Load switch 0-100% ± 0,3% ± 0,3% ± 0,3% ± 0,5% ± 0,5% ± 0,5%

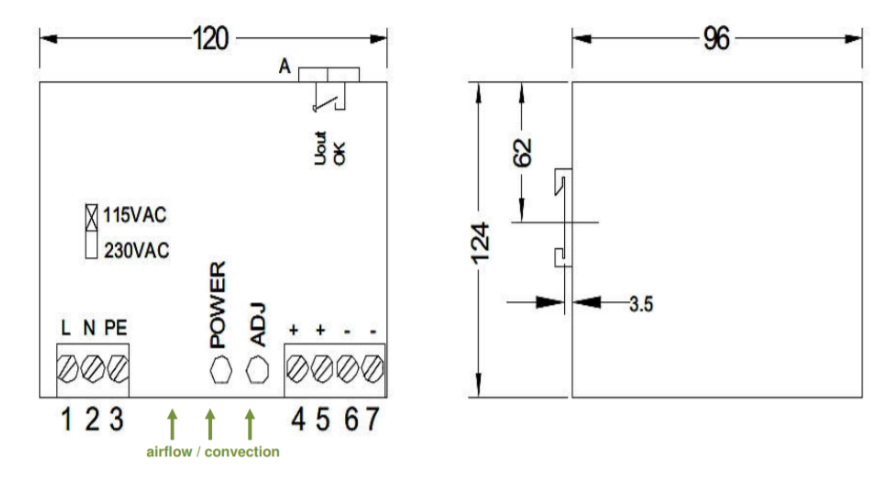

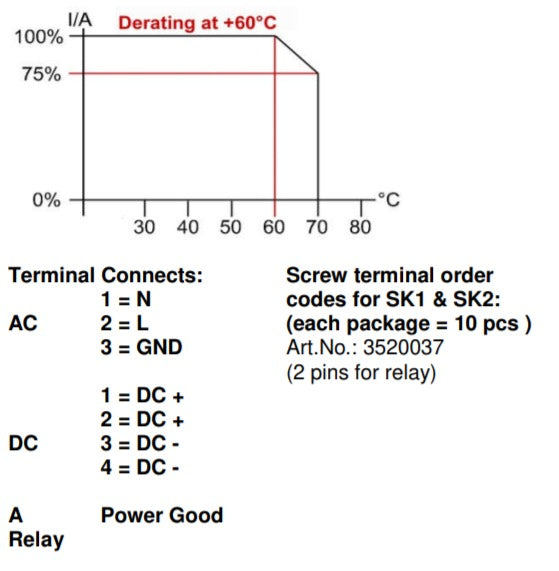

Technical Illustrations
Downloads
camtec-hse03201lirc-032022-00-0_datasheet.pdf
GENERAL
Output Voltage See selection table
AC Input Voltage 85..132Vac / 184..265Vac
Frequency 47…63Hz
DC Input Voltage 250…375Vdc
Tolerance ± 1%
Load regulation < ± 0.5% 10-100%, 100-10%
Minimum Load 0 A
Efficiency 91% typical
Load Protection 1,2x Irated ,auto recovery
Voltage Protection 1,2x Irated ,auto recovery
Short Circuit Protection Continuous
Temperature Control Yes
Hold Up Time > 30ms 230Vac
Inrush Current (Active Limiter) < 15Apeak (230Vac)
Softstart 20ms typical
RELIABILITY
Air & Surface Leakage Paths > 8mm
Input/Output Galvanic insulated 3000Vac
Power Good Relay (opener) <48Vdc/500mA (galv. insulated)
MTBF EN61709 500000h
MTTF EN61709m SN29500 157102h @ 40°C 24/7 85% load
Clima/Dirt/Hight/Humidity 3k3, Kl.2, 3000m NN, 90% Hum.
ENVIRONMENTAL
Convection Natural convection
Ambient Temperature - 20°C…+70°C
Storage Temperature - 40°C…+85°C
STANDARDS AND APPROVALS
EMI EN55022 class B
EMS EN61000-6-2,3
Safety EN60950-1, EN60204-1
Safety class 1(A) VDE0805, VDE0100
MECHANICAL
Dimensions (HxWxD) 124x120x99,5mm
Weight 1200g
Screw Connectors (AC & DC) AWG20...AWG9
MODEL HSE03201.12TLIRC HSE03201.15TLIRC HSE03201.24TLIRC HSE03201.36TLIRC HSE03201.48TLIRC HSE03201.60TLIRC
Rated DC Voltage 12Vdc 15Vdc 24Vdc 36Vdc 48Vdc 60Vdc
Rated DC Current 18.0A 17.0A 13.5A 8.9A 6.7A 5.4A
Power Boost ≤60 Seconds 21.6A 20.4A 16.2A 10.7A 8.0A 6.5A
Ripple [mVpp] (230Vac/20MHz) 30 30 20 30 50 50
Output adj.Range 11,4..14,4V 14,2..18.0V 22,5..28,8V 34,2..43,2V 45,6..57,6V 57,0..72,0V
Stability Load switch 0-100% ± 0,3% ± 0,3% ± 0,3% ± 0,5% ± 0,5% ± 0,5%
camtec-hse03201lirc-032022-00-0_datasheet.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant HSE03201.005TLIRC(R2) 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) 5Vdc (Adj. 5.0 - 9.0Vdc) 18A
product variant HSE03201.012TLIRC(R2) 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) 12Vdc (Adj. 11.4 - 14.4Vdc) 18A
product variant HSE03201.015TLIRC(R2) 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) 15Vdc (Adj. 14.2 - 18.0Vdc) 17A
product variant HSE03201.024TLIRC(R2) 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) 24Vdc (Adj. 22.5 - 28.5Vdc) 13.5A
product variant HSE03201.036TLIRC(R2) 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) 36Vdc (Adj. 34.2 - 43.2Vdc) 9A
product variant HSE03201.048TLIRC(R2) 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) 48Vdc (Adj. 45.6 - 57.6Vdc) 6.7A
product variant HSE03201.060TLIRC(R2) 90...132Vac / 184...264Vac 50/60Hz (Switch Selectable) 6Vdc (Adj. 57.0 - 72.0Vdc) 5.4A
