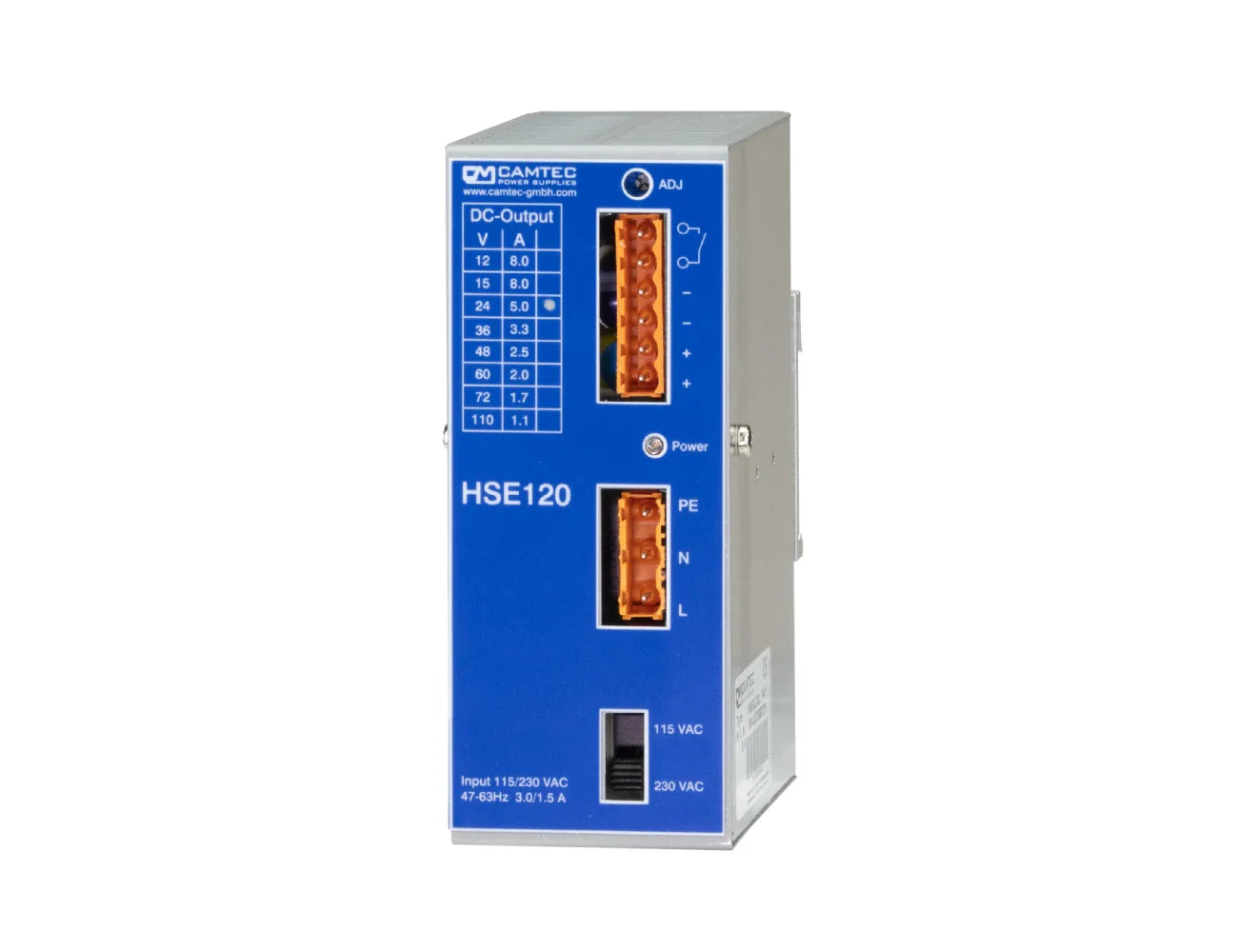

Camtec HSE01201 SERIES AC/DC Power Supply
The Camtec HSE01201 Series AC/DC Power Supply is a compact yet powerful 120W solution designed to excel in demanding industrial environments. With up to 91% efficiency, this DIN-rail mounted power supply delivers reliable and stable performance for a wide range of applications, including DC drives, galvanic systems, and UPS systems. Engineered in Germany, it features a robust design optimised for long life under full load conditions.
Read More
Features
- 120 Watts Supply
- TS35mm DIN-Rail. Metal housing
- Up to 91% efficiency
- Galvanic insulated
- Continuous short circuit protected
- Soft start & auto-recovery
Specifications
Selection Table

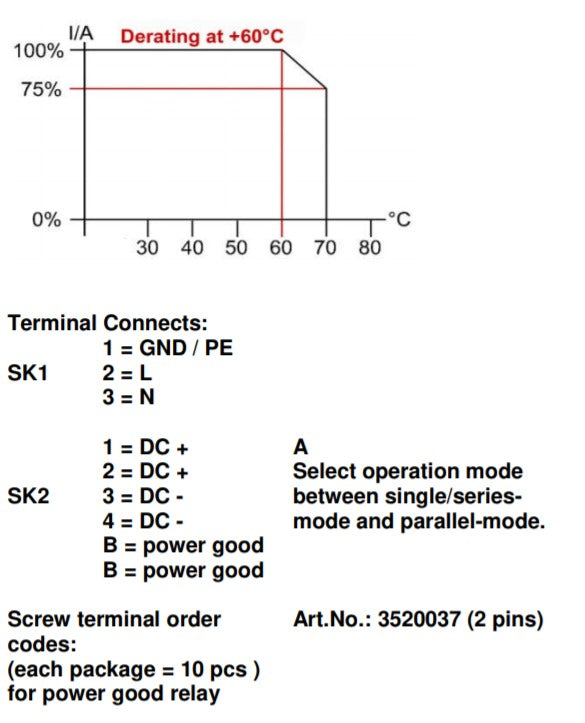

Technical Illustrations
Downloads
| GENERAL | |
|---|---|
| Output Voltage | See selection table |
| AC Input Voltage | 85..132Vac / 184..265Vac |
| Frequency | 47…63Hz |
| DC Input Voltage | 110…375Vdc |
| AC Input Current | 115Vac <2.2A 230Vac <1.1A |
| Factory Adjust. Tolerance Uout | 115Vac <2.2A 230Vac <1.1A |
| Load regulation | < ± 0.5% 10-100%, 100-10% |
| Switching Frequency | 100KHz typical |
| Basic Load | 0 A |
| Efficiency | 91% typ. |
| Load Protection | 1,2x Irated ,auto recovery |
| Voltage Protection | 145% of Uout , auto recovery |
| Short Circuit Protection | Continuous |
| Temperature Control | Upon request |
| Hold Up Time | > 30ms 230Vac |
| Inrush Current | < 16A (230Vac) |
| Softstart | 50ms typical |
| RELIABILITY | |
|---|---|
| Air & Surface Leakage Paths | > 8mm |
| Input / Output Isolation | I/P-O/P:4KVac I/P-G:2KVac O/P-G:0.5KVac |
| Power Good Relay (insulated)* | <48Vdc/500mA (not 72V, 110V) |
| MTBF | EN61209: 600000h |
| MTTF EN61209.SN29500 | 149600h @ 40°C 24/7 85% Load |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Natural convection |
| Ambient Temperature | Natural convection |
| Storage Temperature | - 40°C…+85°C |
| Clima/Dirt/Hight/Humidity | 3k3, Kl.2, 3000m NN, 90% Hum. |
| STANDARDS AND APPROVALS | |
|---|---|
| EMI | EN55022 class B / EN61000-3-2 |
| EMS | EN61000-6-2,3 |
| Safety | EN60950-1, EN60204-1 |
| Safety class 1(A) | VDE0805, VDE0100 |
| MECHANICAL | |
|---|---|

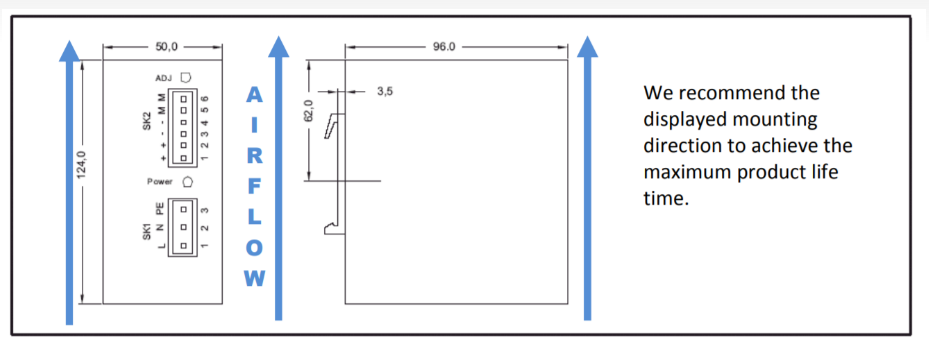

| Dimensions (HxWxD) | 124x50x96mm |
| Weight | 510g |
| Connectors (AC & DC) | Terminal plug AWG26...AWG12 |
| MODEL | HSE01201.12T | HSE01201.24T | HSE01201.36T | HSE01201.48T | HSE01201.60T | HSE01201.72T | HSE01201.110T |
|---|---|---|---|---|---|---|---|
| Rated DC Voltage | 12Vdc | 24Vdc | 36Vdc | 48Vdc | 60Vdc | 72Vdc | 110Vdc |
| Nominal Current | 8.0A | 5.0A | 3.3A | 2.5A | 2.0A | 1,7A | 1,1A |
| Adjust Range | 11,4 - 13,2V | 22,5 - 28,5V | 34,2 - 39,6V | 45,6 - 52,8V | 57 - 66V | 68 - 86V | 100 - 120V |
| Ripple (230Vac/20MHz) | 50mVpp | 65mVpp | 65mVpp | 100mVpp | 120mVpp | 120mVpp | 200mVpp |
| Notes: | Options for telecom & military use available upon request | ||||||
| GENERAL | |
|---|---|
| Output Voltage | See selection table |
| AC Input Voltage | 85..132Vac / 184..265Vac |
| Frequency | 47…63Hz |
| DC Input Voltage | 110…375Vdc |
| AC Input Current | 115Vac <2.2A 230Vac <1.1A |
| Factory Adjust. Tolerance Uout | 115Vac <2.2A 230Vac <1.1A |
| Load regulation | < ± 0.5% 10-100%, 100-10% |
| Switching Frequency | 100KHz typical |
| Basic Load | 0 A |
| Efficiency | 91% typ. |
| Load Protection | 1,2x Irated ,auto recovery |
| Voltage Protection | 145% of Uout , auto recovery |
| Short Circuit Protection | Continuous |
| Temperature Control | Upon request |
| Hold Up Time | > 30ms 230Vac |
| Inrush Current | < 16A (230Vac) |
| Softstart | 50ms typical |
| RELIABILITY | |
|---|---|
| Air & Surface Leakage Paths | > 8mm |
| Input / Output Isolation | I/P-O/P:4KVac I/P-G:2KVac O/P-G:0.5KVac |
| Power Good Relay (insulated)* | <48Vdc/500mA (not 72V, 110V) |
| MTBF | EN61209: 600000h |
| MTTF EN61209.SN29500 | 149600h @ 40°C 24/7 85% Load |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Natural convection |
| Ambient Temperature | Natural convection |
| Storage Temperature | - 40°C…+85°C |
| Clima/Dirt/Hight/Humidity | 3k3, Kl.2, 3000m NN, 90% Hum. |
| STANDARDS AND APPROVALS | |
|---|---|
| EMI | EN55022 class B / EN61000-3-2 |
| EMS | EN61000-6-2,3 |
| Safety | EN60950-1, EN60204-1 |
| Safety class 1(A) | VDE0805, VDE0100 |
| MECHANICAL | |
|---|---|
| Dimensions (HxWxD) | 124x50x96mm |
| Weight | 510g |
| Connectors (AC & DC) | Terminal plug AWG26...AWG12 |
| MODEL | HSE01201.12T | HSE01201.24T | HSE01201.36T | HSE01201.48T | HSE01201.60T | HSE01201.72T | HSE01201.110T |
|---|---|---|---|---|---|---|---|
| Rated DC Voltage | 12Vdc | 24Vdc | 36Vdc | 48Vdc | 60Vdc | 72Vdc | 110Vdc |
| Nominal Current | 8.0A | 5.0A | 3.3A | 2.5A | 2.0A | 1,7A | 1,1A |
| Adjust Range | 11,4 - 13,2V | 22,5 - 28,5V | 34,2 - 39,6V | 45,6 - 52,8V | 57 - 66V | 68 - 86V | 100 - 120V |
| Ripple (230Vac/20MHz) | 50mVpp | 65mVpp | 65mVpp | 100mVpp | 120mVpp | 120mVpp | 200mVpp |
| Notes: | Options for telecom & military use available upon request | ||||||
