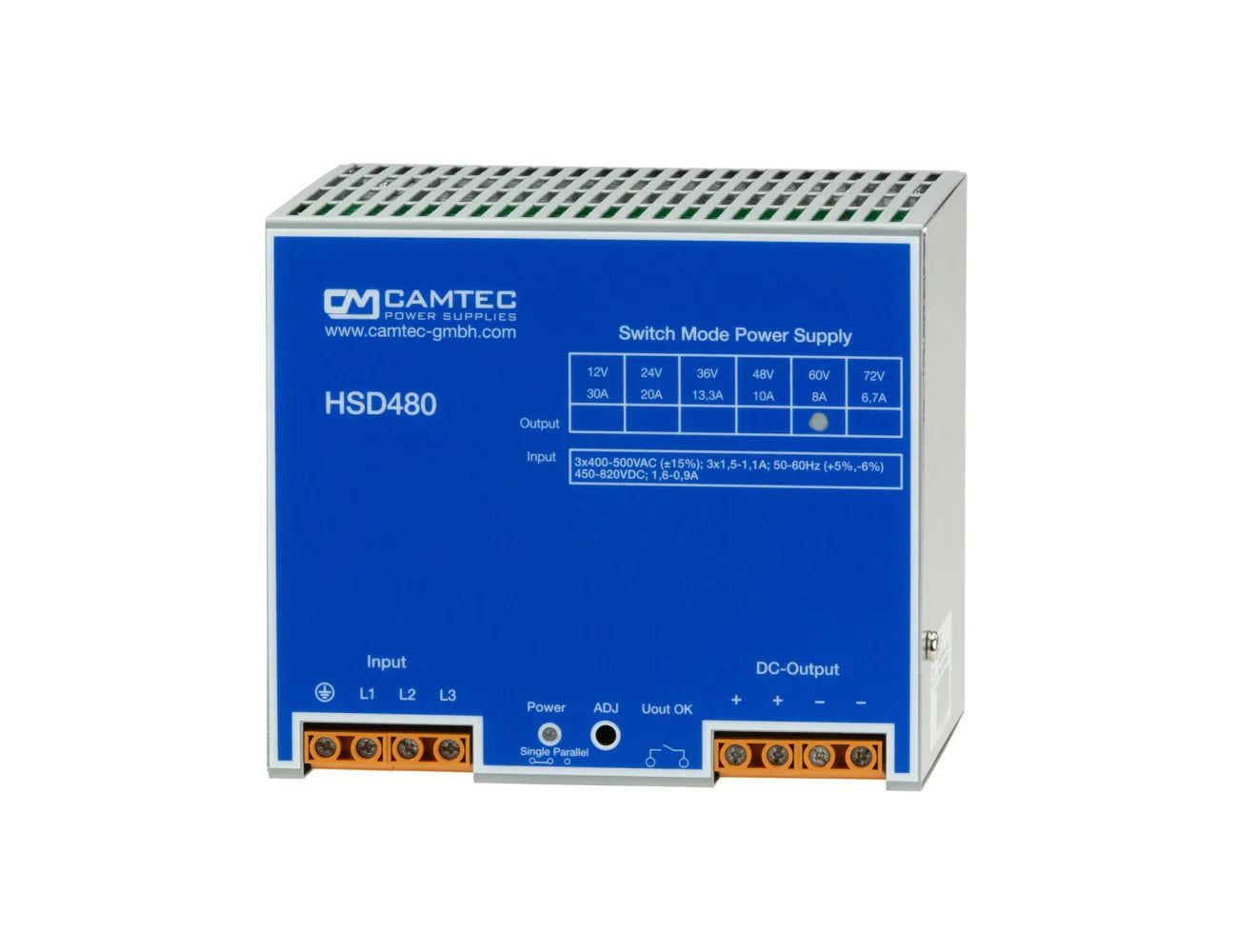

Camtec HSD04801 SERIES AC/DC Power Supply
The Camtec HSD04801 Series AC/DC Power Supply delivers robust, high-efficiency performance for demanding industrial applications. Engineered in Germany and built to last, this 480W power supply is designed for DIN-rail mounting and can operate seamlessly with three-phase (400-500Vac) or two-phase setups. With an impressive efficiency of up to 92...
Read MoreThe Camtec HSD04801 Series AC/DC Power Supply delivers robust, high-efficiency performance for demanding industrial applications. Engineered in Germany and built to last, this 480W power supply is designed for DIN-rail mounting and can operate seamlessly with three-phase (400-500Vac) or two-phase setups. With an impressive efficiency of up to 92%, it ensures minimal energy loss and reliable power distribution, even under extreme conditions.
Ideal for applications such as galvanic systems, professional DC drives, and UPS systems, the HSD04801 Series features advanced safety and protection mechanisms, including overvoltage and continuous short-circuit protection, thermal shutdown with auto recovery, and a soft start to prevent inrush currents. The power supply’s precision current-voltage characteristics and rapid response to load changes ensure stable and smooth operation.
Available in 24V, 36V, 48V, and 60V output models, it supports N+1 parallel operation for scalability and redundancy. The rugged metal housing, natural convection cooling, and shock- and vibration-proof design make it suitable for harsh industrial environments. Fully compliant with EMI/EMS standards (EN55032 Class B, EN61000-6-2/3) and certified for safety (EN61010-1, EN62368-1), the Camtec HSD04801 Series offers unmatched reliability and performance for critical power supply needs.
Show Less
Features
- 480W DIN-Rail Power Supply 3-Phase
- DIN Rail 35mm. Metal housing
- Up to 92% efficiency. Natural convection
- -20°C...+60°C full output power
- Temperature control
- Continuous short circuit protected
- Overload & low voltage protected
- Soft start & auto-recovery
- Electronic Inrush Current Limiter 3.5Aeff
- EMI/EMS EN61000-6-2.3. EN55022 class B
- cUL60950/16950 IEC(EN)60950-1
- Series & parallel operation
- High reliability. Shock & vibration resistant
Specifications
| GENERAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Voltage | See selection table | ||||||||||||||||||||||||||||||||||||||||||||||||
| AC Input Voltage |
3xAC 340-575Vac 2xAC 340-575Vac |
||||||||||||||||||||||||||||||||||||||||||||||||
| AC Input Nominal |
3xAC 400-500Vac (1.5-1.1A) 2xAC 400-500Vac (1.5-1.1A) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Input Frequency |
47-63Hz |
||||||||||||||||||||||||||||||||||||||||||||||||
| DC Input Range |
450-820Vdc (1,6-0.9A) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Failure Relay Power OK |
<48Vdc/500mA (galv. Insulated <60Vdc) |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Continuous Power 3x AC Pnom |
3xAC 400-500Vac = 480Wmax, -20°C…+60°C |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Continuous Power 2x AC Pnom |
2xAC 400-500Vac = 360Wmax, -20°C…+60°C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Cooling |
Natural cooling |
||||||||||||||||||||||||||||||||||||||||||||||||
| Efficiency |
Up to 92% 400Vac at full load |
||||||||||||||||||||||||||||||||||||||||||||||||
| Short Circuit Resistance |
yes |
||||||||||||||||||||||||||||||||||||||||||||||||
| Open Circuit Protected |
yes |
||||||||||||||||||||||||||||||||||||||||||||||||
| Base Load (OCP) |
Non required (open circuit protected) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Load Regulation |
< ± 0,5% 10-100% / 100-10% |
||||||||||||||||||||||||||||||||||||||||||||||||
| Load Regulation Time |
<1ms on load switch 10-100% |
||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature Control |
yes, thermal shutdown & autorecovery (+70°C, outside measuring point distance 10mm) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Hold Up Time |
>15ms 230Vac mains buffering at full load |
||||||||||||||||||||||||||||||||||||||||||||||||
| Inrush Current |
< 3.5Aeff <5A peak (400-500Vac) active electronic inrush protection (no simple NTC) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Recommended MCB |
≥1,5A Char-B 10kA |
||||||||||||||||||||||||||||||||||||||||||||||||
| Softstart |
typ. 5ms |
||||||||||||||||||||||||||||||||||||||||||||||||
| RELIABILITY | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Isolation Input to Output |
3000Vac |
||||||||||||||||||||||||||||||||||||||||||||||||
| Isolation Input to Case |
2500Vac |
||||||||||||||||||||||||||||||||||||||||||||||||
| Isolation Output to Case |
500Vdc , ≥60Vdc= 2400Vdc |
||||||||||||||||||||||||||||||||||||||||||||||||
| Isolation Failure Relay |
<48Vdc/500mA (galv. isolated <60Vdc) |
||||||||||||||||||||||||||||||||||||||||||||||||
| MTBF (IEC61709) |
600000h |
||||||||||||||||||||||||||||||||||||||||||||||||
| MTTF (IEC61709) |
152012h |
||||||||||||||||||||||||||||||||||||||||||||||||
| ROHS |
2011/65/EU conform |
||||||||||||||||||||||||||||||||||||||||||||||||
| REACH |
EG No. 1907/2006 conform |
||||||||||||||||||||||||||||||||||||||||||||||||
| STANDARDS AND APPROVALS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EMI |
EN55022 conducted class B, radiated class A |
||||||||||||||||||||||||||||||||||||||||||||||||
| EMS |
EN61000-6-2,3 |
||||||||||||||||||||||||||||||||||||||||||||||||
| Safety |
EN60950-1, EN60204-1 |
||||||||||||||||||||||||||||||||||||||||||||||||
| Safety Class I |
VDE0805, VDE0100 |
||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ambient Temperature |
- 20°C…+70°C operating, derating 2,5%/°C >60°C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature |
- 40°C…+85°C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Ambient Conditions |
Humidity 95% non-condensing @ 25°C, climate class 3K3, pollution degree 2 |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Maximum Operation Altitude
|
3000m above sea level |
||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions (HxWxD) |
130x150x118.5mm |
||||||||||||||||||||||||||||||||||||||||||||||||
| Weight |
1900g |
||||||||||||||||||||||||||||||||||||||||||||||||

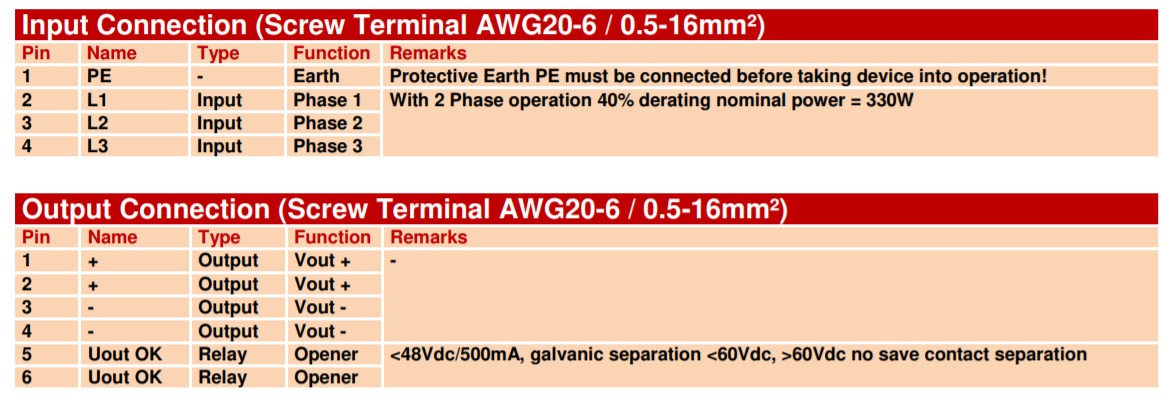

| AC Terminals |
Input Screw Terminal 3x AWG20 – AWG6 / 0,5 – 16mm² (L1,L2,L3,N) |
||||||||||||||||||||||||||||||||||||||||||||||||
| DC Terminals |
Output Screw Terminal 4x AWG20 – AWG6 / 0,5 – 16mm² (+ + / - - ) |
||||||||||||||||||||||||||||||||||||||||||||||||
Selection Table
| MODEL | HSD04801.24T | HSD04801.36T | HSD04801.48T | HSD04801.60T |
|---|---|---|---|---|
| Rated DC Voltage | 24Vdc | 36Vdc | 48Vdc | 60Vdc |
| Vout Set Range | 22,5 - 28,5Vdc | 32,8 - 38,0Vdc | 45,6 - 52,8Vdc | 57,0 - 66,0Vdc |
| DC Cout -20°C…+60°C | 20.0A | 13.3A | 10.0A | 8.0A |
| DC Cout -20°C…+40°C | 22.0A | 14.6A | 11.0A | 8.8A |
| DC Cout Boost -20°C…+60°C | 24.0A | 16.0A | 12.0A | 9.6A |
| Over Voltage OVP | 32Vdc | 50Vdc | 56Vdc | 84Vdc |
| Ripple Noise 400-500Vac 20MHz | 50mVpp | 80mVpp | 100mVpp | 120mVpp |

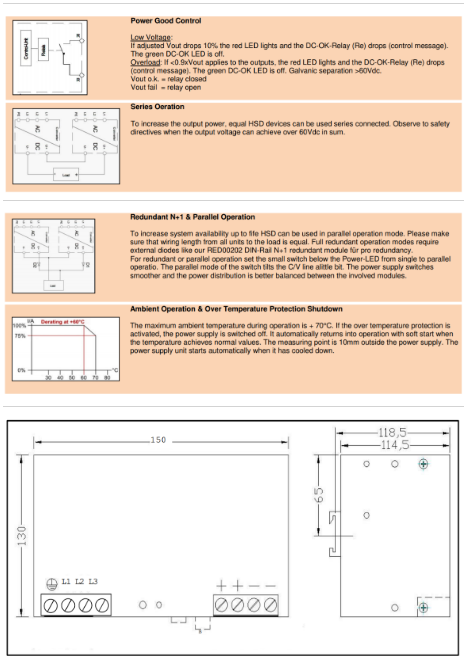

Technical Drawings
