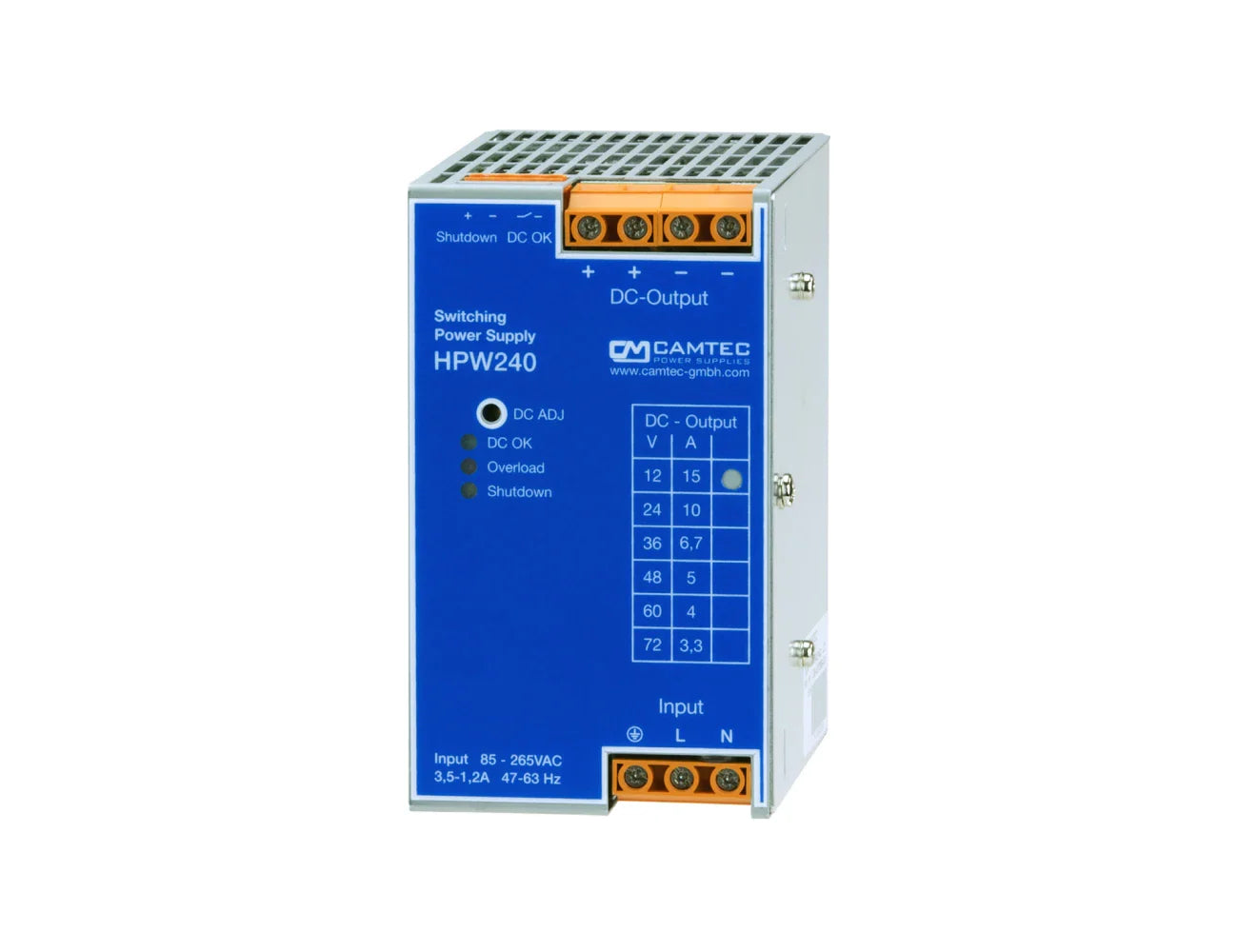

Camtec HPW02401 SERIES AC/DC Power Supply
The Camtec HPW02401 Series AC/DC Power Supply is a high-efficiency, 240W to 312W industrial powerhouse, engineered to meet the demands of complex and dynamic applications. With up to 91.5% efficiency and natural convection cooling, this DIN-rail mounted power supply is designed for galvanic systems, DC drives, and UPS setups. Manufactured in Ger...
Read MoreThe Camtec HPW02401 Series AC/DC Power Supply is a high-efficiency, 240W to 312W industrial powerhouse, engineered to meet the demands of complex and dynamic applications. With up to 91.5% efficiency and natural convection cooling, this DIN-rail mounted power supply is designed for galvanic systems, DC drives, and UPS setups. Manufactured in Germany, the HPW02401 Series ensures consistent performance under full load, thanks to its rugged metal housing and reliable circuit design.
Key features include a precision current-voltage characteristic, advanced load response, and robust protection mechanisms such as overvoltage, continuous short-circuit, and thermal shutdown with auto-recovery. The integrated DC-ok relay and remote shutdown functionality provide seamless monitoring and control, enhancing system reliability. The unit’s electronic inrush current limiter prevents damage during start-up, and the Power Good relay ensures real-time status updates.
Available in models ranging from 12Vdc to 72Vdc, the HPW02401 Series supports parallel N+1 operation for increased scalability. Fully compliant with EMI/EMS standards (EN55032 Class B, EN61000-6-2/3) and safety certifications (EN61010-1, EN62368-1), this power supply is built for long-lasting performance and operational safety. Choose the Camtec HPW02401 Series for energy-efficient, high-performance solutions tailored to your industrial power needs.
Show Less
Features
- 240 Watts Power Supply
- DIN Rail 35mm. Metal housing
- 91.5% efficiency. -25°C...+70°C ambient
- Free air convection
- Continuous short circuit protected
- PSU can be used as a battery charger due to constant current
- Overload & low voltage protected
- Soft start & auto-recovery
- EMI/EMS EN61000-6-2/3. EN55022 class B
- Active PFC: EN61000-3-2
- Low voltage & overload control message
- Remote ON/OFF
- High reliability. Shock & vibration resistant
Specifications
| GENERAL | |
|---|---|
| Output Voltage | See selection table |
| AC Input Voltage | 85..132Vac / 184..265Vac |
| Frequency | 47…63Hz |
| DC Input Voltage | 90…350Vdc |
| AC Input Current | 115Vac <2.6A 230Vac <1.3A |
| AC Input Current | 115Vac <2.6A 230Vac <1.3A |
| Tolerance Ua adjusted | ± 0.5% |
| Transient Time | <1ms (10-100% , 100-10%) |
| Minimum Load | 0 A |
| Efficiency | 91.5% typical |
| Load Protection | 1,2x I rated , auto recovery |
| Short Circuit Protection | Yes |
| Temperature Controlled | Yes (see technical illustrations) |
| Hold Up Time | > 40ms (100...230Vac input) |
| Inrush Current | < 7A (230Vac), active limiter |
| Softstart | 50ms typical |
| RELIABILITY | |
|---|---|
| Air & Surface Leakage Paths | > 8mm |
| Input/Output | Galvanic insulated |
| DC Fail Relay (galv. insulated) | ≤48Vdc/500mA , ≤30Vac/500mA |
| MTBF (IEC61709) | 500000h |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Natural convection |
| Ambient Temperature | - 25°C…+70°C |
| Storage Temperature | - 40°C…+85°C |
| Relative Humidity | 95% (25°C) non-condensing |
| Pollution Degree | 2 (EN50178) |
| Climatic Class | 3k3 (EN60721) |
| STANDARDS AND APPROVALS | |
|---|---|
| EMI | EN55022 class B / EN61000-3-2 |
| EMS | EN61000-6-2,3 active PFC |
| Safety | EN60950-1, EN60204-1 |
| Safety class 1(A) | VDE0805, VDE0100 |
| MECHANICAL | |
|---|---|
| Dimensions (HxWxD) | 130x75x115mm |
| Weight | 1200g |
| Connectors (AC & DC) | AWG20...AWG6 IEC60664-1, IEC61984 |
Selection Table
| DIN RAIL MODEL | HPW02401.12T | HPW02401.24T | HPW02401.36T | HPW02401.48T | HPW02401.60T | HPW02401.72T |
|---|---|---|---|---|---|---|
| Rated DC Voltage | 12Vdc | 24Vdc | 36Vdc | 48Vdc | 60Vdc | 72Vdc |
| DC Voltage Adjust | 9...18Vdc | 18..30Vdc | 30...43Vdc | 43...53Vdc | 53...72Vdc | 68...86Vdc |
| Over Voltage Protection | 21Vdc | 35Vdc | 50Vdc | 60Vdc | 84Vdc | 97Vdc |
| Rated Current 60°C | 15.0A | 10.0A | 6.7A | 5.0A | 4.0A | 3.3A |
| Rated Current 40°C | 19.0A | 13.0A | 8.7A | 6.5A | 5.2A | 4.3A |
| Boost 60s/60°C | 18.0A | 12.0A | 8.0A | 6.0A | 4.8A | 4.0A |
| Ripple mVpp/230Vac | 30 (20MHz) | 30 (20MHz) | 60 (20MHz) | 50 (20MHz) | 50 (20MHz) | 60 (20MHz) |
| Load regulation 0-100% | ±0.5% | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% |
| WALL MOUNT MODEL | HPW02401.12W | HPW02401.24W | HPW02401.36W | HPW02401.48W | HPW02401.60W | HPW02401.72W |
|---|---|---|---|---|---|---|
| Rated DC Voltage | 12Vdc | 24Vdc | 36Vdc | 48Vdc | 60Vdc | 72Vdc |
| DC Voltage Adjust | 9...18Vdc | 18..30Vdc | 30...43Vdc | 43...53Vdc | 53...72Vdc | 68...86Vdc |
| Over Voltage Protection | 21Vdc | 35Vdc | 50Vdc | 60Vdc | 84Vdc | 97Vdc |
| Rated Current 60°C | 15.0A | 10.0A | 6.7A | 5.0A | 4.0A | 3.3A |
| Rated Current 40°C | 19.0A | 13.0A | 8.7A | 6.5A | 5.2A | 4.3A |
| Boost 60s/60°C | 18.0A | 12.0A | 8.0A | 6.0A | 4.8A | 4.0A |
| Ripple mVpp/230Vac | 30 (20MHz) | 30 (20MHz) | 60 (20MHz) | 50 (20MHz) | 50 (20MHz) | 60 (20MHz) |
| Load regulation 0-100% | ±0.5% | ±0.2% | ±0.2% | ±0.2% | ±0.2% | ±0.2% |
Optional Coating (option C): We offer the HPW-Series with optional coating. It is to be used in e.g. dusty, dirty, high humidity, or in awaiting quick temperature changes. Short circuit and corrosion at print board lines and at solder points can be prevented. The coat itself is a transparent acrylic resin. It is procured with a robotics varnishing machine. Peters SL 1306 N-FLZ (transparent) IEC60216-1 2001, IPC-CC-830B, UL listed as permanent coating FileNo.: E80315 , UL94V-0
Options to be added to the order-code:
C coating
Order samples:
HPW02401.24TC DIN-Rail+Coating
HPW02401.24WC Wallmount+Coating

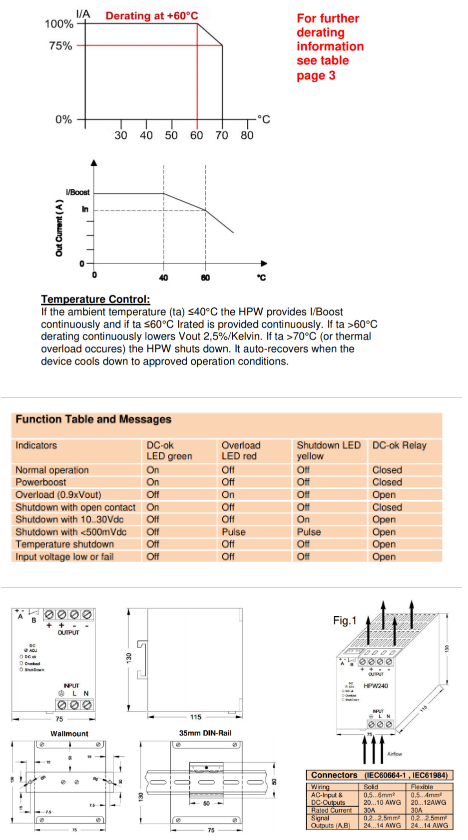

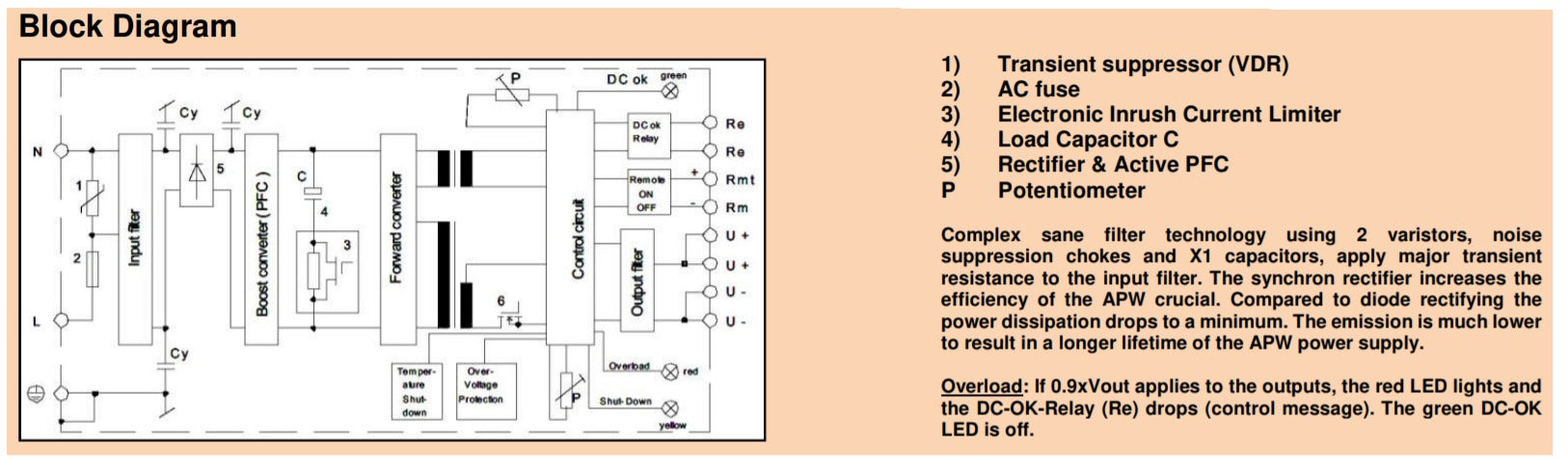

Technical Drawings
