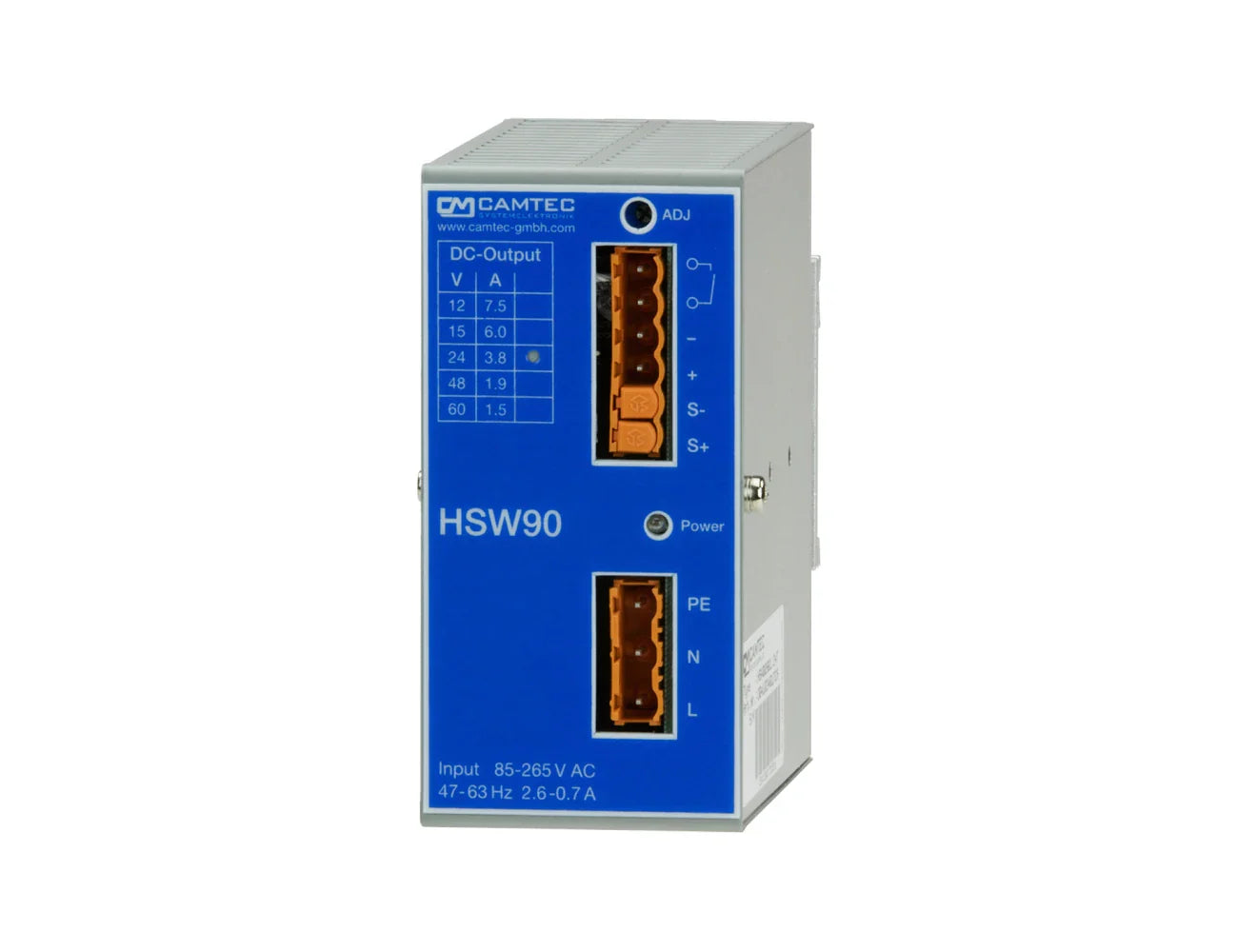

Camtec HSW00901 SERIES AC/DC Power Supply
The Camtec HSW00901 Series AC/DC Power Supply delivers unparalleled reliability and efficiency for demanding industrial applications. Manufactured in Germany, this compact 90W power supply is designed for DIN-rail mounting and features up to 90% energy efficiency, ensuring optimised performance with minimal energy loss. Ideal for use in environm...
Read MoreThe Camtec HSW00901 Series AC/DC Power Supply delivers unparalleled reliability and efficiency for demanding industrial applications. Manufactured in Germany, this compact 90W power supply is designed for DIN-rail mounting and features up to 90% energy efficiency, ensuring optimised performance with minimal energy loss. Ideal for use in environments requiring consistent and dependable power, it boasts rugged design elements, including a robust metal housing and shock and vibration-proof construction, meeting the highest industry standards.
Key features include overvoltage protection, continuous short-circuit protection, and a hold-up time of over 60ms, making it exceptionally safe and durable. The HSW00901 Series also supports N+1 parallel operation for scalable power needs and includes galvanic isolation to safeguard connected equipment. Engineered for longevity, its advanced circuit design and high-end capacitors ensure stable output even under full load, extending the operational lifespan significantly. The unit complies with strict EMI/EMS standards (EN61000-6-2/3, EN55032 Class B) and safety certifications (EN61010-1, EN62368-1), making it a trusted choice for critical applications.
Available in multiple models with output voltages ranging from 24Vdc to 140Vdc, the HSW00901 Series offers the versatility to meet various requirements. Choose Camtec’s HSW00901 Series for high reliability, efficient energy use, and uncompromised safety in your industrial power supply needs.
Show Less
Features
- 90 Watts Power Supply
- DIN Rail 35mm. Metal housing
- > 91% efficiency typical
- -20°C...+60°C full output power
- Continuous short circuit protected
- Overload & low voltage protected
- EMI/EMS EN61000-6-2.3. EN55022 class
- PFC: EN61000-3-2 class A
- cUL60950/16950 IEC(EN)60950-1
- Series & parallel operation
- High reliability. Shock & vibration resistant
Specifications
| GENERAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Voltage | See selection table | ||||||||||||||||||||||||||||||||||||||||||||||||
| AC Input Voltage | 90-265Vac | ||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency | 47-63Hz | ||||||||||||||||||||||||||||||||||||||||||||||||
| DC Input Voltage | 110…375Vdc | ||||||||||||||||||||||||||||||||||||||||||||||||
| Input Rating | 100..240Vac, 115Vac <1.9A, 230Vac <0.9A | ||||||||||||||||||||||||||||||||||||||||||||||||
| Tolerance |
± 1% |
||||||||||||||||||||||||||||||||||||||||||||||||
| Load regulation |
< ± 0.5% 10-100%, 100-10% |
||||||||||||||||||||||||||||||||||||||||||||||||
| Minimum Load |
0A |
||||||||||||||||||||||||||||||||||||||||||||||||
| Efficiency |
Up to 90% |
||||||||||||||||||||||||||||||||||||||||||||||||
| Load Protection |
1,2x Irated ,auto recovery |
||||||||||||||||||||||||||||||||||||||||||||||||
| Voltage Protection |
140% of Uout , auto recovery |
||||||||||||||||||||||||||||||||||||||||||||||||
| Short Circuit Protection |
Continuous |
||||||||||||||||||||||||||||||||||||||||||||||||
| Hold Up Time |
> 40ms 230Vac |
||||||||||||||||||||||||||||||||||||||||||||||||
| Inrush Current |
< 32A (230Vac) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Softstart |
50ms typical |
||||||||||||||||||||||||||||||||||||||||||||||||
| RELIABILITY | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Air & Surface Leakage Paths | > 8 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
| Input to Output Isolation | Galvanic insulated 3000Vac | ||||||||||||||||||||||||||||||||||||||||||||||||
| MTBF (IEC61709) | 590000h | ||||||||||||||||||||||||||||||||||||||||||||||||
| MTTF (EN61209, SN29500) | 590000h | ||||||||||||||||||||||||||||||||||||||||||||||||
| Power Good Relay | <48Vdc / 500mA (galv.insulated) | ||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling | Natural Convection | ||||||||||||||||||||||||||||||||||||||||||||||||
| Ambient Temperature | -20°C... +70°C | ||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature | -40°C... +85°C | ||||||||||||||||||||||||||||||||||||||||||||||||
| Climatic Class, Humidity | 3k3, 90% non condensing | ||||||||||||||||||||||||||||||||||||||||||||||||
| STANDARDS AND APPROVALS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EMI | EN55022B EN61000-3-2A | ||||||||||||||||||||||||||||||||||||||||||||||||
| EMS | EN61000-6-2,3 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Safety IEC | EN60950-1 EN50178 EN60204-1 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Safety Class 1(A) | VDE0100 VDE0805 | ||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions (WxHxD) | 102x50x96mm | ||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 300g | ||||||||||||||||||||||||||||||||||||||||||||||||
| Connectors (AC & DC) | Terminal plug AWG26..AWG12 | ||||||||||||||||||||||||||||||||||||||||||||||||
Selection Table
| MODEL | HSW00901.24T | HSW00901.36T | HSW00901.48T | HSW00901.60T | HSW00901.72T | HSW00901.140T |
|---|---|---|---|---|---|---|
| Rated DC Voltage | 24V | 36V | 48V | 60V | 72V | 140V |
| Adjust Range Vout | 22,5 - 28,5V | 34,2 - 39,6V | 45,6 - 52,8V | 57 - 66V | 68 - 86V | 133 - 155V |
| Ripple & Noise mVpp | 50mV | 50mV | 60mV | 100mV | 120mV | 120mV |
| Nominal Output Current | 3,8A | 2,5A | 1,9A | 1,5A | 1,3A | 640mA |
| Power Boost <=60°C/60s | 4,6A | 3,0A | 2,7A | 1,8A | 1,6A | 770mA |
| Stability at Load Switch | ±0,1% | ±0,1% | ±0,1% | ±0,1% | ±0,3% | ±0,5% |
|
Options: |
coating finish on electronic circuits (Option C) | |||||
|
Order code: |
HSW00901.Vout+T+options Example: 24V for DIN-Rail with coating = HSW00901.24TC | |||||

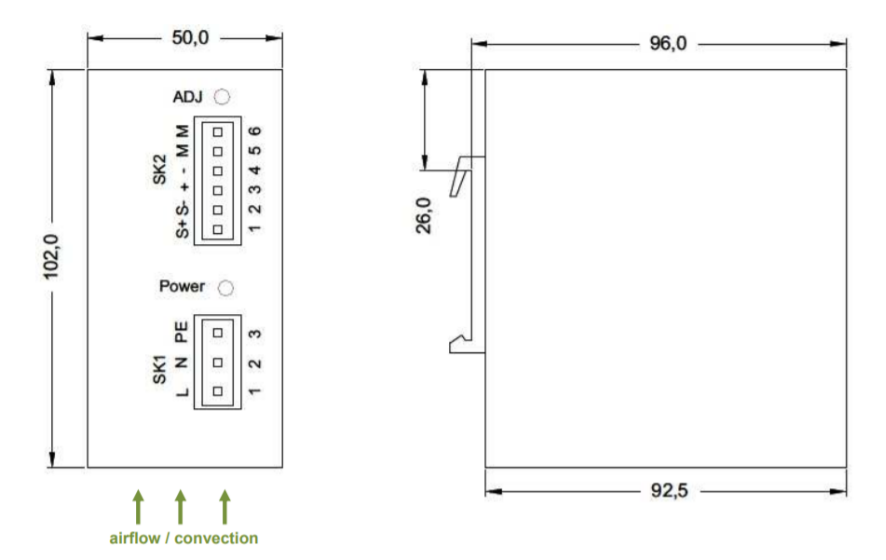

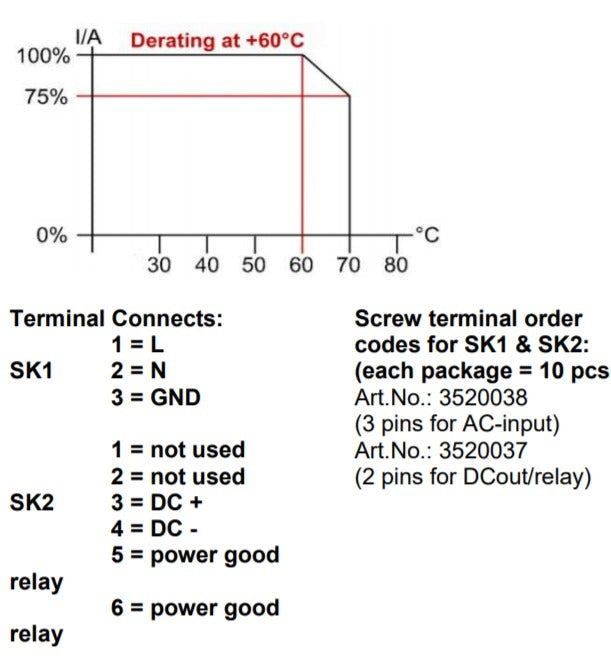

Technical Drawings
