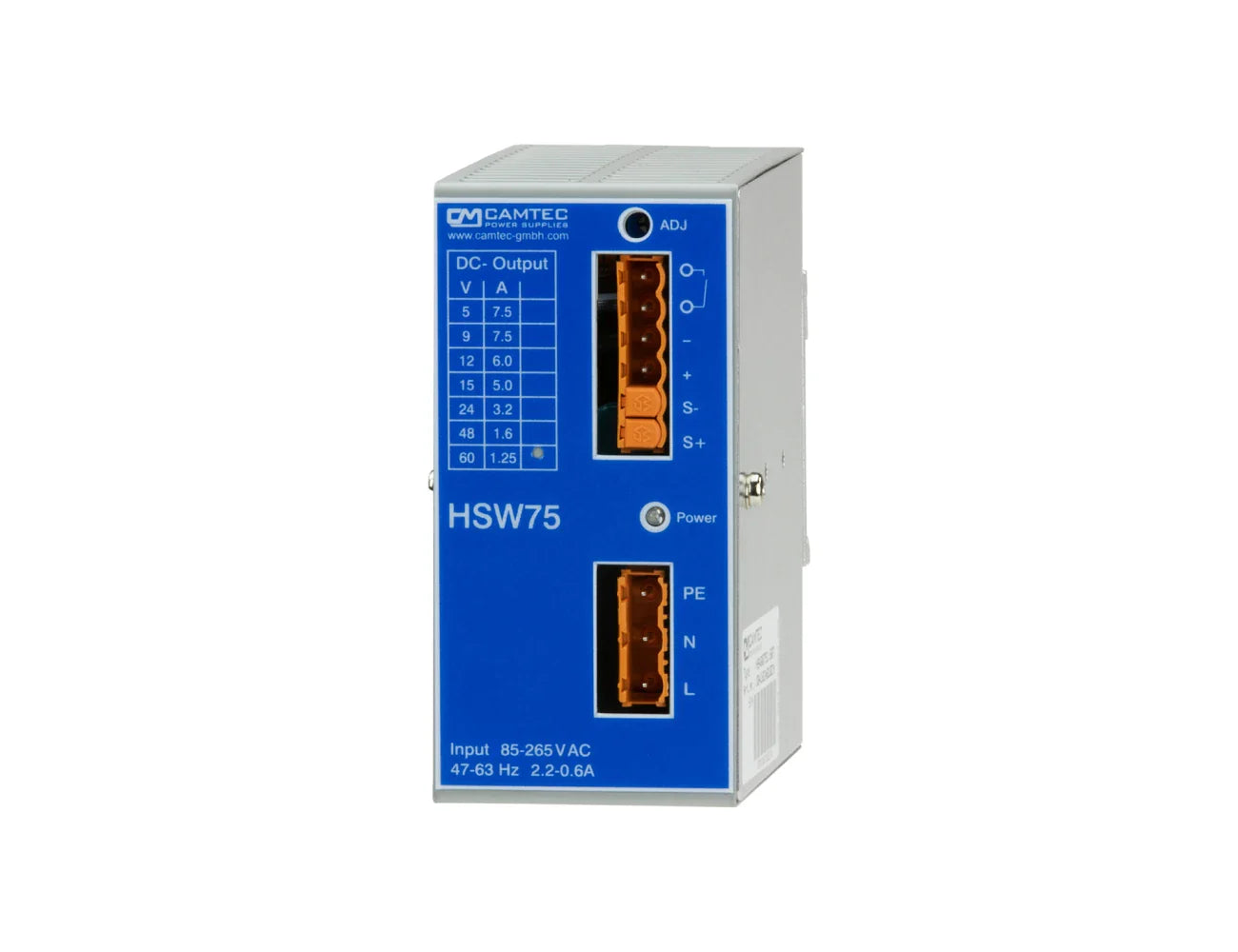

Camtec HSW00751 SERIES AC/DC Power Supply
The Camtec HSW00751 Series AC/DC Power Supply is engineered for superior performance in industrial environments, offering a robust and reliable 75W output. Designed for efficient DIN-rail mounting, this power supply provides up to 90% energy efficiency and features natural convection cooling for optimal thermal management. Built in Germany to th...
Read MoreThe Camtec HSW00751 Series AC/DC Power Supply is engineered for superior performance in industrial environments, offering a robust and reliable 75W output. Designed for efficient DIN-rail mounting, this power supply provides up to 90% energy efficiency and features natural convection cooling for optimal thermal management. Built in Germany to the highest standards, the HSW00751 Series is well-suited for applications demanding dependable power under continuous stress.
Key features include overvoltage and continuous short-circuit protection, a hold-up time of over 70ms, and galvanic isolation for enhanced safety. With strong input filters to safeguard against electrical transients, this power supply ensures low noise and ripple for stable output. The HSW00751 Series supports N+1 parallel operation, offering flexibility and scalability to meet growing power needs. Each model undergoes rigorous testing, including full-load burn-in and safety tests, to uphold Camtec’s “mount and forget” quality promise.
Available models provide output voltages ranging from 5Vdc to 24Vdc, with precise adjustment options to suit various applications. Choose the Camtec HSW00751 Series for its reliability, long service life, and adherence to international safety and EMI/EMS standards, such as EN61010-1 and EN55032 Class B, ensuring peak performance across diverse industrial applications.
Show Less
Features
- 75 Watts Power Supply
- DIN Rail 35mm
- Metal housing
- > 91% efficiency typical
- -20°C...+60°C full output power
- Continuous short circuit protected
- Overload & low voltage protected
- EMI/EMS EN61000-6-2.3. EN55022 class
- PFC: EN61000-3-2 class A
- cUL60950/16950 IEC(EN)60950-1
- Series & parallel operation
- High reliability. shock & vibration resistant
Specifications
| GENERAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Voltage | See selection table | ||||||||||||||||||||||||||||||||||||||||||||||||
| AC Input Voltage | 90-265Vac | ||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency | 47-63Hz | ||||||||||||||||||||||||||||||||||||||||||||||||
| DC Input Voltage | 110…375Vdc | ||||||||||||||||||||||||||||||||||||||||||||||||
| Tolerance |
± 1% |
||||||||||||||||||||||||||||||||||||||||||||||||
| Load regulation |
< ± 0.5% 10-100%, 100-10% |
||||||||||||||||||||||||||||||||||||||||||||||||
| Efficiency |
Up to 90% |
||||||||||||||||||||||||||||||||||||||||||||||||
| Load Protection |
1,2x Irated ,auto recovery |
||||||||||||||||||||||||||||||||||||||||||||||||
| Voltage Protection |
140% of Uout , auto recovery |
||||||||||||||||||||||||||||||||||||||||||||||||
| Short Circuit Protection |
Continuous |
||||||||||||||||||||||||||||||||||||||||||||||||
| Hold Up Time |
> 40ms 230Vac |
||||||||||||||||||||||||||||||||||||||||||||||||
| Inrush Current |
< 32A (230Vac) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Softstart |
50ms typical |
||||||||||||||||||||||||||||||||||||||||||||||||
| RELIABILITY | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Air & Surface Leakage Paths |
> 8mm |
||||||||||||||||||||||||||||||||||||||||||||||||
| Input/Output |
Galvanic insulated 3000Vac |
||||||||||||||||||||||||||||||||||||||||||||||||
| Power Good Relay (opener) |
<48Vdc/500mA (galv. insulated) |
||||||||||||||||||||||||||||||||||||||||||||||||
| MTBF |
IEC61709: 500000h |
||||||||||||||||||||||||||||||||||||||||||||||||
| MTTF |
EN61209,SN29500 140182h @ 40°C 24/7 85% Load |
||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling |
Natural convection |
||||||||||||||||||||||||||||||||||||||||||||||||
| Ambient Temperature |
- 20°C…+70°C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Storage Temperature |
- 40°C…+85°C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Clima/Dirt/Hight/Humidity |
3k3, Kl.2, 3000m NN, 90% Hum. |
||||||||||||||||||||||||||||||||||||||||||||||||
| STANDARDS AND APPROVALS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EMI |
EN55022 class B / EN61000-3-2 |
||||||||||||||||||||||||||||||||||||||||||||||||
| EMS |
EN61000-6-2,3 |
||||||||||||||||||||||||||||||||||||||||||||||||
| Safety |
EN60950-1, EN60204-1 |
||||||||||||||||||||||||||||||||||||||||||||||||
| Safety class 1(A) |
VDE0805, VDE0100 |
||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions (HxWxD) | 124x50x99.5mm | ||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 700g | ||||||||||||||||||||||||||||||||||||||||||||||||
| Connectors (AC & DC) | Terminal plug AWG26...AWG12 | ||||||||||||||||||||||||||||||||||||||||||||||||
Selection Table
| MODEL | HSW00751.5T | HSW00751.9T | HSW00751.12T | HSW00751.15T | HSW00751.24T |
|---|---|---|---|---|---|
| Rated DC Voltage | 5Vdc | 9Vdc | 12Vdc | 15Vdc | 24Vdc |
| Rated DC Current | 7.5A | 7.6A | 6.0A | 5.0A | 3.2A |
|
Power Boost ≤60 sec. |
9.0A | 9.12A | 7.2A | 6.0A | 3.84A |
|
Ripple [mVpp] (230Vac/20MHz) |
15mV | 15mV | 20mV | 20mV | 50mV |
|
Output adj. Range [V] |
4,9..5,5 | 8,6..9,9 | 11,4..13,2 | 14,3..16,5 | 22,5..28,5 |
|
Sense Compensation |
200mV | No | No | No | No |
|
Stability Load switch |
± 0,1% | ± 0,5% | ± 0,3% | ± 0,2% | ± 0,1% |
| OPTIONS | |
|---|---|
|
Option C: |
Coating finish on electronic circuits |
|
Order code: |
HSW00751.Vout+T+options Example: 24V for DIN-Rail with coating = HSW00751.24TC |

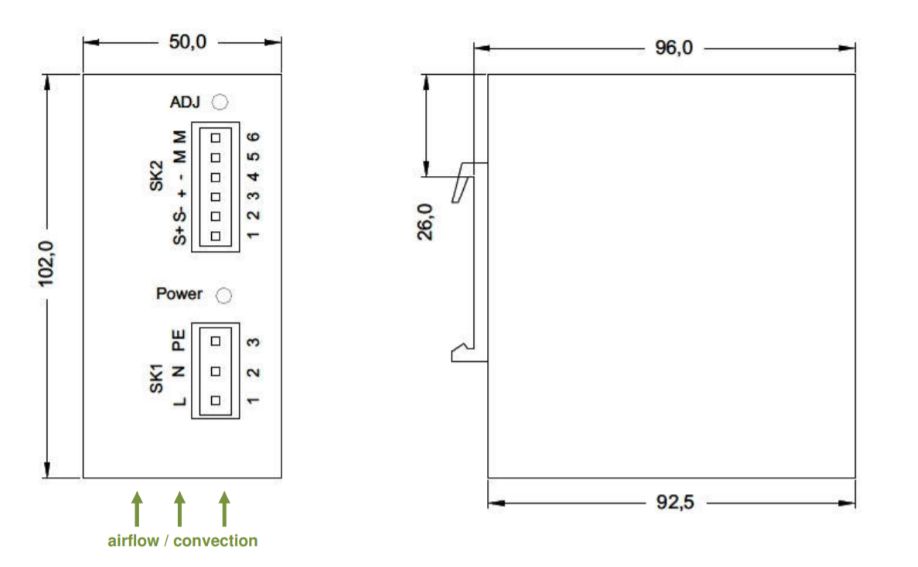

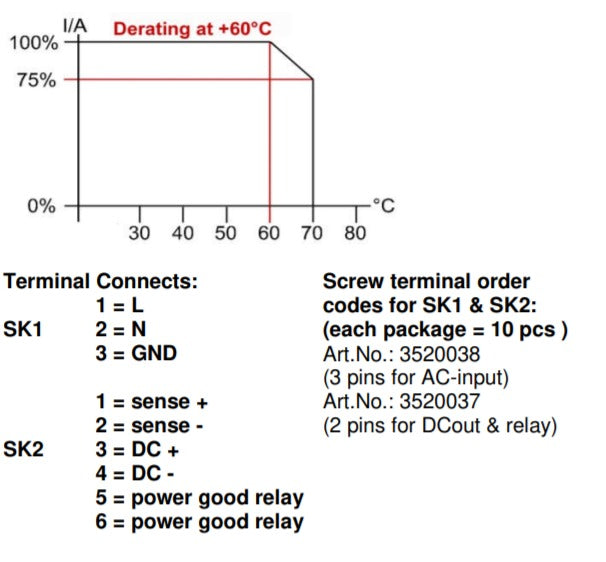

Technical Drawings
