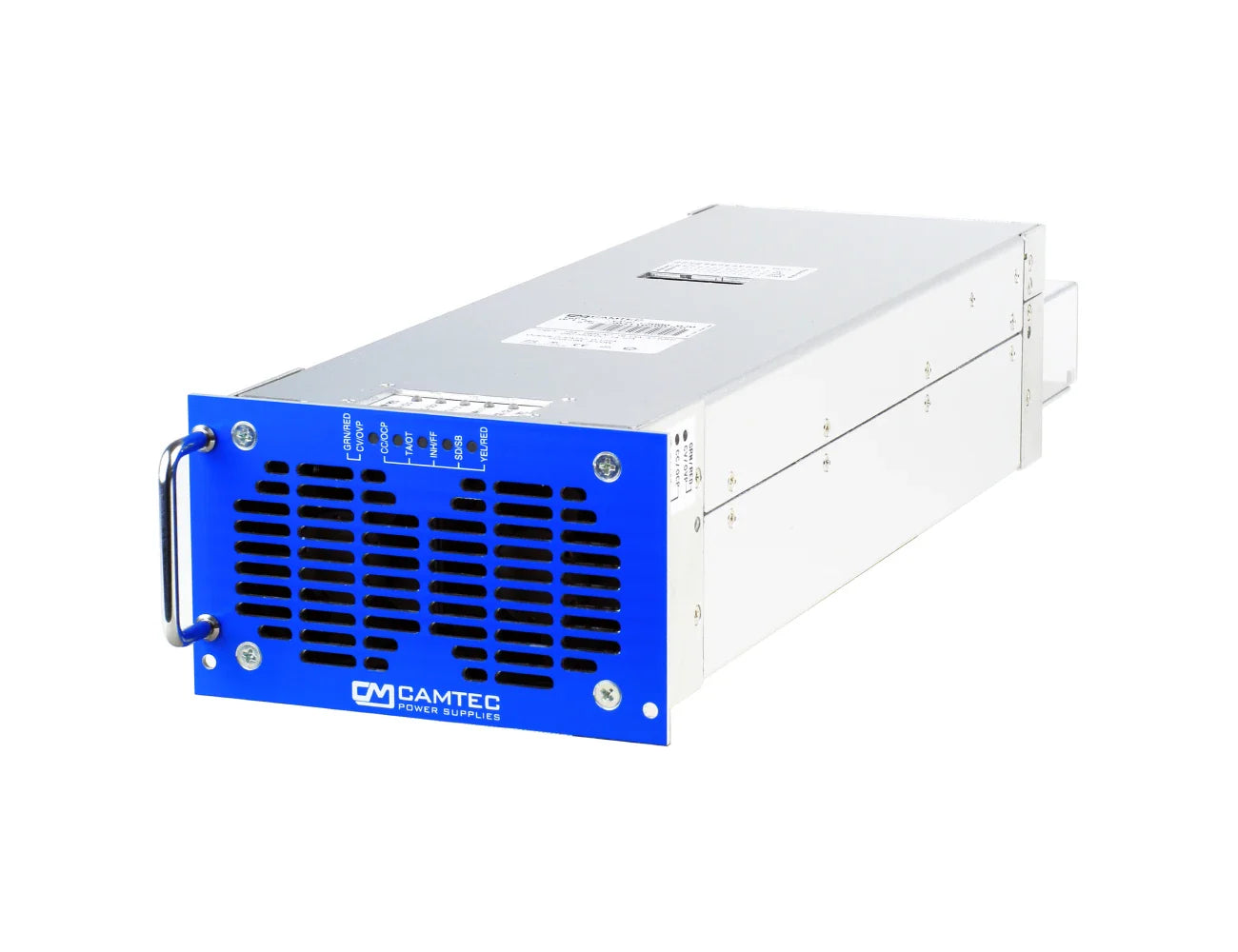

Camtec CPS-EX2000 SERIES AC/DC Power Supply

The Camtec EX2000 Series is a powerful and flexible industrial solution delivering up to 2000W with an efficiency range of 92% to 94%. Engineered in Germany, this robust charger features a compact 19" rack-mountable design with options for 2U or 3U installation, making it perfect for applications such as backup power systems, industrial automation, and DC networks.

Read More

View Models
Camtec CPS-EX2000 SERIES Battery Charger

Features

  • 2000W Power Supply scalable
  • 3D-HD (3D Heat Dissipation)
  • Inhibit for safe interlocking
  • Remote Shutdown. Sense mode
  • Real time & value C/V-monitoring
  • Reference voltage f. autonomous programming
Specifications
GENERAL
Output Voltage See selection table
AC Input Voltage 184 – 265Vac
Frequency 47-63Hz
DC Input Range 250 – 350Vdc
AC Nominal Voltage 230Vac <10A
DC Nominal Voltage 250Vdc <9,3A 350Vdc <6,7A
Auxiliary Voltage 12Vdc/0,5A accuracy ±0,5V R&N 30mVpp, not influenced from SB, SD, INH operations
Continuous Power Pnom 184 – 265Vac, 2000W
Power Density 8W / Cubic-Inch
Cooling Continuously controlled and monitored fans from EBM Papst (Germany)
Efficiency typ. 92 - 94% 230Vac at full load
Power Factor Control 0,99 / 230Vac full load
Short Circuit Resistance Yes
Open Circuit Protected Yes
Base Load (OCP) Non required (open circuit protected)
Load Regulation < ± 0,05% 0-100%
Load Regulation Time <1ms on load switch 10-100%
Rise Time and Latency 0V – Voutmax, 15ms over all
Accuracy Ureg: ≤ ± 0,5%, Ireg: ≤ ± 1%, Umon: ≤ ± 0,5%, Imon: ≤ ± 1%, Uref: ≤ ±1%
Temperature Control yes, thermal shutdown & autorecovery (+70°C, outside measuring point distance 10mm)
Hold Up Time >20ms 230Vac mains buffering at full load
Inrush Current <14,6Aeff <20,7Apeak 230Vac active electronic inrush protection (no simple NTC)
Startup Delay typ. 1s
Softstart typ. 100ms
RELIABILITY
Isolation Input to Output 3000Vac
Isolation Input to Case 2500Vac
Isolation Output to Case 500Vdc , ≥60Vdc= 1200Vdc / ≥150Vdc= 2100Vdc
MTBF 419500h (IEC61709)
MTTF 146110h (IEC61709)
ROHS 2011/65/EU conform
REACH EG No. 1907/2006 conform
ENVIRONMENTAL
Ambient Temperature - 20°C…+60°C operating, derating 2,5%/°C >50°C
Storage Temperature - 40°C…+85°C
Ambient Conditions Humidity 95% non-condensing @ 25°C, climate class 3K3, pollution degree 2
STANDARDS AND APPROVALS
EMI EN55022 conducted class B, radiated class A
EMS EN61000-6-2,3
Safety EN60950-1, EN60204-1
Saftey Class I VDE0805, VDE0100

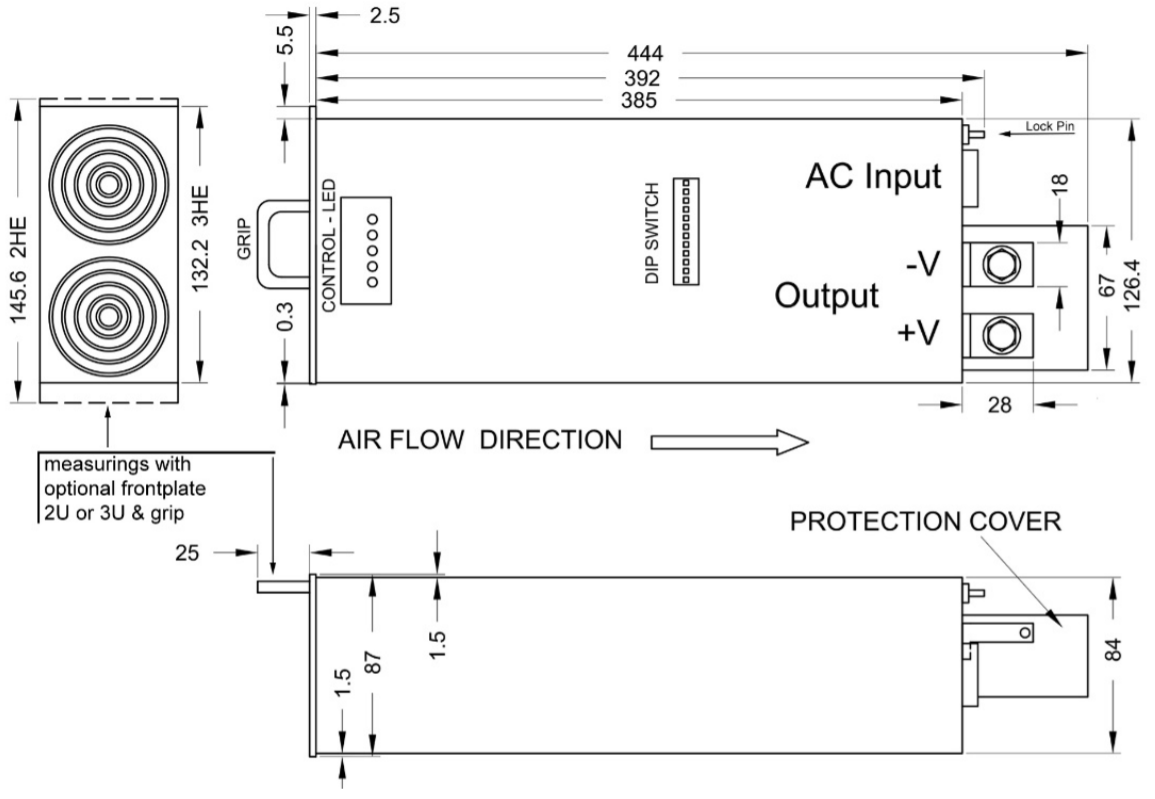

MECHANICAL
Dimensions (HxWxD) 84x126,4x444mm
Weight 4,4kg

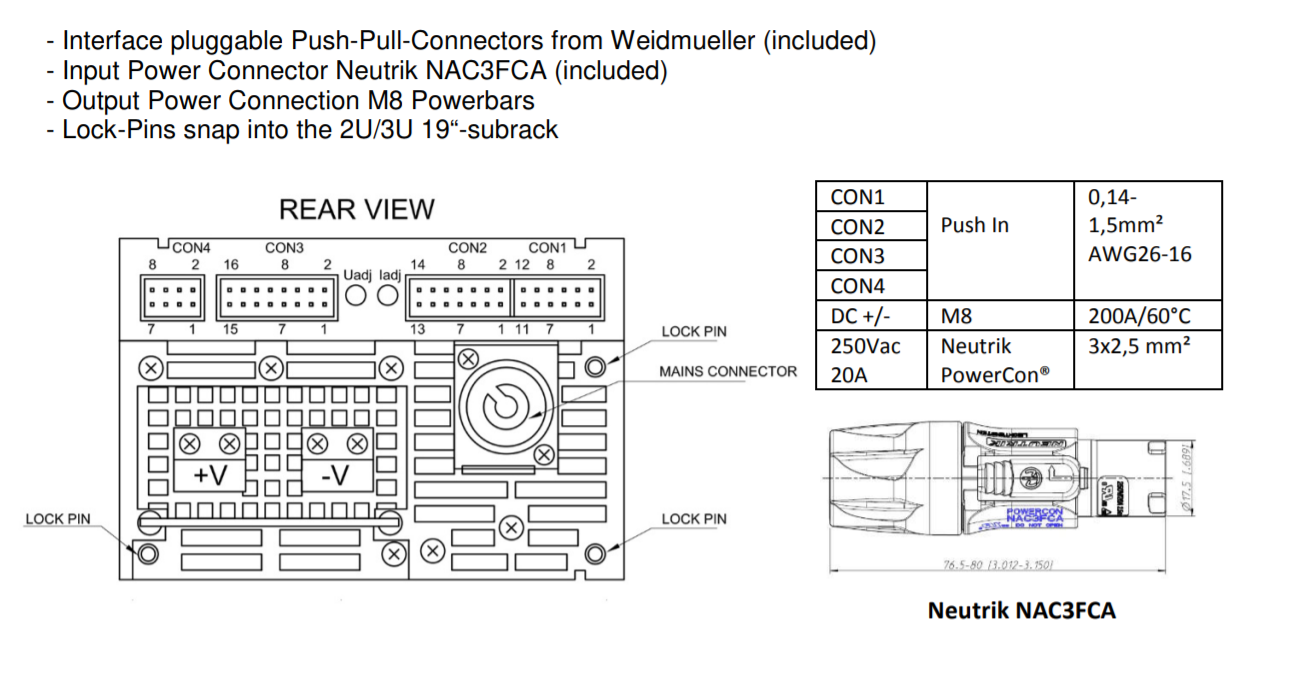

Input Power Connections Neutrik NAC3FCA (locked by bajonett) included
Output Power Connections Brass-Powerbars with metric M8 thread, a touch protection is included
Selection Table
MODEL CPS-EX2000.024 CPS-EX2000.036 CPS-EX2000.048 CPS-EX2000.072 CPS-EX2000.110
DC Vout programmable 24-30Vdc 30-45Vdc 45-58Vdc 58-90Vdc 90-150Vdc
DC Cout programmable 42-84A 28-56A 21-42A 14-28A 9,1-18,2A
Over Voltage OVP 35Vdc 52Vdc 68Vdc 105Vdc 175Vdc
Ripple Noise 230Vac 20MHz 35mVpp 50mVpp 75mVpp 150mVpp 300mVpp

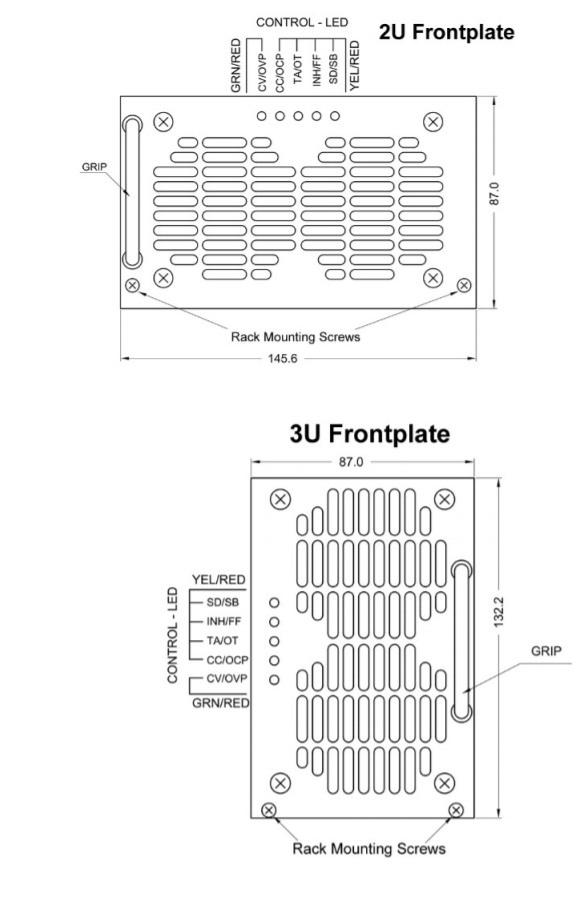

Technical Illustrations
Downloads
camtec-cps-ex2000-032024-00-0-digi-datasheet.pdf
GENERAL
Output Voltage See selection table
AC Input Voltage 184 – 265Vac
Frequency 47-63Hz
DC Input Range 250 – 350Vdc
AC Nominal Voltage 230Vac <10A
DC Nominal Voltage 250Vdc <9,3A 350Vdc <6,7A
Auxiliary Voltage 12Vdc/0,5A accuracy ±0,5V R&N 30mVpp, not influenced from SB, SD, INH operations
Continuous Power Pnom 184 – 265Vac, 2000W
Power Density 8W / Cubic-Inch
Cooling Continuously controlled and monitored fans from EBM Papst (Germany)
Efficiency typ. 92 - 94% 230Vac at full load
Power Factor Control 0,99 / 230Vac full load
Short Circuit Resistance Yes
Open Circuit Protected Yes
Base Load (OCP) Non required (open circuit protected)
Load Regulation < ± 0,05% 0-100%
Load Regulation Time <1ms on load switch 10-100%
Rise Time and Latency 0V – Voutmax, 15ms over all
Accuracy Ureg: ≤ ± 0,5%, Ireg: ≤ ± 1%, Umon: ≤ ± 0,5%, Imon: ≤ ± 1%, Uref: ≤ ±1%
Temperature Control yes, thermal shutdown & autorecovery (+70°C, outside measuring point distance 10mm)
Hold Up Time >20ms 230Vac mains buffering at full load
Inrush Current <14,6Aeff <20,7Apeak 230Vac active electronic inrush protection (no simple NTC)
Startup Delay typ. 1s
Softstart typ. 100ms
RELIABILITY
Isolation Input to Output 3000Vac
Isolation Input to Case 2500Vac
Isolation Output to Case 500Vdc , ≥60Vdc= 1200Vdc / ≥150Vdc= 2100Vdc
MTBF 419500h (IEC61709)
MTTF 146110h (IEC61709)
ROHS 2011/65/EU conform
REACH EG No. 1907/2006 conform
ENVIRONMENTAL
Ambient Temperature - 20°C…+60°C operating, derating 2,5%/°C >50°C
Storage Temperature - 40°C…+85°C
Ambient Conditions Humidity 95% non-condensing @ 25°C, climate class 3K3, pollution degree 2
STANDARDS AND APPROVALS
EMI EN55022 conducted class B, radiated class A
EMS EN61000-6-2,3
Safety EN60950-1, EN60204-1
Saftey Class I VDE0805, VDE0100
MECHANICAL
Dimensions (HxWxD) 84x126,4x444mm
Weight 4,4kg
Input Power Connections Neutrik NAC3FCA (locked by bajonett) included
Output Power Connections Brass-Powerbars with metric M8 thread, a touch protection is included
MODEL CPS-EX2000.024 CPS-EX2000.036 CPS-EX2000.048 CPS-EX2000.072 CPS-EX2000.110
DC Vout programmable 24-30Vdc 30-45Vdc 45-58Vdc 58-90Vdc 90-150Vdc
DC Cout programmable 42-84A 28-56A 21-42A 14-28A 9,1-18,2A
Over Voltage OVP 35Vdc 52Vdc 68Vdc 105Vdc 175Vdc
Ripple Noise 230Vac 20MHz 35mVpp 50mVpp 75mVpp 150mVpp 300mVpp
camtec-cps-ex2000-032024-00-0-digi-datasheet.pdf

Find the Right Model

Model Number Input Voltage (Vac) Output Voltage (Vdc) Output Current (A)
product variant CPS-EX2000.024(R2) 184...264Vac 50/60Hz 24Vdc (Adj. 24 - 30Vdc) 42 - 84A
product variant CPS-EX2000.036(R2) 184...264Vac 50/60Hz 36Vdc (Adj. 30 - 45Vdc) 28 - 56A
product variant CPS-EX2000.048(R2) 184...264Vac 50/60Hz 48Vdc (Adj. 45 - 58Vdc) 21 - 42A
product variant CPS-EX2000.072(R2) 184...264Vac 50/60Hz 72Vdc (Adj. 58 - 90Vdc) 14 - 28A
product variant CPS-EX2000.110(R2) 184...264Vac 50/60Hz 110Vdc (Adj. 90 - 150Vdc) 9.1 - 18.2A
product variant CPS-EX2000.024.DIGI(R2) 184...264Vac 50/60Hz 24Vdc (Adj. 24 - 30Vdc) 42 - 84A
product variant CPS-EX2000.036.DIGI(R2) 184...264Vac 50/60Hz 36Vdc (Adj. 30 - 45Vdc) 28 - 56A
product variant CPS-EX2000.048.DIGI(R2) 184...264Vac 50/60Hz 48Vdc (Adj. 45 - 58Vdc) 21 - 42A
product variant CPS-EX2000.072.DIGI(R2) 184...264Vac 50/60Hz 72Vdc (Adj. 58 - 90Vdc) 14 - 28A
product variant CPS-EX2000.110.DIGI(R2) 184...264Vac 50/60Hz 110Vdc (Adj. 90 - 150Vdc) 9.1 - 18.2A
