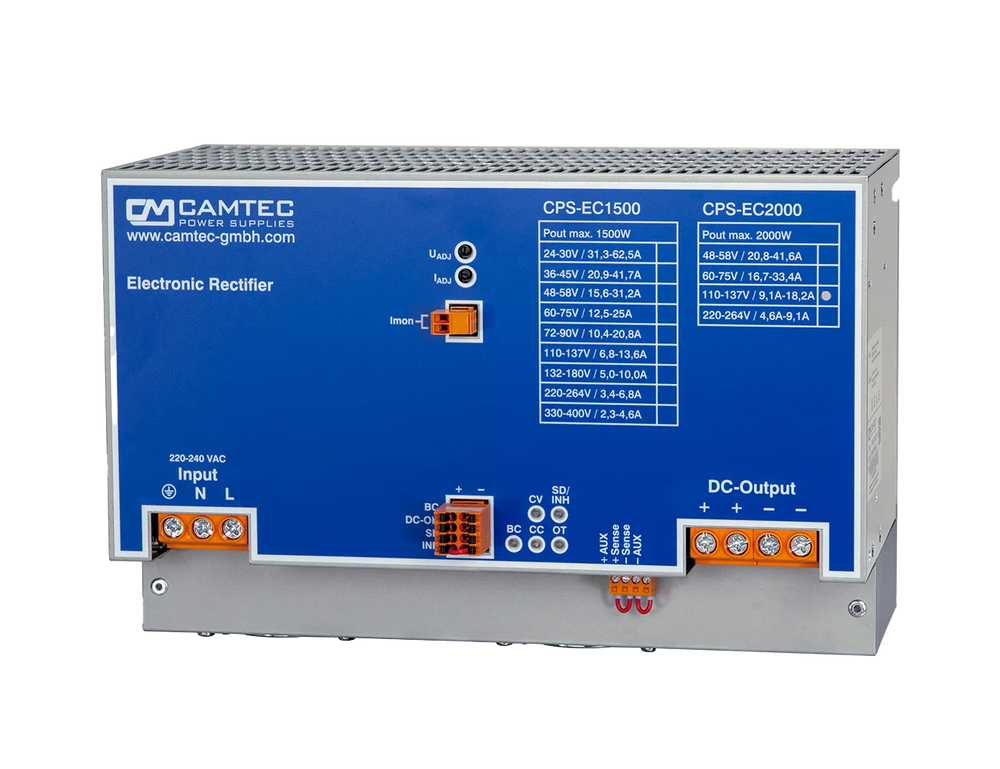

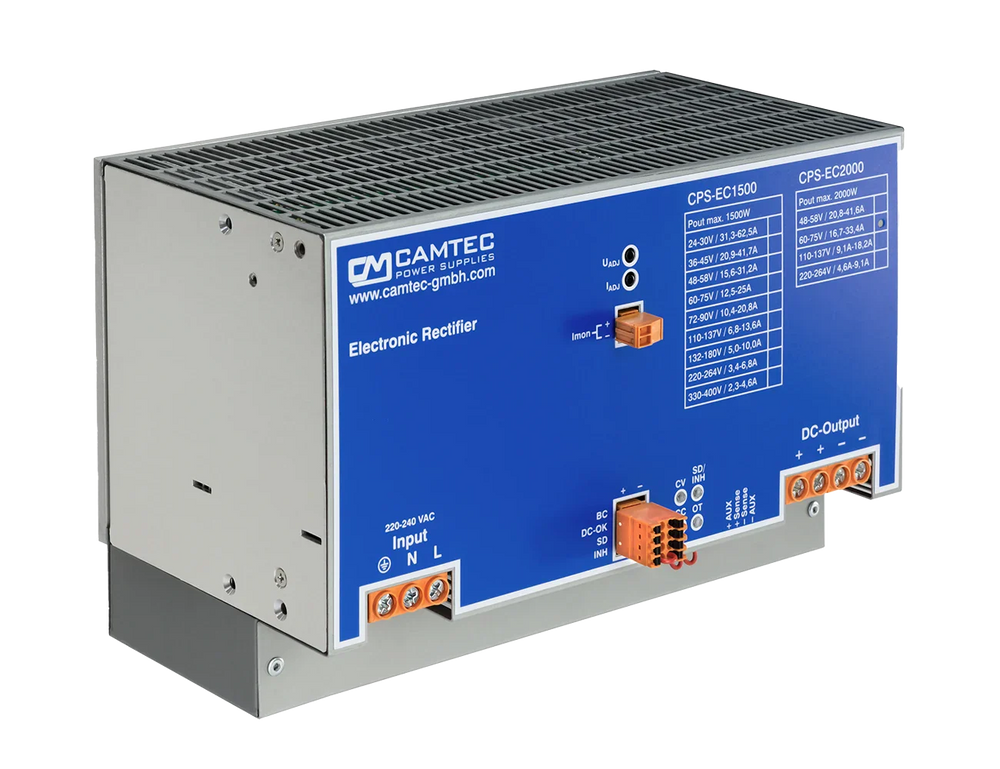

Camtec CPS-EC2000 Series 2000W DIN-Rail Battery Charger / Precision AC/DC Power Supply
The Camtec CPS-EC2000 is a 2,000W Precision AC/DC Power Supply and DIN-rail battery charger engineered and manufactured in Germany for demanding industrial, battery charging, and machine-building applications. Based on the CPS-i1500 laboratory power supply platform, it delivers laboratory-grade output quality — low ripple and noise, load regulat...
Read MoreThe Camtec CPS-EC2000 is a 2,000W Precision AC/DC Power Supply and DIN-rail battery charger engineered and manufactured in Germany for demanding industrial, battery charging, and machine-building applications. Based on the CPS-i1500 laboratory power supply platform, it delivers laboratory-grade output quality — low ripple and noise, load regulation under ±0.05%, and response to load changes under 1ms — with unlimited capacitive load capability and a clean CC/CV curve that drops to 0V with no foldback.
Available in 48V, 60V, 110V, and 220V output configurations, the CPS-EC2000 provides continuously adjustable voltage and current via 15-turn high-precision potentiometers, with 3,000Vac forced isolation between all control interfaces and the power rails. Boost charge mode delivers a +10% current increase on demand, while built-in features include a real-time output current monitor (0–5Vdc Imon), remote sense compensation up to 2V per load line, remote shutdown, inhibit (interlock), power good relay, electronic inrush limiting, and soft start.
Thermal management is handled by controlled, stepless EBM Papst fans with auto-recovery thermal shutdown at +60°C. Parallel operation is supported for extended capacity. The unit is rated to EN61010-1, EN62368-1, EN60204-1, and EMC-compliant to EN55032 / EN61000-6-2, with an MTBF of 400,000h (IEC61709).
Show Less
Features
- Input: 184–264Vac or 250–375Vdc, 47–63Hz.
- Output voltage: 48V, 60V, 110V, or 220Vdc (model dependent), adjustable via 15-turn precision potentiometer.
- Output power: 2,000W rated.
- Efficiency: up to 94% at 90% load (230Vac).
- Load regulation: <±0.05% across 0–100% load.
- Response to load change: <1ms for 10–100% or 100–10% steps.
- Hold-up time: >20ms at 230Vac.
- Ripple and noise (230Vac, 20MHz BW): 150mV (.048/.060), 300mV (.110), 500mV (.220).
- C/V curve to 0V — no foldback, unlimited capacitive load, open-circuit proof.
- Boost charge mode: +10% current increase via open collector input (2,000W total limit applies).
- Output current monitor (Imon): 0–5Vdc real-time, <±1% accuracy, <0.2ms rise/fall time.
- Remote sense: up to 2V per load line compensation.
- Remote shutdown and inhibit (interlock) — both with 3,000Vac forced isolation.
- DC-OK power good relay with 3,000Vac forced isolation.
- Electronic inrush current limiter: <14.7Arms / <20.7Apeak at 230Vac.
- Soft start: 100ms typical. Start-up from shutdown or inhibit: typ. 340ms.
- Cooling: controlled stepless fans (EBM Papst, Germany).
- Thermal shutdown with auto recovery at +60°C (metering point 50mm from device).
- Derating: 2.5%/°C from +50°C to +60°C.
- Parallel operation supported for extended power capacity.
- Series operation to 600Vdc supported on 110V and 220V models (floating output required).
- Input to output isolation: 3,000Vac. Input to case: 2,500Vac. Output to case: 500Vdc (2,800Vdc for ≥48V models).
- Leakage current: typ. 1.9mA, <2.7mA at 230Vac 50Hz.
- MTBF: 400,000h (IEC61709). MTTF: 144,006h.
- Dimensions (H×W×D): 161.2 × 250 × 119.5mm. Weight: 4.1kg.
- Safety: EN61010-1, EN61010-2-201, EN62368-1, EN60950-1, EN60204-1.
- EMI: EN55032 (conducted: .048/.110 Class B, .060/.220 Class A; all models radiated Class B). EMS: EN61000-6-2.
- Optional conformal coating available (add suffix C to model number).

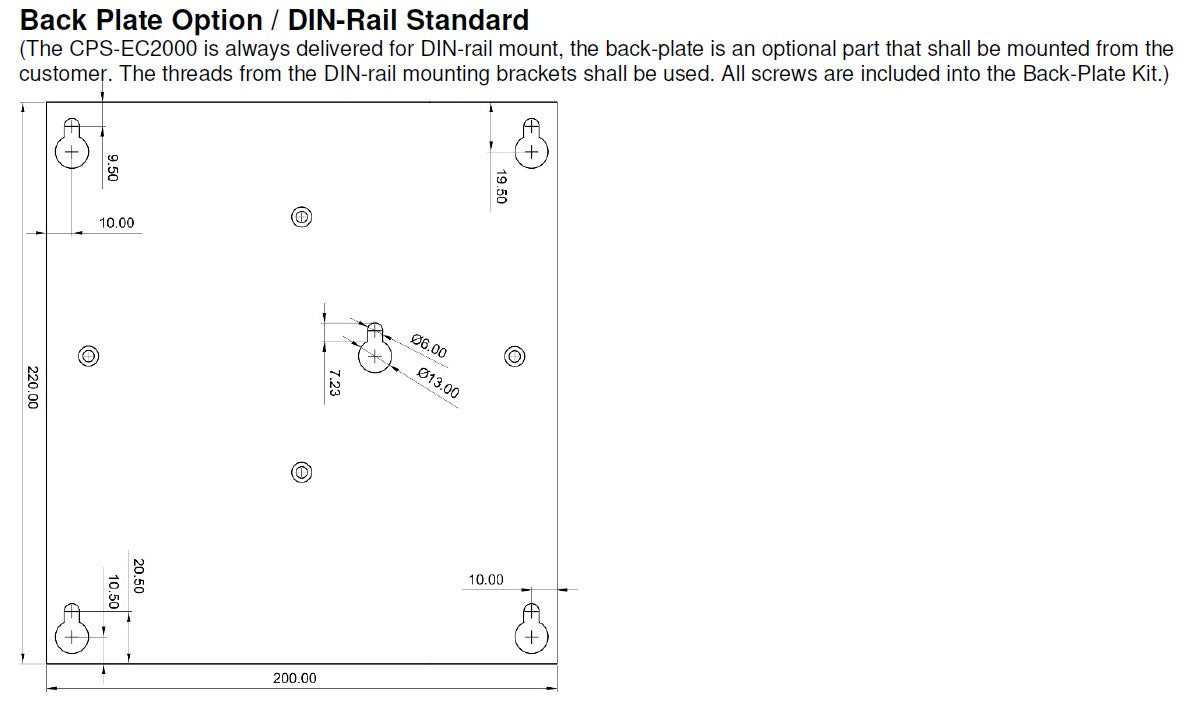

- Optional back-plate / wall-mount kit (2201002001CA).
Specifications
| INPUT CHARACTERISTICS | |
|---|---|
| AC Input Range | 184 – 264Vac, 47 – 63Hz |
| DC Input Range | 250Vdc – 375Vdc |
| AC Input Rated | 230Vac <17A |
| DC Input Rated | 250Vdc <10A / 375Vdc <6,6A |
| Hold Up Time | >20ms @ 230Vac |
| Inrush Current ±5% | <14,7Aeff <20,7Apeak (230Vac) active inrush current limiter |
| MCB (Circuit Breaker) | 25A type B |
| OUTPUT CHARACTERISTICS | ||
|---|---|---|
| DC Output Voltage Rated | CPS-EC2000.048 | 48Vdc |
| CPS-EC2000.060 | 60Vdc | |
| CPS-EC2000.110 | 110Vdc | |
| CPS-EC2000.220 | 220Vdc | |
| DC Voltage Setting Range | CPS-EC2000.048 | 48 – 58Vdc |
| CPS-EC2000.060 | 60 – 75Vdc | |
| CPS-EC2000.110 | 110 – 137Vdc | |
| CPS-EC2000.220 | 220 – 264Vdc | |
| DC Current Setting Range | CPS-EC2000.048 | 20,8 – 41,6A |
| CPS-EC2000.060 | 16,7 – 33,4A | |
| CPS-EC2000.110 | 9,1 – 18,2A | |
| CPS-EC2000.220 | 4,6 – 9,1A | |
| Power Rated | 2000W, 184-264Vac | |
| Efficiency 230Vac | 92-94% at 90% load | |
| Load Regulation | < ±0,05% 0-100% | |
| Ripple & Noise 230Vac 20MHz | CPS-EC2000.048 / .060 CPS-EC2000.110 CPS-EC2000.220 |
150mV 300mV 500mV |
| Hold Up Time | >20ms @ 230Vac | |
| Soft Start | 100ms typical | |
| Start up from Shutdown | Typ. 340ms | |
| Start up from Inhibit | Typ. 340ms | |
| Response to Load Change | <1ms 10-100%, 100-10% | |
| Base Load | None required (open circuit proof) | |
| PROTECTION | ||
|---|---|---|
| Over Voltage Protection | CPS-EC2000.048 | 67Vdc |
| CPS-EC2000.060 | 84Vdc | |
| CPS-EC2000.110 | 154Vdc | |
| CPS-EC2000.220 | 310Vdc | |
| Over Current Protection | CPS-EC2000.048 | 41,6A |
| CPS-EC2000.060 | 33,4A | |
| CPS-EC2000.110 | 18,2A | |
| CPS-EC2000.220 | 9,1A | |
| Short Circuit Protection | Continuous, auto-recovery | |
| Open Circuit Proof | Continuous | |
| Over Temperature Protection | Thermal shutdown with auto recovery (+60°C, metering distance 50mm) | |
| Derating | +50°C to +60°C: 2.5%/°C | |
| CONTROL INTERFACE | |
|---|---|
| Potentiometer C/V Setting | 15 turns high precision; protective forced isolation to inputs and output 3000Vac |
| Operation Failure Relay | Yes, break contact; protective forced isolation to inputs and output 3000Vac |
| Sense Function | Compensation 2V per load line |
| Remote Shutdown | Yes; protective forced isolation to inputs and output 3000Vac |
| Inhibit Function (Interlock) | Yes; protective forced isolation to inputs and output 3000Vac |
| Boost Charge Mode | +10% current boost via open collector; overall 2000W limit applies |
| Imon Accuracy | < ±1% interface |
| Imon Rise/Fall Time | Typ. 0,2ms 0-100%/100-0% |
| Imon Latency | 0,1ms to signal change |
| GENERAL SPECIFICATIONS | |
|---|---|
| Cooling | Controlled and stepless fans from manufacturer EBM Papst (Germany) |
| Ambient Operating Temperature | -25°C to +60°C |
| Ambient Storage Temperature | -40°C to +85°C |
| Environment | Humidity 95% non-condensing @ 25°C, climate class 3K3, pollution rate 2 |
| Leakage Current | Typ. 1,9mA, <2,7mA, 230Vac 50Hz |
| Isolation Paths | > 8mm creepage distance & clearance paths |
| Input to Output Isolation | 3000Vac |
| Input to Case Isolation | 2500Vac |
| Output to Case Isolation | 500Vdc (models ≥48Vdc: 2800Vdc) |
| Protection Class | I — PE connection required |
| MTBF (IEC61709) | 400,000h (Meantime Between Failures: statistic time between failures after repairs) |
| MTTF (IEC61709) | 144,006h (Meantime To Failure: statistic time to ever fails) |
| Dimensions (H×W×D) | 161,2 × 250 × 119,5mm |
| Weight | 4,1kg / 9,0lbs |
| AC Terminals | Input Screw Terminal 3× AWG22 – AWG6 / 0,5 – 16mm² (L, N, PE) |
| DC Terminals | Output Screw Terminal 4× AWG22 – AWG6 / 0,5 – 16mm² (+ + / - -) |
| COMPLIANCE | |
|---|---|
| RoHS | 2011/65/EU, (EU) 2015/863 |
| REACH | EG No. 1907/2006 |
| EMI | EN55032; conducted: .048/.110 Class B, .060/.220 Class A; all models radiated Class B |
| EMS | EN61000-6-2 |
| Safety | EN61010-1, EN61010-2-201, EN62368-1, EN60950-1, EN60204-1 |
Selection Table
| MODEL NUMBER | RATED OUTPUT VOLTAGE | VOLTAGE SETTING RANGE | CURRENT SETTING RANGE |
|---|---|---|---|
| CPS-EC2000.048 | 48Vdc | 48 – 58Vdc | 20,8 – 41,6A |
| CPS-EC2000.060 | 60Vdc | 60 – 75Vdc | 16,7 – 33,4A |
| CPS-EC2000.110 | 110Vdc | 110 – 137Vdc | 9,1 – 18,2A |
| CPS-EC2000.220 | 220Vdc | 220 – 264Vdc | 4,6 – 9,1A |

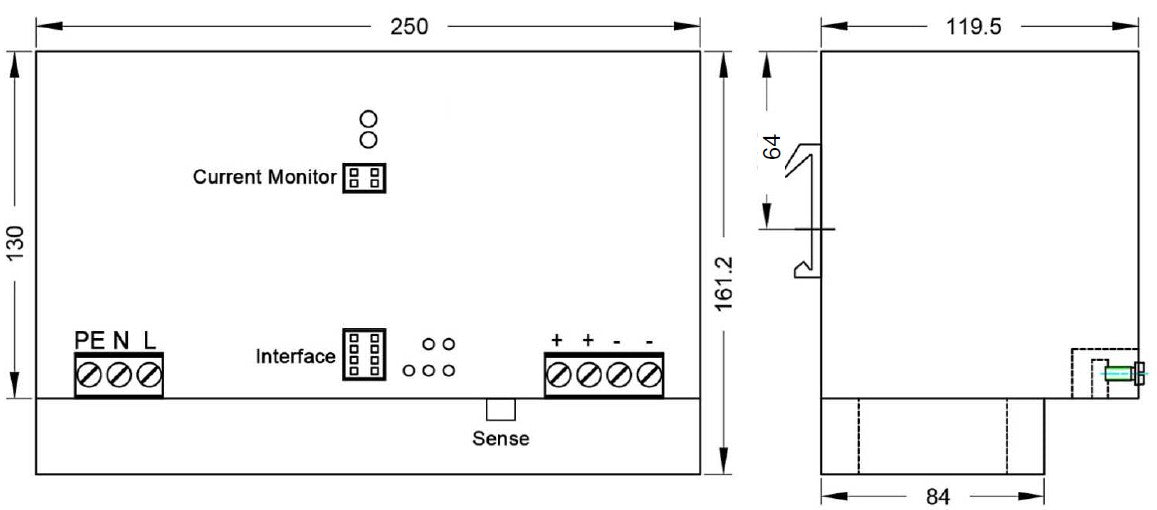

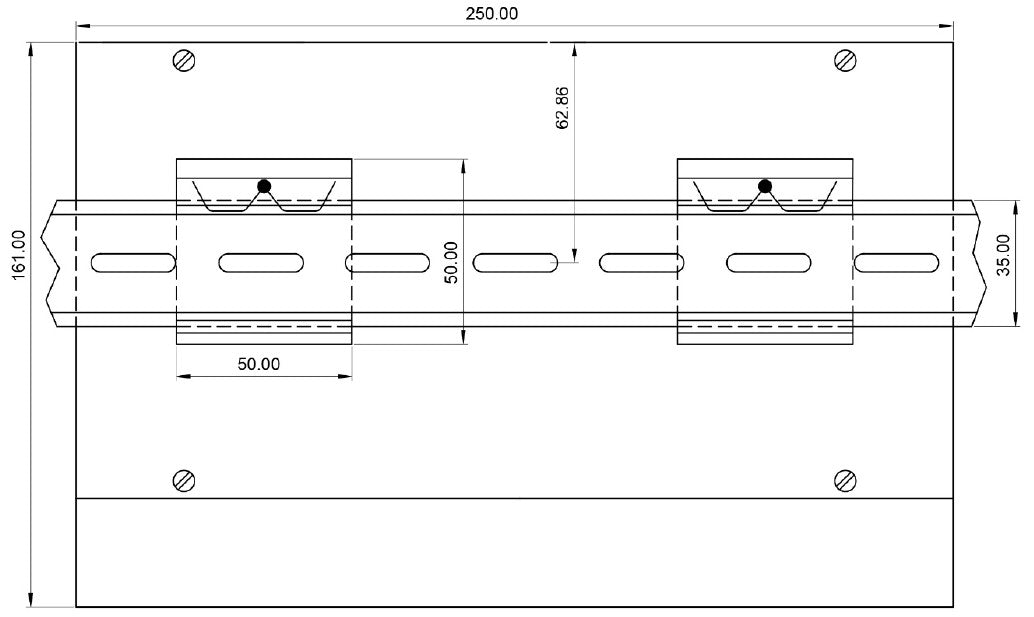

Technical Drawings
