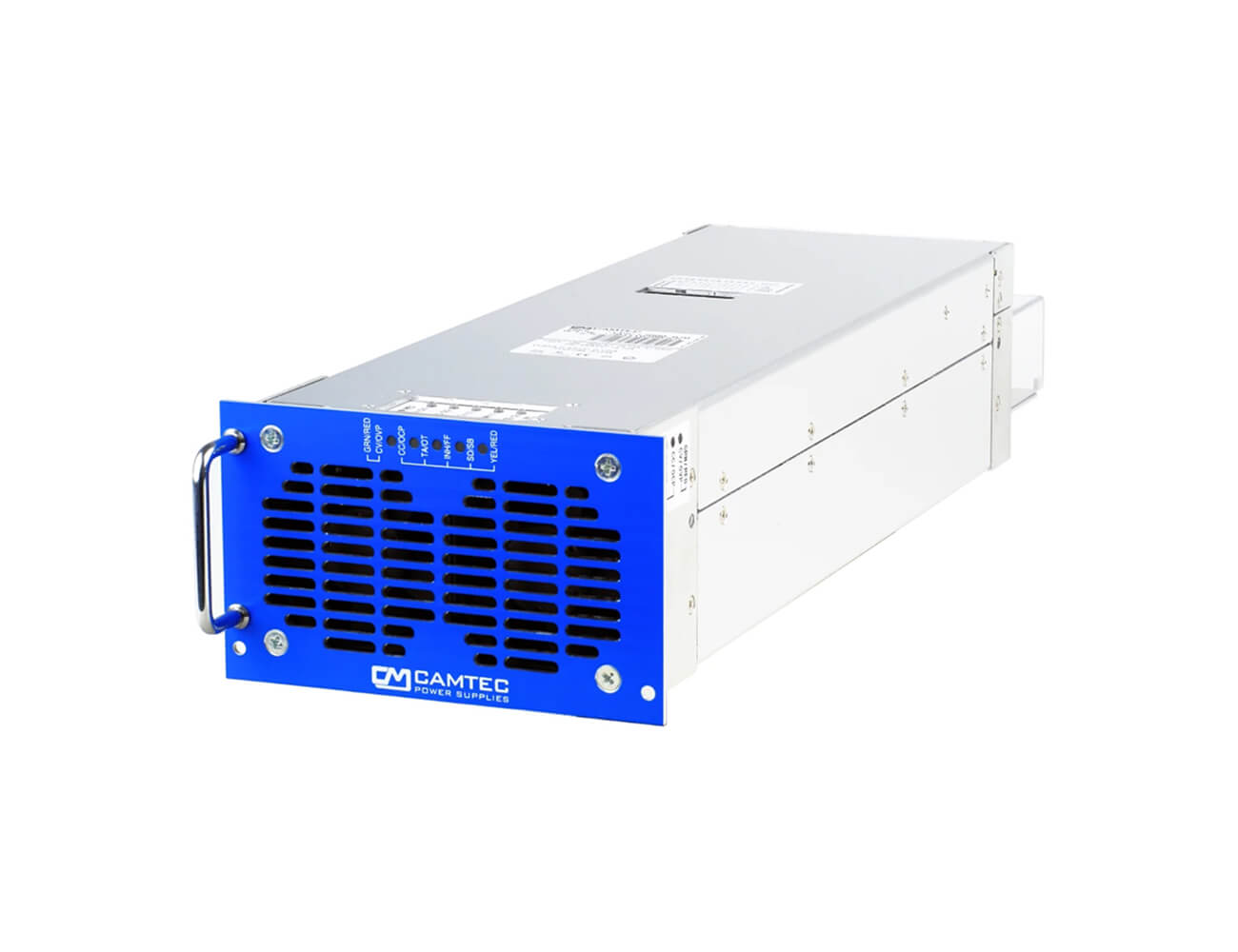

Camtec CPS-EP3000 SERIES AC/DC Power Supply
The Camtec CPS-EP3000 Series is an advanced, high-efficiency power solution engineered for industrial-grade performance. Delivering up to 3000W with an efficiency range of 92% to 94%, this charger supports parallel operation up to 100kW, making it perfect for backup power systems, industrial automation, and large-scale DC applications. Its 19" r...
Read MoreThe Camtec CPS-EP3000 Series is an advanced, high-efficiency power solution engineered for industrial-grade performance. Delivering up to 3000W with an efficiency range of 92% to 94%, this charger supports parallel operation up to 100kW, making it perfect for backup power systems, industrial automation, and large-scale DC applications. Its 19" rack-mountable design, available in 2U or 3U formats, provides flexibility for integration in various environments.
Equipped with state-of-the-art features like 3D Heat Dissipation (3D-HD), active PFC with a 0.99 power factor, and a plug-and-play LAN interface option, the CPS-EP3000 ensures optimal performance and easy system integration. The device also includes advanced protection mechanisms, such as overvoltage, thermal shutdown with auto-recovery, and continuous short-circuit protection, ensuring both safety and reliability.
The CPS-EP3000 Series is built with high-end capacitors for longevity and comes with remote shutdown and current share capabilities for streamlined management. Compliance with stringent safety standards (EN61010-1, EN62368-1) and EMI/EMS requirements (EN55032 Class B, EN61000-6-2/3) ensures reliable and safe operation. Choose the Camtec CPS-EP3000 Series for precise, efficient, and scalable battery charging solutions tailored to meet your industrial power needs.
Show Less
Features
- 3000W Power Supply scalable
- 3D-HD (3D Heat Dissipation)
- Inhibit for safe interlocking
- Remote Shutdown. Sense mode
- Real time & value C/V-monitoring
- PSU can be used as a battery charger due to constant current
- Reference voltage f. autonomous programming
- CSB Current Share Bus
- Power Good Relay DC-ok
- Precise dynamics on load change
- Series & parallel operation up to >100kW
- EMC conducted class B. radiated class A
- Efficiency 92-94%
- PFC Powerfactor 0.99
- Variable controlled fans from Papst
- Long lifetime under hard operation

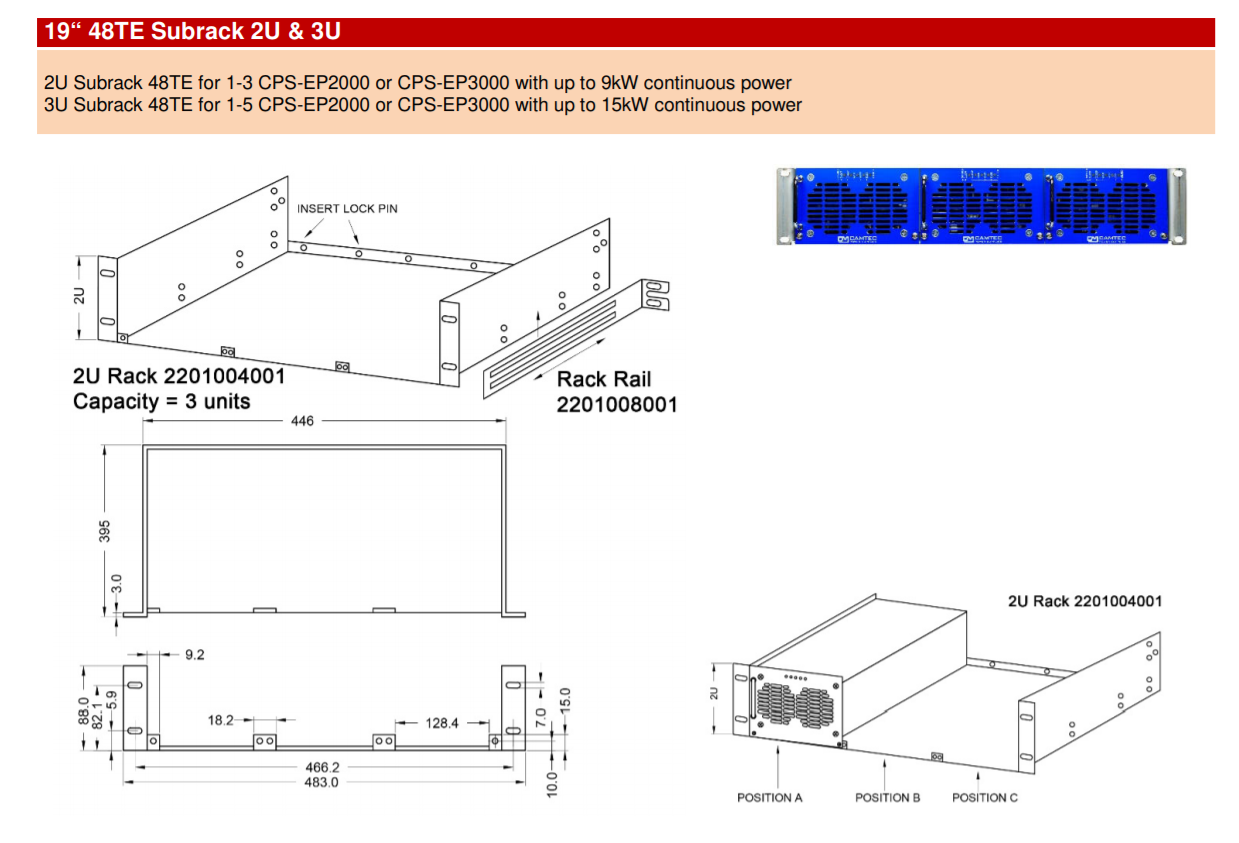

- Solid 2U and 3U subframes available
Specifications
| GENERAL | |
|---|---|
| Output Voltage | See selection table |
| AC Input Voltage | 184 – 265Vac |
| Frequency | 47-63Hz |
| DC Input Range | 250 – 350Vdc |
| AC Nominal Voltage | 230Vac <10A |
| DC Nominal Voltage | 250Vdc <9,3A 350Vdc <6,7A |
| Continuous Power Pnom | 184 265Vac, 2000W |
| Power Density | 8W / Cubic-Inch |
| Cooling | Continuously controlled and monitored fans from EBM Papst (Germany) |
| Efficiency | typ. 92 - 94% 230Vac at full load |
| Power Factor Control | 0,99 / 230Vac full load |
| Short Circuit Resistance | Yes |
| Open Circuit Protected | Yes |
| Base Load (OCP) | Non required (open circuit protected) |
| Load Regulation | < ± 0,05% 0-100% |
| Load Regulation Time | <1ms on load switch 10-100% |
| Accuracy Imon | Ureg: 0,5%, Ireg: plusmn; 1%, Umon: 0,5%, Imon: 1%, Uref: 1% |
| Temperature Control | yes, thermal shutdown & autorecovery (+70C, outside measuring point distance 10mm) |
| Hold Up Time | >20ms 230Vac mains buffering at full load |
| Inrush Current | <14,6Aeff <20,7Apeak 230Vac active electronic inrush protection (no simple NTC) |
| Startup Delay | typ. 1s |
| Softstart | typ. 100ms |
| RELIABILITY | |
|---|---|
| Isolation Input to Output | 3000Vac |
| Isolation Input to Case | 2500Vac |
| Isolation Output to Case | 500Vdc , 60Vdc= 1200Vdc / 150Vdc= 2100Vdc |
| MTBF | 419500h (IEC61709) |
| MTTF | 146110h (IEC61709) |
| ROHS | 2011/65/EU conform |
| REACH | EG No. 1907/2006 conform |
| ENVIRONMENTAL | |
|---|---|
| Ambient Temperature | - 20°C…+60°C operating, derating 2,5%/°C >50°C |
| Storage Temperature | - 40°C…+85°C |
| Ambient Conditions | Humidity 95% non-condensing @ 25°C, climate class 3K3, pollution degree 2 |
| STANDARDS AND APPROVALS | |
|---|---|
| EMI | EN55022 conducted class B, radiated class A |
| EMS | EN61000-6-2,3 |
| Safety | EN60950-1, EN60204-1 |
| Saftey Class I | EN60950-1, EN60204-1 |
| MECHANICAL | |
|---|---|

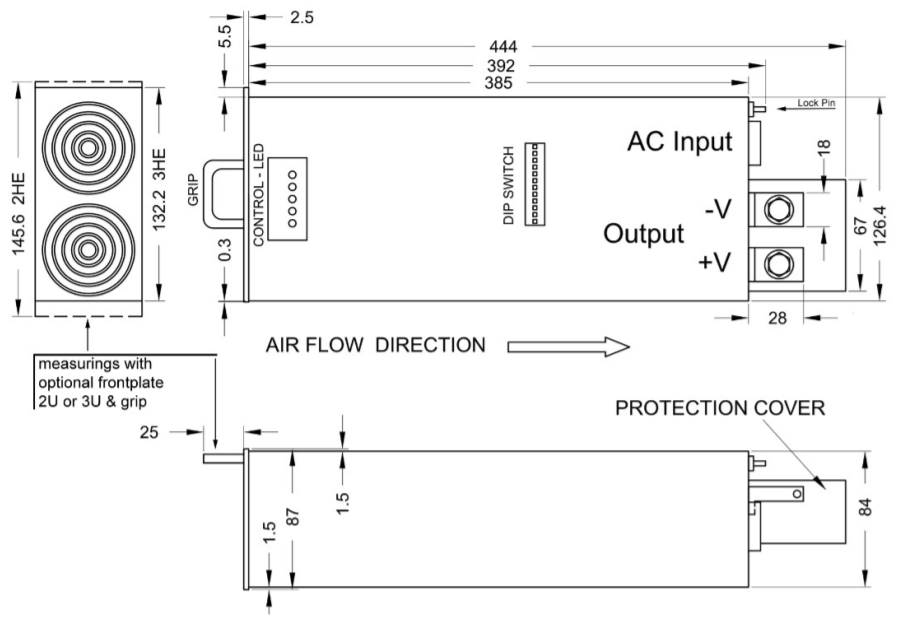

| Dimensions (HxWxD) | 84x126,4x444mm (without frontplate, note cable outlet in planning) |
| Weight | 4,4kg |
| Input Power Connections | Neutrik NAC3FCA (locked by bajonett) included |
| Output Power Connections | Brass-Powerbars with metric M8 thread, a touch protection is included |
Selection Table
| MODEL | CPS-EP3000.012 | CPS-EP3000.024 | CPS-EP3000.036 | CPS-EP3000.048 |
|---|---|---|---|---|
| DC Vout Set Range | 2-15Vdc | 24-30Vdc | 30-45Vdc | 45-58Vdc |
| DC Current | 200A | 125A | 83A | 62,5A |
| Over Voltage OVP | 17Vdc | 35Vdc | 52Vdc | 68Vdc |
| Over Current OCP | 204,0A | 127,5A | 84,7A | 63,8A |
| Ripple Noise 230Vac 20MHz | 35mVpp | 35mVpp | 50mVpp | 75mVpp |
| MODEL | CPS-EP3000.072 | CPS-EP3000.110 | CPS-EP3000.220 |
|---|---|---|---|
| DC Vout Set Range | 58-90Vdc | 90-150Vc | 200-300Vdc |
| DC Current | 41,6A | 27,2A | 13,6A |
| Over Voltage OVP | 105Vdc | 175Vdc | 350Vdc |
| Over Current OCP | 42,4A | 27,7A | 13,9A |
| Ripple Noise 230Vac 20MHz | 150mVpp | 200mVpp | 600mVpp |

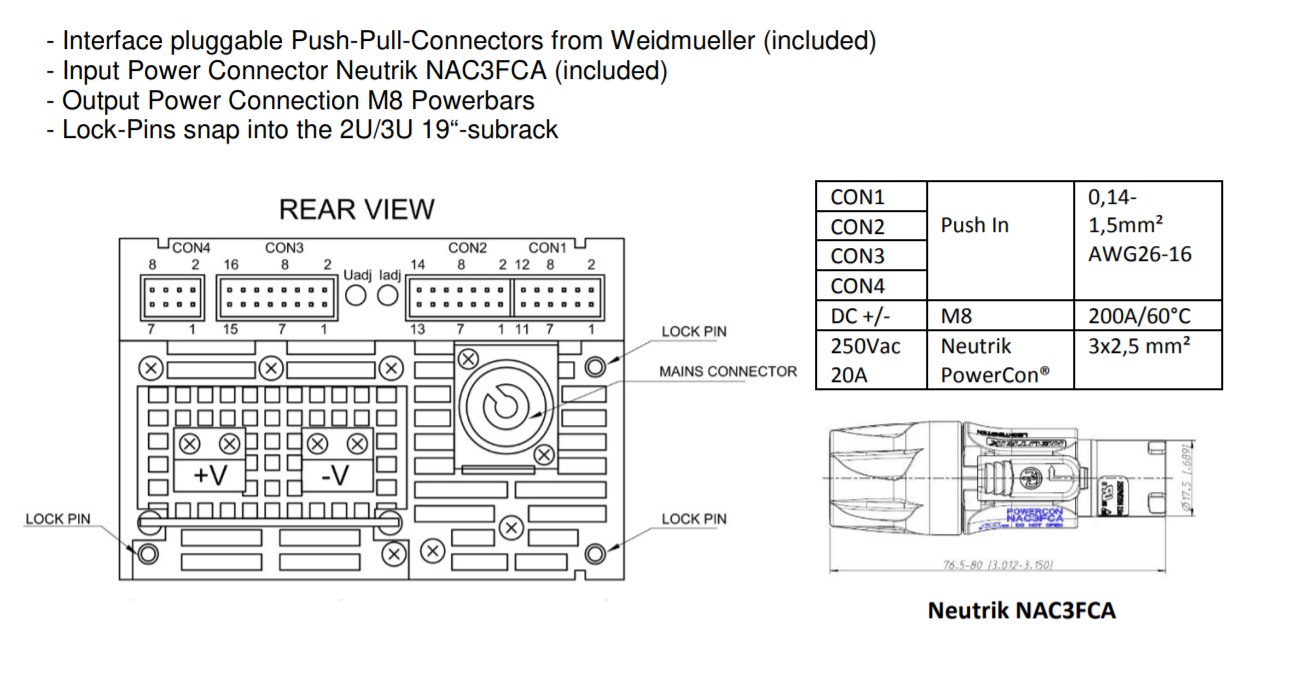

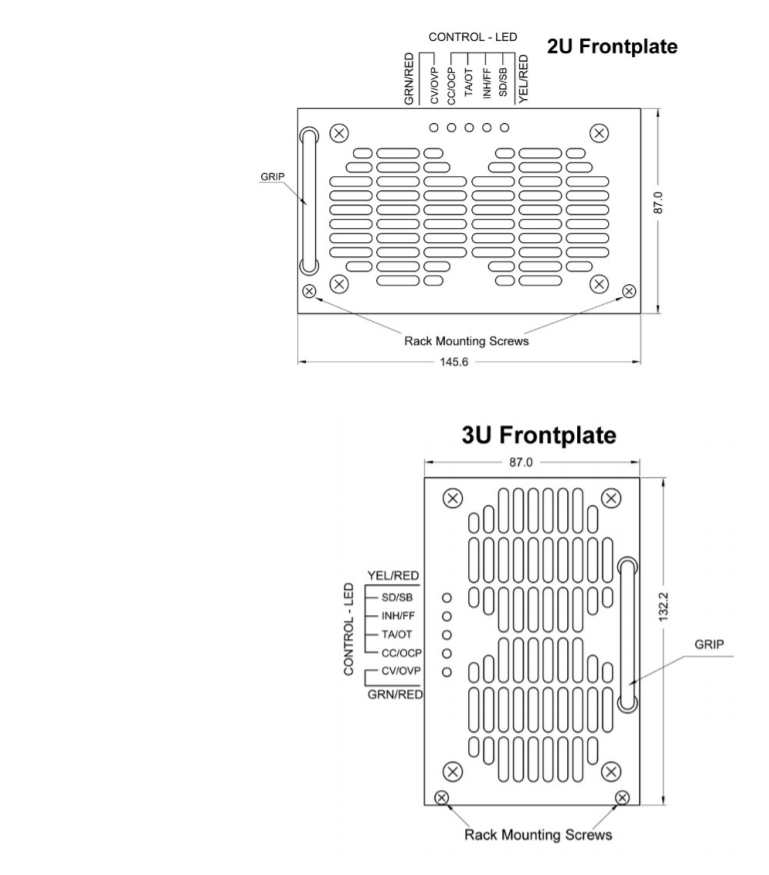

Technical Drawings
