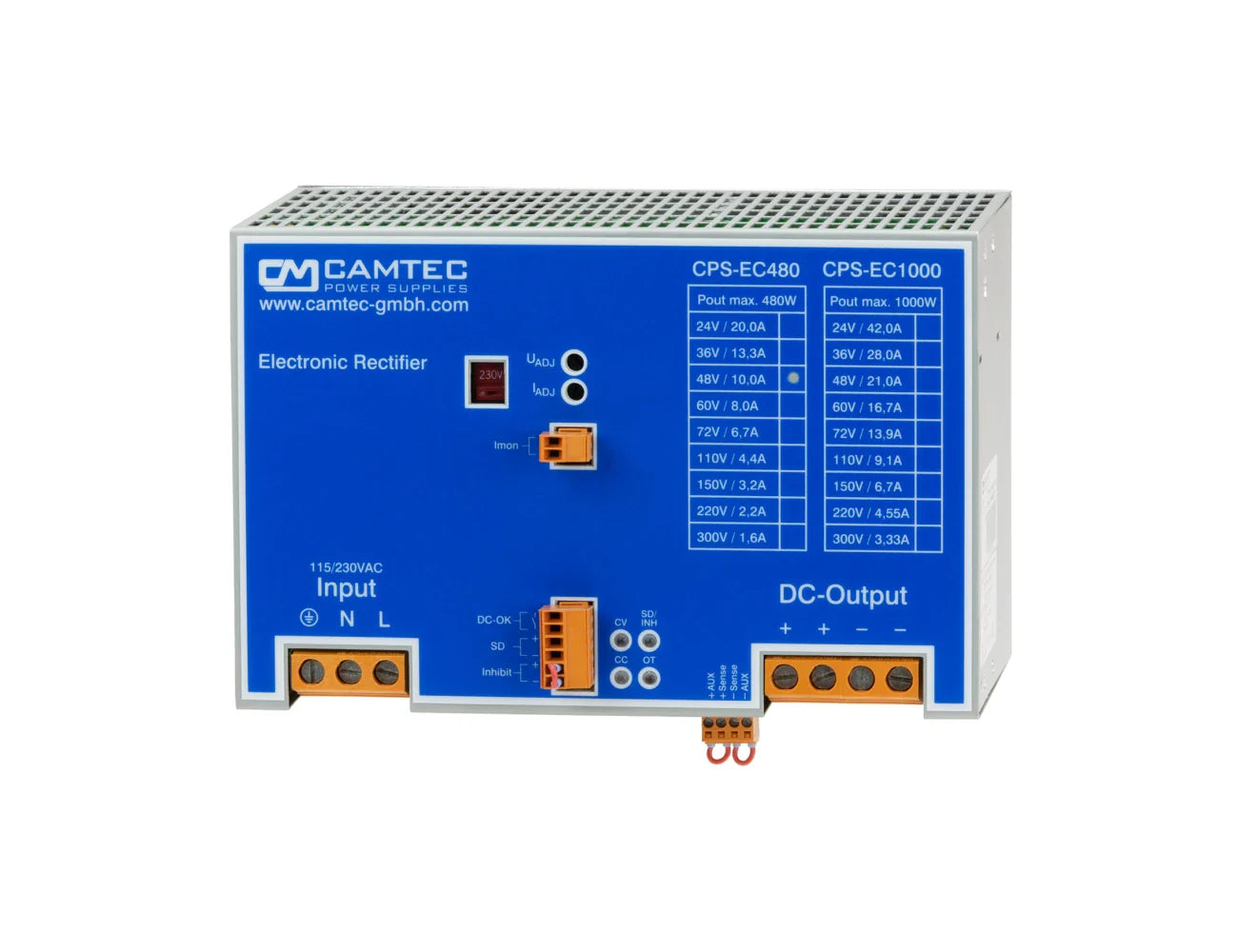

Camtec CPS-EC480 Series AC/DC Power Supply & Battery Charger
The Camtec CPS-EC480 Series is a high-precision, DIN rail-mounted DC power supply and battery charger engineered for high-performance and long-life operation in demanding industrial environments. With a continuous output power of up to 480W and efficiency levels reaching 92%, it is a reliable solution for applications such as DC motor drives, ba...
Read MoreThe Camtec CPS-EC480 Series is a high-precision, DIN rail-mounted DC power supply and battery charger engineered for high-performance and long-life operation in demanding industrial environments. With a continuous output power of up to 480W and efficiency levels reaching 92%, it is a reliable solution for applications such as DC motor drives, battery-backed control systems, industrial automation, and DC-UPS infrastructure.
A key advantage of the CPS-EC480 Series is its ability to automatically switch between constant voltage (CV) and constant current (CC) modes, enabling the unit to safely manage both steady-state loads and high inrush current devices without performance degradation. This makes it ideal for driving dynamic loads or charging large battery banks under varying conditions.
The CPS-EC480 supports precision adjustment of both output voltage and current via high-resolution potentiometers, and provides real-time output current monitoring for integration into supervisory or diagnostic systems. With output voltage options from 24Vdc to 300Vdc, robust overload and thermal protection features, and optional conformal coating for harsh environments, this German-engineered power supply is built for stability, safety, and flexibility.
It meets international safety and EMC standards including EN61010-1, EN62368-1, and EN55032 Class B, ensuring suitability for installation in critical industrial systems.
Show Less
Features
- CV/CC Auto Mode: Seamlessly switches between constant voltage and constant current modes, supporting both load operation and battery charging without voltage instability or foldback.
- Real-Time Output Monitoring & DC-OK Relay: Integrated 0–5V current monitor output provides accurate, live feedback of load consumption, while a built-in DC-OK Relay indicates loss of input power, low output voltage, or thermal shutdown - enabling reliable system supervision and fault detection.
- Adjustable Output Ranges: High-precision potentiometers allow fine-tuning of both voltage and current across models ranging from 24Vdc to 300Vdc output.
- Inbuilt Protection: Includes continuous short-circuit protection, over-voltage shutdown, thermal shutdown with auto-recovery, and open-circuit safety.
- DIN-Rail Mount & Natural Cooling: Compact metal housing with tool-free DIN rail mounting and convection cooling ensures fast installation and reliable thermal performance in tight spaces.
- Conformal Coating Option: Available with a durable acrylic coating to protect against moisture, dust, and temperature cycling in harsh or outdoor-exposed environments.
Specifications
| GENERAL | |
|---|---|
| AC Input Voltage | 90...132Vac / 184...265Vac (115/230Vac input selector, factory setting is 230Vac) |
| DC Input Voltage | 250Vdc...375Vdc (input selector set to 230Vac) |
| AC Input Rating |
115Vac <9A; 230Vac < 4.9A |
| DC Input Rating |
250Vdc<2.4A; 375Vdc<1.6A (input selector set to 230Vac rated) |
| DC Output Voltage | Refer to 'Selection' or 'Find The Right Model' Tables |
| DC Output Current | Refer to 'Selection' or 'Find The Right Model' Tables |
| Frequency | 47-63Hz |
| Rated Power | 480W Cont. (90-132Vac, 184-264Vac) |
| Potentiometer C/V Setting | 15 turn high precision, protective forced isolation to the inputs and the output 3000Vac |
| Operation Failure Relay | Yes, break contact, protective forced isolation to the inputs and the output 3000Vac |
| Sense Function | Compensation 1V per load line |
| Remote Shutdown | Yes, protective forced isolation to the inputs and the output 3000Vac |
| Inhibit Function (Interlock) | Yes, protective forced isolation to the inputs and the output 3000Vac |
| Derating | +60°C...+70°C 2.5%/°C |
| Accuracy | < ± 1.5% interface |
| Load Regulation | < ± 0.05% 0-100% |
| Start up from Shutdown | Typ. 320ms |
| Start up from Inhibit | Typ. 320ms |
| Response to Load Change | <1ms 10-100%, 100-10% |
| Base Load | None required (open circuit proof) |
| Efficiency 230Vac | Up to 92% at 90% load |
| Short Circuit Protection | Continuous |
| Open Circuit Proof | Continuous |
| Temperature Control | Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm) |
| Hold Up Time | >50ms 230Vac |
| Inrush Current | <9,8Aeff < 13.8Apeak (230Vac) active inrush current limiter |
| Soft Start | 100ms typical |
| RELIABILITY | |
|---|---|
| Isolation paths | > 8mm creepage distance & clearance paths |
| Input to Output Isolation | 3000Vac |
| Input to Case Isolation | 2500Vac |
| Output to Case | 500Vdc , models ≥60Vdc 2300Vdc |
| Meantime By Failure (MTBF) | 400000h (IEC61709) |
| Meantime To Failure (MTTF) | 148312h (IEC61709) |
| ENVIRONMENTAL | |
|---|---|
| Cooling | Natural Convection |
| Ambient Operating Temp. | - 25°C…+70°C |
| Ambient Storage Temp. | - 40°C…+85°C |
| Environment | Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II |
| STANDARDS AND APPROVALS | |
|---|---|
| ROHS | 2011/65/EG confirmed |
| REACH | EG No. 1907/2006 confirmed |
| EMI | EN55022 class B |
| EMS | EN61000-6-2,3 |
| Safety | EN60950-1, EN60204-1 |
| Safety class 1(A) | VDE0805, VDE0100 |
| MECHANICAL | |
|---|---|
| Dimensions (HxWxD) | 130x200x114,5 mm |
| Weight | 3Kg |
| AC Terminals | Input Screw Terminal 3x AWG20 – AWG6 / 0,5 – 16mm² (L,N,PE) |
| DC Terminals | Output Screw Terminal 4x AWG20 – AWG6 / 0,5 – 16mm² (+ + / - - ) |
Selection Table
| MODEL | CPS-EC480.024(R2) | CPS-EC480.036(R2) | CPS-EC480.048(R2) | CPS-EC480.060(R2) | CPS-EC480.072(R2) |
|---|---|---|---|---|---|
| Rated DC Voltage | 24Vdc | 36Vdc | 48Vdc | 60Vdc | 72Vdc |
| Rated DC Current | 20A | 13,3A | 10A | 8A | 6,7A |
| DC Voltage Setting Range | 24–30V | 36–45V | 48–58V | 60–75V | 72–90V |
| DC Current Setting Range | 10–21A | 6,6–14A | 5,0–10,5A | 4,0–8,4A | 3,4–7A |
| Overvoltage Protection | 34Vdc | 50Vdc | 67Vdc | 84Vdc | 100Vdc |
| Ripple Peak 230Vac 20MHz | 40mV | 40mV | 100mV | 150mV | 200mV |
| MODEL | CPS-EC480.110(R2) | CPS-EC480.150(R2) | CPS-EC480.220(R2) | CPS-EC480.300(R2) | |
|---|---|---|---|---|---|
| Rated DC Voltage | 110Vdc | 150Vdc | 220Vdc | 300Vdc | |
| Rated DC Current | 4,4A | 3,2A | 2,2A | 1,6A | |
| DC Voltage Setting Range | 110–137,5V | 132–180V | 220–264V | 264–360V | |
| DC Current Setting Range | 2,2–4,6A | 1,6–3,3A | 1,1–2,3A | 0,8–1,7A | |
| Overvoltage Protection | 154Vdc | 210Vdc | 310Vdc | 420Vdc | |
| Ripple Peak 230Vac 20MHz | 300mV | 400mV | 400mV | 400mV |

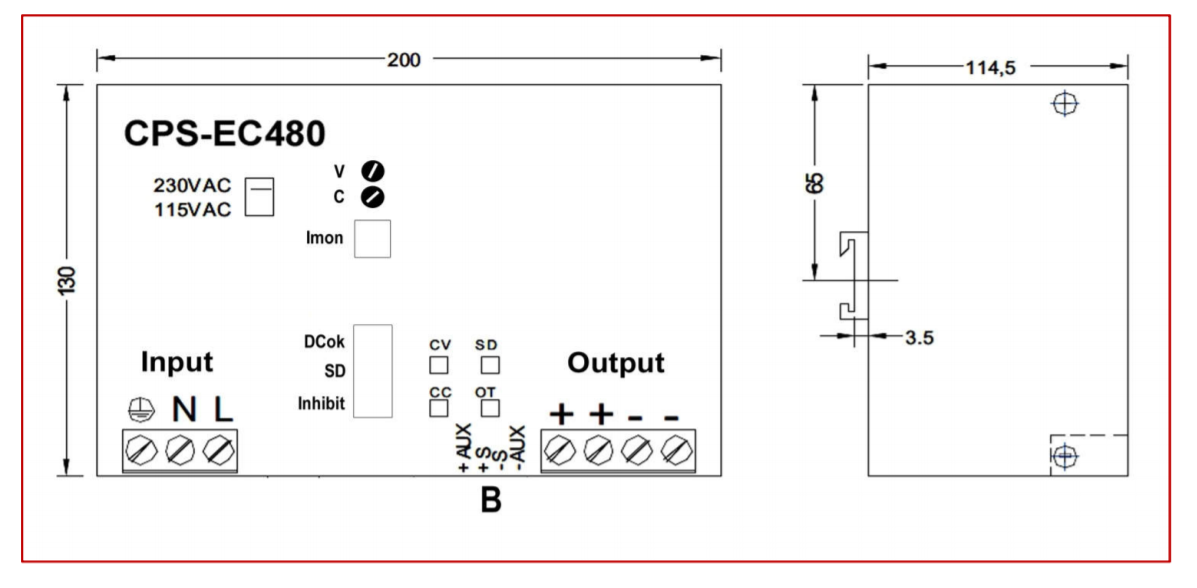

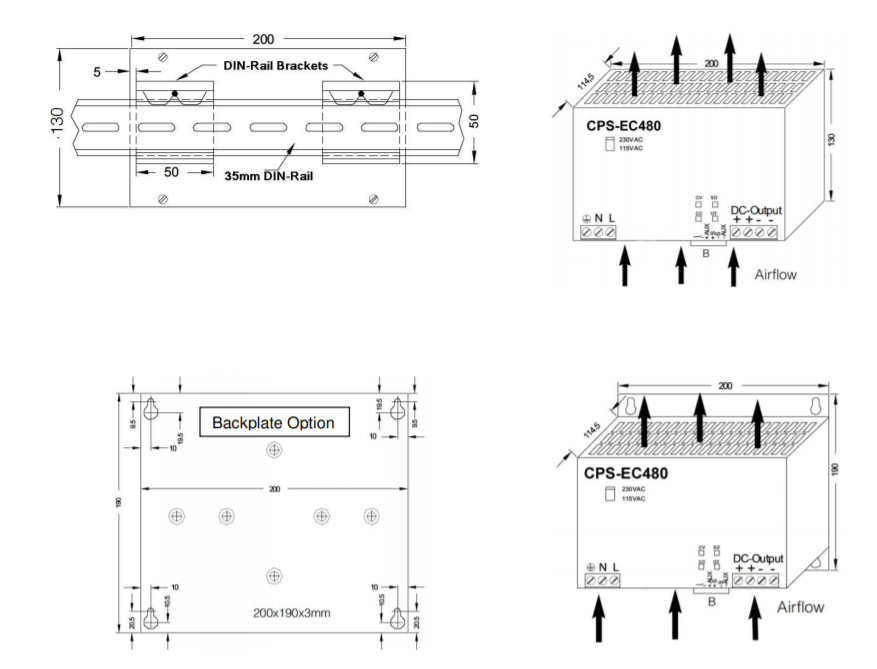

Technical Drawings
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
