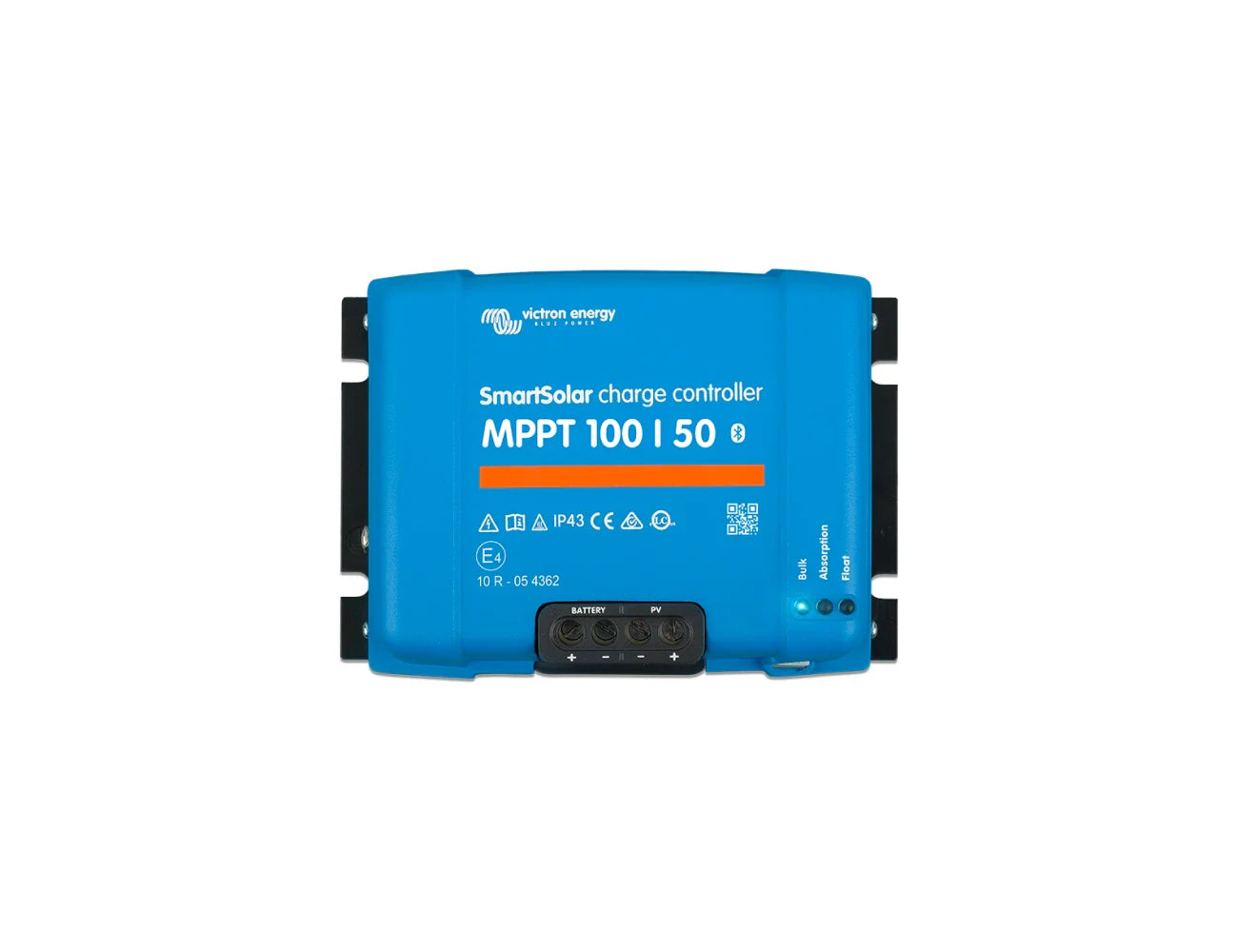

Victron SMARTSOLAR MPPT 100/30 & 100/50 Solar Charge Controller
SmartSolar MPPT controllers (100/30 & 100/50) by Victron Energy optimise solar energy harvest using ultra-fast tracking technology. These controllers adjust to varying light conditions to maximize power extraction, essential for maintaining efficient operation in partially shaded areas. They support up to a 100V photovoltaic input and delive...
Read MoreSmartSolar MPPT controllers (100/30 & 100/50) by Victron Energy optimise solar energy harvest using ultra-fast tracking technology. These controllers adjust to varying light conditions to maximize power extraction, essential for maintaining efficient operation in partially shaded areas. They support up to a 100V photovoltaic input and deliver high conversion efficiency, close to 98%, minimizing energy loss. Their built-in Bluetooth connectivity allows for easy setup and monitoring directly from a smartphone, providing a user-friendly experience while ensuring that systems operate at peak performance.
Show Less
Specifications
| SmartSolar Charge Controller | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Battery Voltage |
12V, 24V Auto Select |
||||||||||||||||||||||||||||||||||||||||||||||||
| Rated charge current |
See selection table |
||||||||||||||||||||||||||||||||||||||||||||||||
| Nominal PV power |
See selection table |
||||||||||||||||||||||||||||||||||||||||||||||||
| Self-consumption |
12V: 30 mA , 24V: 20 mA |
||||||||||||||||||||||||||||||||||||||||||||||||
| Charge voltage 'absorption' |
Default setting: 14,4V / 28,8V (adjustable) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Charge voltage 'float' |
Default setting: 13,8V / 27,6V (adjustable) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Charge algorithm |
multi-stage adaptive |
||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature compensation |
-16 mV / °C resp. -32 mV / °C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Protection |
Battery reverse polarity (fuse, not user accessible) PV reverse polarity Output short circuit Over temperature |
||||||||||||||||||||||||||||||||||||||||||||||||
| Operating temperature |
30 to +60°C (full rated output up to 40°C) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity |
95%, non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||
| Data communication port |
VE.Direct, Contact Powerbox |
||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating temperature |
-30 to +60°C (full rated output up to 40°C) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity |
95%, non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum altitude |
5000m (full rated output up to 2000m) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Environmental condition |
Indoor, unconditioned |
||||||||||||||||||||||||||||||||||||||||||||||||
| Pollution degree |
PD3 |
||||||||||||||||||||||||||||||||||||||||||||||||
| STANDARDS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 | ||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Colour | Blue (RAL 5012) | ||||||||||||||||||||||||||||||||||||||||||||||||
| Power terminals | 13 mm² / AWG6 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Protection category |
IP43 (electronic components), IP22 (connection area) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 1,3 kg | ||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions (h x w x d) | 130 x 186 x 70 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
Selection Table
| SmartSolar Charge Controller |
MPPT 100/30 |
MPPT 100/50 |
|---|---|---|
|
Battery voltage (Auto Select) |
12 / 24 V |
12 / 24 V
|
| Rated charge current | 30A | 50A |
| Nominal PV power, 12V 1a,b) | 440W | 700W |
| Nominal PV power, 24V 1a,b) | 880W | 1400W |
| Maximum PV open circuit voltage | 100V | 100V |
| Max. PV short circuit current 2) | 35A | 60A |
| Maximum efficiency | 98% | 98% |
1a) If more PV power is connected, the controller will limit input power
1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V./p>
2) A higher sort circuit current may damage the controller in case of reverse polarity connection of the PV array.
Technical Drawings
