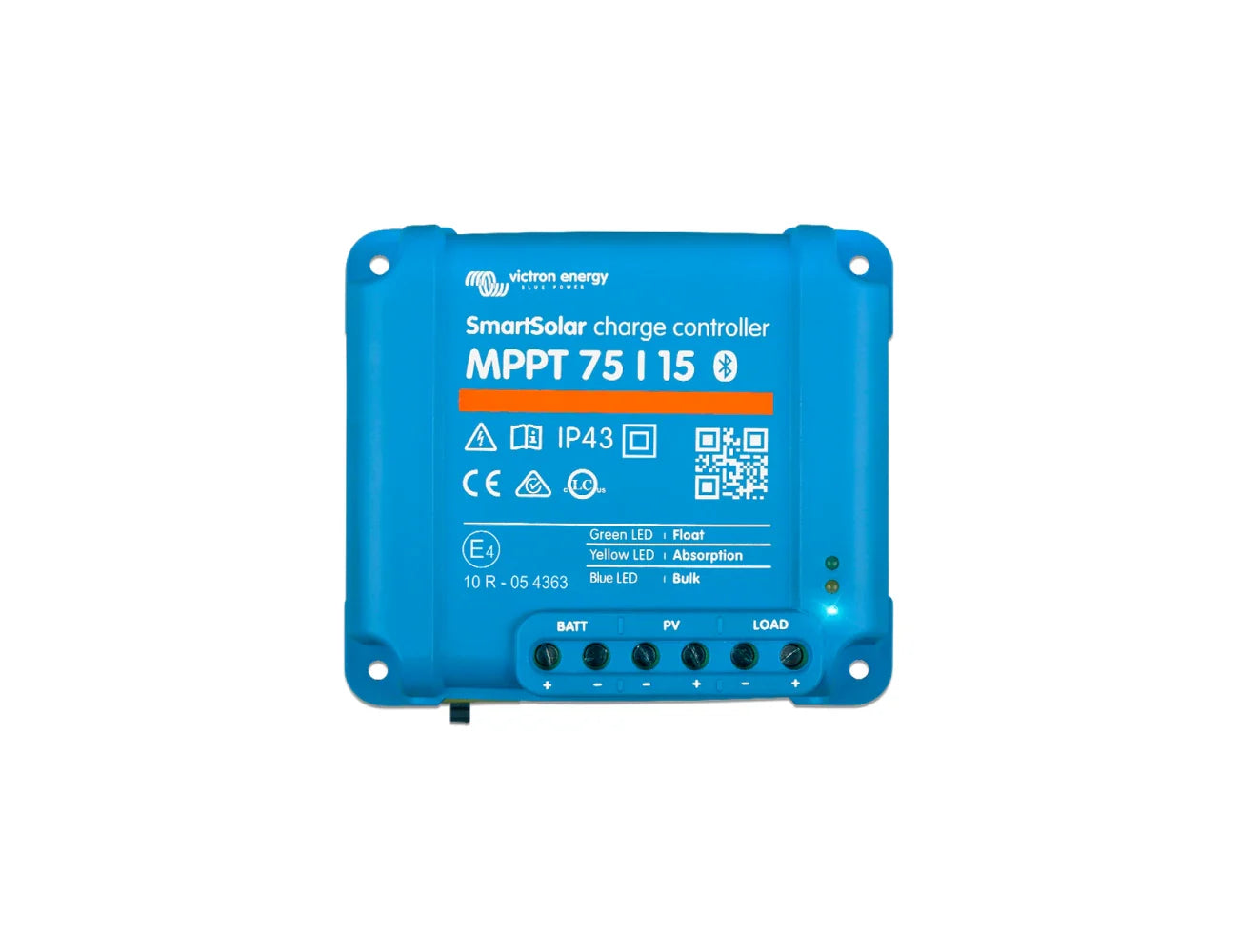

Victron SMARTSOLAR MPPT 75/10, 75/15, 100/15 & 100/20 Solar Charge Controller
The Victron SMARTSOLAR MPPT series, including the 75/10, 75/15, 100/15, and 100/20 models, offers high-performance solar charge controllers designed for small to medium-sized solar systems. These controllers optimise energy harvest and ensure reliable battery charging, making them ideal for off-grid, RV, and boat solar applications. Applications...
Read MoreThe Victron SMARTSOLAR MPPT series, including the 75/10, 75/15, 100/15, and 100/20 models, offers high-performance solar charge controllers designed for small to medium-sized solar systems. These controllers optimise energy harvest and ensure reliable battery charging, making them ideal for off-grid, RV, and boat solar applications.
Applications:
The SMARTSOLAR MPPT 75/10, 75/15, 100/15, and 100/20 are tailored for:
- Small off-grid solar systems
- Recreational vehicles (RVs) and caravans
- Marine solar setups
- Compact residential or commercial solar applications
Why Choose Victron SMARTSOLAR MPPT Controllers?
Combining advanced technology with user-friendly features, these solar charge controllers deliver reliable, efficient, and hassle-free energy management. Whether you're powering a boat, RV, or off-grid cabin, the SMARTSOLAR MPPT series ensures optimal solar energy utilisation while safeguarding your batteries.
Show Less
Features
- Ultra-Fast MPPT Technology: Maximises solar energy harvest by up to 30% compared to PWM controllers, even in varying light conditions.
- Battery Life Algorithm: Extends battery lifespan by intelligently managing charge cycles to prevent undercharging or over-discharging.
- Bluetooth Smart Integration: Monitor and configure your system wirelessly using the VictronConnect app for convenience.
- VE.Direct Communication: Allows simple integration with GX devices, PCs, or other monitoring solutions for real-time performance tracking.
- Load Output with Over-Discharge Protection: Automatically disconnects loads when the battery voltage drops to preserve battery health.
- Adaptive Charging Algorithms: Customisable multi-stage charge profiles ensure compatibility with a variety of battery types.
- Compact and Robust Design: Lightweight with a small footprint, perfect for installations with space constraints.
- Durable Protection: Features short-circuit, over-temperature, and reverse polarity protections to ensure safe operation in harsh conditions.
Specifications
| SmartSolar Charge Controller | |
|---|---|
| Battery Voltage | 12V/24V auto select |
| Rated charge current | See selection table |
| Nominal PV power | See selection table |
| Maximum PV open circuit voltage | MPPT75/10, 75/15, 75V MPPT100/15, 100/20, 100V |
| Maximum efficiency | 98% |
| Self-consumption - load on | 12 V: 19 mA | 24 V: 16 mA - MPPT 75/10, MPPT 75/15, MPPT 100/15 26 / 20 / 19 mA - MPPT 100/20-48 |
| Self-consumption - load off | 12 V: 10 mA | 24 V: 8 mA - MPPT 75/10, MPPT 75/15, MPPT 100/15 10 / 8 / 7 mA - MPPT 100/20-48 |
| Charge voltage 'absorption' | 14,4V / 28,8V (adjustable) |
| Charge voltage 'float' | 13,8V / 27,6V (adjustable) |
| Charge algorithm | multi-stage adaptive |
| Temperature compensation | -16 mV / °C resp. -32 mV / °C |
| Continuous load current | MPPT75/10 &75/15 , MPPT100/15, 15A MPPT100/20, 20A |
| Low voltage load disconnect | 11,1V / 22,2V or 11,8V / 23,6V or Battery Life algorithm |
| Low voltage load reconnect | 13,1V / 26,2V or 14V / 28V or Battery Life algorithm |
| Protection | Battery reverse polarity (fuse) Output short circuit Over temperature |
| Data communication port | VE.Direct or Bluetooth |
| ENVIRONMENTAL | |
|---|---|
| Operating temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
| Maximum altitude | 5000m (full rated output up to 2000m) |
| Environmental condition | Indoor, unconditioned |
| Pollution degree | PD3 |
| STANDARDS | |
|---|---|
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| MECHANICAL | |
|---|---|
| Colour | Blue (RAL 5012) |
| Power terminals | 6 mm² / AWG10 |
| Battery terminals | 35 mm² / AWG2 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | MPPT75/10, 75/15 , 0.5 kg MPPT100/15, 0.6 kg MPPT100/20, 0.65 kg |
| Dimensions (h x w x d) |
MPPT75/10, 75/15 , 100 x 113 x 40 mm MPPT100/15, 100 x 113 x 50 mm MPPT100/20, 100 x 113 x 60 mm |
Selection Table
| SmartSolar Charge Controller | MPPT 75/10 | MPPT 75/15 | MPPT 100/15 | MPPT 100/20 |
|---|---|---|---|---|
| Battery voltage (Auto Select) | 12 / 24V | 12 / 24V | 12 / 24V | 12 / 24V / 48V |
| Rated charge current | 10A | 15A | 15A | 20A |
| Nominal PV power, 12V 1a,b) | 145W | 220W | 220W | 290W |
| Nominal PV power, 24V 1a,b) | 290W | 440W | 440W | 580W |
| Max. PV short circuit current 2) | 13A | 15A | 15A | 20A |
| Automatic load disconnect | Yes, max load 15A | 20A |
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V./p>
2) A higher sort circuit current may damage the controller in case of reverse polarity connection of the PV array.
Technical Drawings
