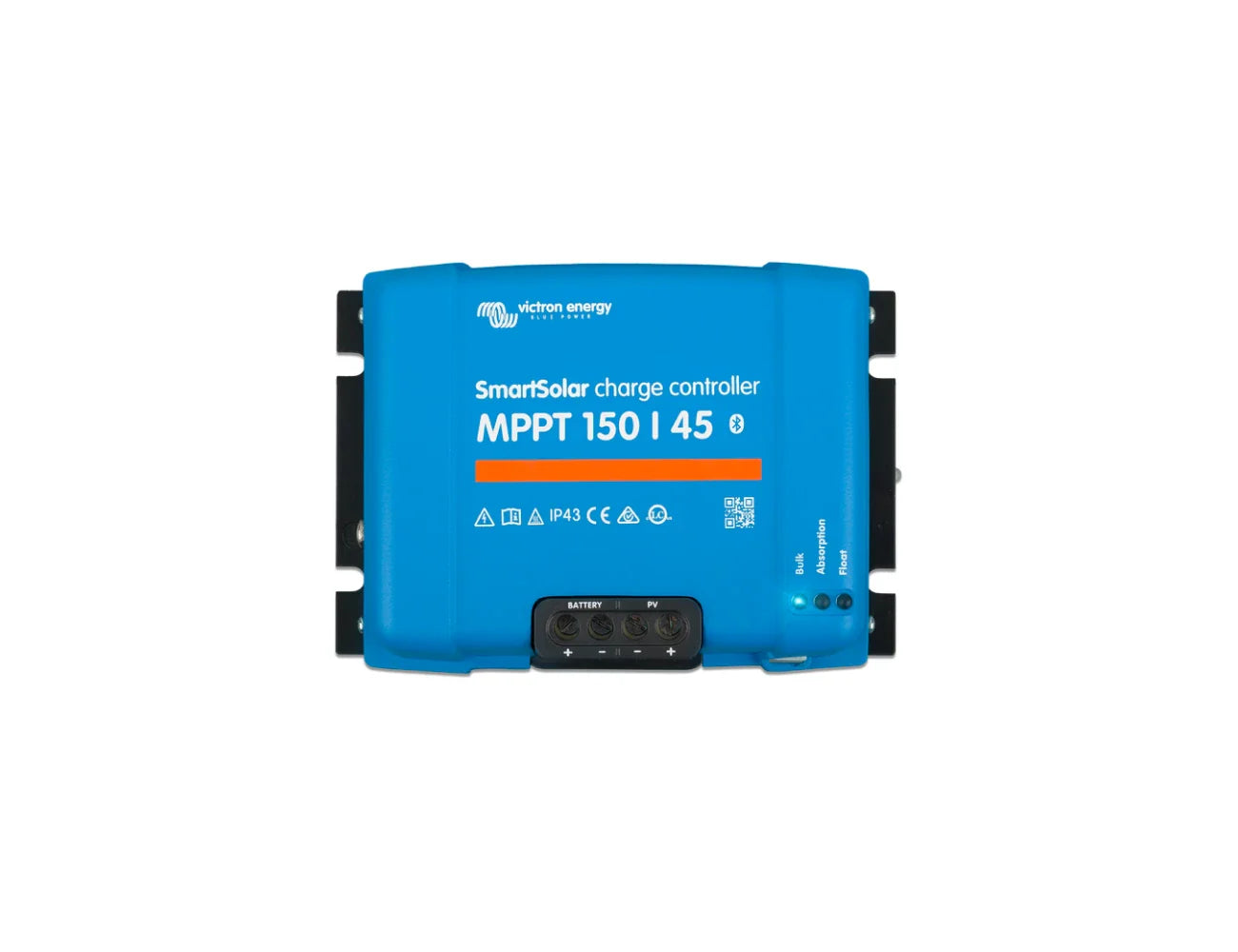

Victron SMARTSOLAR MPPT 150/45 UP TO 150/100 Solar Charge Controller
The Victron SmartSolar MPPT 150/45 to 150/100 Solar Charge Controllers are high-performance energy management solutions designed for off-grid and hybrid solar systems. Supporting 12V, 24V, and 48V battery systems, these controllers offer unmatched reliability and efficiency for residential, commercial, and industrial solar installations. Key fea...
Read MoreThe Victron SmartSolar MPPT 150/45 to 150/100 Solar Charge Controllers are high-performance energy management solutions designed for off-grid and hybrid solar systems. Supporting 12V, 24V, and 48V battery systems, these controllers offer unmatched reliability and efficiency for residential, commercial, and industrial solar installations.
Key features include ultrafast Maximum Power Point Tracking (MPPT) technology, which boosts energy harvest by up to 30% compared to PWM controllers and 10% over slower MPPT models. With a maximum PV input voltage of 150V and nominal PV power capacities of up to 2600W (48V systems), the SmartSolar series efficiently handles demanding solar installations. Advanced shading detection algorithms optimise energy harvest even in partially shaded conditions.
These controllers deliver exceptional conversion efficiency of over 98% and feature multi-stage adaptive charge algorithms with eight pre-programmed options to suit various battery types. Built-in Bluetooth connectivity allows easy monitoring, setup, and firmware updates through the VictronConnect app, eliminating the need for additional dongles. The fully programmable charge algorithm and optional external sensing ensure accurate temperature and voltage management.
Additional protection features include safeguards against PV reverse polarity, output short circuits, and over-temperature. The innovative Battery Recovery function can charge batteries that have been discharged to zero volts, ensuring maximum usability and flexibility.
The rugged design, rated IP43 for electronic components, guarantees reliable operation in temperatures ranging from -30°C to +60°C. For advanced solar installations requiring high efficiency, intelligent control, and seamless integration, the Victron SmartSolar MPPT 150/45 to 150/100 Solar Charge Controllers provide an exceptional solution, maximising your renewable energy investment.
Show Less
Features
- 45A to 100A Solar charge controller
- 12V~48Vdc Autoselect
- Bluetooth Smart built-in: dongle not needed
- 98% efficiency
- Ultra-fast Maximum Power Point Tracking (MPPT)
- Advanced Maximum Power Point Detection in case of partial shading conditions
- Outstanding conversion efficiency
- Flexible charge algorithm
- Extensive electronic protection
- Internal temperature sensor
- VE Direct
- Remote on-off
- Programmable relay
- Optional: pluggable LCD display
Specifications
| SMARTSOLAR CHARGE CONTROLLER | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Battery Voltage |
12V, 24V, 36V, 48V Auto Select (software tool needed to select 36V) See selection table |
||||||||||||||||||||||||||||||||||||||||||||||||
| Rated charge current |
See selection table |
||||||||||||||||||||||||||||||||||||||||||||||||
| Nominal PV power |
See selection table |
||||||||||||||||||||||||||||||||||||||||||||||||
| Max PV open circuit voltage |
150V absolute max coldest conditions 145V start-up and operating max |
||||||||||||||||||||||||||||||||||||||||||||||||
| Maximum efficiency |
98% |
||||||||||||||||||||||||||||||||||||||||||||||||
| Self-consumption |
Less than 35mA @ 12V / 20mA @ 48V |
||||||||||||||||||||||||||||||||||||||||||||||||
| Charge voltage 'absorption' |
Default setting: 14,4 / 28,8 / 43,2 / 57,6V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Charge voltage 'float' |
Default setting: 13,8 / 27,6 / 41,4 / 55,2V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Charge voltage 'equalization' |
Default setting: 16,2 / 32,4 / 48,6 / 64,8V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Charge algorithm |
multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm |
||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature compensation |
12V: -16 mV / 24V: -32 mV / 48V: -64 mV/°C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Protection |
Battery reverse polarity (fuse, not user accessible)
PV reverse polarity Output short circuit Over temperature |
||||||||||||||||||||||||||||||||||||||||||||||||
| Data communication port |
VE.Direct or Bluetooth |
||||||||||||||||||||||||||||||||||||||||||||||||
| Remote on/off |
Yes (2 pole connector) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Programmable relay |
DPST AC rating: 240VAC / 4A DC rating: 4A up to 35VDC, 1A up to 60VDC |
||||||||||||||||||||||||||||||||||||||||||||||||
| Parallel operation |
Yes (not synchronized) |
||||||||||||||||||||||||||||||||||||||||||||||||
| ENVIRONMENTAL | |
|---|---|
| Operating temperature |
-30 to +60°C (full rated output up to 40°C) |
| Humidity |
95%, non-condensing |
| Maximum altitude |
5000m (full rated output up to 2000m) |
| Environmental condition |
Indoor, unconditioned |
| Pollution degree |
PD3 |
| STANDARDS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 | ||||||||||||||||||||||||||||||||||||||||||||||||
| MECHANICAL | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Colour | Blue (RAL 5012) | ||||||||||||||||||||||||||||||||||||||||||||||||
| PV terminals |
35 mm² / AWG2 (Tr models) Two pairs of MC4 connectors (MC4 models) 150/45, 150/60 and 150/70) . Three pairs of MC4 connectors (MC4 models) 150/85 and 150/100) . MC4 models: several splitter pairs may be needed to parallel the strings of solar panels. |
||||||||||||||||||||||||||||||||||||||||||||||||
| Battery terminals | 35 mm² / AWG2 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Protection category | IP43 (electronic components),
IP22 (connection area) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Weight |
MPPT150/45, 150/60 and 150/70, 3 kg MPPT150/85 and 150/100, 4,5 kg |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions (h.w.d)mm MPPT150/45, 150/60 and 150/70 |
Tr models: 185 x 250 x 95 MC4 models: 215 x 250 x 95 |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions (h.w.d)mm MPPT150/85 and 150/100 |
Tr models: 216 x 295 x 103 MC4 models: 246 x 295 x 103 |
||||||||||||||||||||||||||||||||||||||||||||||||
Selection Table
| SmartSolar Charge Controller | MPPT 150/45 | MPPT 150/60 | MPPT 150/70 | MPPT 150/85 | MPPT 150/100 |
|---|---|---|---|---|---|
|
Battery voltage (Auto Select) |
12 / 24 / 48V software tool needed to select 36V |
||||
| Rated charge current | 45A | 60A | 70A | 85A | 100A |
| Nominal PV power, 12V 1a,b) | 650W | 860W | 1000W | 1200W | 1450W |
| Nominal PV power, 24V 1a,b) | 1300W | 1720W | 2000W | 2400W | 2900W |
| Nominal PV power, 36V 1a,b) | 1950W | 2580W | 3000W | 3600W | 4350W |
| Nominal PV power, 48V 1a,b) | 2600W | 3440W | 4000W | 4900W | 5800W |
| Max. PV short circuit current 2) |
50A max 30A / MC4 conn |
70A max 30A / MC4 conn |
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V./p>
2) A higher sort circuit current may damage the controller in case of reverse polarity connection of the PV array.
Technical Drawings
