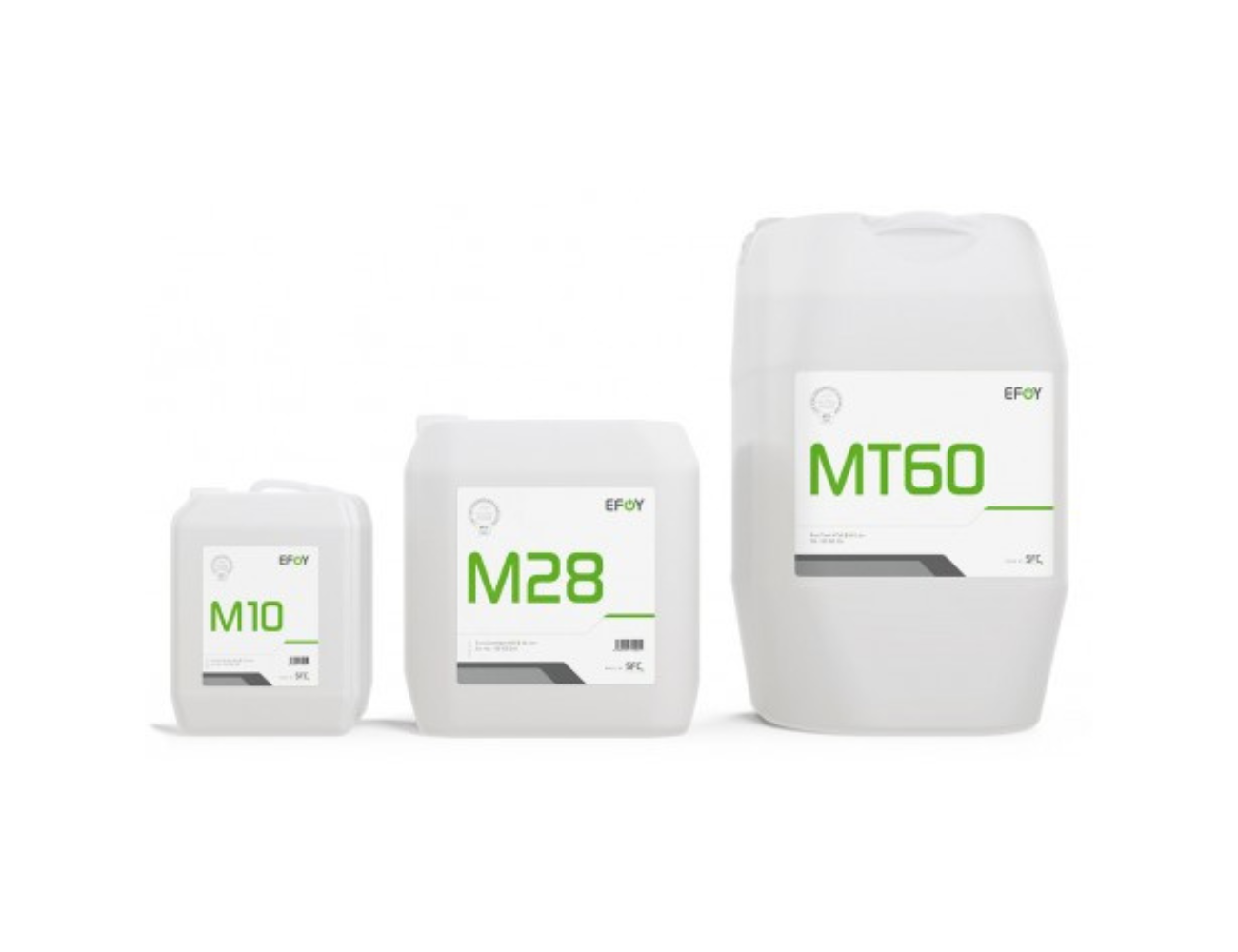

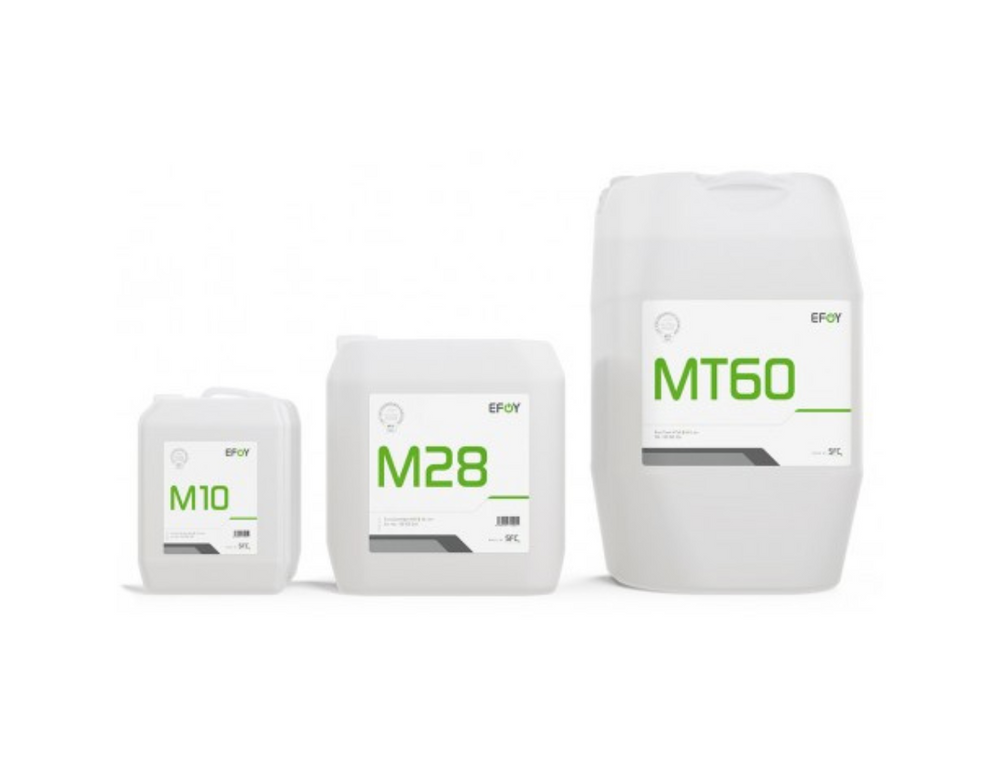

SFC Energy EFOY Fuel Cartridge Series
The SFC Energy EFOY Fuel Cartridge Series is a dependable fuel solution designed to keep EFOY fuel cells mission-ready for extended operations. Engineered for tactical field use, these cartridges provide a stable, eco-friendly methanol fuel supply, ensuring silent, low-profile power essential for off-grid deployments. With a compact, rugged desi...
Read MoreThe SFC Energy EFOY Fuel Cartridge Series is a dependable fuel solution designed to keep EFOY fuel cells mission-ready for extended operations. Engineered for tactical field use, these cartridges provide a stable, eco-friendly methanol fuel supply, ensuring silent, low-profile power essential for off-grid deployments. With a compact, rugged design, they are easy to handle, transport, and swap in challenging environments, enabling uninterrupted energy flow to critical equipment and systems. The EFOY Fuel Cartridge Series maximises operational autonomy and minimises resupply needs, supporting mission success in remote and demanding conditions.
Show Less
Features
- Steady Fuel Supply: Provides consistent power to sustain critical off-grid operations.
- Compact and Portable: Lightweight design for easy transport and quick deployment. UN approved for transportation by sea, road and air.
- Extended Autonomy: Enables long-lasting energy with fewer resupply needs.
- Eco-friendly Methanol: Delivers clean power with minimal environmental impact.
- Rugged Design: Built to endure tough field conditions and rough handling.
- Easy Cartridge Swaps: Quick-connect setup allows for seamless fuel replacement.
Selection Table
| FUEL CARTRIDGE | M10 | M28* | MT60 |
|---|---|---|---|
| Volume |
10 litres |
28 litres |
60 litres |
| Weight |
8.4 kg |
23.4 kg |
55 kg |
| Nominal Capactity |
11.1 kWh |
31.1 kWh |
66.7 kWh |
| Autonomy @ 50W |
222 h |
622 h |
1320 h |
| Orientation |
Only in upright postion |
In upright position and on the side, with valve upside |
Only in upright position |

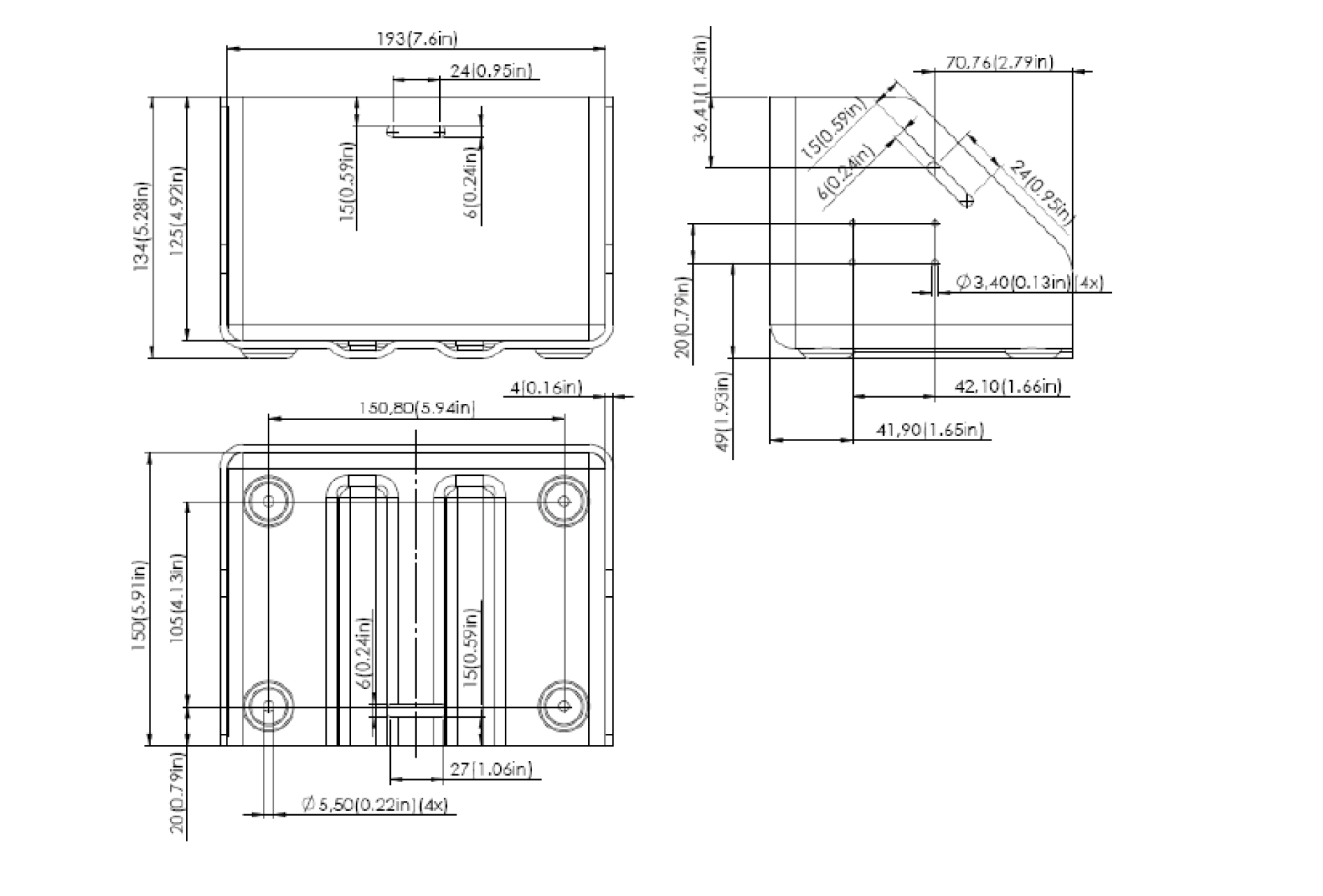

| Fuel cartridge holder available |
Yes |
No |
No |
| Operating temperature |
-20 °C to +50 °C |
-20 °C to +50 °C |
-20 °C to +50 °C |
| Storage Temperature |
-20 °C to +50 °C |
-20 °C to +50 °C |
-20 °C to +50 °C |
| IP class with connnected Fuel Cell |
IP 21 |
IP 21 |
IP 21 |
| Shipping Information | M10 | M28* | MT60 |
|---|---|---|---|
| UN Labelling |
UN 3473 |
UN 3473 |
UN 1230 |
| Proper Shipping Name |
Fuel Cell Cartridges |
Fuel Cell Cartridges |
Methanol |
| Transport Hazard Class |
3 |
3 |
3 (6.1) |
| Packaging Group |
- |
- |
II |
| Dimensions |
230 x 193 x 318 mm |
370 x 285 x 395 mm With M28 Adapter: 370 x 285 x 425 mm |
340 x 390 x 670 mm |
| Dimensions packaging |
410 x 250 x 340 mm |
370 x 300 x 430 mm | - |
| Cartridges on pallet |
27 pack / 54 x M10 |
16 pack / 16 x M28 | 6 MT60 |
| Dimensions Pallet |
1200 x 800 x 1170 |
1200 x 800 x 1010 | 1200 x 800 x 900 |
| Weight Pallet |
500 kg |
400 kg | 325 kg |
| Container |
40 ft = 24 Pallets 20 ft = 11 Pallets Up to 72 per pallet possible |
40 ft = 24 Pallets 20 ft = 11 Pallets Up to 24 per pallet possible |
40 ft = 24 Pallets 20 ft = 11 Pallets |

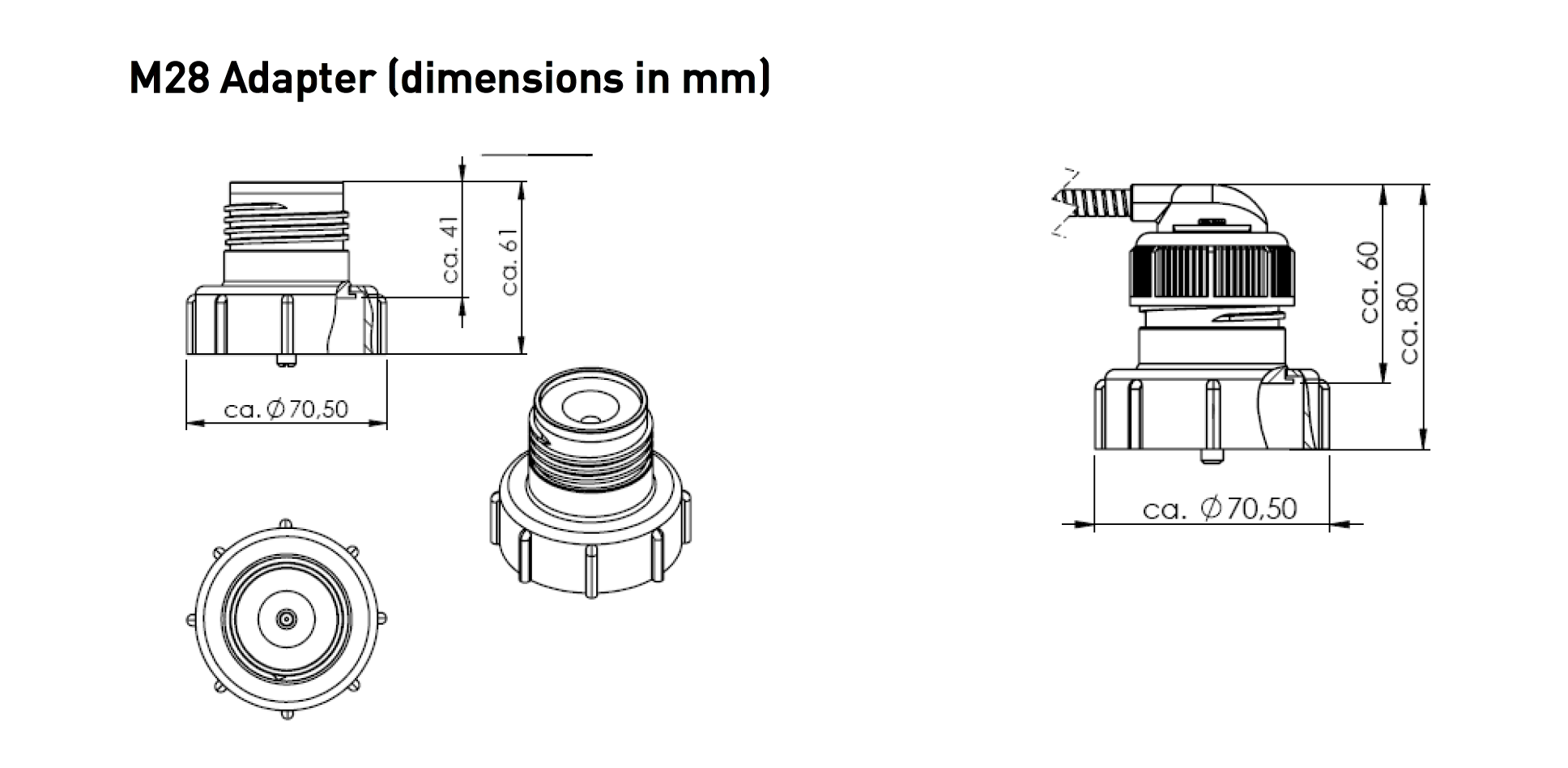

*M28 adapter required.

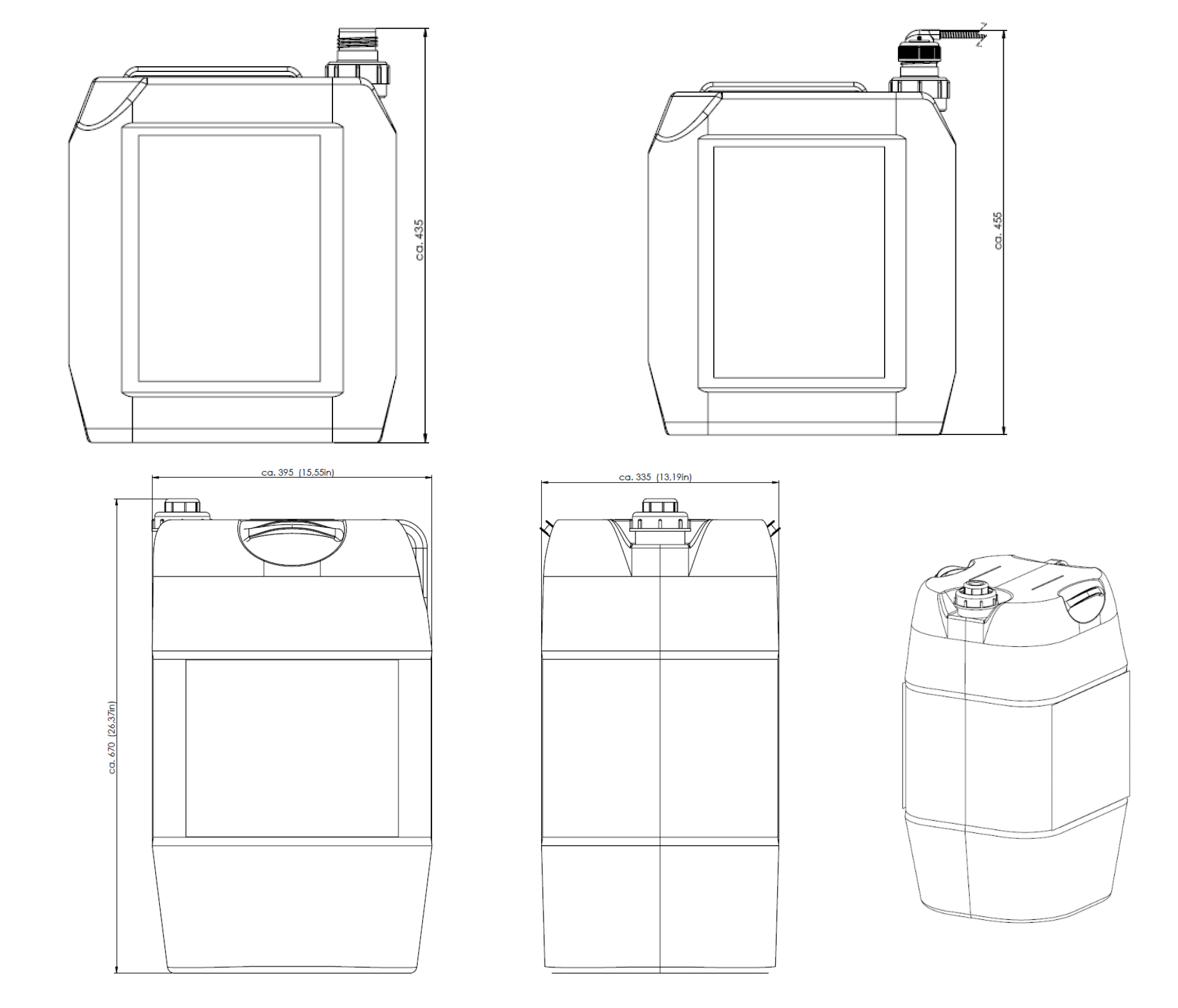

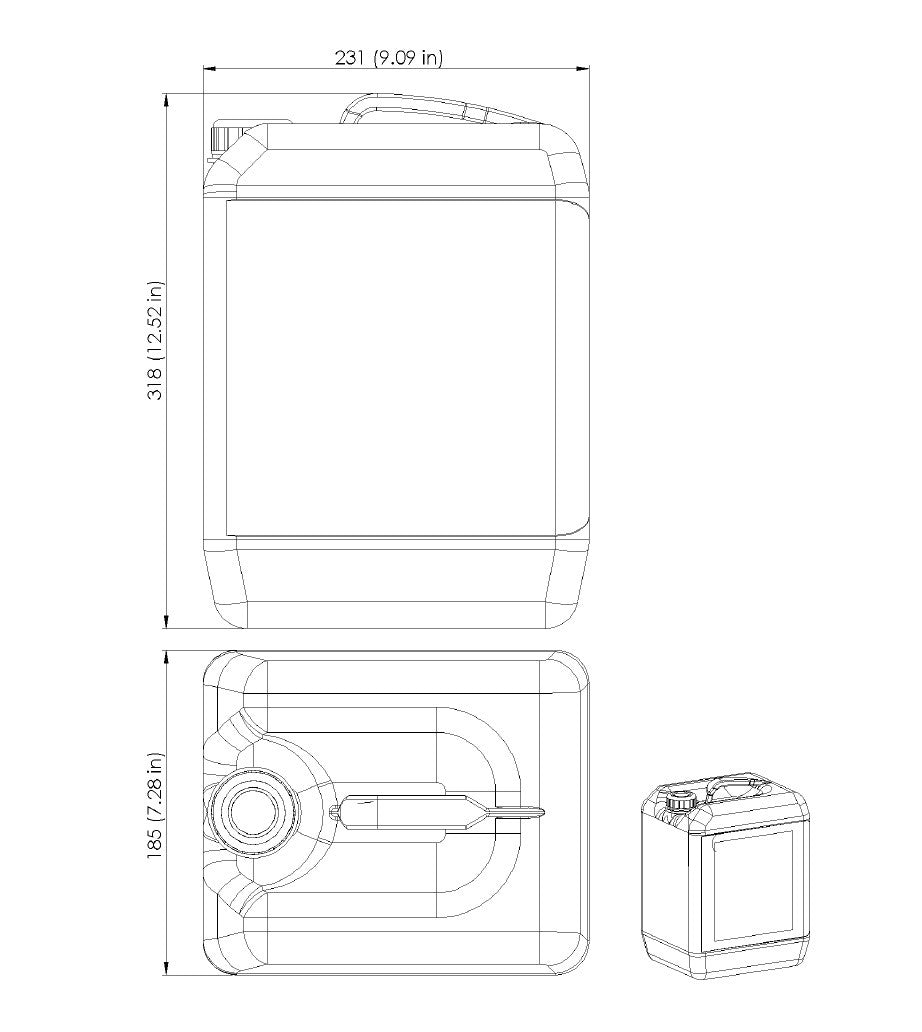

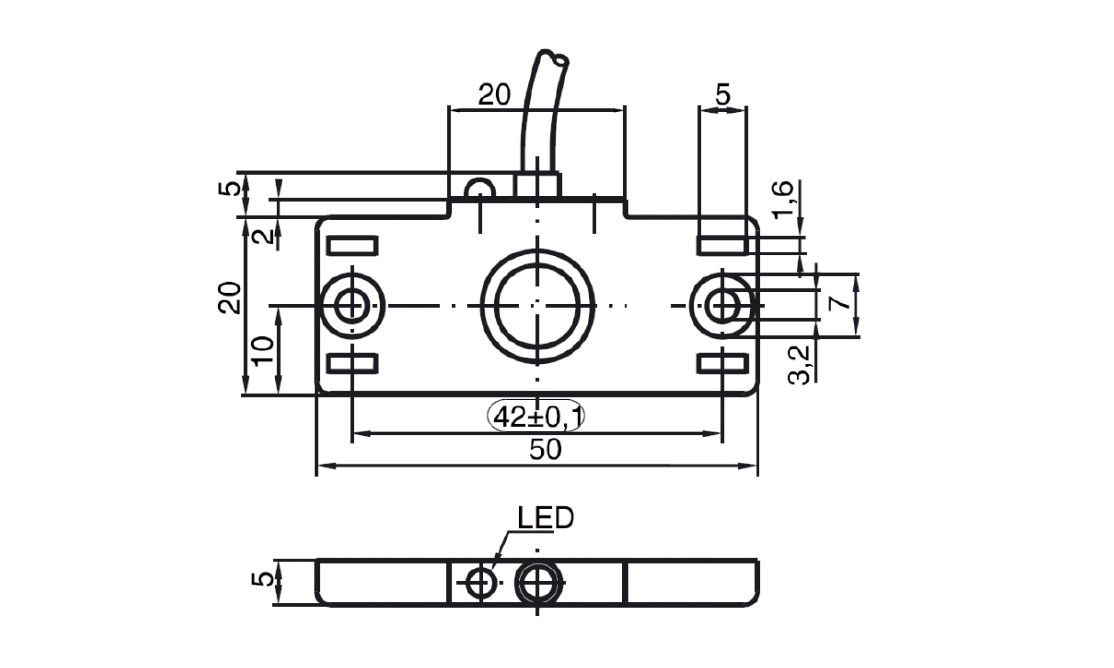

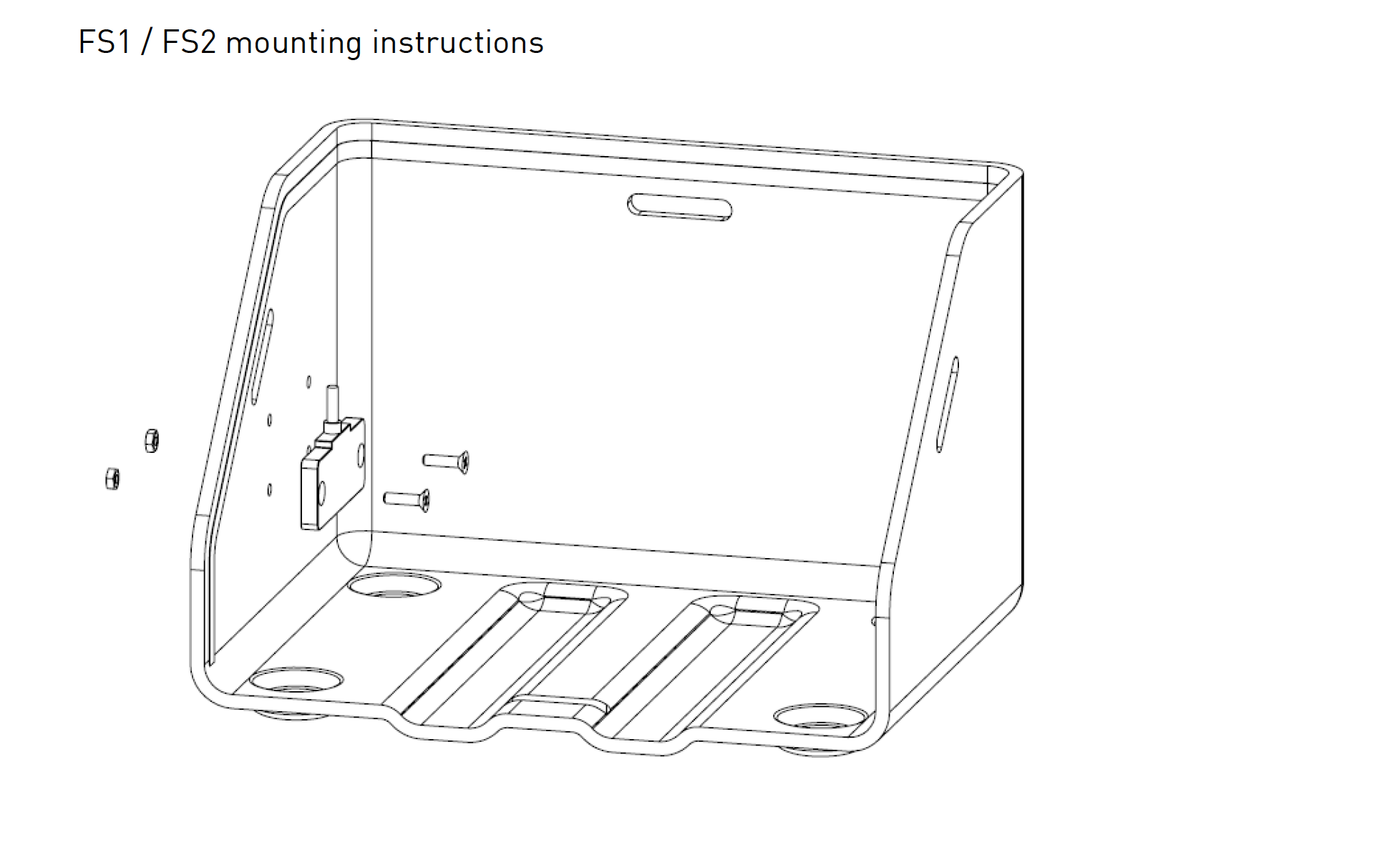

Technical Drawings
