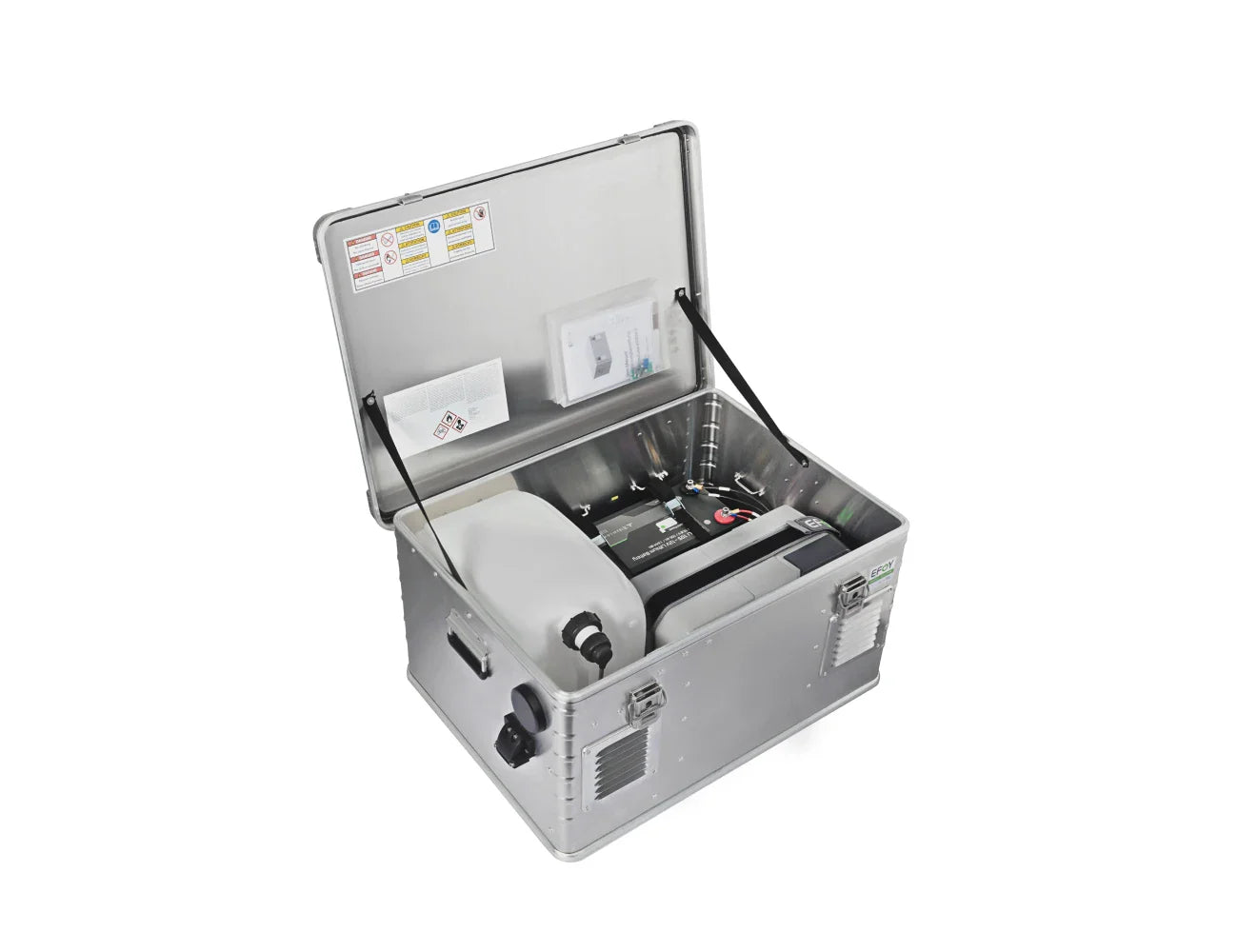

SFC Energy EFOY ProCube 2030A / 2060A
The SFC Energy EFOY ProCube 2030A and 2060A are self-contained, off-grid power solutions purpose-built for demanding remote applications. Powered by advanced methanol fuel cell technology, the ProCube units deliver reliable, eco-friendly energy with low maintenance needs, making them ideal for extended field operations. Encased in a rugged, weat...
Read MoreThe SFC Energy EFOY ProCube 2030A and 2060A are self-contained, off-grid power solutions purpose-built for demanding remote applications. Powered by advanced methanol fuel cell technology, the ProCube units deliver reliable, eco-friendly energy with low maintenance needs, making them ideal for extended field operations. Encased in a rugged, weather-resistant enclosure, each ProCube provides continuous power for mission-critical equipment in challenging environments, supporting applications such as remote monitoring, surveillance, and environmental data collection where uninterrupted, autonomous power is essential.
Show Less
Features
- Flexible Off-Grid Power: Operates with 12V or 24V DC, supporting both temporary and permanent installations in remote locations.
- Hybrid Solar Capability: Integrates with solar panels via a Victron 15A MPPT solar charge controller for enhanced power autonomy.
- Rugged Aluminum Enclosure: Housed in a durable, weather-resistant aluminum case with transport handles for easy mobility (IP33 rated).
- Battery Compatibility: Accommodates various battery types, including Lead-Gel, Lead-Acid, AGM, and LiFePO4, for versatile energy storage options.
- Extended Fuel Autonomy: Supports up to one M28 fuel cartridge with an adapter, providing continuous, maintenance-free operation.
- Advanced Thermal Management: Features active ventilation and exhaust ducting to ensure optimal performance in temperatures up to +50 °C.
Specifications
| EFOY ProCube 2030A | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Voltage | 12V / 24V | ||||||||||||||||||||||||||||||||||||||||||||||||
|
Temperature range |
-20°C to 50°C |
||||||||||||||||||||||||||||||||||||||||||||||||
| Housing |
Zarges aluminium-housing including handle bar |
||||||||||||||||||||||||||||||||||||||||||||||||
| Coating |
Powder coated grey [RAL 9007] |
||||||||||||||||||||||||||||||||||||||||||||||||
| IP code | IP33 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions |
800 x 600 x 410mm (LxWxH) |
||||||||||||||||||||||||||||||||||||||||||||||||
| Weight |
15kg (empty) |
||||||||||||||||||||||||||||||||||||||||||||||||
| CONFIGURATION POSSIBILITIES | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Compatible EFOY Pro Fuel Cells |
EFOY Pro 800 / 2400 | ||||||||||||||||||||||||||||||||||||||||||||||||
|
Compatible EFOY Fuel Cartridges |
M10 and M28 (M28 adapter required) |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Compatible batteries |
Lead Gel, Lead Acid AGM, LiFePO4 |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Max battery dimensions |
355 x 175 x 210mm, (LxWxH) |
||||||||||||||||||||||||||||||||||||||||||||||||
| SOLAR CHARGE CONTROLLER | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Discharge current Constant at 12V / 24V |
6.7A / 3.3A | ||||||||||||||||||||||||||||||||||||||||||||||||
|
Load current Max at 12V / 24V |
10A / 10A | ||||||||||||||||||||||||||||||||||||||||||||||||
|
Load current Max at 12V / 24V |
10A / 10A | ||||||||||||||||||||||||||||||||||||||||||||||||
| FUEL CELLS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Weight |
EFOY Pro 800: 8.0kg EFOY Pro 2400: 9.0kg |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimensions |
433 x 188 x 278mm, (LxWxH) |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Inclination along the roll axis |
Permananent max 35° Temporary (<10min) max 45° |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Inclination along the lateral axis |
Permananent max 20° |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Fuel Cartridges |
M10 and M28 See selection table |
||||||||||||||||||||||||||||||||||||||||||||||||
| EFOY PROCUBE ACCESSORIES | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSM Modem |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Fuel Cartridge Sensor FS1 |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||
|
M28 Adapter |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||
| DELIVERY CONTENT | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFOY Pro fuel cell |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Solar charge controller Steca Solsum 10.10F for hybrid system with battery deep discharge |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Air supply and waste heat duct, additional termperature-controlled ventilator and frost proof outlet for exhaust hose |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Charging cable for the connection to the battery |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Fixture for EFOY Pro, fuel cartridge and battery |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Opening for external connectors |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
User manual |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Operation panel OP2 with data cable |
|||||||||||||||||||||||||||||||||||||||||||||||||
Selection Table
| Article No. |
Product Name |
Nominal voltage |
Product information |
|---|---|---|---|
| 153 002 004 | EFOY ProCube 2030A | 12 V DC |
Temperature range: -20 °C to +50 °C Max. fuel capacity: 1 x M28 / 30 kWh Solar charge current*: 10 A IP-class: IP 33 Dimensions (Lx W x H): 800 x 600 x 410 mm |
| 153 002 015 | EFOY ProCube 2030A | 24 V DC |
Temperature range: -20 °C to +50 °C Max. fuel capacity: 1 x M28 / 30 kWh Solar charge current*: 10 A IP-class: IP 33 Dimensions (Lx W x H): 800 x 600 x 410 mm |
| 153 002 017 | EFOY ProCube 2060A | 12 V DC / 24 V DC |
Temperature range: -20 °C to +50 °C Max. fuel capacity: 2 x M28 / 60 kWh Solar charge current*: 10 A IP-class: IP 33 Dimensions (Lx W x H): 937 x 787 x 480 mm |
| FUEL CARTRIDGES |
M10 |
M28 |
|---|---|---|
| Volume | 10L | 28L |
| Weight | 8.4kg | 22kg |
| Nominal Capacity | 11.1kwh | 31.1kwh |
| Dimensions LxWxH | 230 x 193 x 318mm |
370 x 285 x 485 with M28 Adapater |
