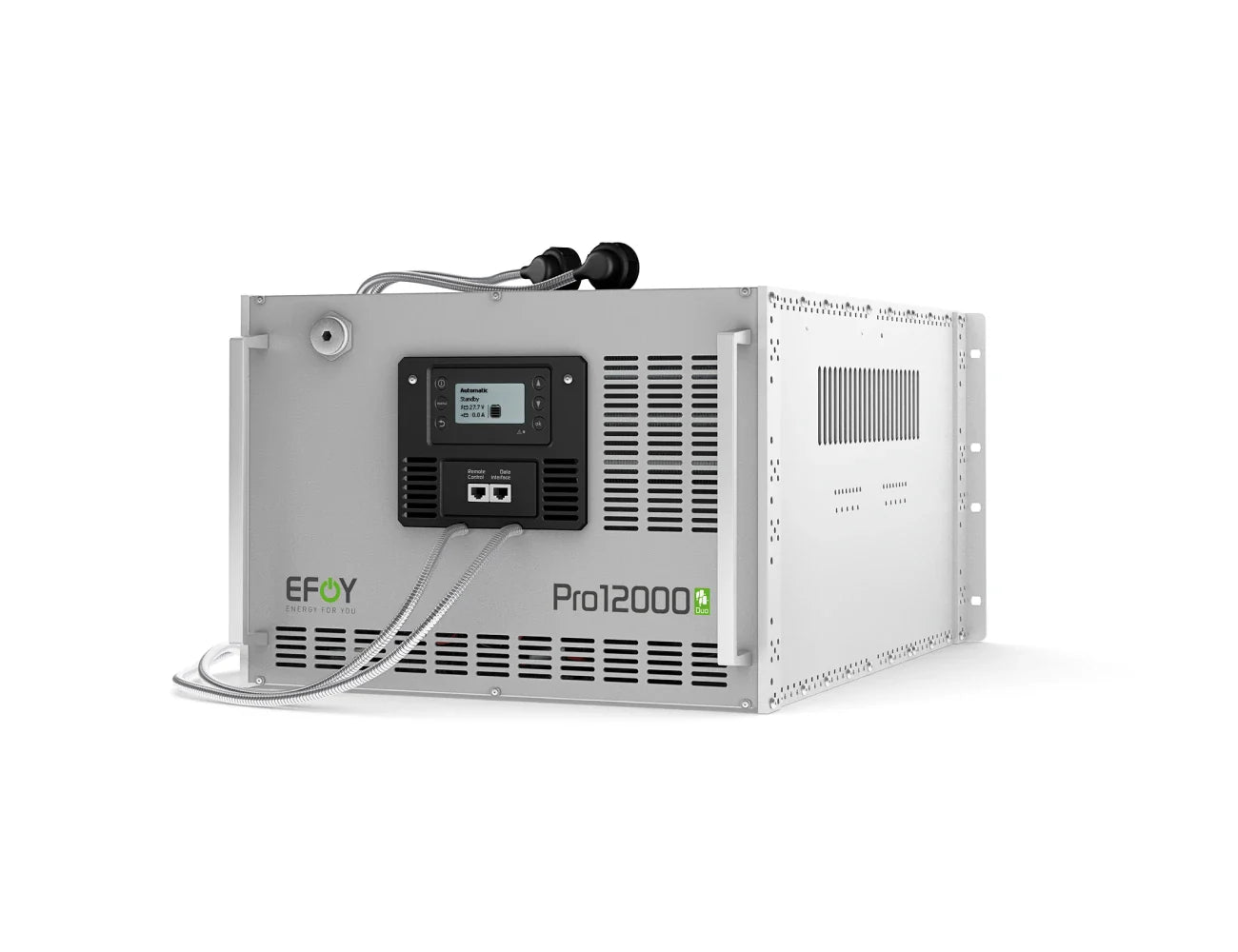

SFC Energy EFOY Pro 12000 Duo Fuel Cell

The SFC Energy EFOY Pro 12000 Duo Fuel Cell is a robust and efficient power generator designed for off-grid and remote applications. Featuring dual fuel cell technology, it provides continuous and eco-friendly energy with high reliability and minimal maintenance. Its durable and compact design ensures seamless integration and dependable performance in challenging conditions.

View Models
SFC Energy EFOY Pro 12000 Duo Fuel Cell

Features

  • 350 ~ 500W
  • 24V 48V Charger

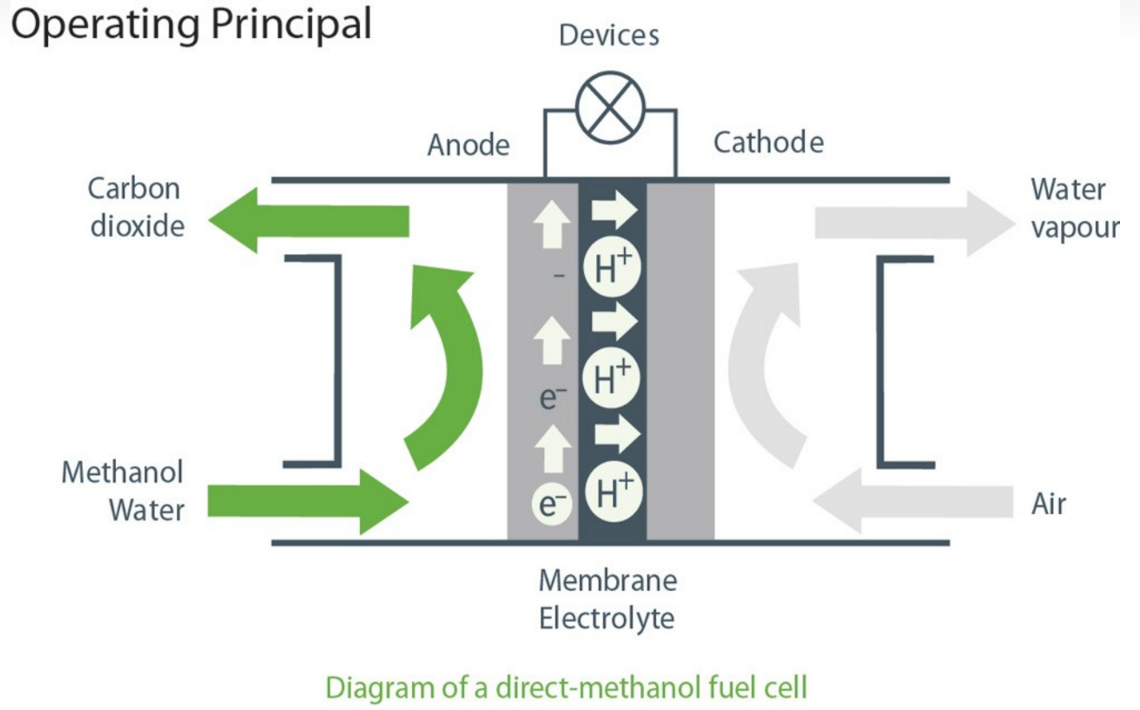

  • Methanol Fuel Cell
  • Quiet & Emission Free
  • Remote Monitoring
Specifications
TECHNICAL DATA
Nominal voltage

24Vdc, 48Vdc
Min battery voltage

18.5Vdc
Max battery voltage

60Vdc
Max Nominal power

500W
Min Nominal power 3,000h

400W
Min Nominal power 4,500h

350W

Max Charging current

24V / 48V

20.8A / 10.4A

Nominal consumption

0.9 l/kWh

Quiescent current

draw at 24 V

150 mA

Noise level

(at 1m / 7m distance)

<60dB(A) / <40dB(A)

Minimal battery capacity

Lead acid, gel, AGM and LiFePO4

24V 200Ah (C10)

48V 100Ah (C10)

Fuel cell cartridges

See selection table

M28 adapter necessary for connecting an M28 fuel cartridge

Connectable cartridges

(with DCS1)

2 (4)

Warranty

24 Month

3,000 operating hours
INTERFACE
User-Interface

At the unit with text display

or via Operating Panel OP2
Data-Interface RS232 RJ-45 plug
Data-Interface Modbus RTU

RJ-45 (RS232, RS485 and

I/O terminals (A. B. GND)
Electrical interface power

Positive (+) and negative (-) terminals:

min. 10 mm²
Electrical interface sense

Positive (+) and negative (-) terminals:

min. 2 mm²
Electrical interface ground Terminal: min. 2 mm²
ENVIRONMENTAL
Operating temperature -20 °C to +50 °C
Start-up temperature +3 °C to +50 °C
Storing temperature +1 °C to +50 °C
Recommended altitude up to 3000m)
International Protection IP 20
Inclination along the roll axis

Permanent: max. 10°

Temporary (<10 min): max. 45°
Inclination along the lateral axis

Permanent: max. 10°

Temporary (<10 min): max. 45°
MECHANICAL

Dimensions

640 x 441 x 310mm

without 19" bars

Weight

32kg

Length of fuel

cartridge connector

70cm
Selection Table
FUEL CARTRIDGES M28 4 x M28
Volume 28L 112L
Weight 23.4kg 93.6kg
Nominal Capacity 31.1kwh 124.4kwh
Dimensions LxWxH 370 x 285 x 425mm

4 x M28
SCOPE OF DELIVERY PART NUMBER DESCRIPTION
1 x - EFOY Pro 12000 Duo
1 x 500 903 001 Initial Start Fluid 1.5l
2 x 500 903 002 Recovery Fluid 0.5l
1 x 500 904 001

Isolated exhaust hose 1m EFOY Pro 12000 Duo
1 x 500 901 001

User manual EFOY Pro 12000 Duo

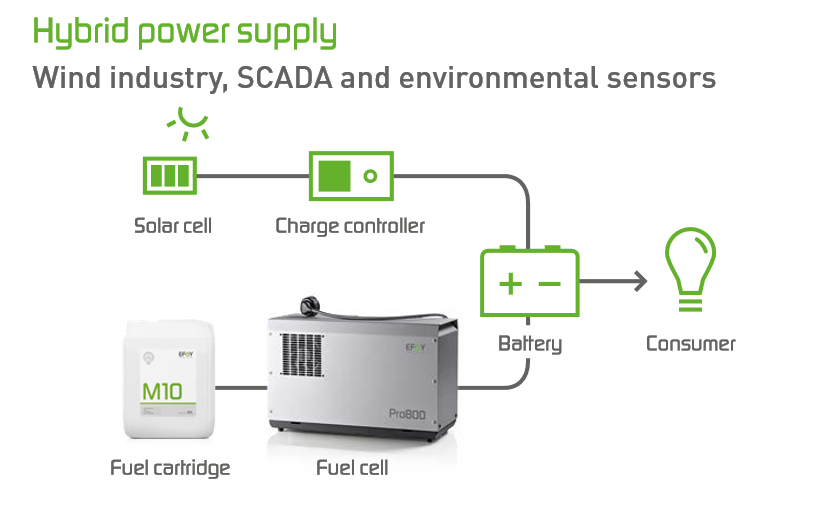

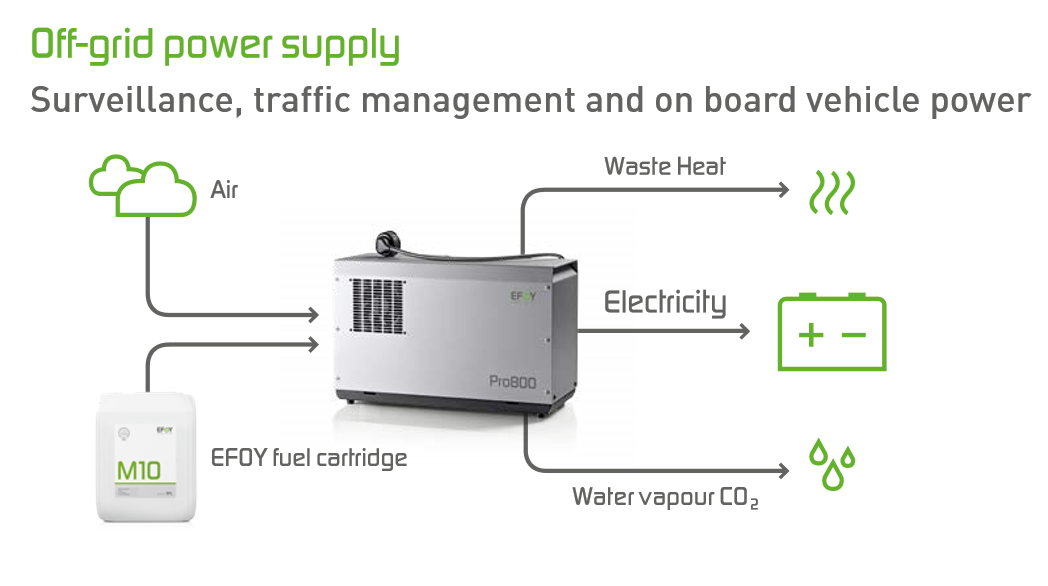

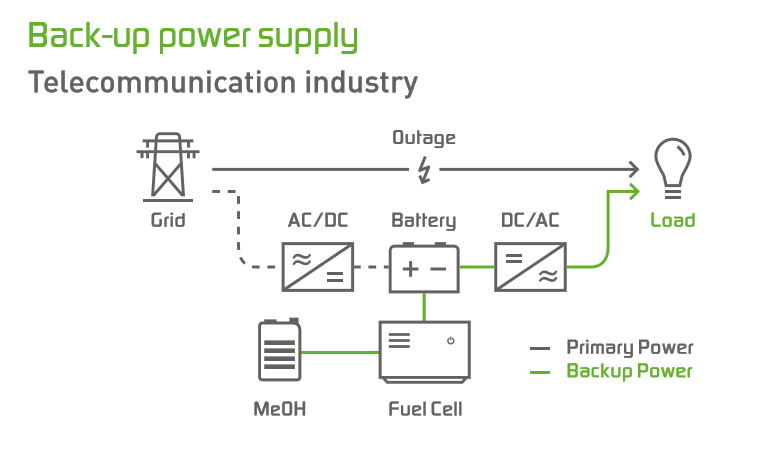

Technical Illustrations
Downloads
efoy-pro-12000-datasheet.pdf
Accessories
  • product pwb

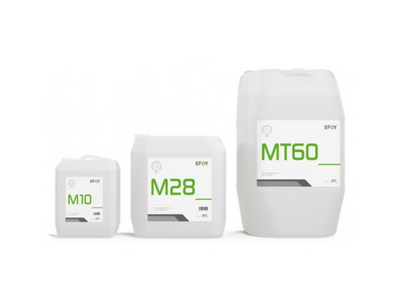

    all SFC Energy EFOY Fuel Cartridge Series
