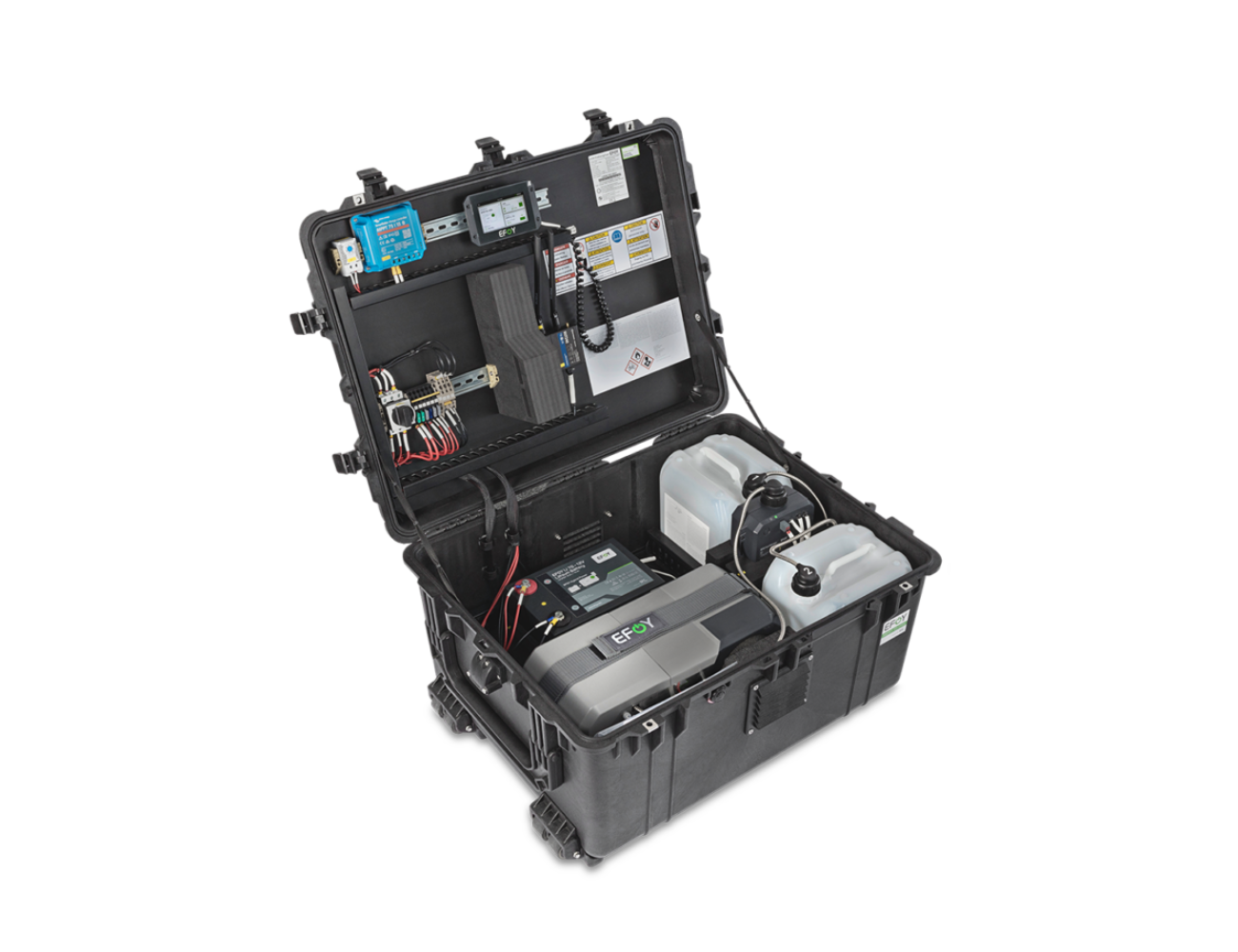

SFC Energy EFOY ProEnergyCase 2020P-3
The SFC Energy EFOY ProEnergyCase 2020P-3 is a compact, portable power solution engineered to deliver reliable, off-grid energy for critical remote applications. Equipped with high-efficiency methanol fuel cell technology, the ProEnergyCase 2020P-3 provides silent, eco-friendly power without the need for frequent maintenance. Its rugged, weather...
Read MoreThe SFC Energy EFOY ProEnergyCase 2020P-3 is a compact, portable power solution engineered to deliver reliable, off-grid energy for critical remote applications. Equipped with high-efficiency methanol fuel cell technology, the ProEnergyCase 2020P-3 provides silent, eco-friendly power without the need for frequent maintenance. Its rugged, weather-resistant case ensures dependable performance and easy transport in harsh conditions, making it ideal for tactical deployments, remote monitoring, and other mission-critical operations where continuous power is essential.
Show Less
Features
- Rugged Pelican 1630 Enclosure: Built for durability, the weather-resistant Pelican 1630 case protects power components in demanding environments.
- Active Cooling System: Integrated active ventilation activates at temperatures above +35 °C to maintain optimal operating conditions.
- Efficient Airflow Design: Equipped with dedicated air supply and waste heat ducts for enhanced heat dissipation and efficient operation.
- Solar Hybrid-Ready: Features a solar charge controller for hybrid power capability, complete with deep discharge protection to safeguard battery health.
- High-Capacity Fuel Storage: Configured with installation space for up to two M10 fuel cartridges, allowing for extended autonomous operation.
- Secure Fuel Cell Mounting: Includes a dedicated EFOY Pro mounting plate, ensuring secure and stable placement within the enclosure.
Specifications
| EFOY ProEnergyCase 2020P | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions (l x w x h) | 795 x 615 x 444 mm | ||||||||||||||||||||||||||||||||||||||||||||||||
| Weight (empty) | 18 kg | ||||||||||||||||||||||||||||||||||||||||||||||||
| Housing | Pelicase 1630 including handle bars and transport wheels | ||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature range | -20 °C to +50 °C | ||||||||||||||||||||||||||||||||||||||||||||||||
| IP-code | IP 33 | ||||||||||||||||||||||||||||||||||||||||||||||||
| Nominal voltage | 12 V DC and 24 V DC | ||||||||||||||||||||||||||||||||||||||||||||||||
| CONFIGURATION | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Compatible EFOY Pro Fuel Cells |
EFOY Pro 800 / 2400 | ||||||||||||||||||||||||||||||||||||||||||||||||
|
Compatible EFOY Fuel Cartridges |
max. 2x M10 |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Compatible batteries |
Lead Gel, Lead Acid AGM, LiFePO4 |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery installation space (l x w x h) |
(1x 130 Ah): 410 x 176 x 227 mm (2x 60 Ah): each 229 x 138 x 227 mm |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Solar charge controller (max. load / module current) |
Standard: 20 A / 20 A Optional: 30 A / 30 - 40 A |
||||||||||||||||||||||||||||||||||||||||||||||||
| DELIVERY CONTENTS | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFOY ProEnergyCase 2020P – Pelicase 1630 enclosure |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Battery connection cable and cable bridge for the connection of two batteries |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Operation panel OP2 with data cable and velcro tape |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
User manuals incl. circuit diagram |
|||||||||||||||||||||||||||||||||||||||||||||||||
| Not included in contents of delivery | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFOY Pro Fuel Cell |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
EFOY Fuel Cartridge |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Batteries |
|||||||||||||||||||||||||||||||||||||||||||||||||
| Accessories for EFOY ProEnergyCase | |||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSM Modem |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||
|
MUX-2 |
Compatibility depends on solar charge controller |
||||||||||||||||||||||||||||||||||||||||||||||||
|
Fuel cartridge sensor FS1 |
yes |
||||||||||||||||||||||||||||||||||||||||||||||||
Selection Table
| Fuel cells |
EFOY Pro 800 Duo |
EFOY Pro 2400 Duo |
|---|---|---|
| Power output | 45 W | 110 W |
| Power output after 4.500 hours |
25 W Power output varies by ±10 %, decreases with the operation hours |
80 W |
| Charging current at 12 V / 24 V | 3.75 A / 1.88 A | 9.17 A / 4.58 A |
|
Charging current at 12 V / 24 V after 4.500 hours |
2.08 A / 1.04 A | 6.67 A / 3.33 A |
| Weight | 8.3 kg | 9.3 kg |
| Nominal consumption | 0.9 l / kWh | |
| Dimensions (l x w x h) | 433 x 188 x 278 mm | |
| Inclination along the roll axis |
Permanent: max. 35°; temporary (<10 min): max. 45° |
|
| Inclination along the lateral axis | Permanent: max. 20° | |
| FUEL CARTRIDGES |
M10 |
|---|---|
| Volume | 10L |
| Weight | 8.4kg |
| Nominal Capacity | 11.1kwh |
| Autonomy @ 50 W | 222 h |
| Dimensions LxWxH | 230 x 193 x 318mm |
