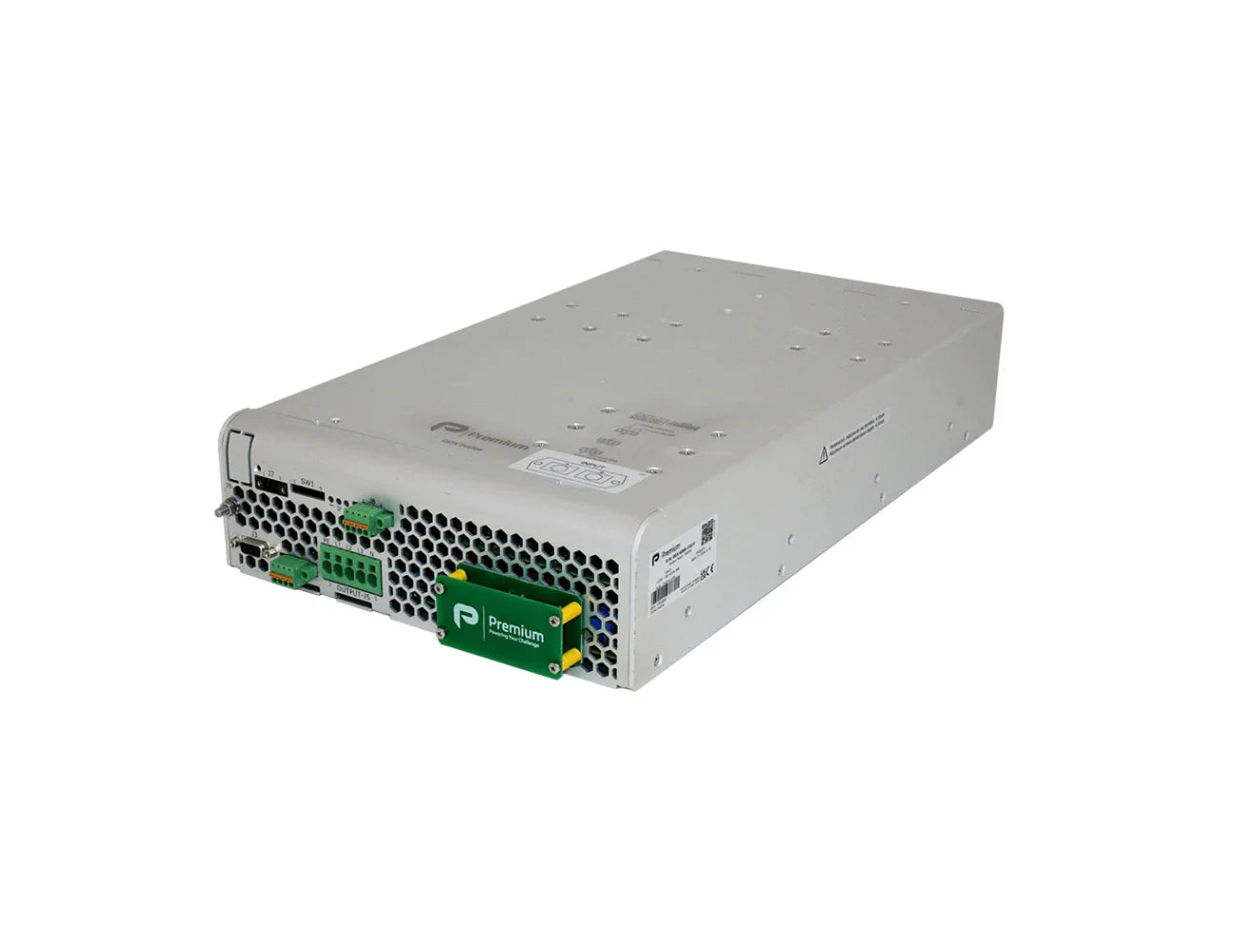

Premium ODX-6000 SERIES DC/AC Inverter

The Premium ODX-6000 Series DC/AC Inverter is a versatile and robust solution designed to meet the demanding requirements of industrial and railway applications. Delivering up to 6000VA with exceptional efficiency and advanced control features, the ODX-6000 ensures reliable performance across diverse operational environments.

Read More

View Models
Premium ODX-6000 SERIES DC/AC Inverter

Features

  • Sine wave output voltage
  • Suitable for motors control
  • Adjustable output frequency
  • Adjustable output voltage
  • High input-output isolation 3000Vrms
  • Remote off opto-coupled
Specifications
INPUT
Input Voltage range -30, +25% Vin nom
Max input ripple 5% Vin nom (Vrms, 100Hz)
OUTPUT
Nominal Output Voltage See table
Output voltage range: 20…100% of Von (adjust via remote control)
Output frequency 50 / 60Hz via DIP-switch, 5…75Hz via RS-232
Load regulation < 4 .5%
Line regulation < 2% Vin -25% … +25%,
< 10% Vin -30% … +30%
Output wave distortion THD < 2% (average of 16 samples)
Output HF ripple < 2.5%
ENVIRONMENTAL
StorageTemperature -25 … 80°C
Operating temperature at Full load -25 … 55°C (EN50155 OT1)
Operating temperature at 62.5% load -25 … 70°C (EN50155 OT3)
Operating temperature at 25% load -25 … 85°C (EN50155 OT5)
Relative humidity 5 … 95%
Cooling Internal controlled internal fan
MTBF (MIL-HDBK-217-E; Gb, 25°C) 100.000 h
EMC
Emission according EN61000-6-4, EN50121-3-2
Immunity according EN61000-6-2, EN50121-3-2
SAFETY
Dielectric strength: Input /output 3000 Vrms / 50Hz / 1min
Dielectric strength: Output / ground 1500 Vrms / 50Hz / 1min
Dielectric strength: Input / ground 500 Vrms / 50Hz / 1min
Safety according to EN60950-1, EN62368-1
Fire and smoke EN45545-2 approved
MECHANICAL
Approximate weight <8950 g
Shock and Vibrations according to EN61393:2011 Category 1 Class B
Protection degree IP20
CONTROL
OutputOk LED Green
Input OK LED Green
Input alarm Open when alarm. Maximum rating: 0.16A at 160Vdc
Output alarm Open when alarm. Maximum rating: 0.16A at 160Vdc
Remote OFF input OFF: applying 15…143Vdc, Impedance>35kΩ
Configurable input (reverse or mid-power) ON: applying 15…143Vdc, Impedance>35kΩ
PROTECTIONS
Against overloads Current and I²T limited (see overload protection)
Against over temperature Shutdown with auto-recovery
Selection Table
  INPUT VOLTAGE DC (V) INPUT VOLTAGE RANGE (V) MAX. INPUT CURRENT (A) OUTPUT VOLTAGE AC (V) OUTPUT CURRENT (A) ACTIVE OUTPUT POWER (W) APPAR. OUTPUT POWER (VA) OUTPUT PEAK CURR. 5 S (rms) (A) OUTPUT PEAK CURR. 10MS (Iopk) (A) EFFICI (%) NO LOAD INPUT CURRENT (A)
ODX- 6000-7502 24 16.8 - 30 232 400 6.5 3500 4500 7.8A 20 91 1.7
ODX-6000-7503 24 16.8 - 30 294 400 8.66 4500 6000 9.7A 20 91 1.7
ODX-6000-7505 48 33.6 - 60 191 400 8.66 6000 6000 11.5 20 93.6 0.85
ODX-6000-7506 72 50.4 - 90 127 400 8.66 6000 6000 11.5 20 94.3 0.58
ODX-6000-7507 110 77 - 138 83 400 8.66 6000 6000 11.5 20 94.2 0.38

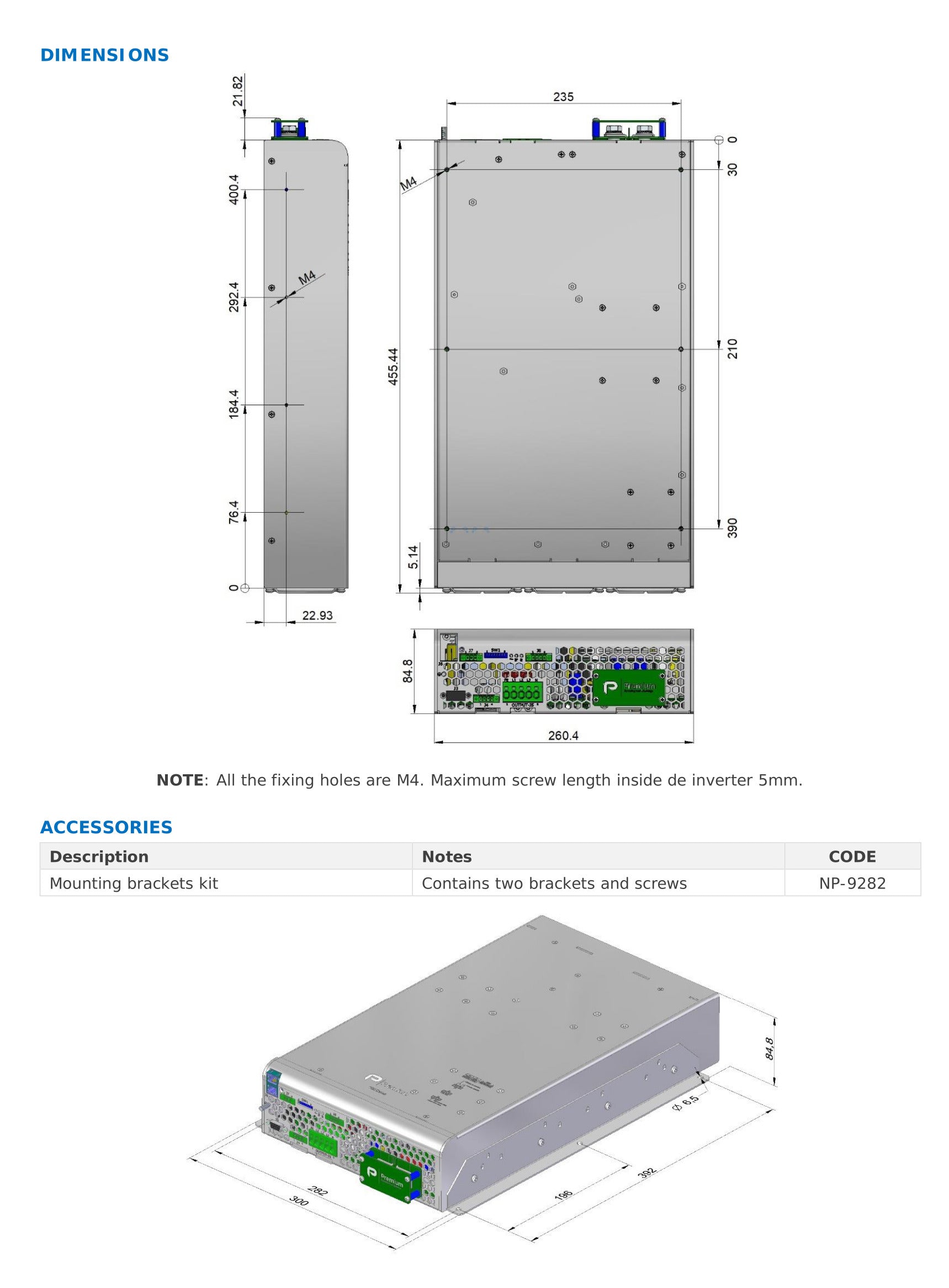

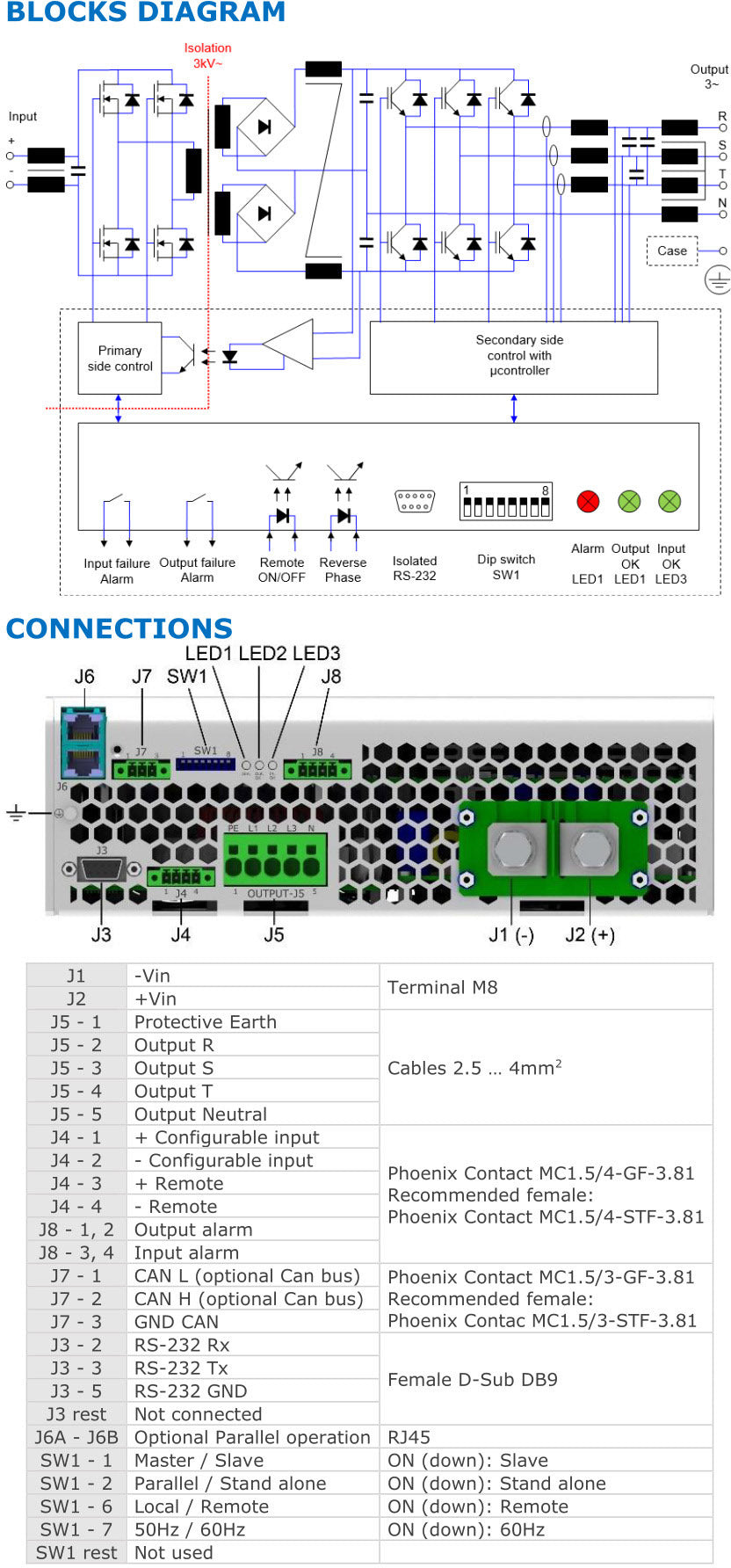

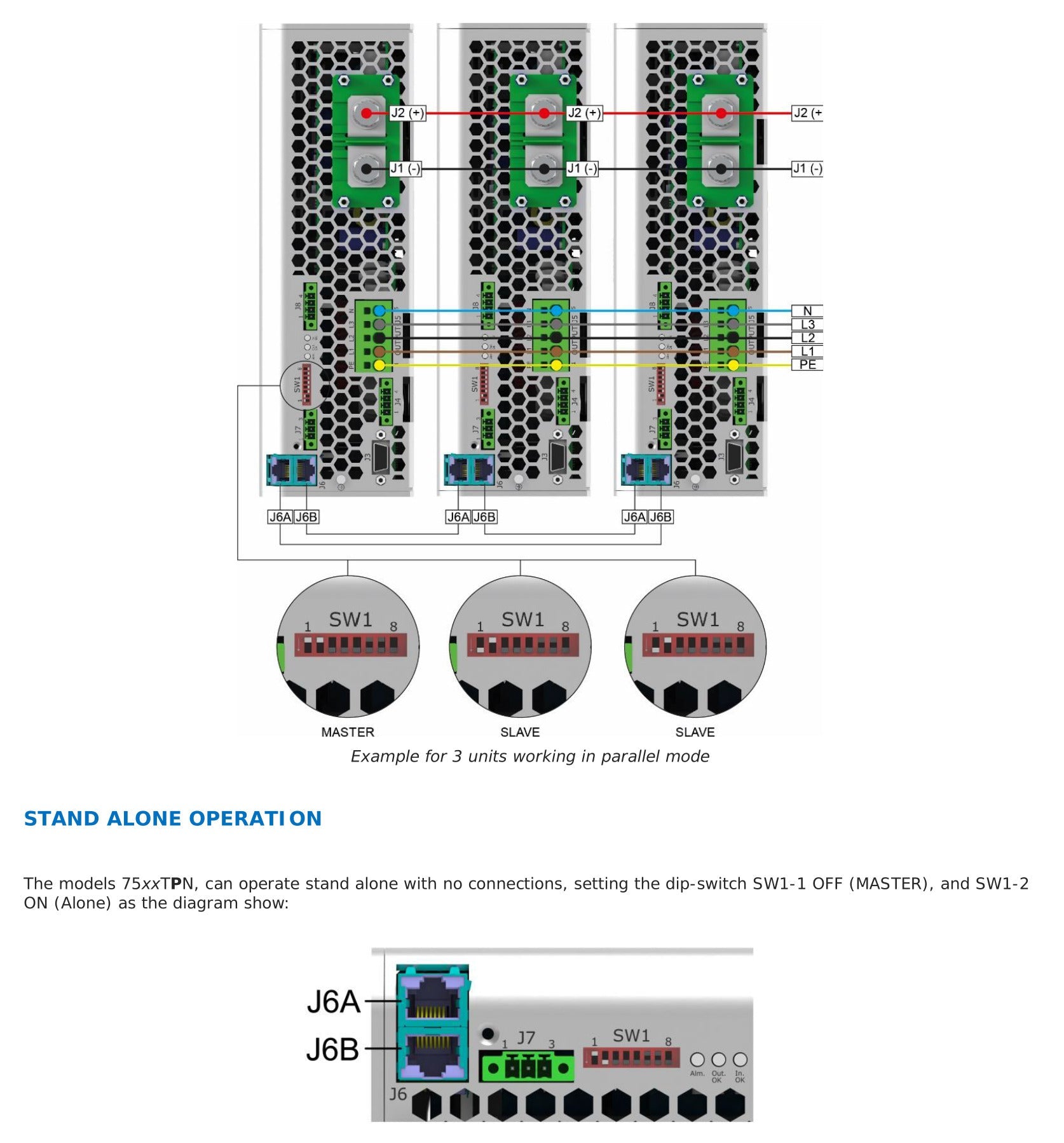

Technical Illustrations
Downloads
ODX-6000_Datasheet.pdf
INPUT
Input Voltage range -30, +25% Vin nom
Max input ripple 5% Vin nom (Vrms, 100Hz)
OUTPUT
Nominal Output Voltage See table
Output voltage range: 20…100% of Von (adjust via remote control)
Output frequency 50 / 60Hz via DIP-switch, 5…75Hz via RS-232
Load regulation < 4 .5%
Line regulation < 2% Vin -25% … +25%,
< 10% Vin -30% … +30%
Output wave distortion THD < 2% (average of 16 samples)
Output HF ripple < 2.5%
ENVIRONMENTAL
StorageTemperature -25 … 80°C
Operating temperature at Full load -25 … 55°C (EN50155 OT1)
Operating temperature at 62.5% load -25 … 70°C (EN50155 OT3)
Operating temperature at 25% load -25 … 85°C (EN50155 OT5)
Relative humidity 5 … 95%
Cooling Internal controlled internal fan
MTBF (MIL-HDBK-217-E; Gb, 25°C) 100.000 h
EMC
Emission according EN61000-6-4, EN50121-3-2
Immunity according EN61000-6-2, EN50121-3-2
SAFETY
Dielectric strength: Input /output 3000 Vrms / 50Hz / 1min
Dielectric strength: Output / ground 1500 Vrms / 50Hz / 1min
Dielectric strength: Input / ground 500 Vrms / 50Hz / 1min
Safety according to EN60950-1, EN62368-1
Fire and smoke EN45545-2 approved
MECHANICAL
Approximate weight <8950 g
Shock and Vibrations according to EN61393:2011 Category 1 Class B
Protection degree IP20
CONTROL
OutputOk LED Green
Input OK LED Green
Input alarm Open when alarm. Maximum rating: 0.16A at 160Vdc
Output alarm Open when alarm. Maximum rating: 0.16A at 160Vdc
Remote OFF input OFF: applying 15…143Vdc, Impedance>35kΩ
Configurable input (reverse or mid-power) ON: applying 15…143Vdc, Impedance>35kΩ
PROTECTIONS
Against overloads Current and I²T limited (see overload protection)
Against over temperature Shutdown with auto-recovery
  INPUT VOLTAGE DC (V) INPUT VOLTAGE RANGE (V) MAX. INPUT CURRENT (A) OUTPUT VOLTAGE AC (V) OUTPUT CURRENT (A) ACTIVE OUTPUT POWER (W) APPAR. OUTPUT POWER (VA) OUTPUT PEAK CURR. 5 S (rms) (A) OUTPUT PEAK CURR. 10MS (Iopk) (A) EFFICI (%) NO LOAD INPUT CURRENT (A)
ODX- 6000-7502 24 16.8 - 30 232 400 6.5 3500 4500 7.8A 20 91 1.7
ODX-6000-7503 24 16.8 - 30 294 400 8.66 4500 6000 9.7A 20 91 1.7
ODX-6000-7505 48 33.6 - 60 191 400 8.66 6000 6000 11.5 20 93.6 0.85
ODX-6000-7506 72 50.4 - 90 127 400 8.66 6000 6000 11.5 20 94.3 0.58
ODX-6000-7507 110 77 - 138 83 400 8.66 6000 6000 11.5 20 94.2 0.38
ODX-6000_Datasheet.pdf
