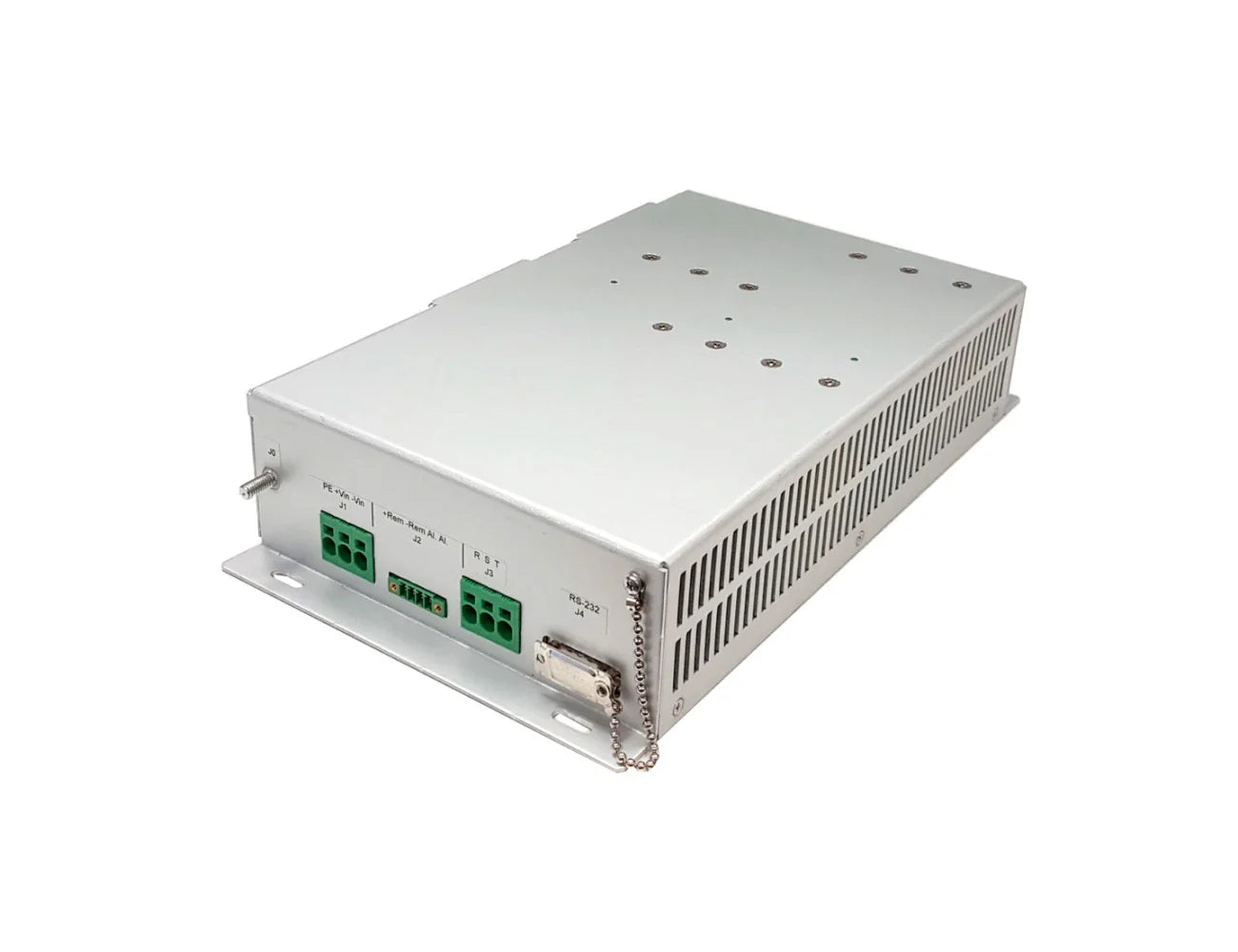

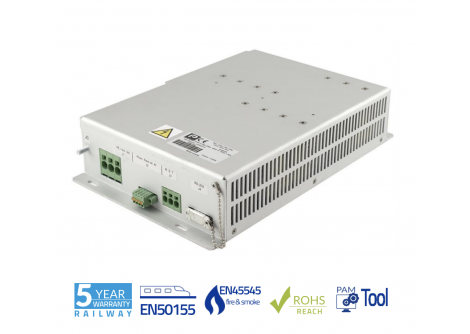

Premium ODX-1300 SERIES DC/AC Inverter
The Premium ODX-1300 Series DC/AC Inverter is a reliable and high-performing solution designed for industrial and railway applications. Delivering up to 1300VA with advanced monitoring and control capabilities, it ensures efficient and safe power conversion in challenging environments. Key features include a sine wave output for smooth motor con...
Read MoreThe Premium ODX-1300 Series DC/AC Inverter is a reliable and high-performing solution designed for industrial and railway applications. Delivering up to 1300VA with advanced monitoring and control capabilities, it ensures efficient and safe power conversion in challenging environments.
Key features include a sine wave output for smooth motor control, adjustable output voltage for application-specific requirements, and high input-output isolation (3000Vrms) for enhanced safety. The ODX-1300 supports remote control via RS-232, alarm notifications via isolated relay contacts, and is compliant with EN50155 and EN45545-2 standards for railway applications. Built-in protections against overload and over-temperature ensure continuous, reliable operation.
Engineered for durability, the ODX-1300 operates efficiently in temperatures ranging from -25°C to 55°C at full load, with controlled internal fans for optimal cooling. Its compact design and lightweight construction simplify installation, making it suitable for various industrial and transportation systems.
The Premium ODX-1300 Series DC/AC Inverter is the ideal choice for applications demanding reliable, versatile, and safe power conversion.
Show Less
Features
- Sine wave output voltage
- Suitable for motors control
- Adjustable output voltage
- High input-output isolation 3000Vrms
- Remote control via RS232
- Alarm by isolated relay contacts
- Remote ON/OFF opto-coupled
- According to the standard EN50155
- Fire and smoke: EN45545-2 approved
Specifications
| INPUT | |
|---|---|
| Input voltage range | -30, +25% Vin nom |
| Max input ripple | 5% Vin nom (Vrms, 100Hz) |
| Inrush current | <25A |
| Polarity protection | By diode |
| SAFETY | |
|---|---|
| Dielectric strength: Input /output | 3000 Vrms / 50Hz / 1min |
| Dielectric strength: Output / ground | 1500 Vrms / 50Hz / 1min |
| Dielectric strength: Input / ground | 1500 Vrms / 50Hz / 1min |
| Safety according to | EN60950-1, EN62368-1 |
| Fire and smoke | EN45545-2 |
| OUTPUT | |
|---|---|
| Nominal Output Voltage (Von) | See selection table |
| Output voltage range | 150 … 250V (models of 250V output) via RS-232 200 … 400V (models of 400V output) via RS-232 |
| Output frequency range | 5…60Hz via RS-232 |
| Load regulation | < 4% |
| Line regulation | < 2% Vin -25% … +25%, < 10% Vin -30% … +30% |
| Output wave distortion THD | < 3% (average of 16 samples) |
| Output HF ripple | < 2.5% |
| MECHANICAL | |
|---|---|

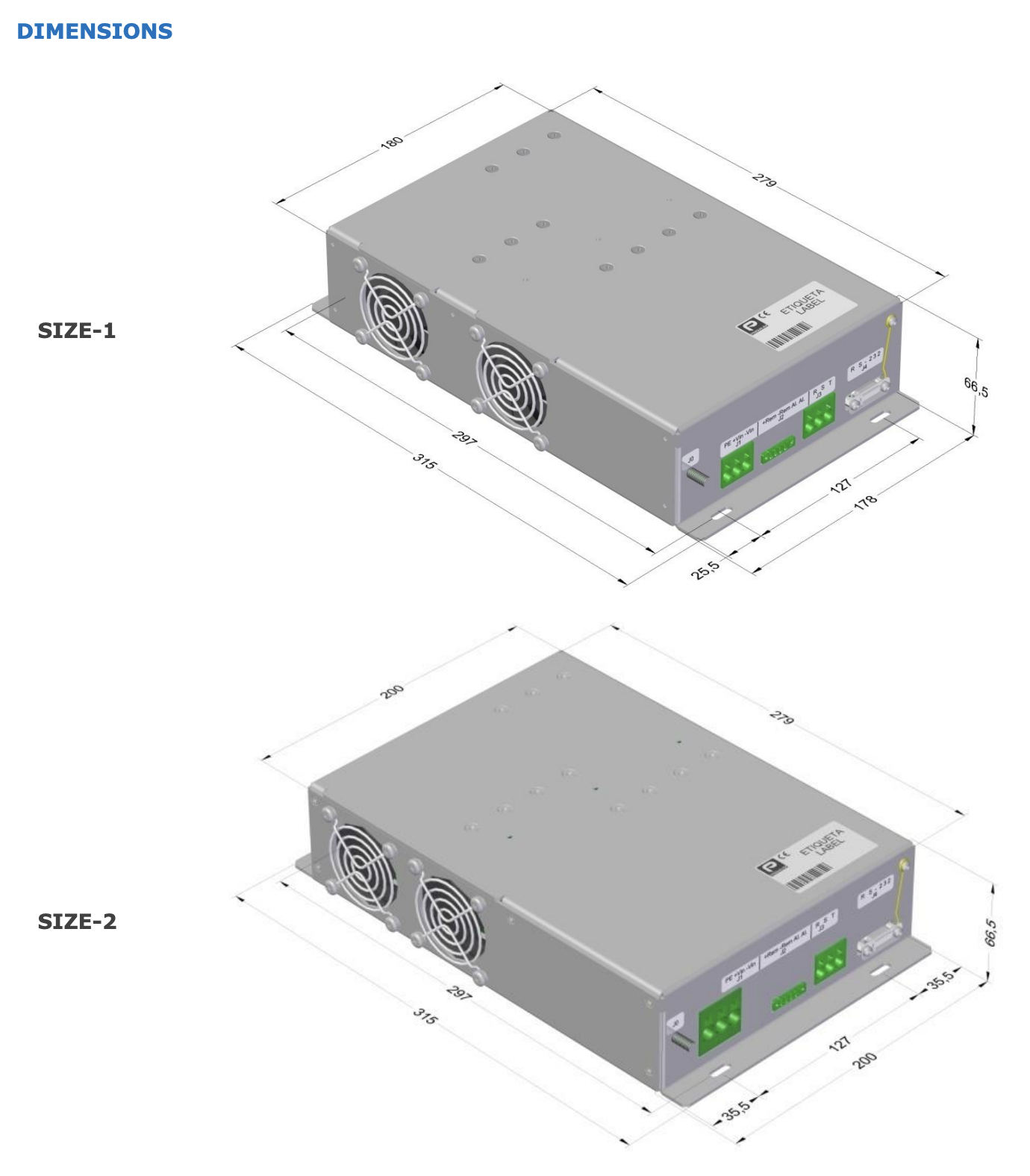

| Approximate weight | <3200g |
| ENVIRONMENTAL | |
|---|---|
| StorageTemperature | -25 … 85°C |
| Operating temperature at Full load | -25 … 55°C (EN50155 OT1) |

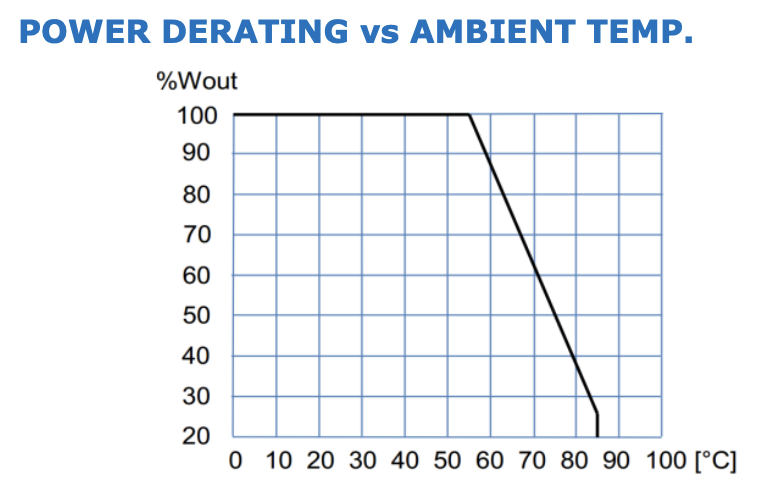

| Operating temperature at 62.5% load | --25 … 70°C (EN50155 OT3) |
| Operating temperature at 25% load | --25 … 85°C (EN50155 OT5) |
| Relative humidity without condensation | 5 … 95% |
| Cooling | Controlled internal fan |
| MTBF (MIL-HDBK-217-E; Gb, 25°C) | 100.000 h |
| CONTROL | |
|---|---|
| Output alarm | Open when alarm. Maximum rating: 0.16A at 160Vdc |
| Remote OFF input | Off applying 15…143Vdc, Impedance>18kΩ |
| EMC | |
|---|---|
| Immunity according | EN61000-6-2, EN50121-3-2 |
| Emissions according | EN61000-6-4, EN50121-3-2 |
| PROTECTIONS | |
|---|---|
| Against overloads and short-circuits | Shutdown with auto-recovery (see working parameters) |
| Against over-temperature | Shutdown with auto-recovery |
Selection Table
| MODEL | INPUT VOLTAGE DC (V) | INPUT VOLTAGE RANGE (V) | OUTPUT VOLTAGE AC (V) | OUTPUT CURRENT (A) | ACTIVE OUTPUT POWER (W) | APPAR. OUTPUT POWER (VA) | OUTPUT PEAK CURR. 10MS (Iopk) (A) | EFFICIENCY (%) | NO LOAD INPUT CURRENT (A) | SIZE |
|---|---|---|---|---|---|---|---|---|---|---|
|
ODX-1300-7442* |
24 | 16.8 - 30 | 250 | 3.10 | 1100 |
1300 |
6.6 |
89 |
< 1.58 | 2 |
|
ODX-1300-7445* |
72 | 50.4 - 90 | 250 | 3.10 | 1100 |
1300 |
6.6 |
90 |
< 0.52 | 1 |
|
ODX-1300-7447* |
110 | 77 - 138 | 250 | 3.10 | 1100 |
1300 |
6.6 |
90 |
< 0.34 | 1 |
|
ODX-1300-7452 |
24 | 16.8 - 30 | 400 | 1.88 | 1100 |
1300 |
3.4 |
89 |
< 1.58 | 2 |
|
ODX-1300-7455* |
72 | 50.4 - 90 | 400 | 1.88 | 1100 |
1300 |
3.4 |
90 |
< 0.52 | 1 |
|
ODX-1300-7457 |
110 | 77 - 138 | 400 | 1.88 | 1100 |
1300 |
3.4 |
91 |
< 0.34 | 1 |
|
*References subject to special MOQ's and lead times. |
||||||||||

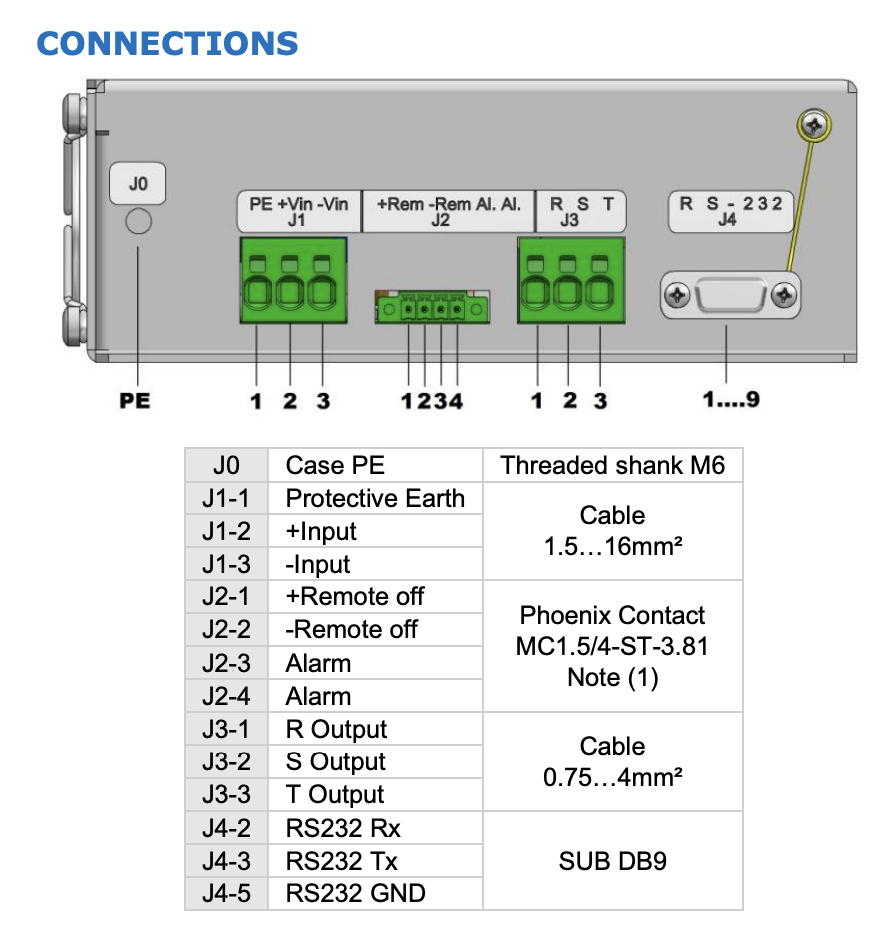

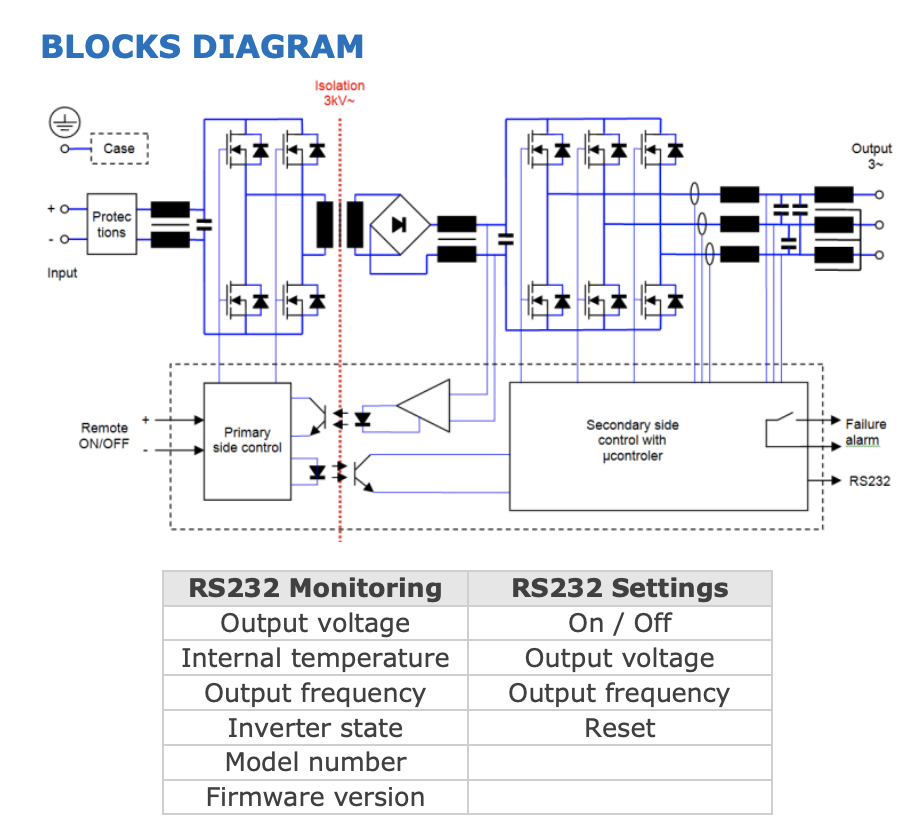

Technical Drawings
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
