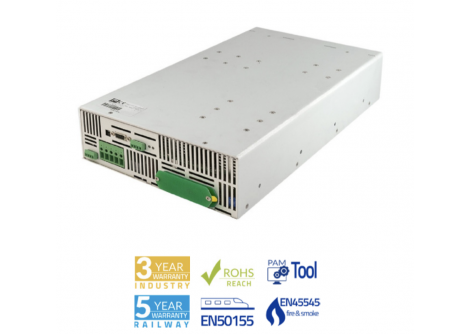

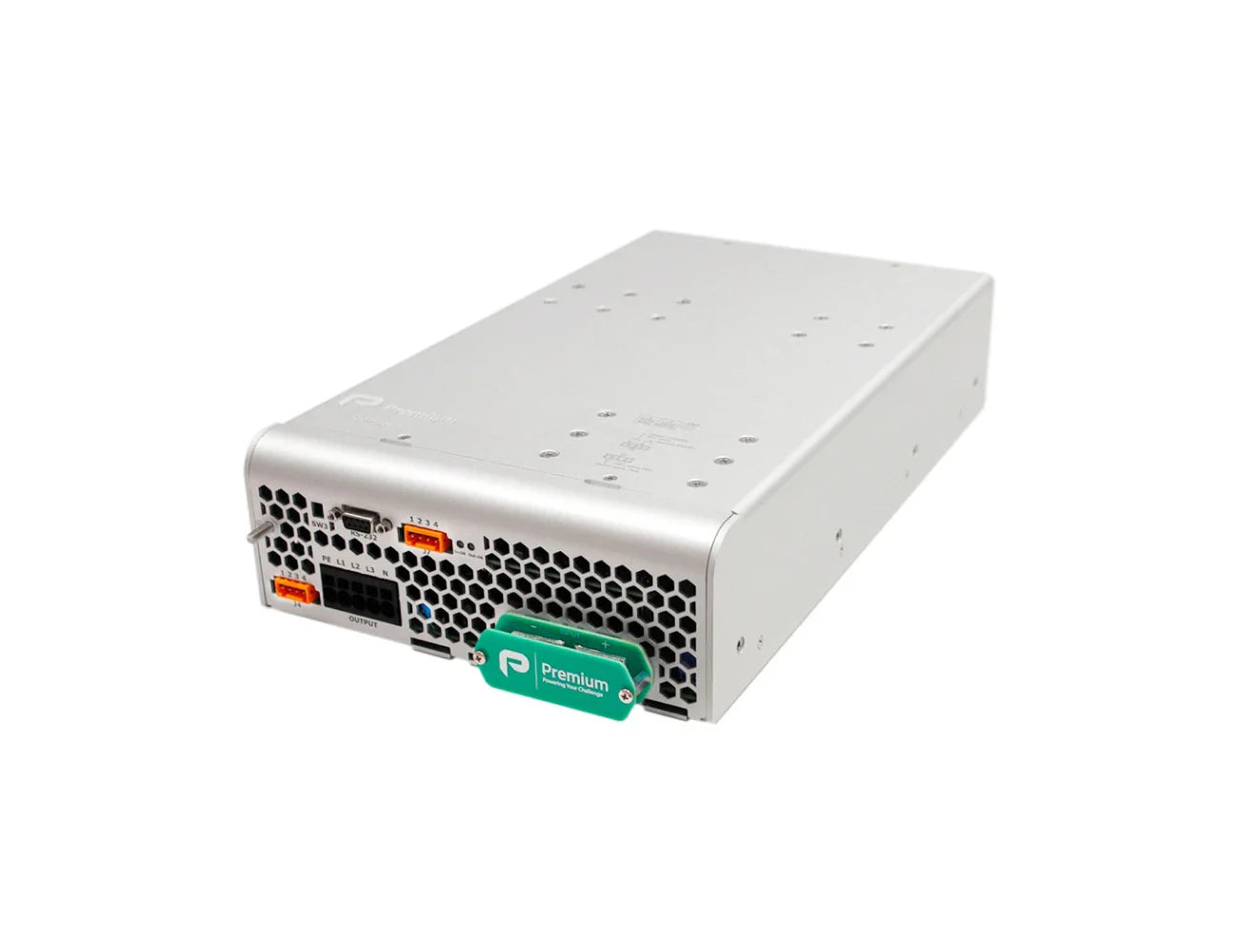

Premium ODX-3000 SERIES DC/AC Inverter
The Premium ODX-3000 Series DC/AC Inverter is a high-performance power conversion solution tailored for demanding industrial and railway applications. With a robust output capacity of up to 3000VA, it combines advanced functionality with reliable performance, ensuring consistent power delivery in harsh environments. Key features include a sine w...
Read MoreThe Premium ODX-3000 Series DC/AC Inverter is a high-performance power conversion solution tailored for demanding industrial and railway applications. With a robust output capacity of up to 3000VA, it combines advanced functionality with reliable performance, ensuring consistent power delivery in harsh environments.
Key features include a sine wave output for smooth motor operation, selectable output frequency (50/60Hz) for flexible application use, and adjustable output voltage to meet specific operational requirements. The ODX-3000 also offers high input-output isolation (3000Vrms) and advanced protection against overloads and over-temperature, ensuring system safety and reliability. Remote control capabilities via RS-232 and alarm notifications via isolated relay contacts enable seamless monitoring and integration.
Engineered for challenging environments, the ODX-3000 operates efficiently across a wide temperature range (-25°C to 70°C at full load) and meets EN50155 and EN45545-2 standards for railway applications. Its compact design features controlled internal fans for optimal cooling and a long operational lifespan of over 100,000 hours.
The Premium ODX-3000 Series DC/AC Inverter is the ideal choice for applications requiring reliable, adaptable, and high-performing power solutions.
Show Less
Features
- Sine wave output voltage
- Suitable for motors control
- Selectable output frequency: 50/60 Hz
- Adjustable output voltage
- High input-output isolation 3000 Vrms
- Remote inhibit
- Configurable input: Reverse or Mid power
- Remote control via RS232
- Alarms by isolated relay contacts
- Remote off opto-coupled
- Optional railway version EN50155
- Fire and smoke: EN45545-2 approved
Specifications
| INPUT | |
|---|---|
| Input Voltage range | -30, +25 % Vin nom |
| Max input ripple | 5% Vin nom (Vrms, 100 Hz) |
| SAFETY | |
|---|---|
| Dielectric strength: Input / Output | 3000 Vrms / 50 Hz / 1 min |
| Dielectric strength: Output / Earth | 1500 Vrms / 50 Hz / 1 min |
| Dielectric strength: Input / Earth | 1500 Vrms / 50 Hz / 1 min |
| Dielectric strength: Signals* / (Input+Output+PE) | 1500 Vrms / 50 Hz / 1 min |
| Safety according to | EN60950-1, EN62368-1 |
| Fire and smoke according to | EN45545-2 (only for T railway versions) |
| OUTPUT | |
|---|---|
| Nominal Output Voltage (Von) | See selection table. |
| Output voltage range: | 50 ... 230 Vac (models of 230 Vac output) via RS232 50 ... 400 Vac (models of 400 Vac output) via RS232 |
| Output frequency | 50 / 60 Hz via DIP-switch, 5 ... 75 Hz via RS-232 |
| Load regulation | < 4 % |
| Line Regulation | < 2 % Vin -25 % ... +25 %; < 10 % Vin -30 % ... +30 % |
| Output wave distortion THD | < 2 % (average of 16 samples) |
| Output HF ripple | < 2.5 % |
| MECHANICAL | |
|---|---|
| Weight | < 7150 g |
| Shock and Vibrations according to | EN61393:2011 Category 1 Class B |
| ENVIRONMENTAL | |
|---|---|
| StorageTemperature | -25 ... 80 °C |
| Operating temperature at Full load | -25 ... 55 °C (EN50155 OT1) |
| Operating temperature at 62.5% load | -25 ... 70 °C (EN50155 OT3) |
| Operating temperature at 25% load | -25 ... 85 °C (EN50155 OT5) |
| Relative humidity without condensation | 5 ... 95 % |
| Cooling | Controlled internal fan |
| MTBF | 100.000 h |
| CONTROL | |
|---|---|
| Output OK LED | Green |
| Input OK LED | Green |
| Input alarm | Open when alarm. Maximum rating: 0.16 A at 160 Vdc |
| Output alarm | Open when alarm. Maximum rating: 0.16 A at 160 Vdc |
| Remote OFF input | OFF: applying 15 ... 143 Vdc, Impedance >35kΩ |
| Configurable input (reverse or mid-power) | ON: applying 15 ... 143 Vdc, Impedance >35kΩ |
| EMC | |
|---|---|
| Emission according | EN61000-6-4, EN50121-3-2 |
| Immunity according | EN61000-6-2, EN50121-3-2 |
| PROTECTIONS | |
|---|---|
| Against overloads | Current and I²T limited (see overload protection) |
| Against over-temperature | Shutdown with auto-recovery |
Selection Table
| MODEL | INPUT VOLTAGE DC (V) | INPUT VOLTAGE RANGE (V) | OUTPUT VOLTAGE AC (V) | OUTPUT CURRENT (A) | ACTIVE OUTPUT POWER (W) | APPAR. OUTPUT POWER (VA) | OUTPUT PEAK CURR. 5 S (RMS) (A) | OUTPUT PEAK CURR. 10MS (IOPK) (A) | EFFICIENCY (%) | NO LOAD INPUT CURRENT (A) |
|---|---|---|---|---|---|---|---|---|---|---|
| ODX-3000-7403 | 24 | 16.8 - 30 | 400 | 3.46 | 2400 | 2400 | 5.25 | 11 | 89 | < 1.58 |
| ODX-3000-7404 | 36 | 25.2 - 45 | 400 | 4.33 | 3000 | 3000 | 6.6 | 11 | 90 | < 1.05 |
| ODX-3000-7405 | 48 | 33.6 - 60 | 400 | 4.33 | 3000 | 3000 | 6.6 | 11 | 91 | < 0.52 |
| ODX-3000-7406 | 72 | 50.4 - 90 | 400 | 4.33 | 3000 | 3000 | 6.6 | 11 | 91 | < 0.52 |
| ODX-3000-7407 | 110 | 77 - 138 | 400 | 4.33 | 3000 | 3000 | 6.6 | 11 | 91 | < 0.34 |
| ODX-3000-7413 | 24 | 16.8 - 30 | 230 | 6.00 | 2400 | 2400 | 9.0 | 19 | 89 | < 1.58 |
| ODX-3000-7417 | 110 | 77 - 138 | 230 | 7.55 | 3000 | 3000 | 11.3 | 19 | 91 | < 0.34 |

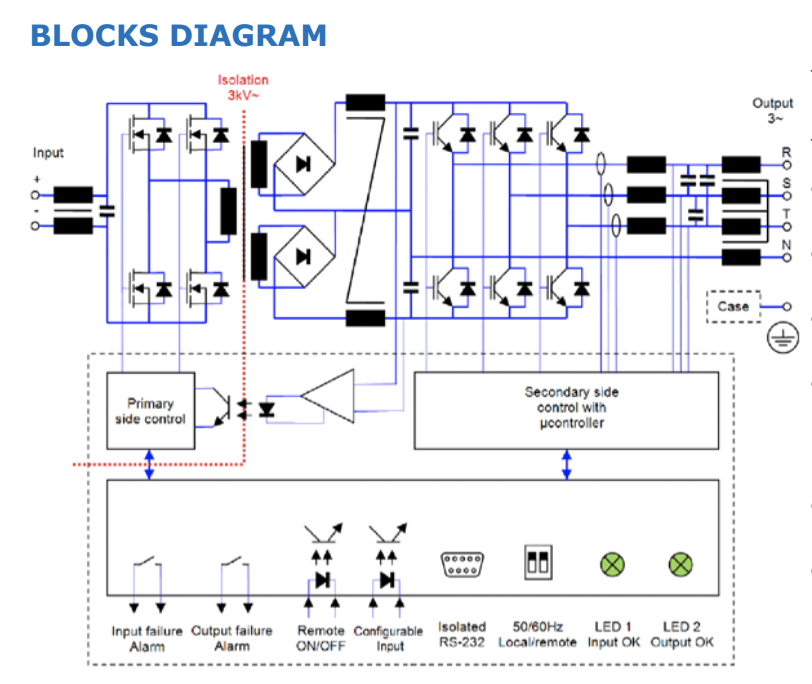

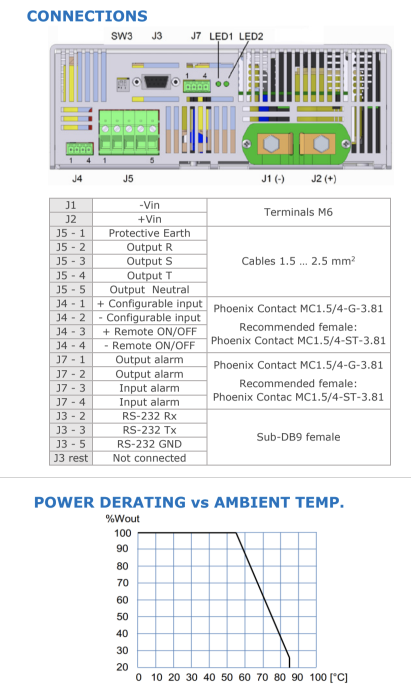

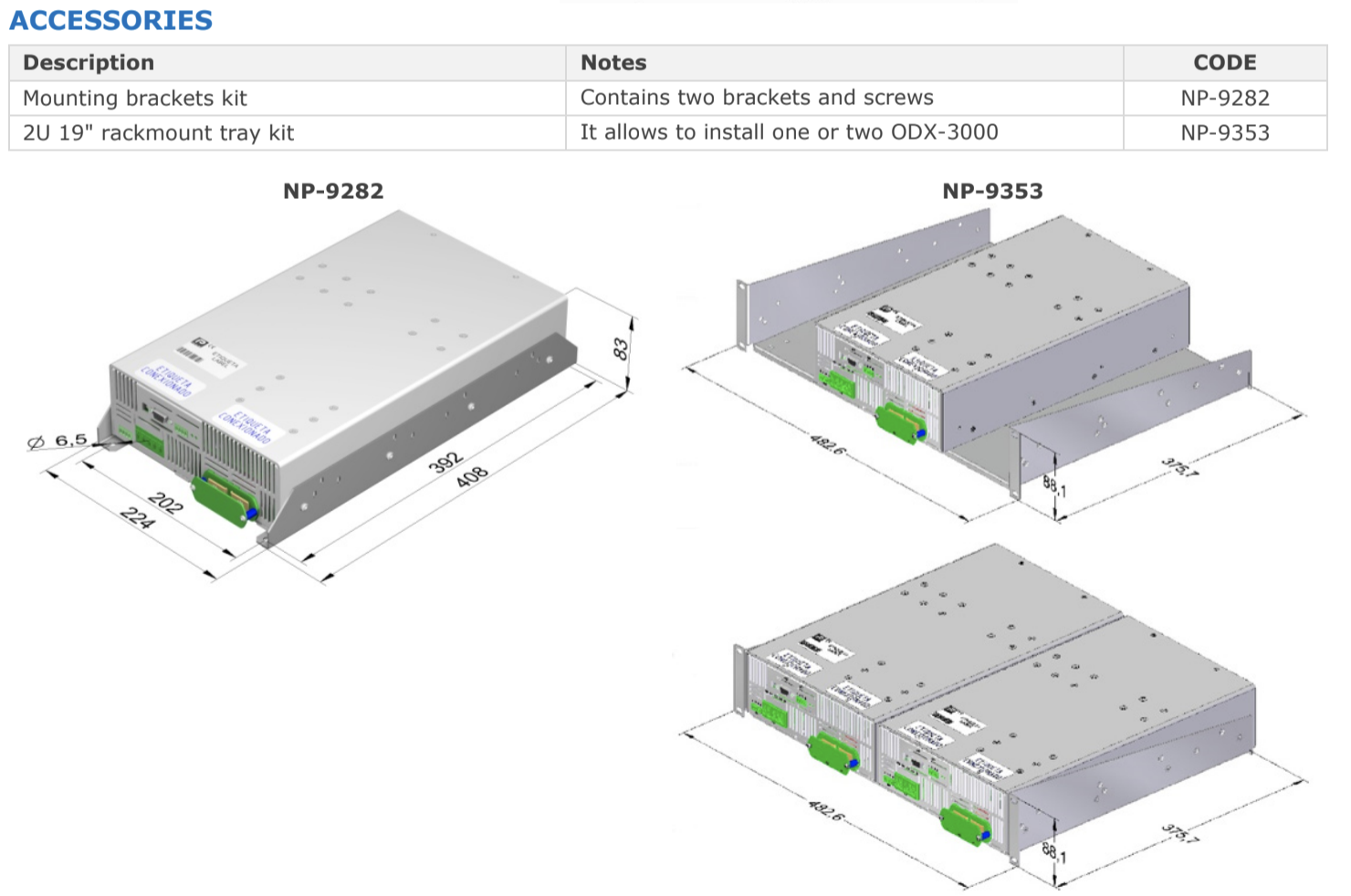

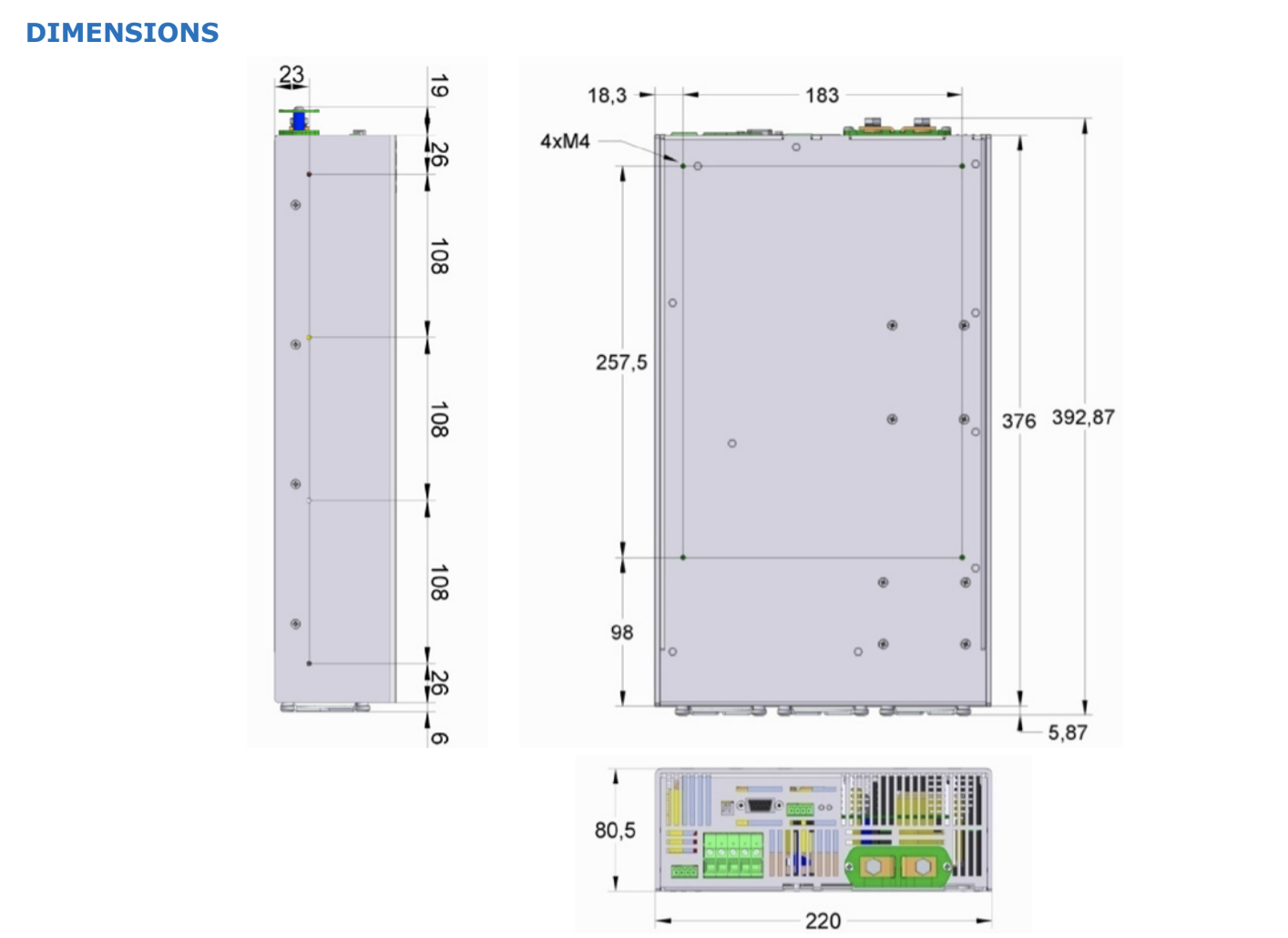

Technical Drawings
