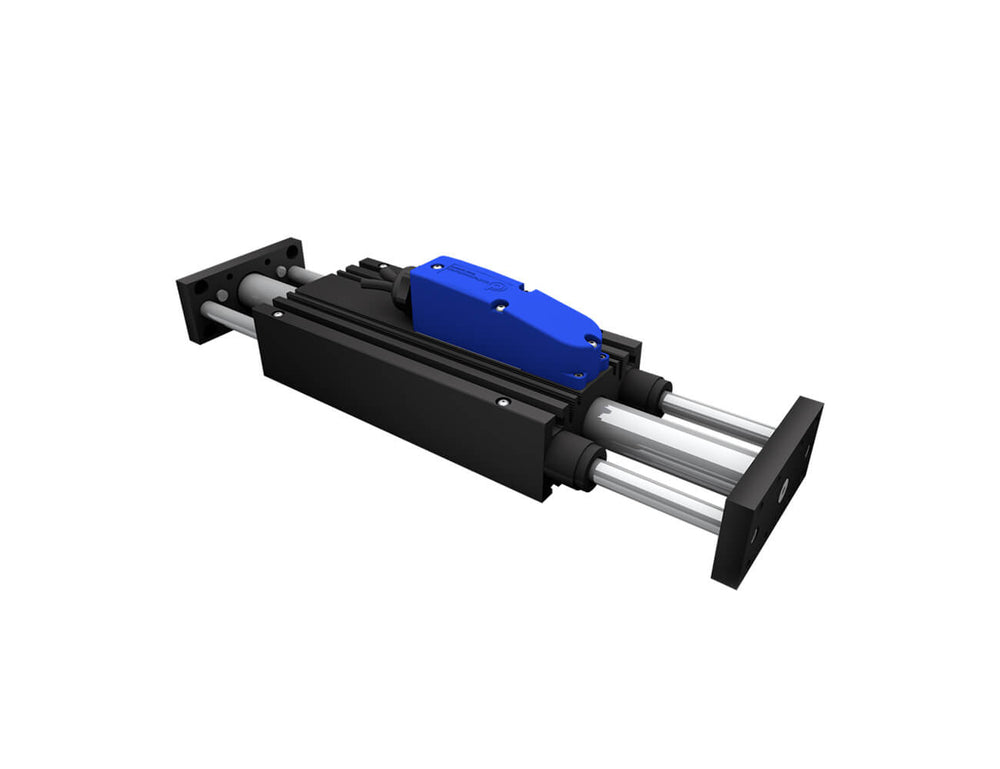

Dunkermotoren XTR25 SERIES Linear Motor
The Dunkermotoren XTR25 Series Linear Motor is a compact and high-performance solution, delivering precise linear motion for demanding industrial applications. With continuous stall forces up to 108 N and peak forces reaching 860 N, this motor is ideal for automation, robotics, and high-speed manufacturing systems. Key features include an integr...
Read MoreThe Dunkermotoren XTR25 Series Linear Motor is a compact and high-performance solution, delivering precise linear motion for demanding industrial applications. With continuous stall forces up to 108 N and peak forces reaching 860 N, this motor is ideal for automation, robotics, and high-speed manufacturing systems.
Key features include an integrated high-resolution sin/cos feedback sensor, ensuring repeatability of ±12 microns and absolute accuracy of ±350 microns. Designed with exceptional mechanical rigidity, the XTR25 offers maintenance-free operation and low-noise performance. With a maximum working voltage of 325 VDC, it supports peak accelerations up to 369 m/s² and speeds of up to 5.6 m/s, making it suitable for high-dynamic applications.
Available in multiple configurations (XTR2504, XTR2506, XTR2508, XTR2510), the XTR25 Series provides flexibility in stroke lengths and installation setups. Its robust IP67-rated design ensures durability in challenging environments, while optional brakes and controllers enhance control and safety.
This linear motor is ideal for industries requiring high precision and reliability, such as automation, medical devices, and material handling systems. For advanced linear motion solutions, the Dunkermotoren XTR25 Series delivers exceptional performance and adaptability.
Show Less
Features
- Peak Force: 344N ~ 860N
- Peak Current: 20Apk
- Continuous Stall Force: 52.2 - 108.0
- Peak Acceleration: 225~ 369 m/s2
Selection Table
| Type | XTR 2504 | XTR 2506 | XTR 2508 | XTR 2510 | |
|---|---|---|---|---|---|
| Peak force @ 25°C ambient for 1 sec | N | 344 | 516 | 688 | 860 |
| Peak current @ 25°C ambient for 1 sec | Apk | 20 | |||
| Continuous stall force @ 25°C ambient(1) | N | 52.2 | 72.3 | 90.4 | 108 |
| Continuous stall current @ 25°C ambient(1) | Arms | 2.15 | 1.98 | 1.86 | 1.78 |
| Force constant (sine commutation)(1) | N/Arms | 24.3 | 36.5 | 48.6 | 60.8 |
| Maximum working voltage | VDC | 325 | |||
| Peak acceleration(2) | m/s² | 225 | 288 | 334 | 369 |
| Maximum speed(3) | m/s | 5.6 | 5.3 | 4.8 | 4.3 |
| Repeatability | µm | 12 | |||
| (1) By means of appropriate cooling plate or fan, the continuous force be increased by up to 20% | |||||
| (2) Based on a moving thrust rod with 28 mm stroke, no payload. | |||||
| (3) Based on a moving thrust rod with triangular move over maximum stroke, no payload. | |||||
