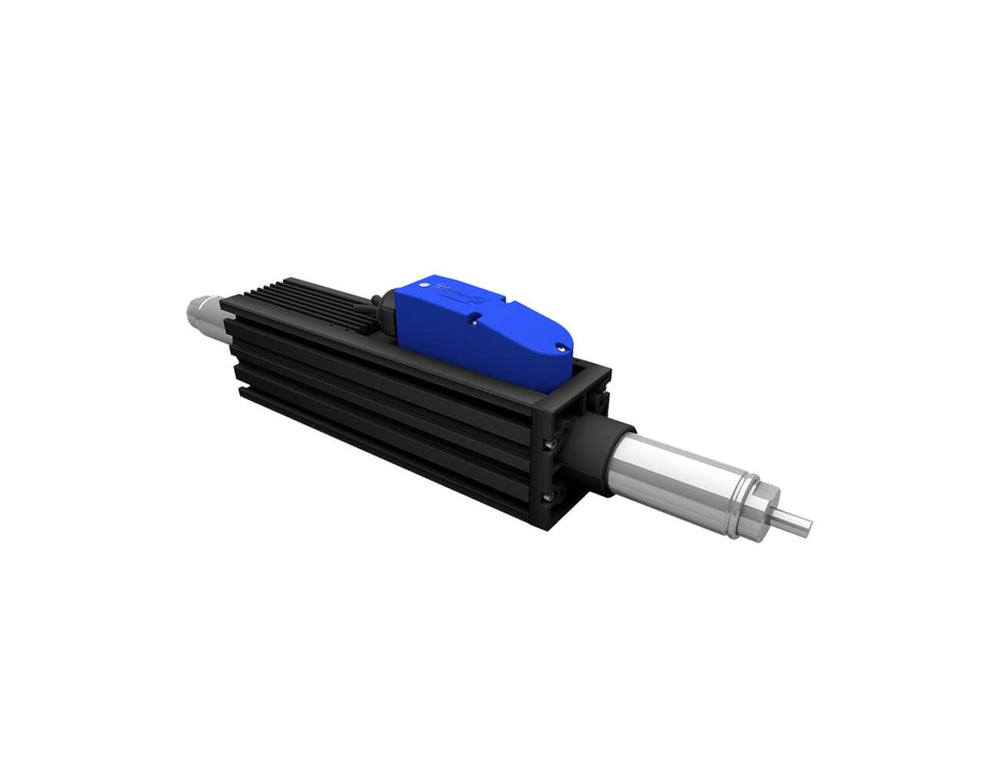

Dunkermotoren XTA/XTB 38 SERIES Linear Motor
The Dunkermotoren XT38 Series Linear Motor is a high-performance solution for dynamic and precise motion control, designed for demanding industrial and automation applications. With continuous stall forces up to 255 N and peak forces reaching 1860 N, it is ideal for applications requiring high speed, reliability, and accuracy. Key features inclu...
Read MoreThe Dunkermotoren XT38 Series Linear Motor is a high-performance solution for dynamic and precise motion control, designed for demanding industrial and automation applications. With continuous stall forces up to 255 N and peak forces reaching 1860 N, it is ideal for applications requiring high speed, reliability, and accuracy.
Key features include high-resolution sin/cos feedback for precise positioning, with repeatability of ±25 microns and absolute accuracy of ±400 microns. The XT38 Series is available in actuator (XTA) and component (XTB) configurations, providing flexibility to meet diverse application needs. The actuator version features integrated polymer bearings, while the component version supports compact installations. With an IP67 protection rating, the XT38 Series ensures durability even in harsh environments.
This linear motor achieves speeds of up to 6 m/s and accelerations as high as 391 m/s², making it suitable for high-performance automation, material handling, and robotics. Maintenance-free operation and integrated feedback systems further enhance its reliability and control precision.
For industries requiring advanced linear motion solutions, the Dunkermotoren XT38 Series Linear Motor offers outstanding speed, precision, and adaptability.
Show Less
Features
- Peak Force: 744N ~ 1860N
- Peak Current: 20 Apk
- Continuous Stall Force: 120.1N ~ 255N
- Stroke / Hub mm: 33 - 318
- Peak Acceleration: 250~391 m/s2
Selection Table
| Type | XTA/XTB 3804 | XTA/XTB 3806 | XTA/XTB 3808 | XTA/XTB 3810 | |
|---|---|---|---|---|---|
| Peak force @ 25°C ambient for 1 sec | N | 744 | 1116 | 1488 | 1860 |
| Peak current @ 25°C ambient for 1 sec | Apk | 20 | |||
| Continuous stall force @ 25°C ambient | N | 120.1 | 168.2 | 212.7 | 255 |
| Continuous stall current @ 25°C ambient(1) | Arms | 2.28 | 2.13 | 2.02 | 1.94 |
| Force constant (sine commutation)(1) | N/Arms | 52.6 | 78.9 | 105.2 | 131.5 |
| Maximum working voltage | VDC | 325 | |||
| Peak acceleration (STA)(2) | m/s² | 250 | 313 | 357 | 391 |
| Maximum speed (STA)(3) | m/s | 4.7 | 3.8 | 3.1 | 2.6 |
| Peak acceleration (STB)(4) | m/s² | 244 | 276 | 295 | 307 |
| Maximum speed (STB)(5) | m/s | 6 | 4.2 | 3.3 | 2.7 |
| Repeatability | µm | 25 | |||
| (1) By means of appropriate cooling plate or fan, the continuous force be increased by up to 15% | |||||
| (2) Based on a moving thrust rod with 33 mm stroke, no payload. | |||||
| (3) Based on a moving thrust rod with triangular move over maximum stroke, no payload. | |||||
| (4) Based on a moving forcer and no payload. | |||||
| (5) Based on a moving forcer with triangular move over maximum stroke, no payload. | |||||
