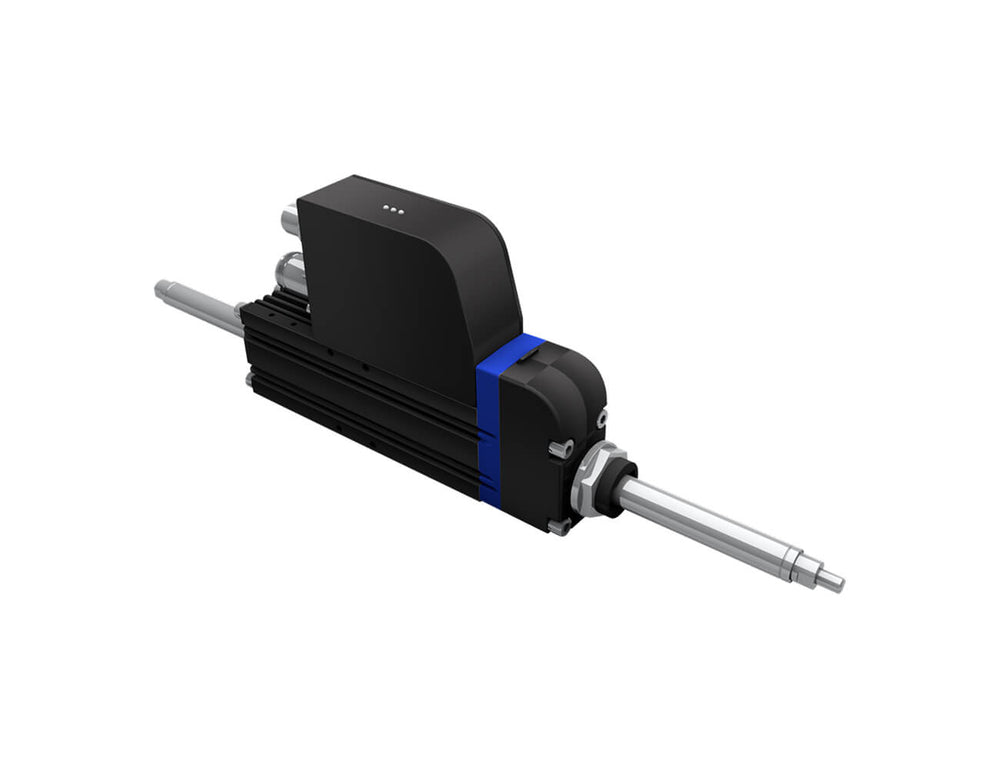

Dunkermotoren SCA11 SERIES Linear Motor
The Dunkermotoren SCA11 Series Linear Motor is a highly dynamic and precise linear motion solution, designed for applications demanding exceptional speed, accuracy, and reliability. With peak forces reaching 91.9 N and continuous stall forces up to 19.28 N, this motor is ideal for automation, medical devices, and material handling systems. Key f...
Read MoreThe Dunkermotoren SCA11 Series Linear Motor is a highly dynamic and precise linear motion solution, designed for applications demanding exceptional speed, accuracy, and reliability. With peak forces reaching 91.9 N and continuous stall forces up to 19.28 N, this motor is ideal for automation, medical devices, and material handling systems.
Key features include an integrated programmable amplifier, providing flexibility in position and force control modes. The SCA11 offers repeatability of ±6 microns and absolute accuracy of ±350 microns, ensuring high precision in operation. With peak accelerations up to 422 m/s² and speeds up to 5.6 m/s, the motor delivers outstanding performance in dynamic applications. Designed for harsh environments, the SCA11 features a robust IP67-rated construction, making it both maintenance-free and resistant to demanding conditions.
This linear motor supports multiple control options, including CANopen interfaces, and integrates advanced feedback mechanisms for enhanced reliability and control. Its compact design and vibration resistance make it a versatile choice for a wide range of industrial and medical applications.
For robust, high-speed, and precision linear motion, the Dunkermotoren SCA11 Series Linear Motor offers unparalleled performance and adaptability.
Show Less
Features
- Peak Force: 46N ~ 92N
- Peak Current: 12 Apk
- Continuous Stall Force: 6.02N ~ 19.28N
- Peak Acceleration: 359 - 422m/s2
- Range of Motion: 14~271 mm
- Reduced cabling complexity
- Flexible position control
- Modular compatibility with Dunkermotoren’s gearboxes, controllers, encoders, and brakes
Selection Table
| Type | SCA1104 - XI | SCA1108 - XI | SCA1112 - XI | SCA1116 - XI | |
|---|---|---|---|---|---|
| Peak force @ 25°C ambient for 1 sec | N | 46 | 53 | 68.9 | 91.9 |
| Peak current @ 25°C ambient for 1 sec | Apk | 12 | |||
| Continuous stall force @ 25°C ambient | N | 6.02 | 10.83 | 15.18 | 19.28 |
| Continuous stall current @ 25°C ambient* | Arms | 1.11 | 1.73 | 1.87 | 1.78 |
| Power supply | VDC | max. 60 | |||
| Control voltage | VDC | 24 | |||
| Peak acceleration (SCA)(1) | m/s² | 407 | 359 | 378 | 422 |
| Maximum speed (SCA)(2) | m/s | 5.3 | 5.6 | 5.4 | 4.7 |
| Repeatability | µm | 6 | |||
| Based on a moving thrust rod with 27 mm stroke and no playload.(1) | |||||
| Based on a moving thrust rod with triangular move over maximum stroke, no playload.(2) | |||||
