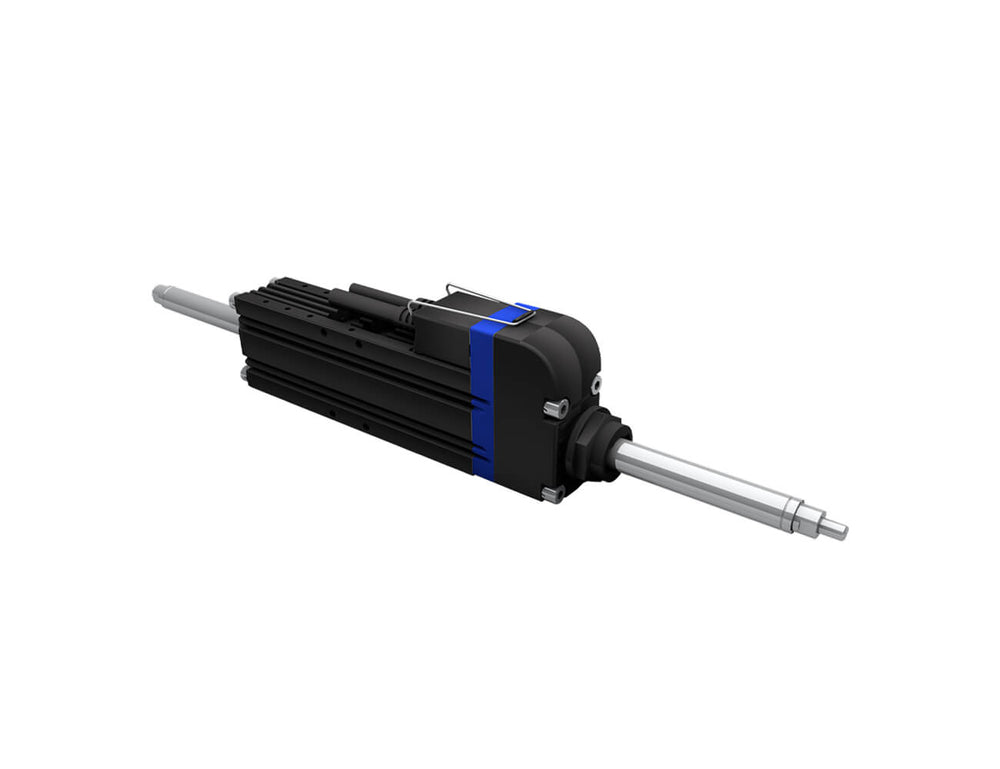

Dunkermotoren ST11 SERIES Linear Motor
The Dunkermotoren ST11 Series Linear Motor is a compact and precise solution, delivering exceptional linear motion performance for high-speed, high-accuracy applications. With peak forces reaching 91.9 N and continuous stall forces up to 19.28 N, the ST11 Series is ideal for automation, medical devices, and robotics. Key features include an inte...
Read MoreThe Dunkermotoren ST11 Series Linear Motor is a compact and precise solution, delivering exceptional linear motion performance for high-speed, high-accuracy applications. With peak forces reaching 91.9 N and continuous stall forces up to 19.28 N, the ST11 Series is ideal for automation, medical devices, and robotics.
Key features include an integrated high-resolution sin/cos feedback sensor for repeatability of ±6 microns and absolute accuracy of ±350 microns. Available in actuator (STA) and component (STB) versions, the ST11 Series offers flexibility to meet diverse application requirements. The actuator version includes high-performance polymer bearings, while the component version is optimized for compact installations. The motor’s robust IP67-rated design ensures durability and resistance to demanding environments.
The ST11 Series supports speeds of up to 5.6 m/s (STA version) and accelerations as high as 422 m/s², making it a high-dynamic solution for precision applications. With low maintenance and integrated feedback for enhanced control, the ST11 Series is a versatile choice for industries requiring reliable linear motion systems.
For advanced linear motion performance and adaptability, the Dunkermotoren ST11 Series Linear Motor delivers precision, speed, and durability.
Show Less
Features
- Peak Force: 46N ~ 91.9N
- Peak Current: 12 Apk
- Continuous Stall Force: 6.02N ~ 19.28N
- Peak Acceleration: 359~422 m/s2
- Maximum Speed: 4.7~5.6 m/s
Selection Table
| Type | STA/STB 1104 | STA/STB 1108 | STA/STB 1112 | STA/STB 1116 | |
|---|---|---|---|---|---|
| Peak force @ 25°C ambient for 1 sec | N | 46 | 53 | 68.9 | 91.9 |
| Peak current @ 25°C ambient for 1 sec | Apk | 12 | |||
| Continuous stall force @ 25°C ambient | N | 6.02 | 10.83 | 15.18 | 19.28 |
| Continuous stall current @ 25°C ambient | Arms | 1.11 | 1.73 | 1.87 | 1.78 |
| Force constant (sine commutation) | N/Arms | 5.42 | 6.26 | 8.12 | 10.83 |
| Maximum working voltage | VDC | 75 | |||
| Peak acceleration (STA)(1) | m/s² | 407 | 359 | 378 | 422 |
| Maximum speed (STA)(2) | m/s | 5.3 | 5.6 | 5.4 | 4.7 |
| Peak acceleration (STB)(3) | m/s² | 155 | 119 | 109 | 120 |
| Maximum speed (STB)(4) | m/s | 7.5 | 7.7 | 6 | 5 |
| Repeatability | µm | 6 | |||
| Based on a moving thrust rod with 14 mm stroke and no playload.(1) | |||||
| Based on a moving thrust rod with triangular move over maximum stroke, no playload.(2) | |||||
| Based on a moving forcer and no playload.(3) | |||||
| Based on a moving forcer with triangular move over maximum stroke, no playload.(4) | |||||
| By means of appropriate cooling plate or fan, the continuous force is increased by up to 50%.* | |||||
