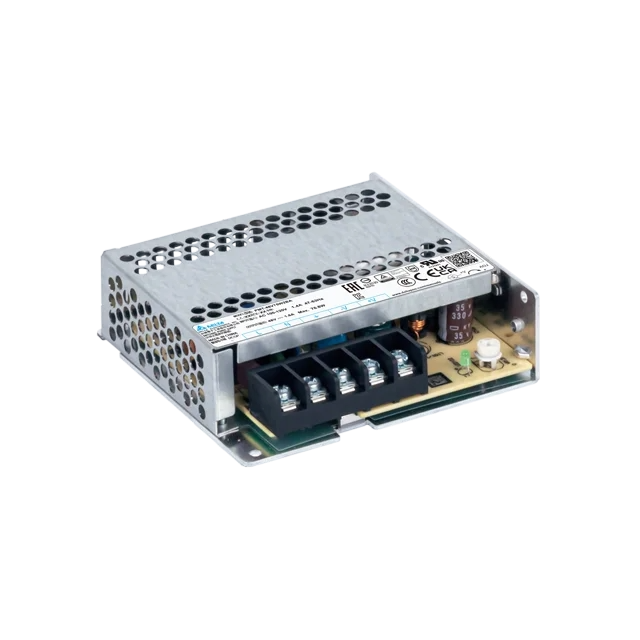

Delta Electronics PMT2 75W Series Panel Mount AC/DC Power Supply
The Delta PMT2 75W Series is a range of compact, high-performance panel mount power supplies designed for industrial control, automation, instrumentation, and information technology equipment where higher power density, safety, and reliability are required. With a slim 30 mm low-profile enclosure and universal AC input (90–264 Vac), the PMT2 75W...
Read MoreThe Delta PMT2 75W Series is a range of compact, high-performance panel mount power supplies designed for industrial control, automation, instrumentation, and information technology equipment where higher power density, safety, and reliability are required.
With a slim 30 mm low-profile enclosure and universal AC input (90–264 Vac), the PMT2 75W Series integrates easily into space-constrained control panels and enclosures. Multiple regulated DC output voltage options allow the series to support a wide range of industrial and OEM applications.
Designed for continuous operation in demanding environments, PMT2 75W power supplies operate from -30°C to +70°C with fanless convection cooling. High efficiency and ultra-low no-load power consumption (<0.3 W) help reduce heat build-up and energy loss inside electrical cabinets.
Certified to IEC/EN/UL 62368-1 and additional global safety and EMC standards, the PMT2 75W Series delivers dependable, compliant power. Backed by Powerbox Australia’s local support, it provides a reliable AC-DC power conversion solution for modern industrial systems.
Show Less
Features
- Universal AC Input: 90–264 Vac, 50/60 Hz
- Output Voltage Options: 12, 15, 24, 30, 36 and 48 Vdc
- Rated Output Current: Up to 6.0 A (model dependent)
- Wide Operating Temperature: -30°C to +70°C (-40°C cold start support)
- High Efficiency & Low Standby Power: <0.3 W no-load consumption
- Fanless Convection Cooling: Silent, maintenance-free operation
- Adjustable Output Voltage: Supports voltage trimming and cable-drop compensation
- Comprehensive Protections: Overload, over-temperature, short-circuit and over-voltage protection
- Status Indication: Green DC OK LED
- Safety & EMC Compliance: IEC/EN/UL 62368-1, IEC 60335-1, IEC 61558-2-16, AS/NZS CISPR 32
- High Reliability: MTBF >700,000 hours (Telcordia SR-332)

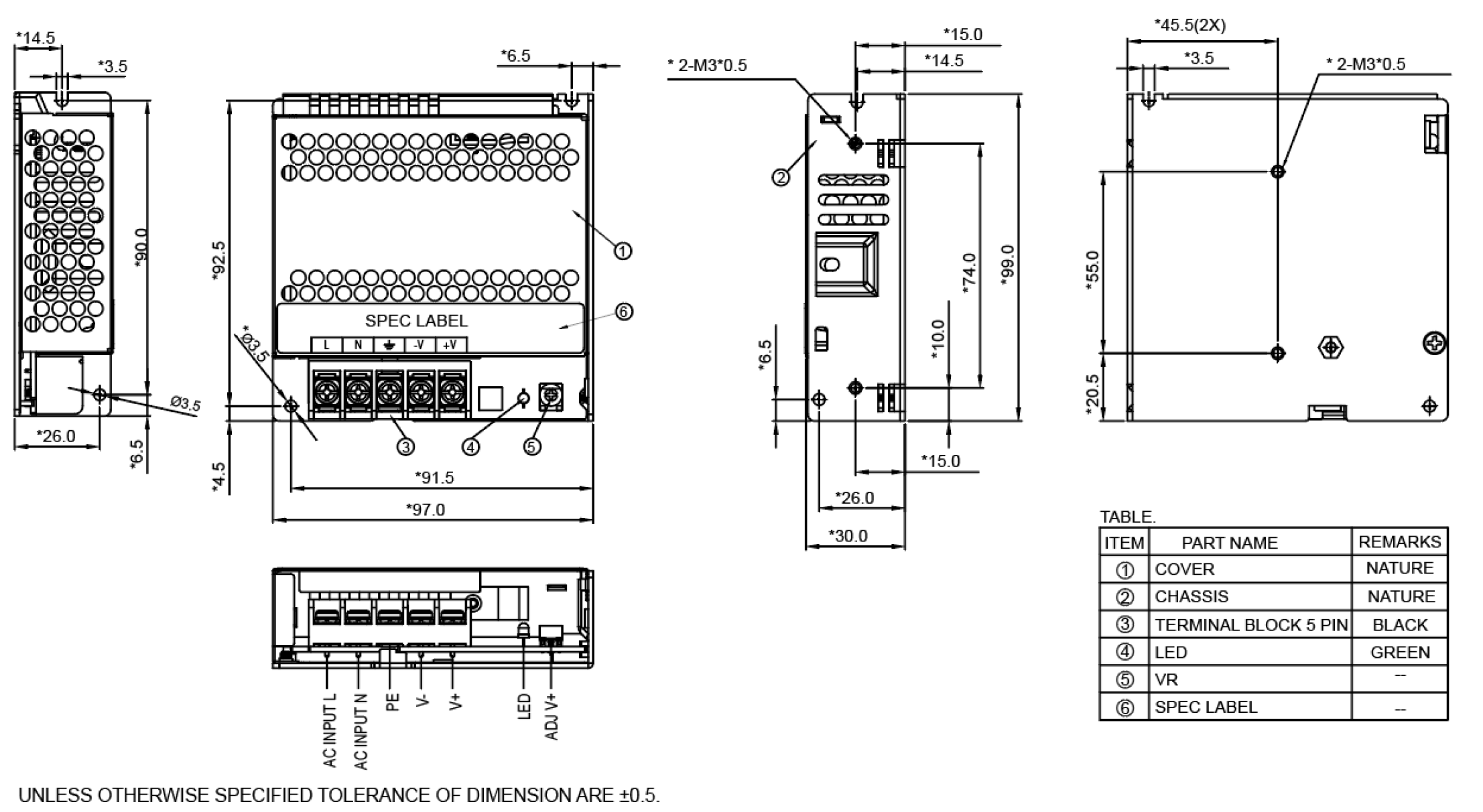

Technical Drawings
Warranty & Returns
Warranty periods vary by product. Please refer to the Powerbox Warranty Policy for the applicable coverage period against manufacturing defects from date of purchase. For returns and RMA requests, please visit our RMA support page or contact our support team directly.
