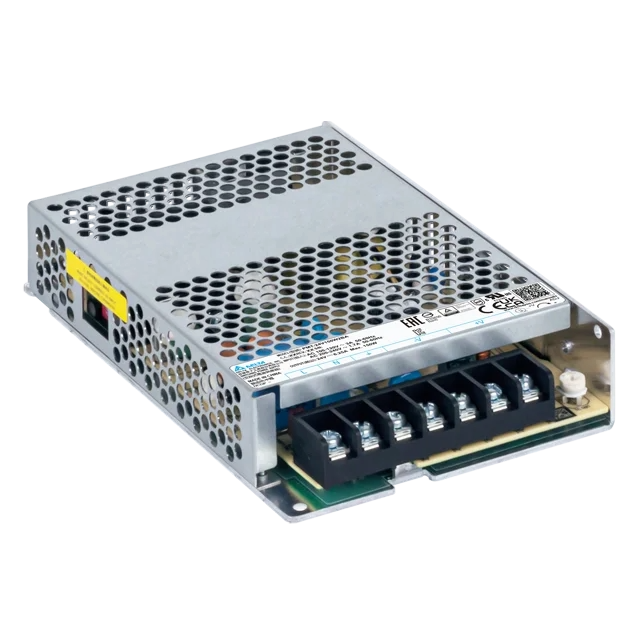

Delta Electronics PMT2 150W Series Panel Mount AC/DC Power Supply

The Delta PMT2 150W Series is a range of low-profile, high-reliability panel mount AC-DC power supplies designed for industrial control, automation, instrumentation, and ITE applications where space, safety compliance, and long service life are critical. Featuring a slim 30 mm enclosure and selectable universal AC input (90–132 Vac / 180–264 Vac...

Read More

The Delta PMT2 150W Series is a range of low-profile, high-reliability panel mount AC-DC power supplies designed for industrial control, automation, instrumentation, and ITE applications where space, safety compliance, and long service life are critical.

Featuring a slim 30 mm enclosure and selectable universal AC input (90–132 Vac / 180–264 Vac), the PMT2 150W Series integrates easily into compact electrical panels and OEM systems. Single-output DC voltage options allow flexibility across a wide range of industrial loads while maintaining clean, regulated power delivery.

Built for demanding environments, the PMT2 150W Series operates from -30°C to +70°C with fanless convection cooling and supports -40°C cold start, ensuring reliable performance in harsh conditions. High efficiency, combined with ultra-low no-load power consumption (<0.5 W), helps reduce internal heat and improve system longevity.

Certified to IEC/EN/UL 62368-1, IEC/EN 60335-1, and IEC/EN 61558-1 / -2-16, the PMT2 150W Series meets global safety and EMC requirements for industrial and commercial equipment. Supported locally by Powerbox, it provides a dependable, long-life power solution for modern control and automation systems.

Show Less
Unit Price
—
or send a quick enquiry about this product only
Delta_Electronics_PMT2_150W_Series
Features
  • Selectable AC Input Range: 90–132 Vac / 180–264 Vac via onboard switch
  • Output Voltage Options: 12, 15, 24, 30, 36 and 48 Vdc
  • Rated Output Current: Up to 12.5 A (model dependent)
  • 150 W Single Output Panel Mount Power Supplies
  • Low-Profile Design: Only 30 mm height for compact enclosures
  • Wide Operating Temperature: -30°C to +70°C (-40°C cold start support)
  • High Efficiency & Low Standby Power: < 0.5 W no-load consumption
  • Fanless Convection Cooling: Quiet, maintenance-free operation
  • Adjustable Output Voltage: Supports voltage trimming and cable-drop compensation
  • Industrial Safety & EMC Compliance: IEC/EN/UL 62368-1, IEC/EN 60335-1, IEC/EN 61558-1 / -2-16, AS/NZS CISPR 32
  • Status Indication: Green DC OK LED
  • High Reliability: MTBF >700,000 hours (Telcordia SR-332)
